Wholesale Epistar Chip 1 Watt High Power LED With Star Radiator Heatsink
P04W64101100-028
1 piece
Quantity
High power led 1W 3W warm white/natural white / cool white
Product Description
Notice:
- All 3W RGBY Led is with the Epileds Chip From Taiwan. This is the Good Chip for Single Color series. (RED / GREEN / BLUE / YELLOW / AMBER / ORANGE / PINK / PURPLE / UV)
- Remarks: All Led is fit for 185 degree Reflow Soldering. If you need the led for 260 degree reflow soldering ,pls point out to us. We will select the silicon lens for your LED.
- Warranty: All Led with 2 years warranty.
Features:
- High quality,high brightness,low-attenuation
- Good quality raw material. Long lifespan.
- Large light emitting angle
- 2 years warranty
- High consistency in light color,high cost-effective
Applications:
All general Indoor lighting and outdoor lighting:

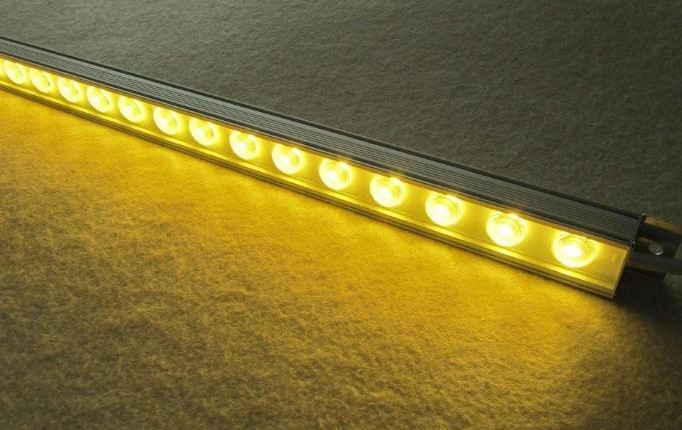

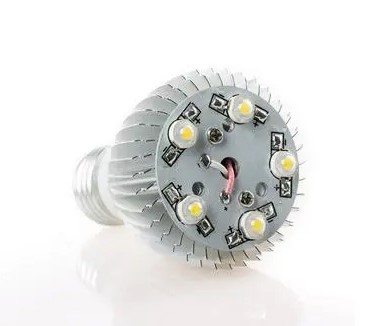

Led Spotlight , Led bulb , under water lamp , under ground light , led fluorescent tube , Led ceiling light , Led down light , Led garden light , Led decorative light , Led street light , high power led bay light , Led flood light , Led projector, Led dancing light , Led surgery light , Led desk light , Led tunnel light , Led aquarium light , plant growing light , led sign board , Led traffic light and etc.
Detail:
Name | High power led |
Power | 1W / 1-3W |
Chip | Epistar chip / Sanan chip / Epileds chip / Bridgelux chip |
Chip Size | 33mil |
Lumens | 100-150lm/w , 180-260lm 3W |
Voltage | 3.0-3.6V |
Current | 350mA / 700mA |
Color temp. | 2800-3500K 4000-4500K , 6000-6500K / other single color or RGB, RGBW |
Emitting color | Warm white / Natural white / Cool white |
