Super Brigh high lumen 0.1W 0.2W 0.3W 0.5W 1W smd 2835 led chip
R2835UWC20
1 roll
Quantity
  • Color Temperature(CCT):6000-6500K
  • Input Voltage(V):3.0-3.6V
  • Warranty(Year):2-Year
  • Type:SMD LED
  • Support Dimmer:NO
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):100
  • Lifespan (hours):10000
  • Working Time (hours):10000
  • Product Weight(kg):0.001
  • Chip Material:AlGaInP
  • Emitting Color:COOL WHITE
  • Luminous Intensity:20-22lm
  • Luminous Flux(lm):20-22lm
  • Optical Attenuation(%):3
  • Power:0.2, 0.2w
  • Power Dissipation:0.2
  • Viewing Angle(°):120
  • Color Rendering Index(Ra):80
  • Color Temperature:2800-3500k/4000-4500k/6000-6500k
  • Operating Temperature(℃):-40 - 120
  • Storage Temperature(℃):-40 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Goodchip
  • Name:Super Brigh high lumen 0.1W 0.2W 0.3W 0.5W 1W smd 2835 led chip
  • Max current:60mA
  • Voltage:3.0-3.6v
  • Lifespan:30000 hours
  • Warranty:2years
  • Size:2.8*3.5*0.8mm
  • Package:15000pcs/roll
  • Luminous flux:20-22lm, 22-24lm, 24-26lm, 26-28lm, 28-30lm
  • Certification:RoHS

Super Brigh high lumen 0.1W 0.2W 0.3W 0.5W 1W smd 2835 led chip

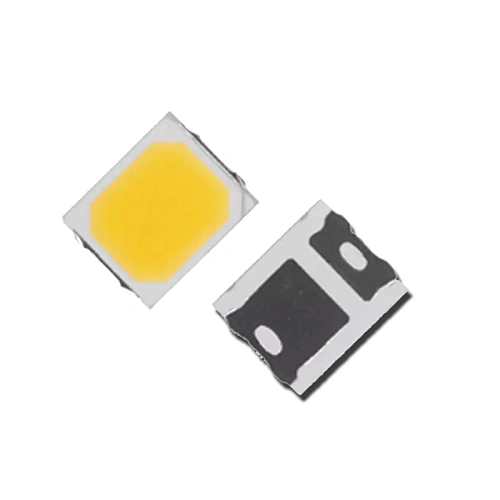

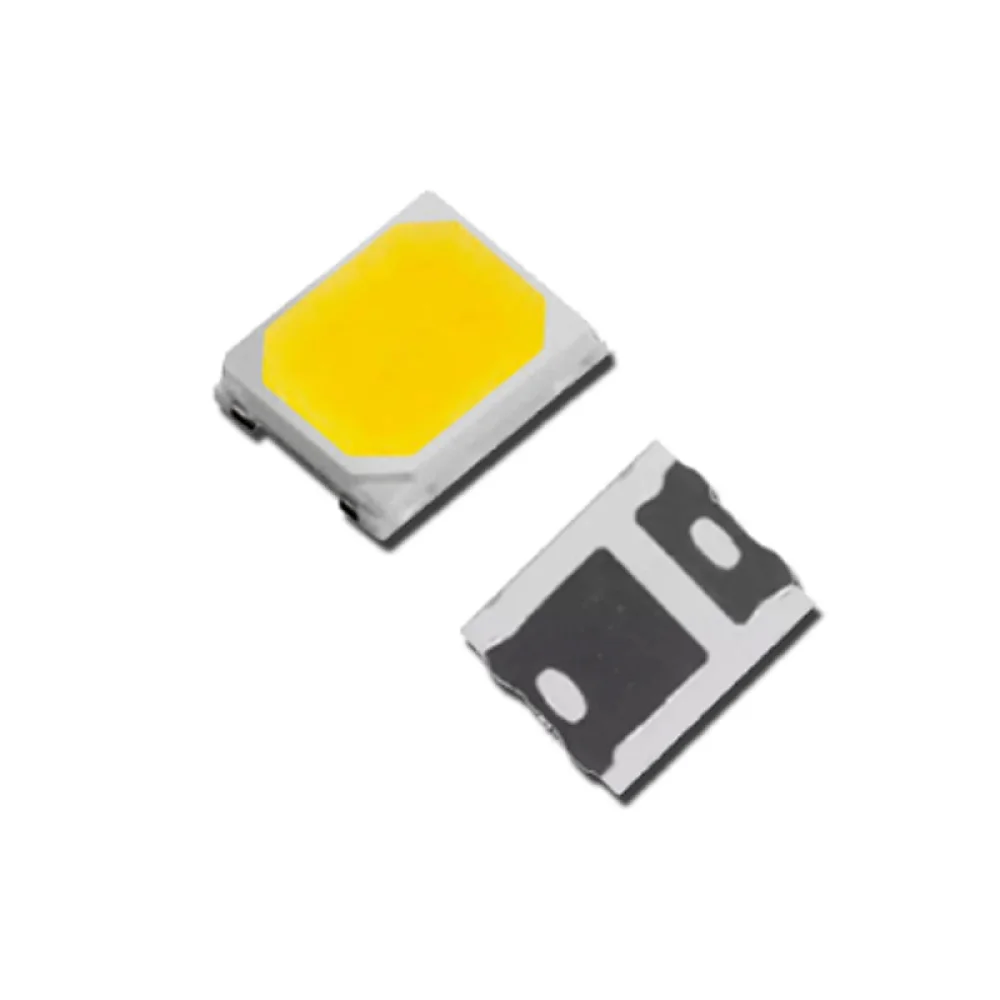

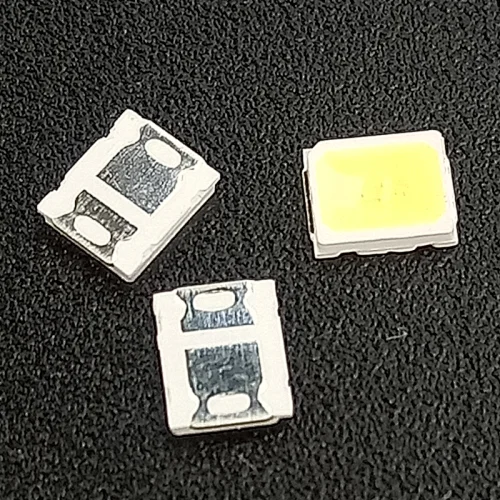

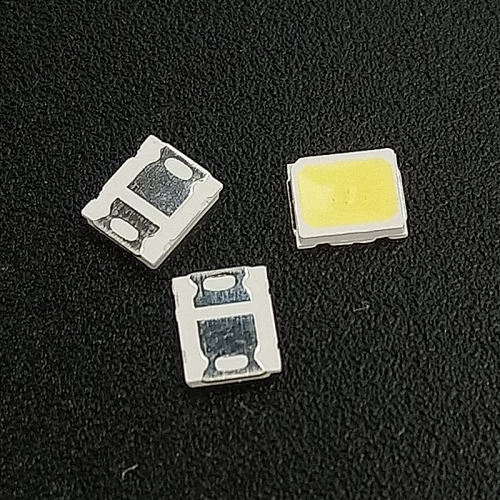

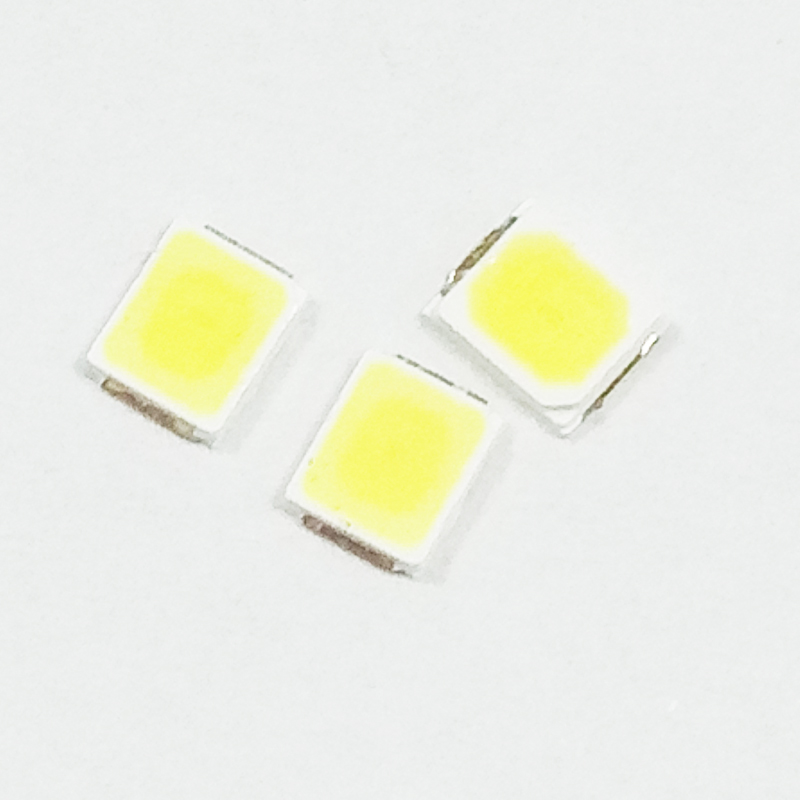

Product Picture



Smd 2835 0.2W white LED Features

 1. Chip Matrrial: InGaN

2. Lens Color: Yellow Diffused

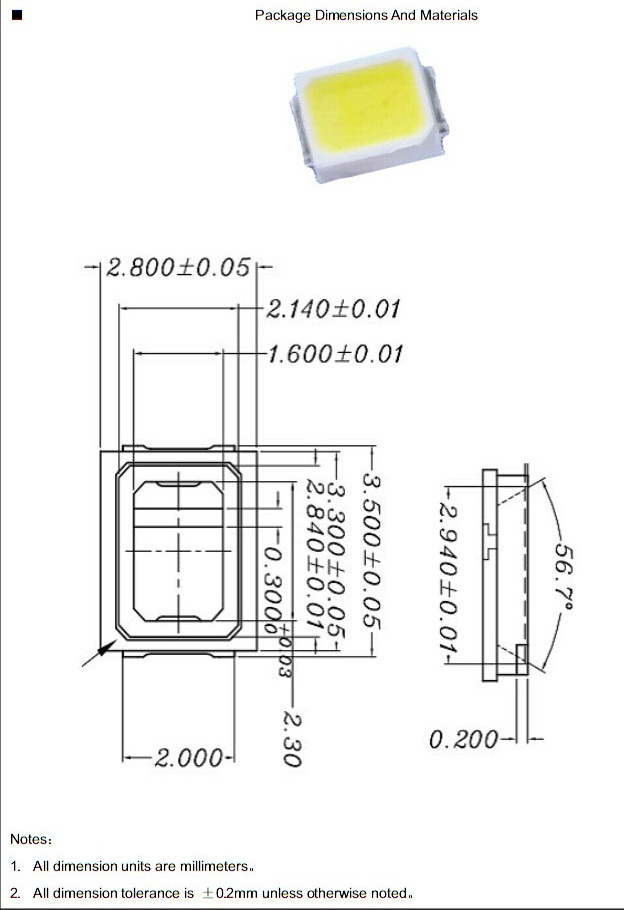

3. 3.5*2.8*0.8mm (2835) standard package

4. Suitable for all SMT assembly methods

5. Compatible with infrared and vapor phase reflow solder process

6. Compatible with automatic placement equipment

Application

LED Panel light

LED bulb light

LED tube light

LED strip light

LED spot light etc.

Packaging & Shipping

The packing way of product Super Brigh high lumen 0.1W 0.2W 0.3W 0.5W 1W smd 2835 led chip:

Inner packing: by roll, 16000pcs/roll

Outer packing: by cartons.
