0.5W RED 2835 SMD LED
R2835URC20
Quantity

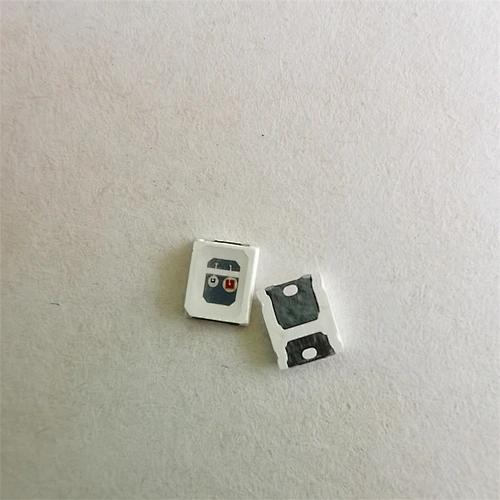

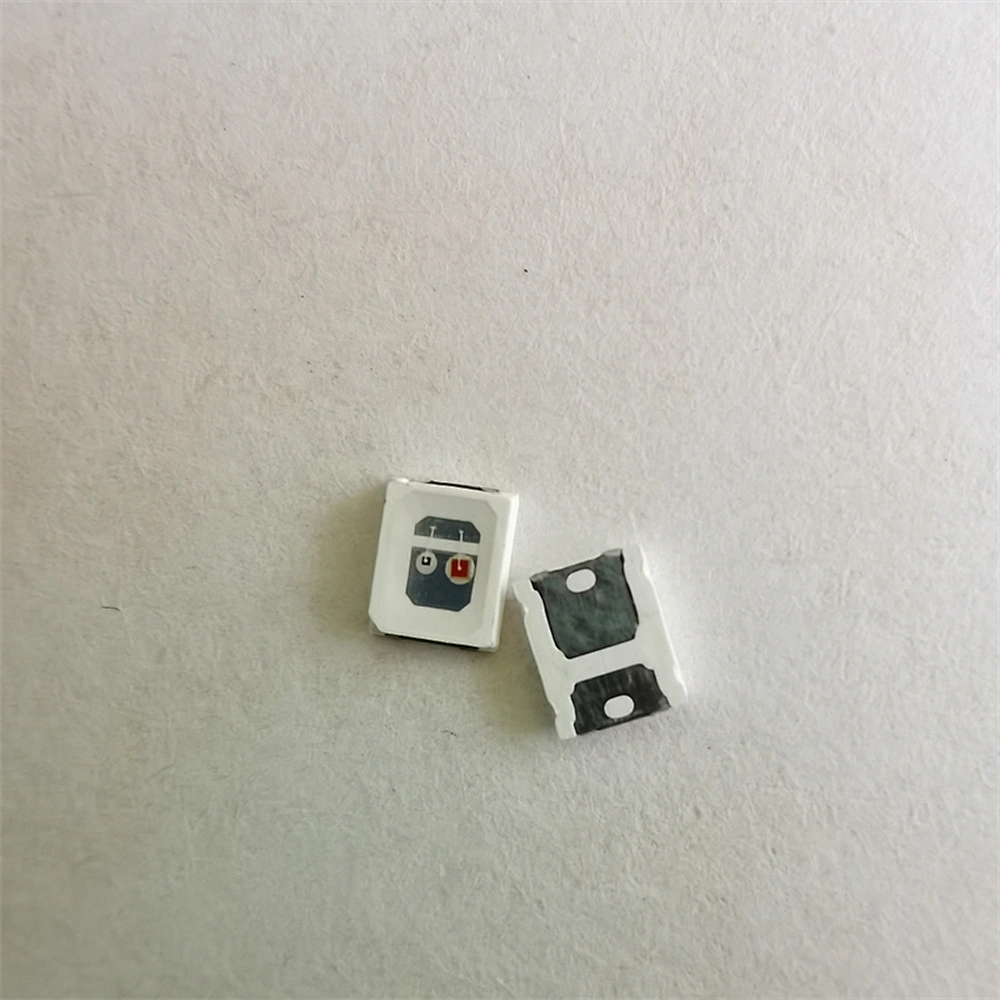

SMD LED 2835 in red SMD LED 2835 in red 0.5W RED 2835 SMD LED 2835

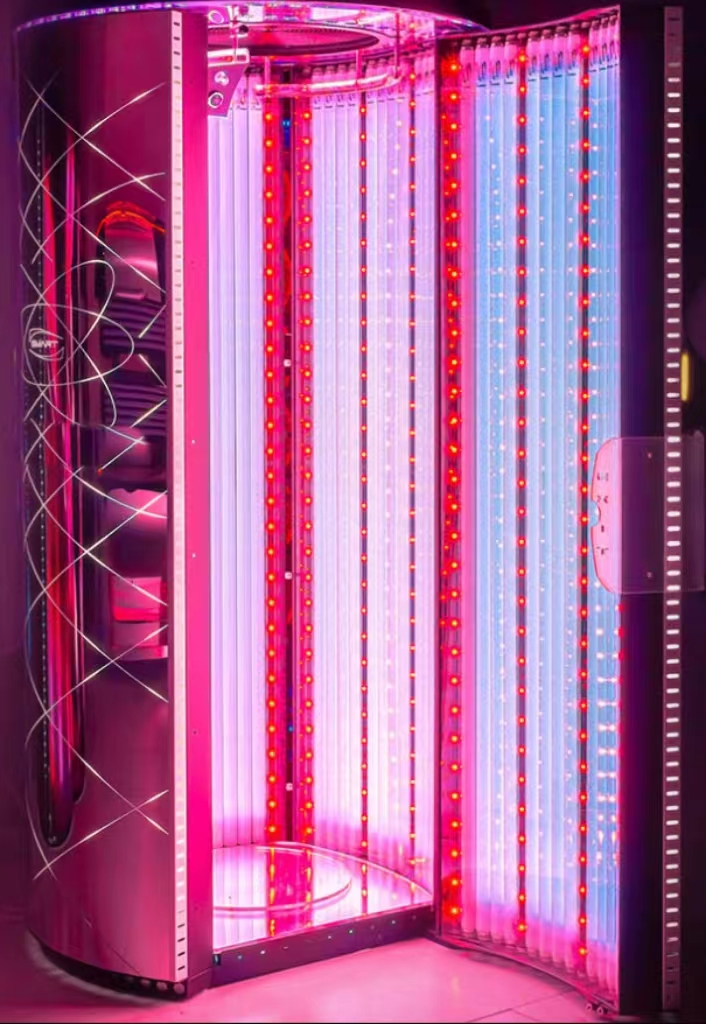

High quality 0.5W RED 2835 SMD LED 2835 for red light therapy/sun bed/tanning bed
| Item | Symbol | Test condition | Min | Max | Unit |
| Forward voltage | VF | IF=150mA | 2.0 | 2.6 | V |
| Reverse Current | IR | VR=5V | 10 | μA | |
| Luminous intensity | IV | IF=60mA | 20 | 25 | lm |
| Spectrum line half width | Δλ | IF=60mA | 620 | 625 | nm |
| Viewing Angle | 2θ1/2 | IF=60mA | 120 | 140 | deg |
Our LEDs diodes use good material, Taiwan Epileds or Epistar chips and pure gold wire.
