| Type | Power(w) | Part NO. | CCT | Max current(mA) | Luminous Flux(lm) | Voltage | View Angle | CRI(Ra) |
| SMD LED 2835 | 0.2W | R2835UWC20 | 6000-6500K 4000-4500K 2800-3200K | 50mA | 20-22LM | 3.0-3.4V | 120 | 70 |
R2835UWC21 | 60mA | 21-23LM | 3.0-3.4V | 120 | 70 | |||
| R2835UWC24 | 60mA | 24-26LM | 3.0-3.4V | 120 | 70 | |||
| R2835UWC26 | 60mA | 26-28LM | 3.0-3.4V | 120 | 70 | |||
| 0.3W | R2835UWC33 | 6000-6500K 4000-4500K 2800-3200K | 90mA | 33-36LM | 3.0-3.4V | 120 | 80 | |
| 0.5W | R2835UWC50 | 6000-6500K 4000-4500K 2800-3200K | 150mA | 50-55LM | 3.0-3.4V | 120 | 80 | |
| R2835UWC55 | 150mA | 55-60LM | 3.0-3.4V | 120 | 80 | |||
| R2835UWC60 | 30mA | 60-70LM | 18V | 120 | 80 | |||
| R2835UWC65 | 60mA | 65-75LM | 9V | 120 | 80 | |||
| 1W | R2835UWC100 | 6000-6500K 4000-4500K 2800-3200K | 300mA | 100-110LM | 3.0-3.6V | 120 | 80 | |
| R2835UWC110 | 150mA | 110-120LM | 6V | 120 | 80 | |||
| R2835UWC120 | 100mA | 120-130LM | 9V | 120 | 80 | |||
| R2835UWC120H | 30mA | 102-130LM | 36V | 120 | 80 | |||
| R2835UWC130 | 1000mA | 130-140LM | 9V | 120 | 80 |

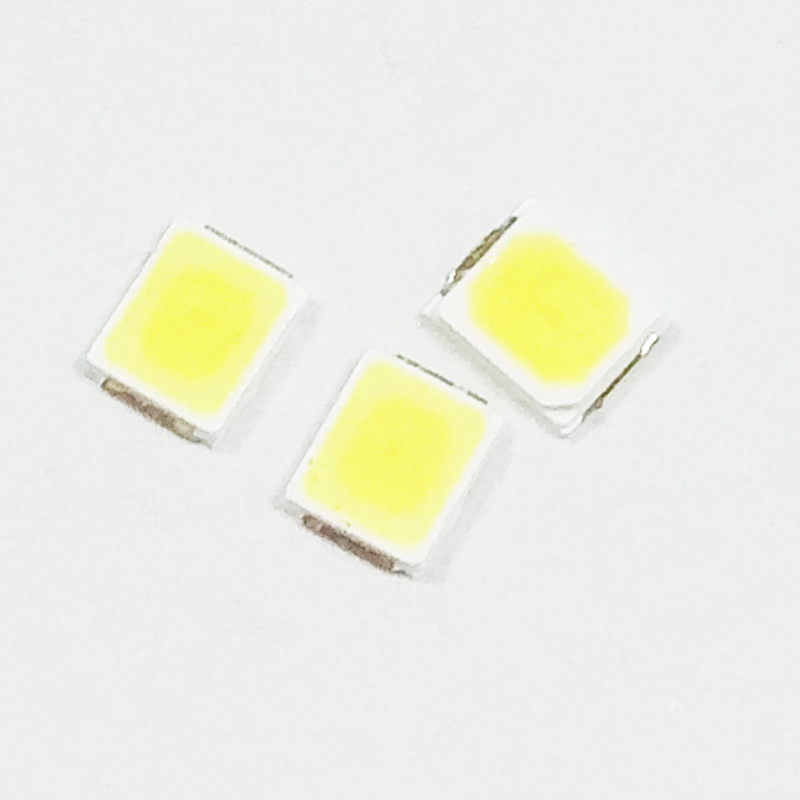

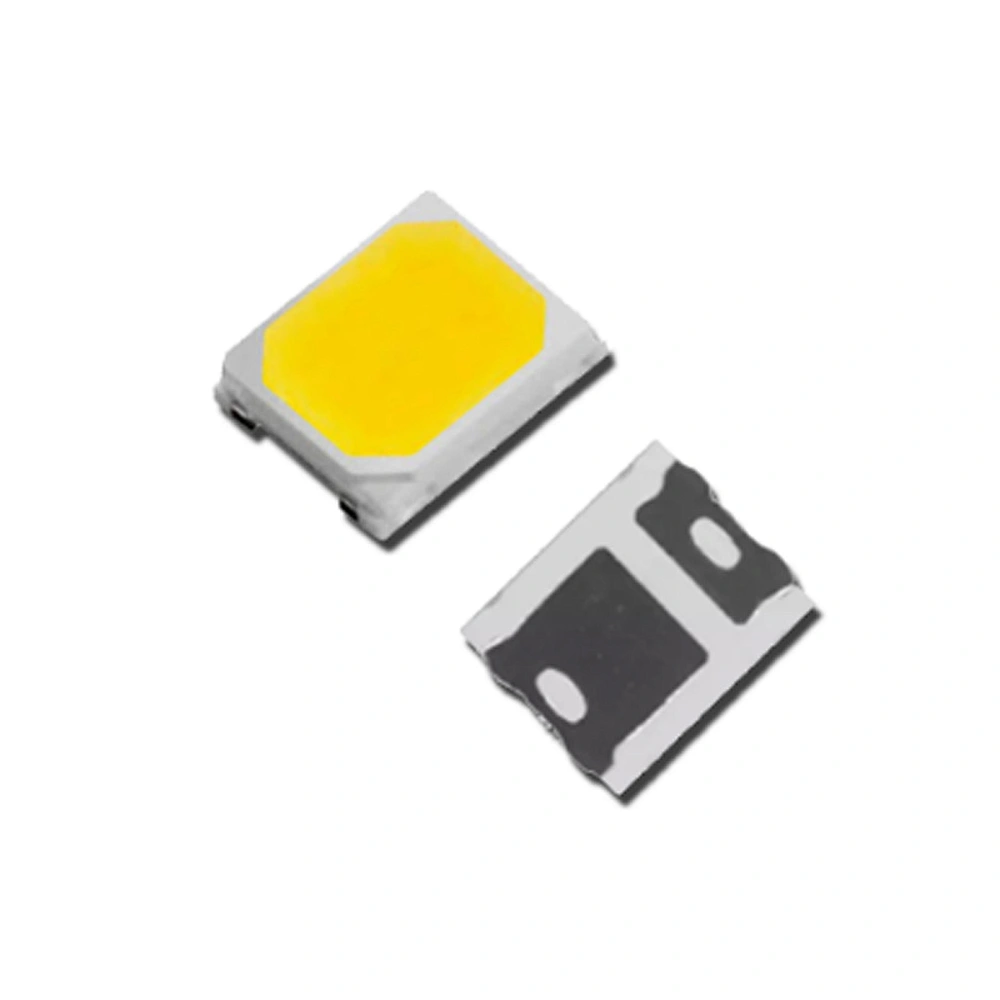

SMD 2835 0.2W LED with Sanan Chip
Our 0.2W SMD 2835 LED series is engineered for cost-sensitive applications requiring reliable performance. Available in a wide range of色温 (2800-3200K, 4000-4500K, 6000-6500K) and brightness grades from 20-28lm (50-60mA), it delivers stable luminous output with a standard CRI of 70. The compact 2.8*3.5mm package and 120° viewing angle make it ideal for:
LED strip lights (non-dimmable)
Channel letter lighting modules
Backlighting for advertising light boxes
General indicator and decorative lighting
Key Advantage: Excellent price-to-performance ratio, long operational life (＞30,000 hours), and direct compatibility with standard 2835 reflow soldering processes.
SMD 2835 0.3W LED – Enhanced Luminosity with CRI80
Stepping up in performance, our 0.3W SMD 2835 LED (90mA drive current) offers 33-36lm output while maintaining high efficiency. Upgraded to CRI 80, this series ensures more natural color rendering, making it suitable for:
High-quality flexible LED tapes for residential ambiance
Commercial lighting fixtures (downlights, panel lights)
Display cabinet lighting where color accuracy matters
Hotel and hospitality interior projects
Key Advantage: Balanced luminous efficacy (110lm/W) with improved color rendering, powered by Sanan chips for superior stability and consistency across batches.
SMD 2835 0.5W LED – Versatile Mid-Power Solution
Designed for higher brightness requirements, the 0.5W series operates at 150mA and delivers 50-70lm depending on the specific grade (R2835UWC50/55/60/65). With options for both CRI70 and CRI80, this series offers flexibility for:
Outdoor weather-proof LED strips (with proper encapsulation)
Architectural accent lighting
T8 LED tube retrofits
High-brightness signage backlighting
Special Configurations: This series includes high-voltage chip options (9V/18V) for longer strip runs with reduced voltage drop, a critical feature for large-scale engineering projects. Lifespan up to 50,000 hours.
SMD 2835 1W LED – High Lumen Output for Focused Applications
For applications demanding maximum brightness from a compact source, our 1W SMD 2835 LED series delivers an impressive 100-140lm (300mA drive current). Maintained at CRI80, it excels in:
High-lumen LED spotlight bulbs
Garden and landscape lighting fixtures
Commercial downlights requiring intense illumination
Specialized task lighting
High-Voltage Variants: Available in 6V, 9V, and 36V configurations to suit different driver designs and series-parallel circuit requirements. All models feature Sanan's advanced flip-chip technology for superior heat dissipation and lumen maintenance.
