High power 4*3W 5050 rgbw led diode
4X3W-5050RGBW
1 piece
High power 4*3W 5050 rgbw led diode
Quantity

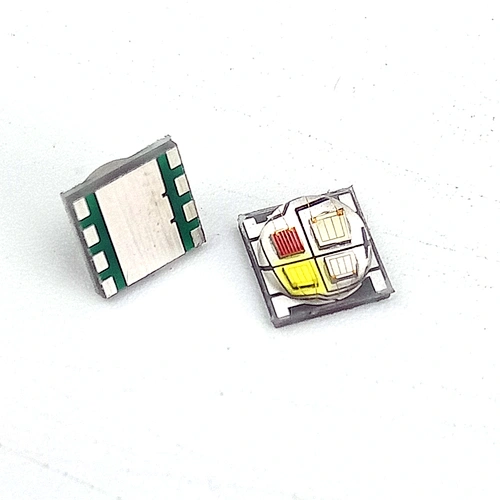

High power 4*3W full color 5050 rgbw led diode
| LED Item | 4X3X-5050rgbw |
| Type | SMD RGB LED |
| Chip Material | AlGaInP |
| Brand Name | Cspring |

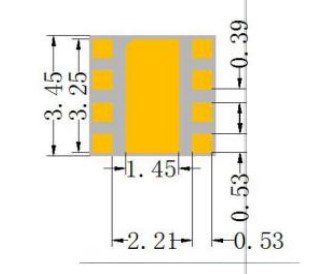

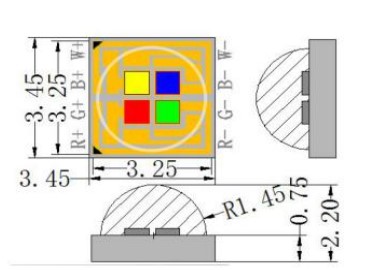

| Size | 5.0*5.0*3.0mm |
| Luminous Flux(lm) | R:70-90Lm G:140-160Lm B:30-50Lm W: 160-220Lm |

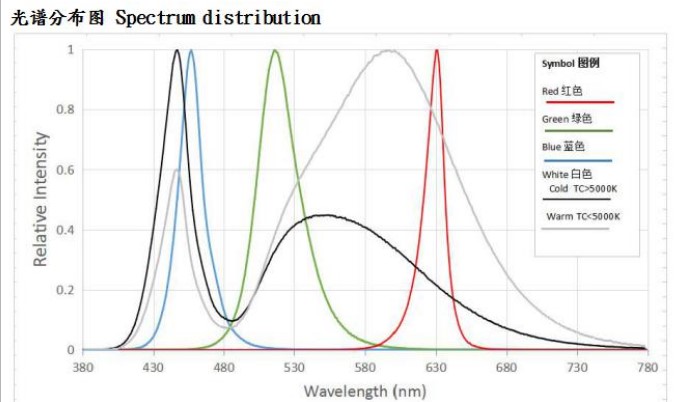

| Wave Length | R620-625nm G: 520-525nm B: 460-465nm |

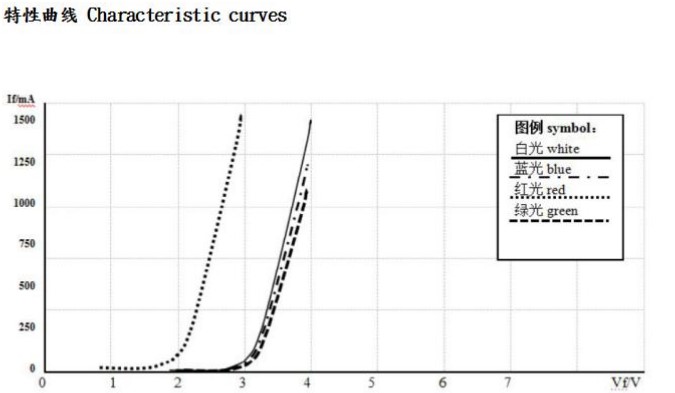

| Forward Voltage | R:1.8-2.6V G: 2.8-3.6V B: 2.8-3.6V W: 2.8-3.6V |
| Peak Forward Curren | 700mA |
| Power | 4*1-3W |
| Color Rendering Index(Ra) | 70 |
| Viewing Angle(°) | 140 |
| Operating Temperature(℃) | -25 - 65 |
| Storage Temperature(℃) | -35 - 105 |
| Place of Origin | Guangdong, China |
| Lifespan | 30000-50000 Hours |
| Certification | CE, RoHS |
| Warranty | 2 years |
Features: full color 5050 rgbw led diode high power led diode full color 5050 rgbw led diode high power led diode full color 5050 rgbw led diode high power led diode
• Well-known chip material, Epileds
• 99.99% gold wire bonding
• Full color spot, well color consistency

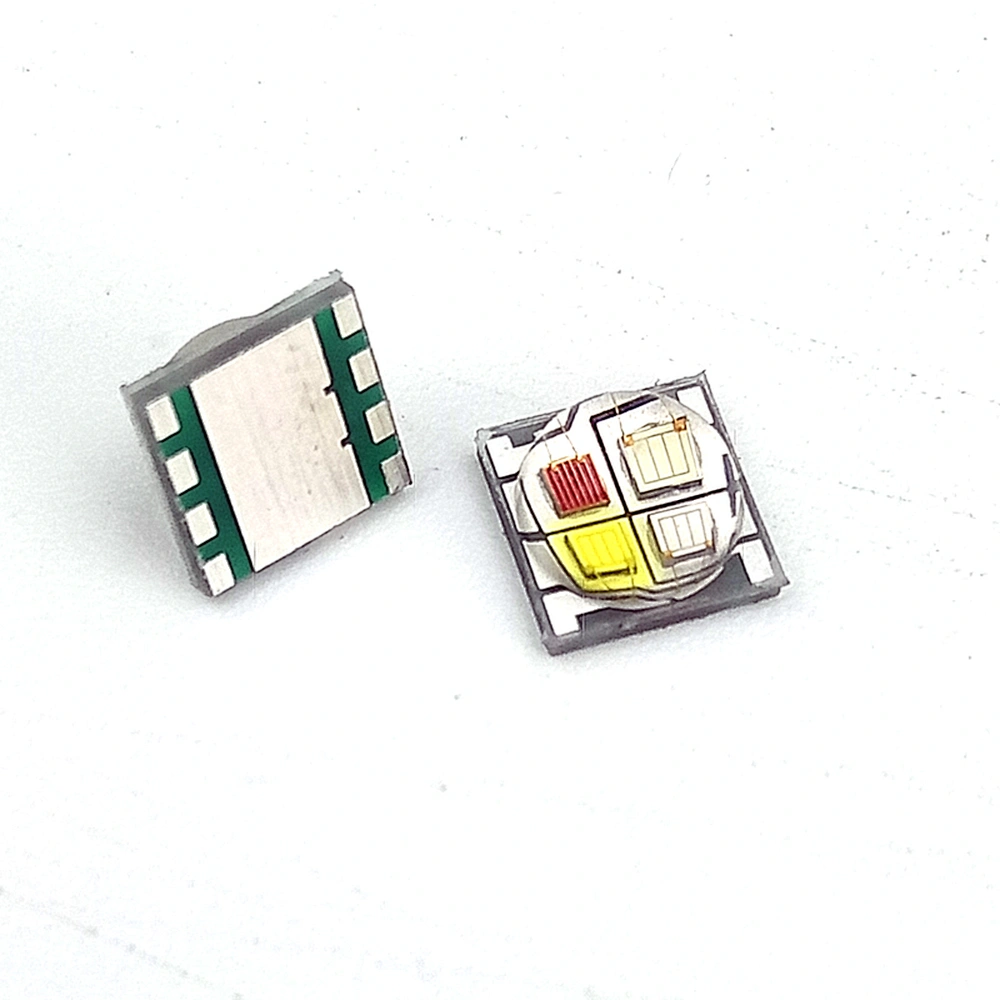

• R, G, B, W four color in one Package
• High flux per LED
• Low-temp & lead free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
• No UV full color 5050 rgbw led diode high power led diode full color 5050 rgbw led diode high power led diode
