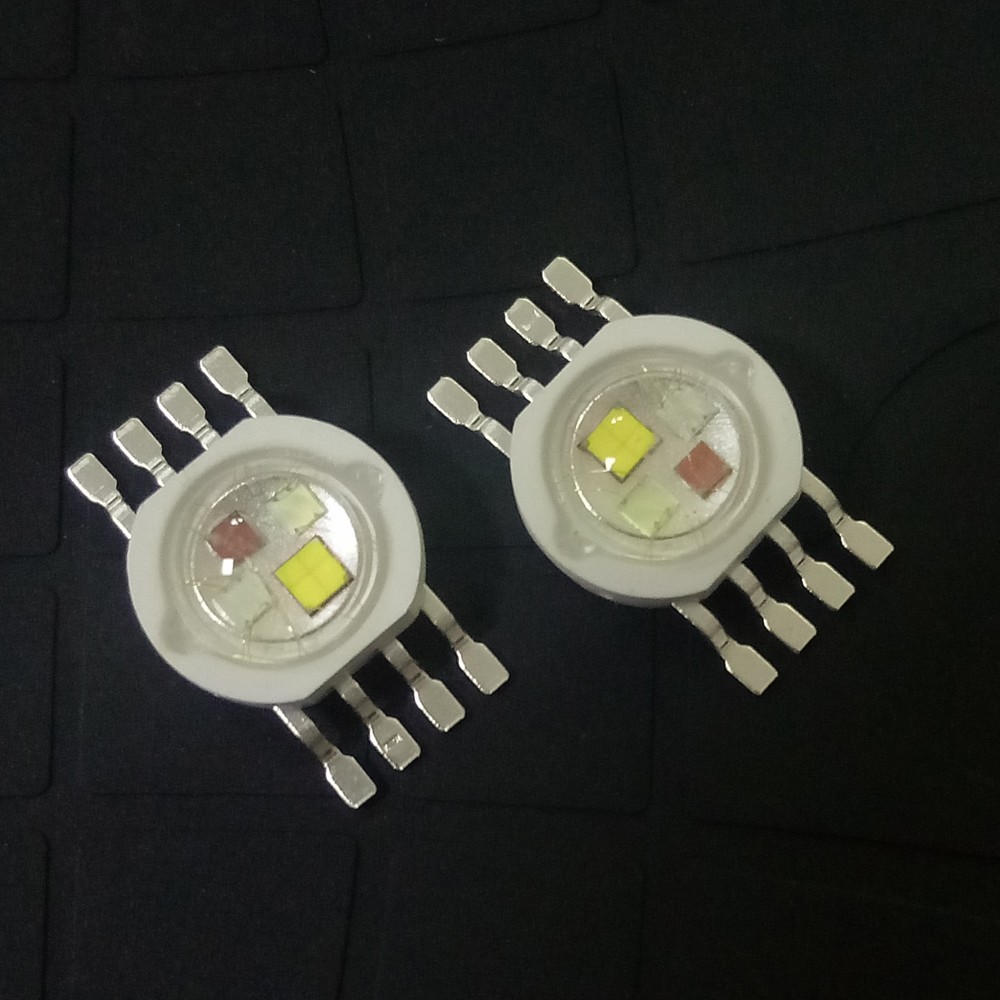

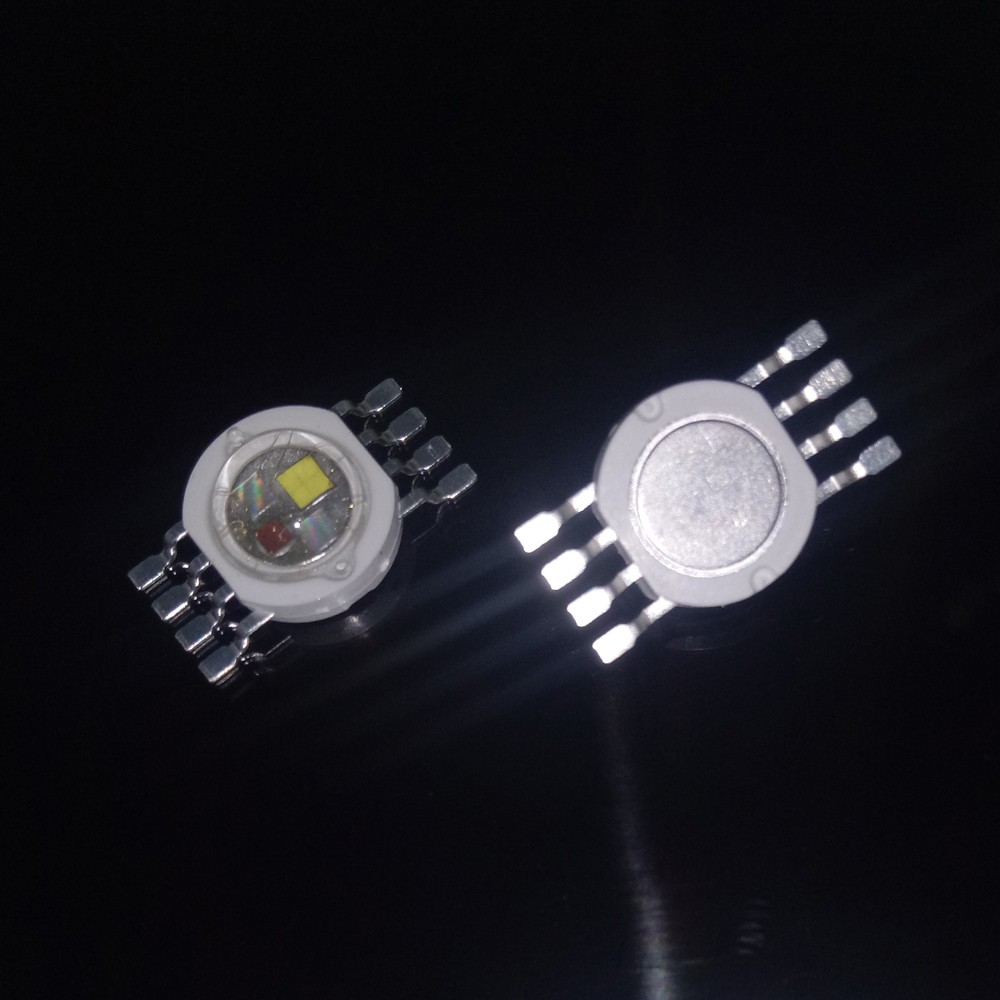

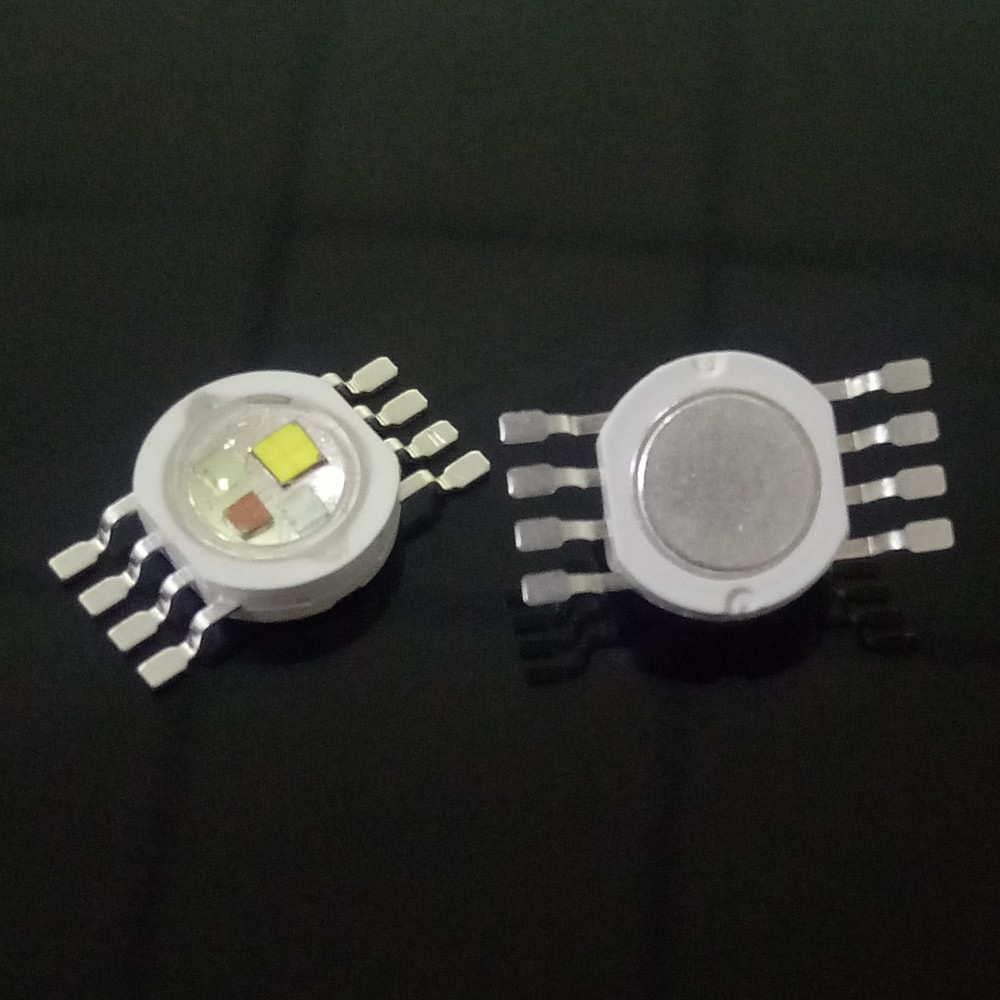

8 leads RGBW 3 W High power LED in RGB / RGBW Color with star heatsink
P08RGBW-4*1/3W
1 piece
Zhongshan / Shenzhen / Guangzhou
Quantity
RGBW 3 W High power LED,RGBW 3 W High power LED,RGBW 3 W High power LED,RGBW 3 W High power LED,RGBW 3 W High power LED,RGBW 3 W High power LED,RGBW 3 W High power LED
8 leads RGBW 3 W High power LED in RGB / RGBW Color with star heatsink
Specification
Voltage | R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V |
Power | 4*1W or 4*3W |
Current | 350mA / 700mA |
Chip size | 30mil, 38mil, 45mil |
Warranty | 2 years |
Wavelength/ Color Temperature | R:620-625NM G:520-525NM B:460-465NM W: 6000-7000K/3000-3500K/4000-4500K |
Legs | 8 legs |
Chip brand | Taiwan Epileds |
Product Description
Product Details

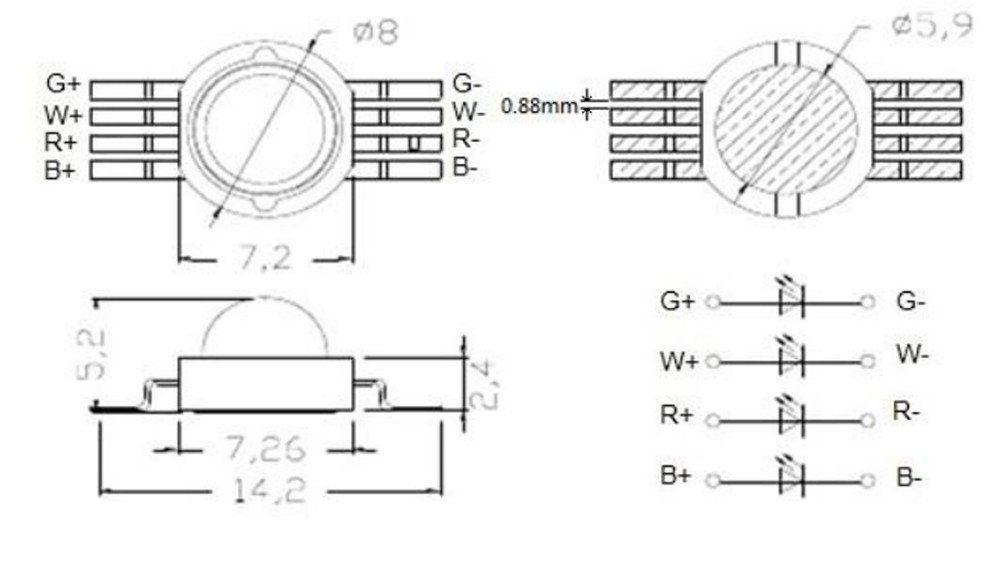

High power RGBW 4*1W and 4*3W LED size
Product Details
1. Use high quality big size chip.
2. Bridgelux, Epistar, Epileds brand can choose.
3. 30mil, 38mil, 45mil chip can choose.
Feature:
1. Using Taiwan chip material
2. 99.99% gold wire bonding
3. Full color spot,well color consistency
4. The unique RGBW design,better dimming
5. Low thermal resistance,short response time
2. 99.99% gold wire bonding
3. Full color spot,well color consistency
4. The unique RGBW design,better dimming
5. Low thermal resistance,short response time
Product Details

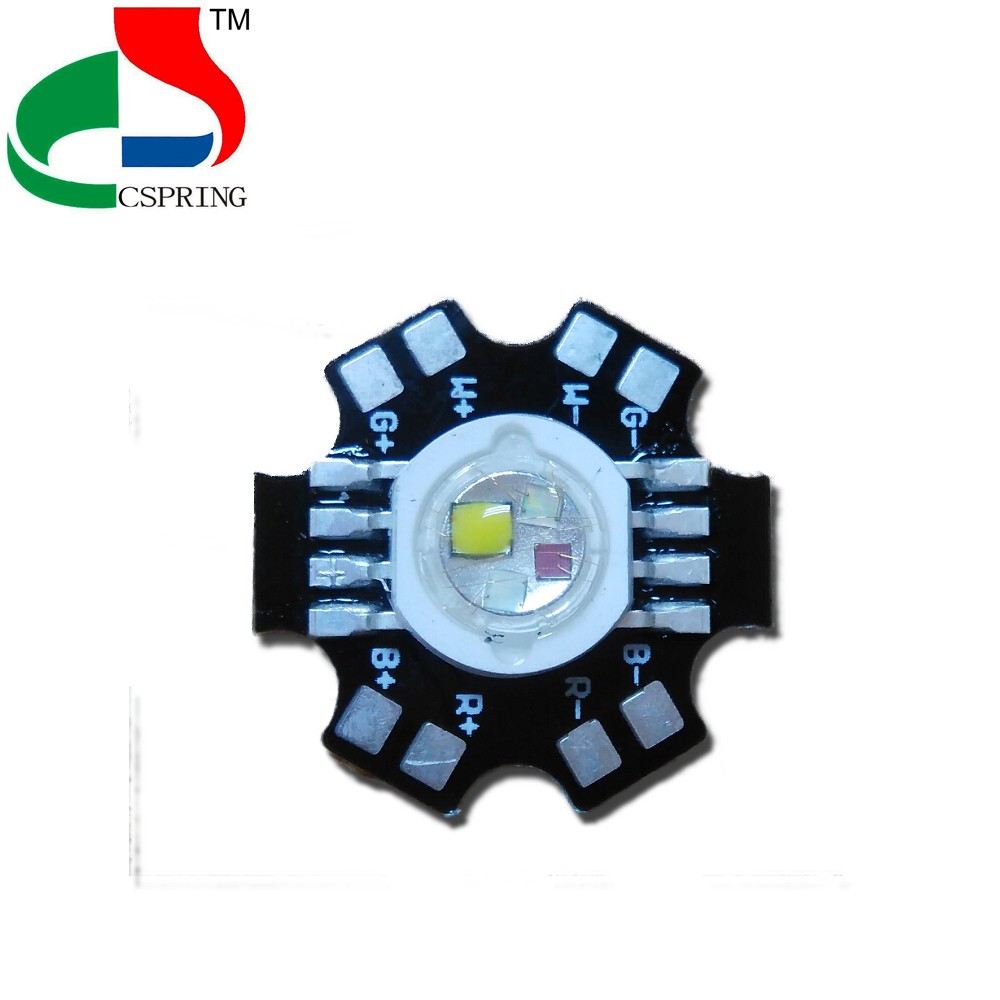

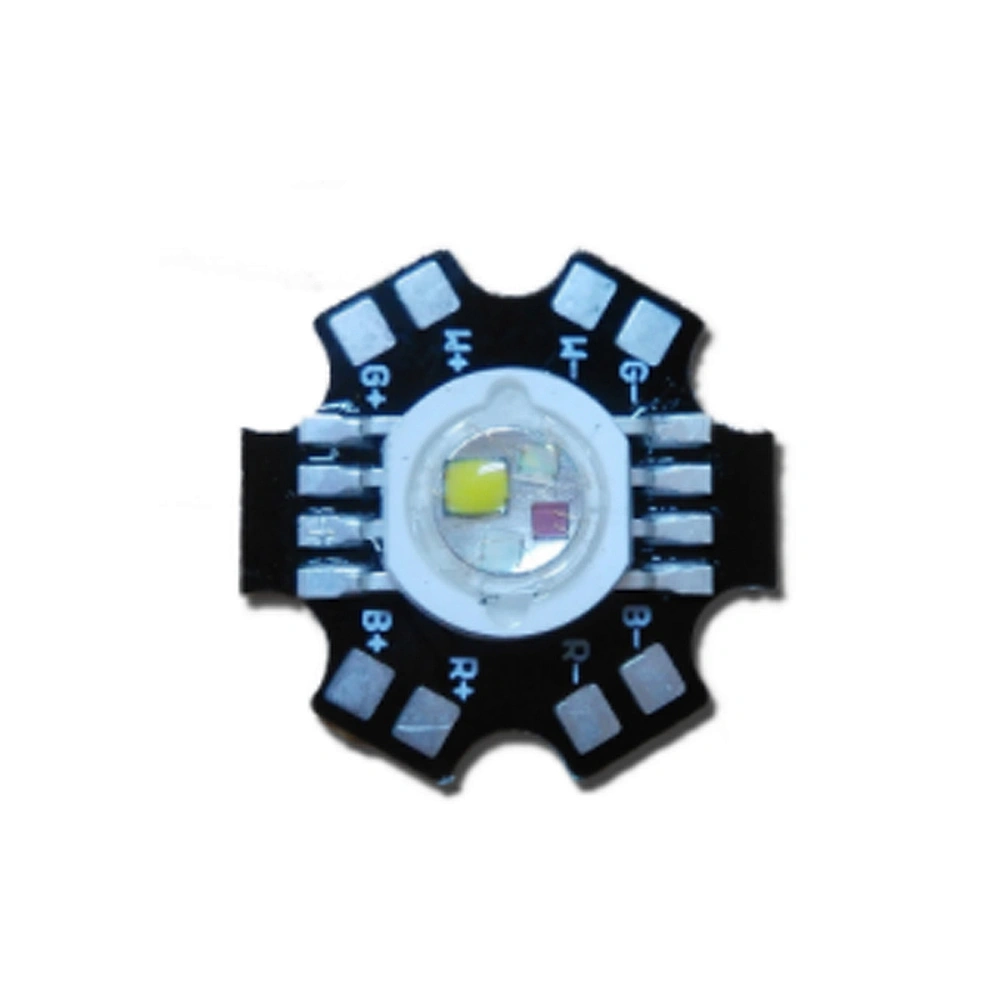

We also provide the High power led with the star pcb board.
Easy to install
