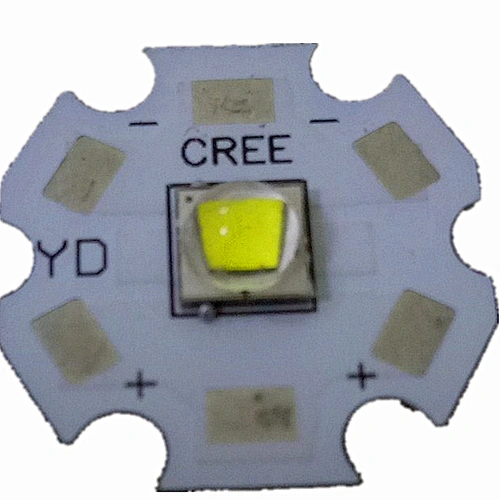

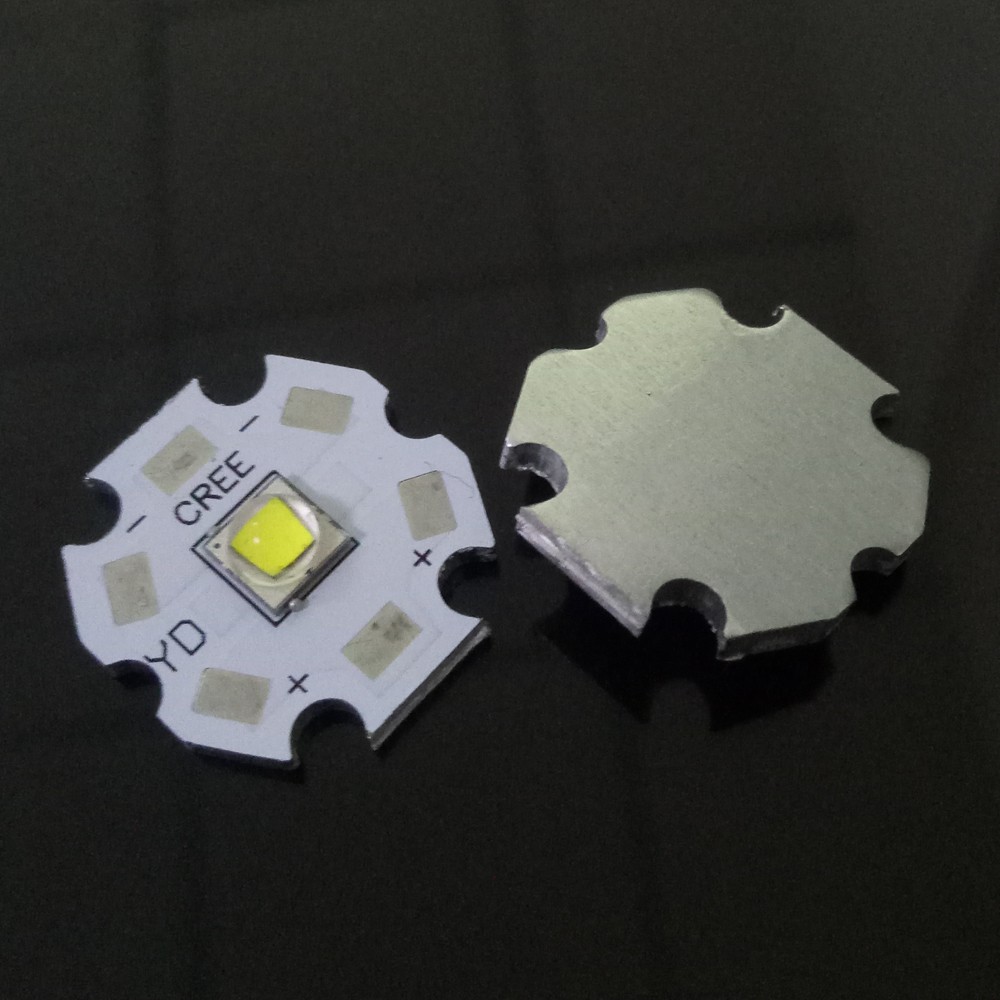

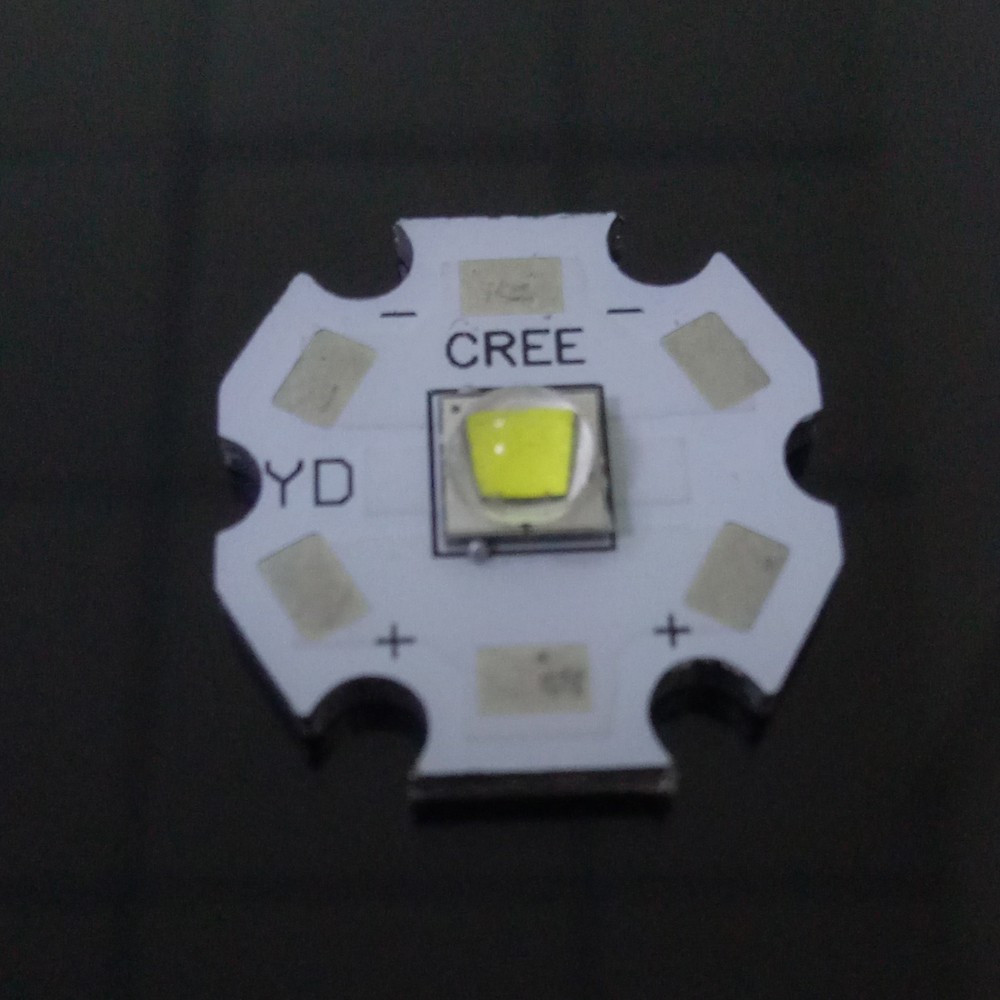

PCB Aluminum Board reflow soldering LED module with High withstand voltage smd 5050 chips
XLampXML2
Quantity
PCB Aluminum Board reflow soldering LED module,PCB Aluminum Board reflow soldering LED module
Name | PCB Aluminum Board reflow soldering LED module with High withstand voltage SMD 5050 chips |
| Size | 5.0*5.0*3.02mm |
voltage | 3.0-3.6v |
power | 10W |
color | White / Warm white/ Cool White/Natural White |
| Luminous Efficacy(lm/w) | 90-100lm/w |
ESD withstand voltage | 8000V |
Reverse | -5V |
| Forward Current | 3000mA |
| ESD withstand voltag | 8000V |
| Color Rendering Index(Ra) | 70 |
| Color Temperature | 2600-3700k/6000K (Daylight Alert) |
| Viewing Angle(°) | 125 |
| Chip Material | AlGaInP |
| Brand Name | Cspring |
| Chip Brand | Taiwan chip |
| Operating Temperature(℃) | -25 - 80 |
| Storage Temperature(℃) | -20 - 60 |
| Warranty | 3 Years |
| Lifespan | 50000H |

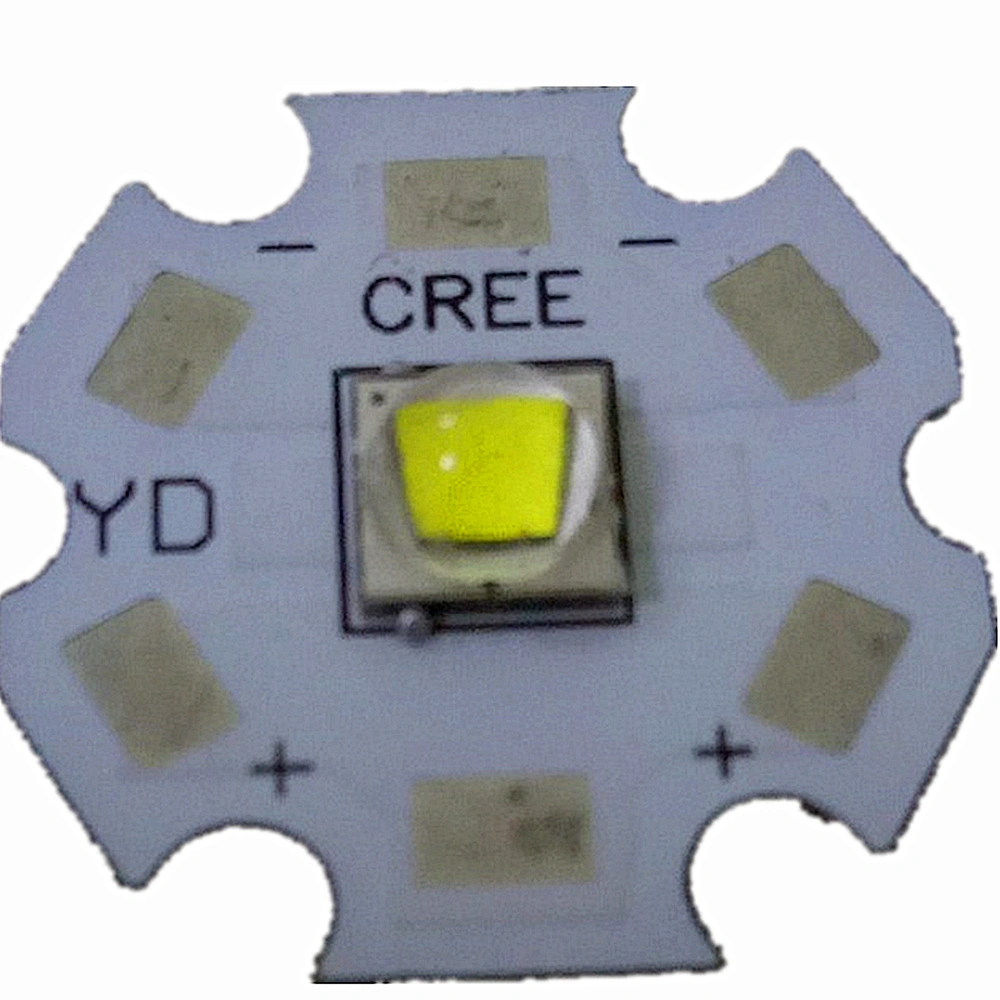

Product details: PCB Aluminum Board reflow soldering LED module
The XLamp ® XM-L2 LeD builds on the unprecedented performance of the original XM-L, increasing lumen output up to 20% while providing a single die Led point source for precise optical control. The XM-L2 LeD shares the same mechanical and optical footprint as the original XM-L, providing a seamless upgrade path and shortened design cycle.
