620nm625nm 635nm red high power led 1w 3w red high power led

Model NO. P3WAR625

Quantity

Contact Now add to cart

Epileds or Epistar chip red high power led

red high power led 635nm 625nm 620nm  635nm 625nm 620nm  635nm 625nm 620nm  635nm​​​​​​​ 625nm 620nm red high power led​​​​​​​ red high power led

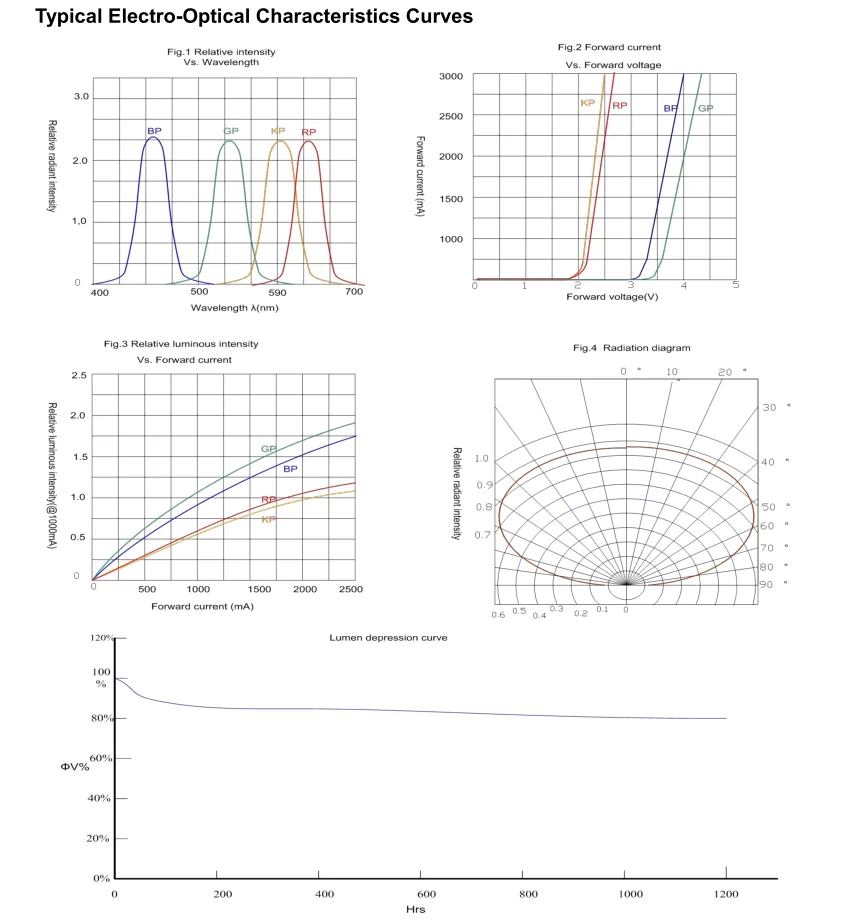

Electrical  /  Optical  Characteristics at  TA=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test       Condition
Luminous Intensity	Ø	70	--	80	lm	IF=700mA
Viewing Angle	2θ1/2	--	60	--	deg	IF=700mA
Dominant Wavelength	Tc	--	--	--	K	IF=700mA
Spectral Line Half-Width	Δλ	620	--	625	nm	IF=700mA
Peak wave	Δλ	630		635	nm	IF=700mA
Forward Voltage	VF	2.0		2.4	V	IF=700mA
Reverse Current	IR			20	uA	VR=5V

Absolute Maximum Ratings at TA=25℃

Parameter	Maximum Rating
Power Dissipation	3W
Peak Forward Current (1/10 Duty Cycle, 0. Lms Pulse Wisth	700mA
Continuous Forward Current	700mA
Reverse Voltage	5V
Operating Temperature Range	-20℃ to +60℃
Sorage Temperature Range	-20℃ to +60℃
Lead Soldering Temperature [1.6mm(.63”)From Body]	260℃ for 5 Seconds
