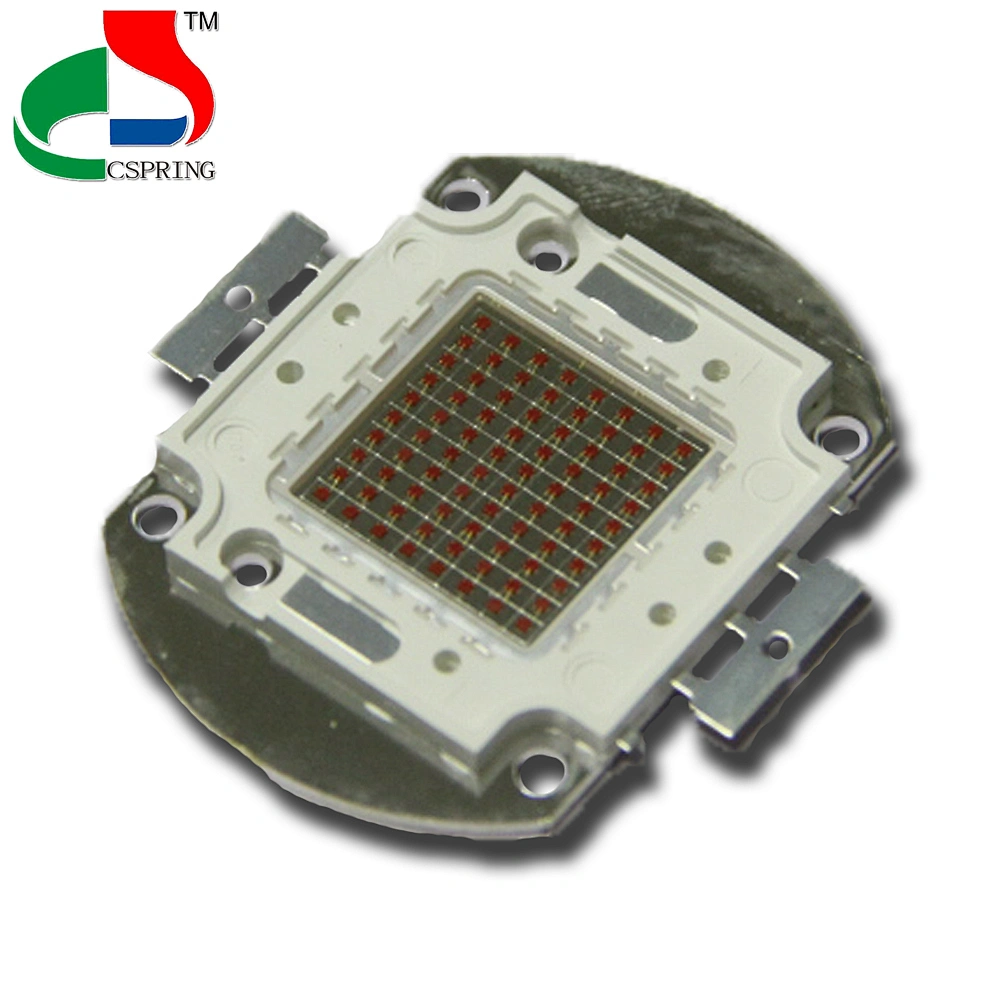

High power led chip Super red 1W 3W 10W 30W 50W 80W 100W 660nm,640nm,630nm,620nm for plant growth lights
100w led single chip,High power LED,100w led single chip,High power LED,100w led single chip,High power LED,100w led single chip,High power LED
Features of Red High power LED chip:100w led single chip
1. High lumens and high rendering index;
2. Very long operating life and low light decline;
3. Wavelength &color temperature: Red 620-630nm 630-640nm 650-660nm,730-740nm, Yellow&Amber 588-594nm 600-610nm, Blue 420-430nm,440-450nm,450-460nm,460-470nm, Green:515-525nm,2600-2800K,2800-3000K 3000-3200K,4000-4500K,4500-5000K,5500-6000K,6000-7000K are available ;
5.Power :1W,3W,5W,10W,20W,30W,50W,60W,70W,80W,100W,150W,200W can be prodution for you .
6. Chip brand: Epiled, Epistar, Bridgelux, Cree (Optional)
7. Low voltage Dc operated, safe to the touch and testing;
8. More energy efficient than incandescent and most halogen lamps;
9. High quality and high brightness are good for your lighting product.
Electrical Optical Characteristics of Red 630-640nm 30W High power LED chip
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Forward Voltage | VF | 20 | --- | 24 | v | If=1050mA |
Reverse Current | IR | --- | --- | 10 | uA | VR=50v |
50% Power Angle | 2θ1/2 | --- | 160 | --- | deg | IF=1050mA |
Luminous Intensity | φV | 1500 | -- | 1800 | lm | IF=1050mA |
Wavelength | WL | 630 | --- | 640 | NM | IF=1050mA |
Electrical Optical Characteristics of super red 660nm 50W High power LED chip
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Forward Voltage | VF | 20 | --- | 24 | v | If=1750mA |
Reverse Current | IR | --- | --- | 10 | uA | VR=50v |
50% Power Angle | 2θ1/2 | --- | 160 | --- | deg | IF=1750mA |
Luminous Intensity | φV | 2000 | --- | 2400 | lm | IF=1750mA |
Wavelength | WL | 655 | 660 | 665 | NM | IF=1750mA |
Electrical Optical Characteristics of 100w High power LED chip red 620-630nm
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Forward Voltage | VF | 20 | --- | 24 | v | If=3500mA |
Reverse Current | IR | --- | --- | 10 | uA | VR=50v |
50% Power Angle | 2θ1/2 | --- | 160 | --- | deg | IF=3500mA |
Luminous Intensity | φV | 5000 | -- | 6000 | lm | IF=3500mA |
Wavelength | WL | 620 | --- | 630 | NM | IF=3500mA |
Notes:1.Tolerance of measurement of forward voltage±0.1V.
2. Tolerance of measurement of color temperature±100K.
3. Tolerance of measurement of luminous intensity±15%.
