850nm Infrared 3W 3535 SMD LED
Infrared IR 850nm 3w chip Epiled 120degree angle 3535 SMD LED Chip
R3535IR850GH42L
1 piece
Quantity

EMC IR 850nm infrared SMD LED chip 45mil 120-degree angle 3W IR 3535 SMD LED Chip

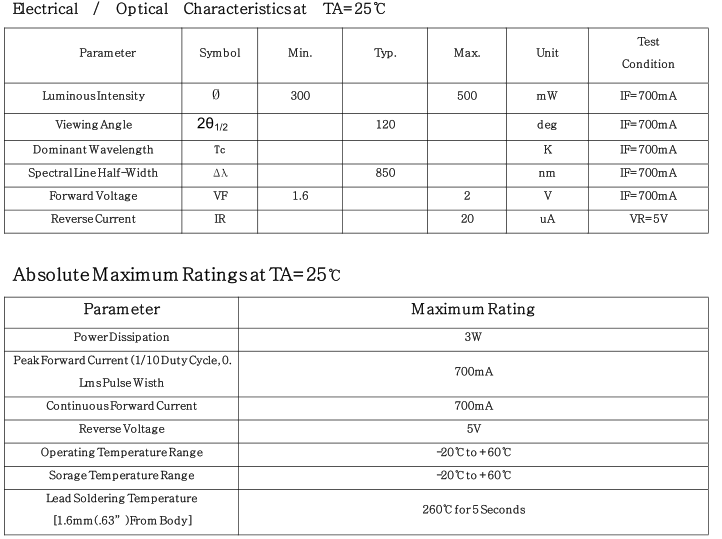

Product data:

LED type850nm Infrared 3W 3535 SMD LED

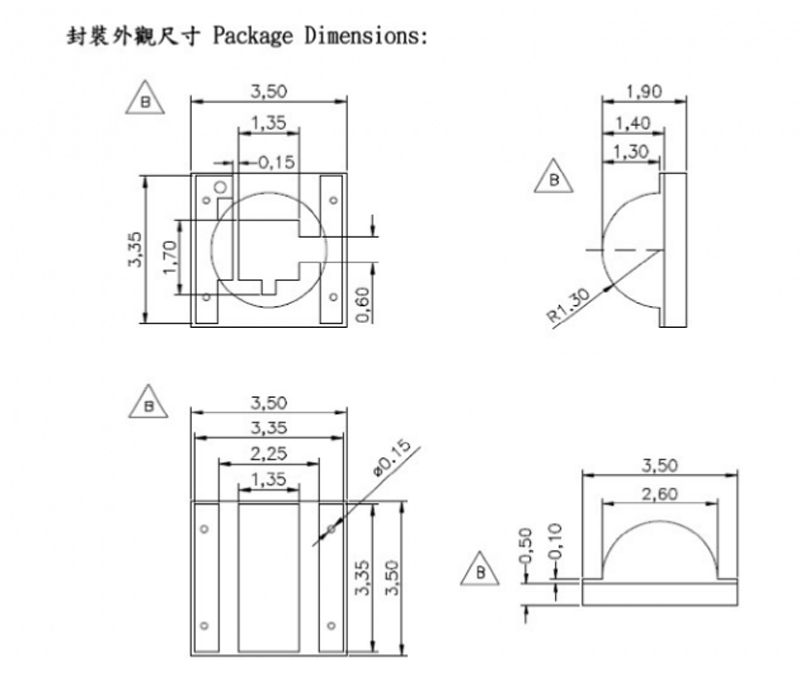

Size3.5*3.5*1.9mm
Chip BrandEpileds chip 45mil
Chip MaterialAlGaInP
Power1W, 3W
Viewing Angle(°)140
Wavelength850NM
Voltage1.6-2.0V
Current350mA / 700mA

'3W IR 3535 SMD LED Chip','850nm Infrared 3W 3535 SMD LED','Epileds chip 45mil','infrared SMD LED chip','EMC IR 850nm''3W IR 3535 SMD LED Chip','850nm Infrared 3W 3535 SMD LED','Epileds chip 45mil','infrared SMD LED chip','EMC IR 850nm''3W IR 3535 SMD LED Chip','850nm Infrared 3W 3535 SMD LED','Epileds chip 45mil','infrared SMD LED chip','EMC IR 850nm''3W IR 3535 SMD LED Chip','850nm Infrared 3W 3535 SMD LED','Epileds chip 45mil','infrared SMD LED chip','EMC IR 850nm''3W IR 3535 SMD LED Chip','850nm Infrared 3W 3535 SMD LED','Epileds chip 45mil','infrared SMD LED chip','EMC IR 850nm'

infrared SMD LED chipinfrared SMD LED chipinfrared SMD LED chipinfrared SMD LED chip

Packaging & Shipping

The packing way of product 3535 LED diode EMC frame infrared 850nm 3W chip 45mil 120 degree angle

Inner packing: by roll, 1000pcs or 3000pcs per roll

Outer packing: by cartons
