1. Product Overview
3535 High Power SMD LED Series – Full Spectrum Solutions for Professional Applications
Our 3535 high power SMD LED series delivers exceptional performance across visible and infrared spectra. Engineered with advanced chip technology, each wavelength offers high radiant flux, excellent spectral purity, and reliable operation at 700mA drive current. Whether you need deep red for plant photosynthesis, blue for medical devices, amber for warning lights, or IR for night vision, this series provides a unified 3535 package solution for streamlined design and procurement.
2. Key Features
✅ Unified 3535 Package: Simplifies PCB design and ensures high compatibility across all wavelengths
✅ High Power Drive: Supports constant current up to 700mA for demanding applications
✅ High Spectral Purity: Up to 99.9% purity for visible light colors (red/blue/yellow)
✅ Multi-Band Coverage: 630nm red, 462nm blue, 597nm yellow, and 850nm infrared
3. Detailed Specifications (Based on Actual Test Data)
| Wavelength | Peak Wavelength | Radiant Power | Forward Voltage @700mA | Half Width | Typical Applications |
|---|---|---|---|---|---|

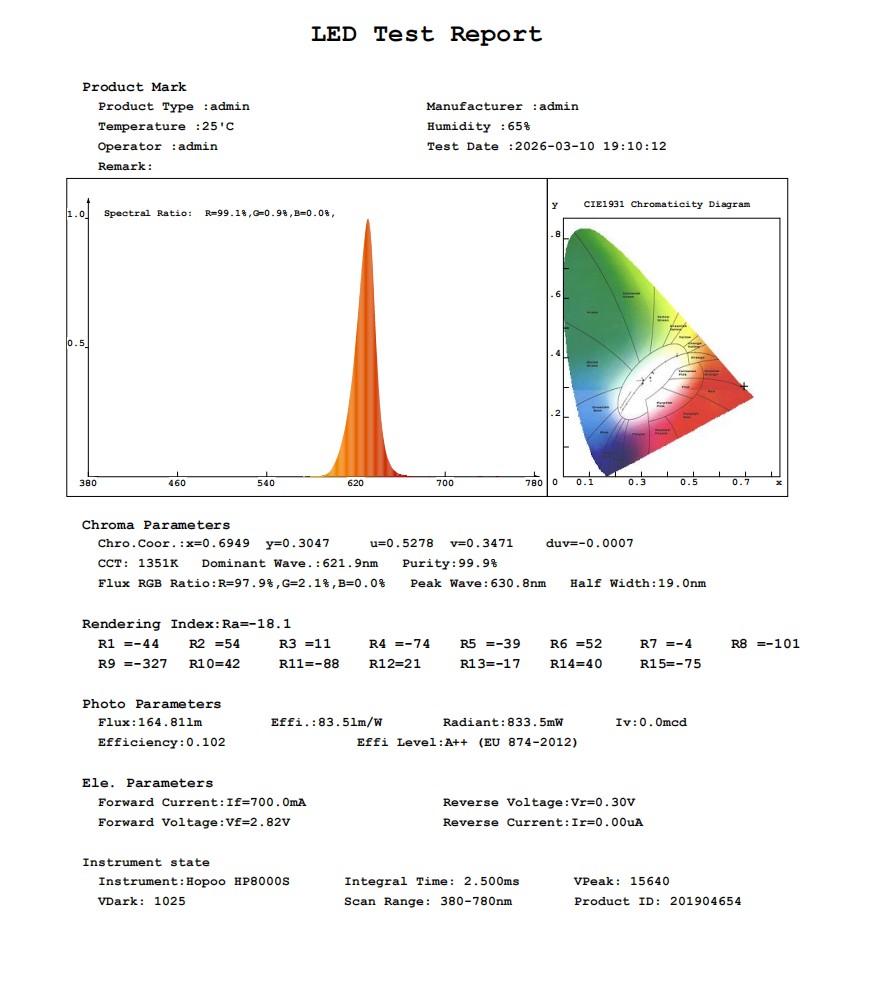

| Red LED | 630.8nm | 833.5mW | 2.82V | 19.0nm | Plant growth, medical phototherapy |

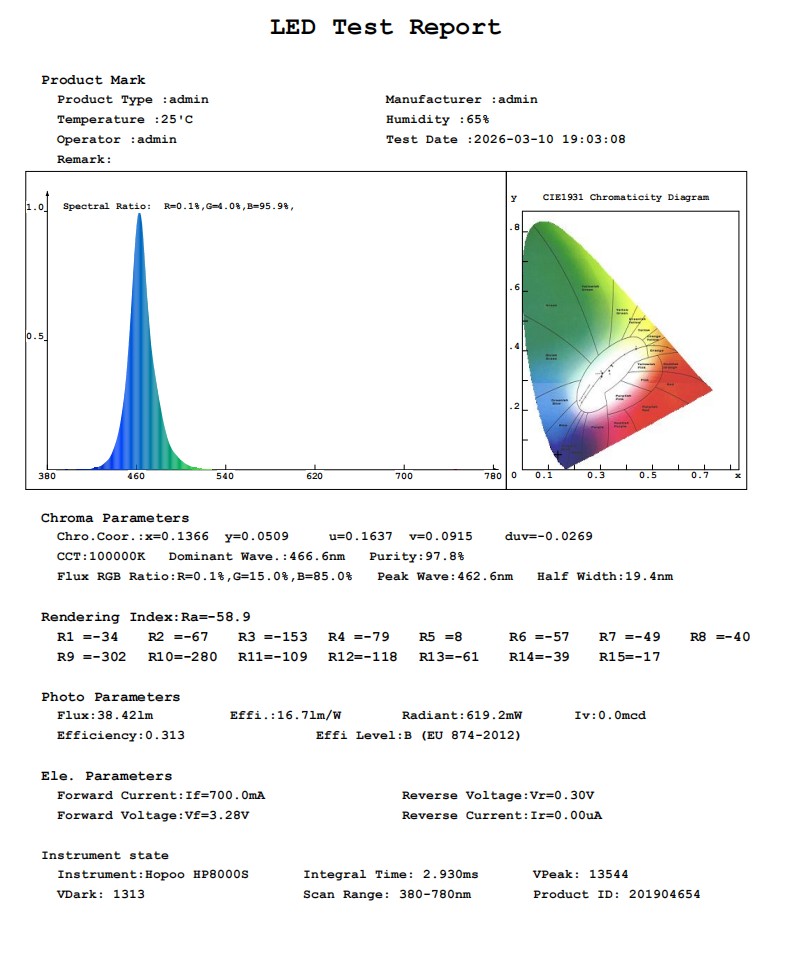

| Blue LED | 462.6nm | 619.2mW | 3.28V | 19.4nm | Horticulture, medical aesthetics |

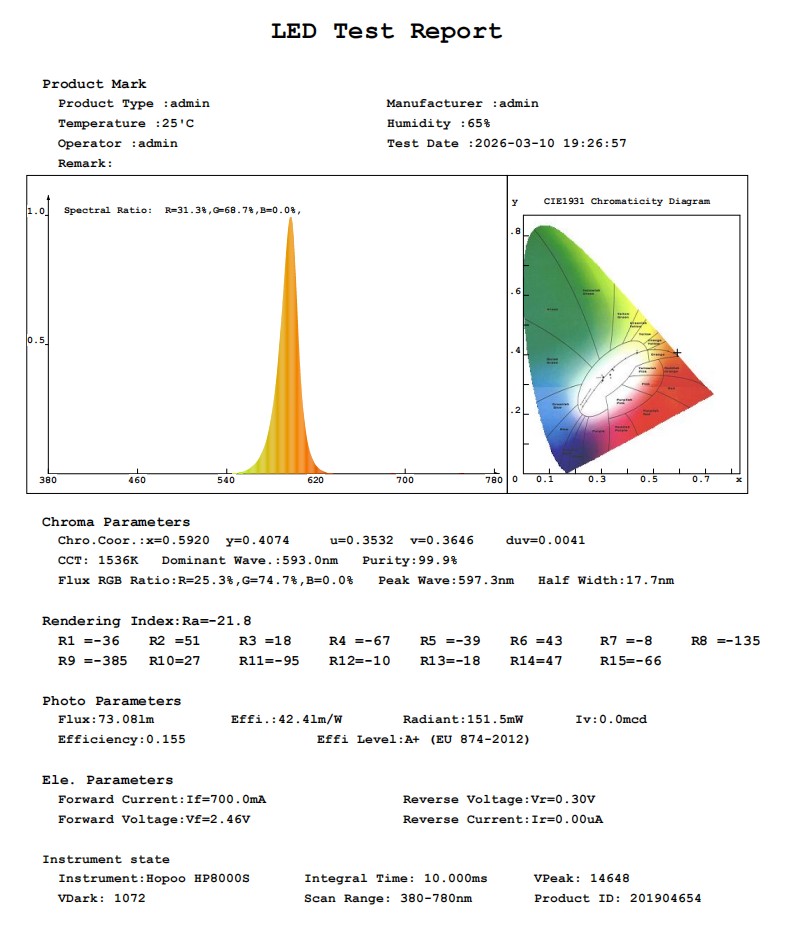

| Yellow LED | 597.3nm | 151.5mW | 2.46V | 17.7nm | Warning lights, automotive decoration |
| Infrared LED | 850.4nm | 730.9mW | 1.90V | 28.1nm | CCTV security, night vision illumination |
4. Application Areas
🌱 Horticulture Lighting: Combine red and blue LEDs for full-spectrum plant growth solutions that promote photosynthesis
🏥 Medical Equipment: Ideal for phototherapy devices, skin treatment instruments, and aesthetic equipment
🚗 Automotive Lighting: Suitable for brake lights, turn signals, and interior ambient lighting
📷 Security & Surveillance: Perfect for IR illumination in CCTV systems and night vision applications
🏭 Industrial Inspection: Used in machine vision, fluorescence excitation, and specialized sensing equipment
6. Customization Services
OEM/ODM Support: Custom wavelengths available (±5nm tolerance), different power grades upon request
Packaging Options: Anti-static tape and reel packaging, compatible with standard SMT assembly processes
Technical Support: Reference designs, thermal management recommendations, and application notes available upon request
