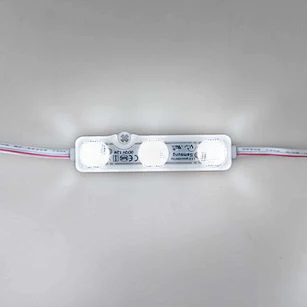

1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 160-170LM/pcs, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP68, waterproof.
5. DC 12V low voltage input , reliable and safe.
6. Adopt series-parallel connection circuit, 20pcs per string, each module could be singled out.
7.Micro prism lens, 170° own design optics..
8. Strong copper wires.
9.Seven years warranty.
Application
This product is applicable for 10-20cm glowing character, advertisement board, light box or local lighting.
Specification
P/N | K3 ULTRA | K3 Pro |
Product | High efficiency 2835 SMD LED module | 2835 SMD Samsung LED module |
LED Type | 2835 SMD LED | 2835 SMD LED |
LED BRAND | Philips LED | chip from Samsung |
Viewing Angle | 170° | 170° |
Luminous Flux（lm） | 160LM | 130LM |
LED Qty | 3 pcs | 3 pcs |
Life Span | 60,000 H | 60,000 H |
Working Voltage | DC12V | DC12V |
Consumption | 1W | 1.2W |
Driving Method | CV | CV |
Stand Length In Serial Connection | ≤20pcs | 50pcs |
Maximum Length In Serial Connection | ≤20pcs | ≤50pcs |
Shell | white ABS | white ABS |
Dimension | 66*15*7.5 mm | 66*15*7.5 mm |
Available Color | W/WW/CW | W/WW/CW |
Certification | CE & ROHS & BIS & UL | -2CE & ROHS & BIS & UL |
Working Temperature | -20℃ —— +60℃ | -20℃ —— +60℃ |
Store Temperature | -40℃ —— +60℃ | -40℃ —— +60℃ |
IP Degree | IP68 | IP68 |

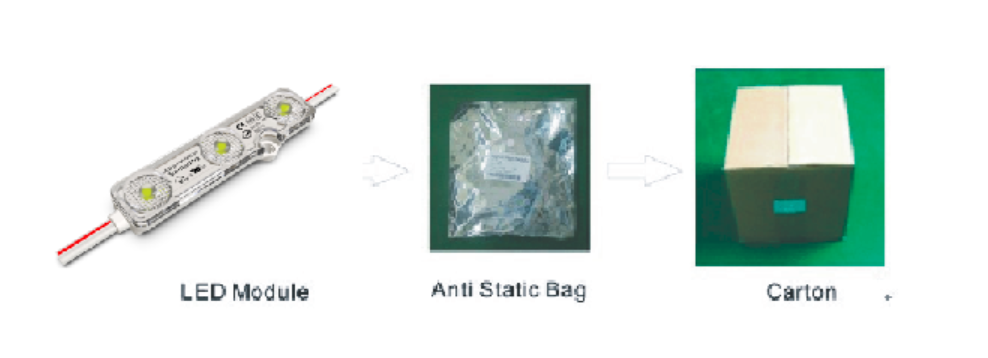

Package
Every 20 pcs per a string, every 5 string in an anti-static bag, 2000 pcs per a carton box. Carton size: 50*35*35 cm.
Net Weight: 10g/pc; 200g/string; 21kg/carton.

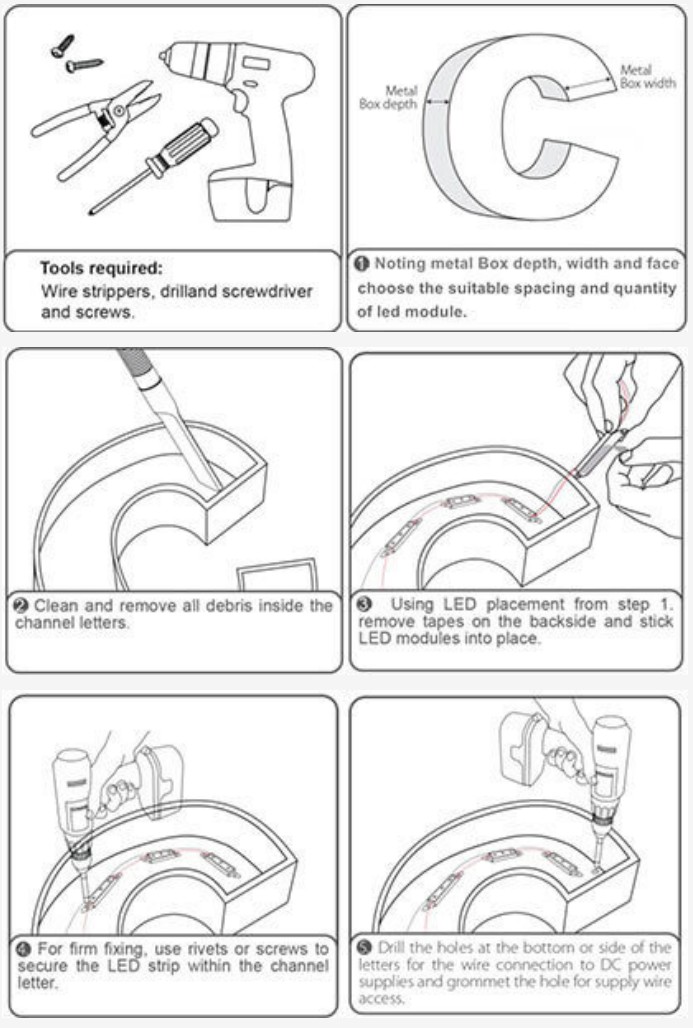

LED Module Installation Guide
1. Noting metal Box depth, width and face material, choose the suitable spacing and quantity of led module, Carefully choose the acrylic panel, the light-diffusion and permeating of which has great effect on brightness and uniform of the light from boxes.
2. Clean and remove all debris inside the channel letters.
3. Using LED placement from Step 1, remove tapes on the backside and stick LED Module into place.
4. For firm fixing, use screws to secure the led module within the channel letter.
5. Drill the holes at the bottom or side of the letters for the wire connection to the DC power supply wire access.

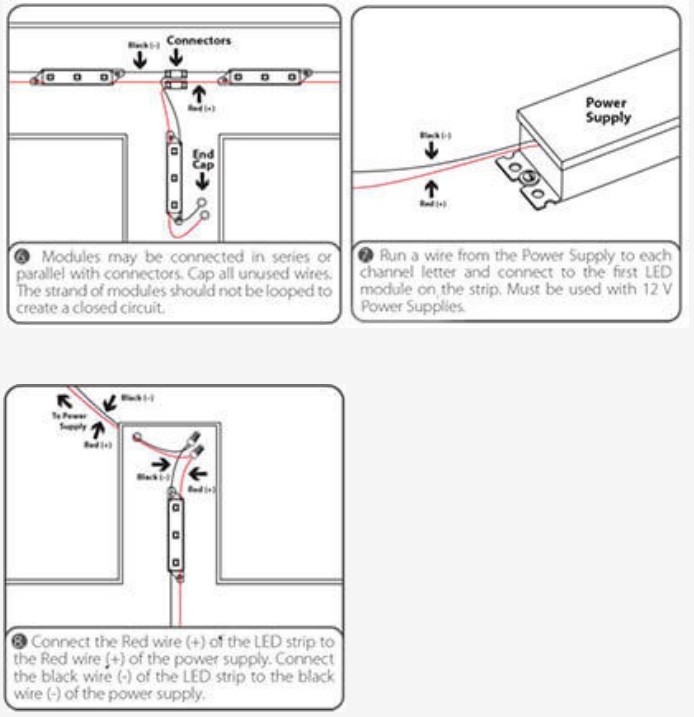

6. LED Modules may be connected in series or parallel with connectors. Cap all usused wires. The strand of module should not be loop to creat a closed circuit.
7. Run a wire from the Power supply to each channel letter and connect to the first LED module on the strip. Must be used with 12V Power supplies.
8. Connect the Red wire(+) of the LED Module to the Red wire (+) of the LED Power supply. Connect the black wire(-) of the led module to the black wire (-) of the power supply.

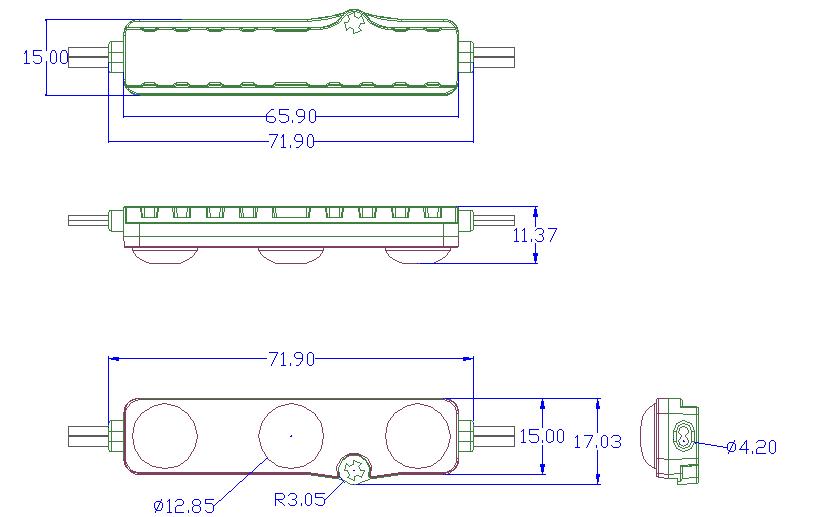

Dimension Diagram (mm)

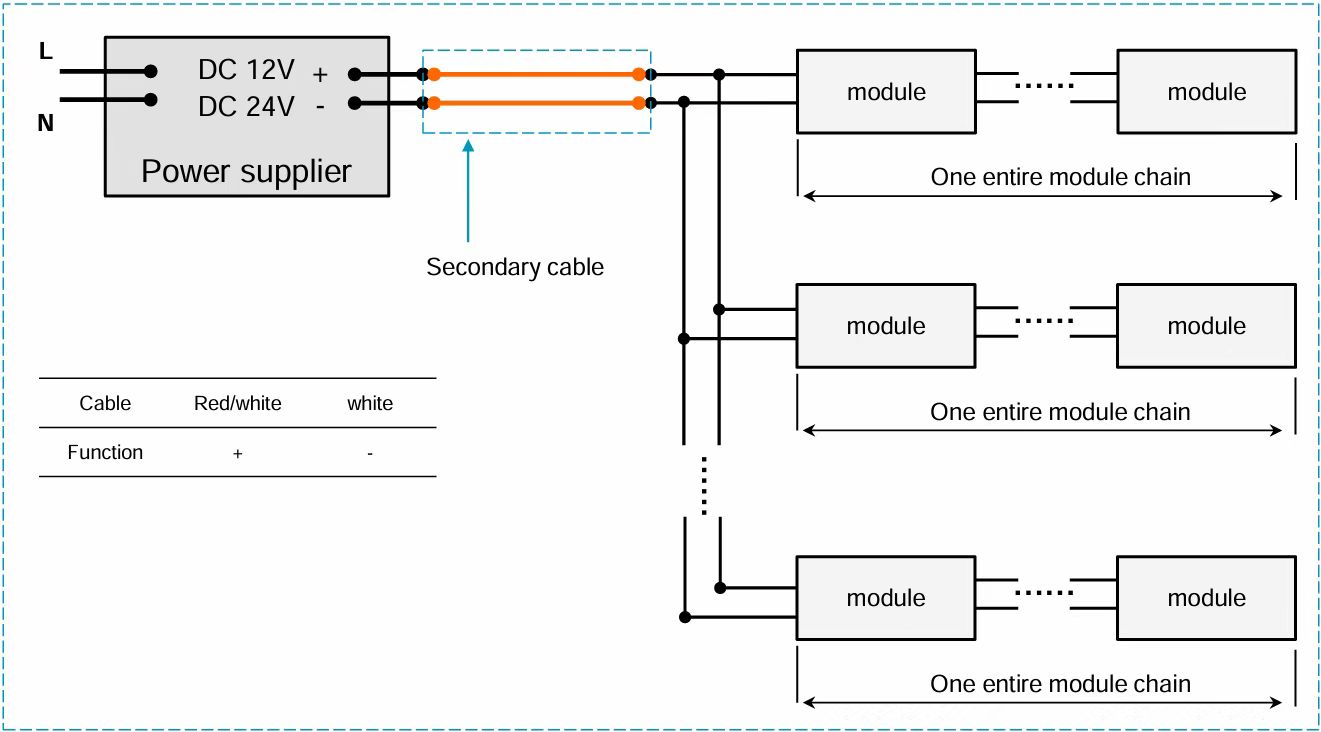

Connection Diagram
