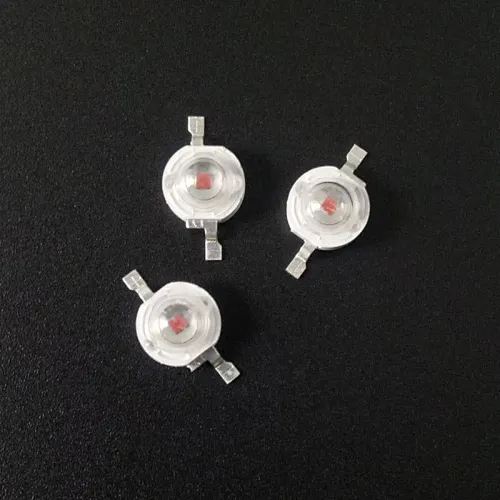

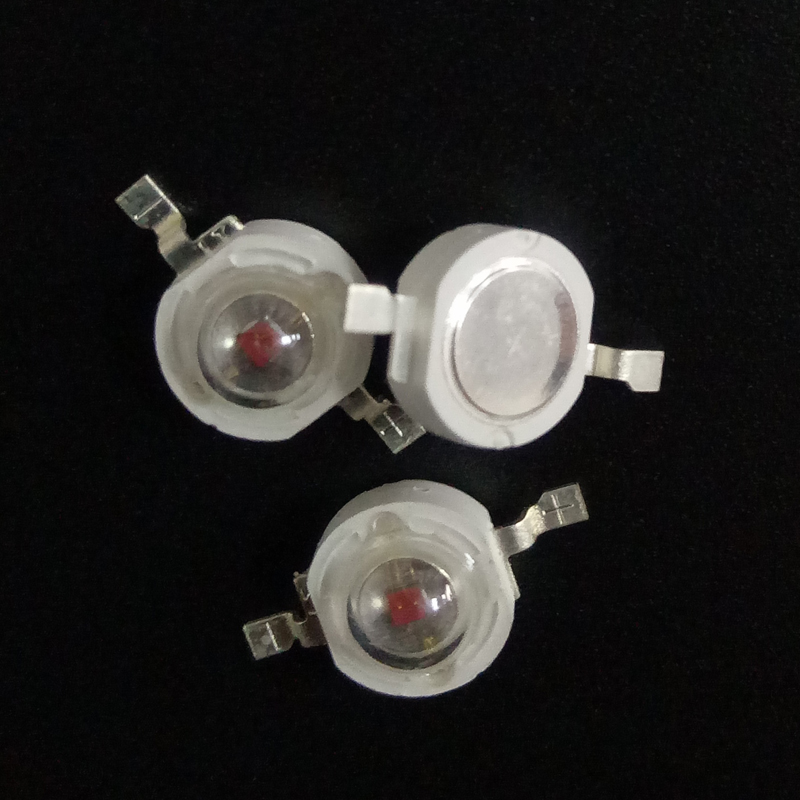

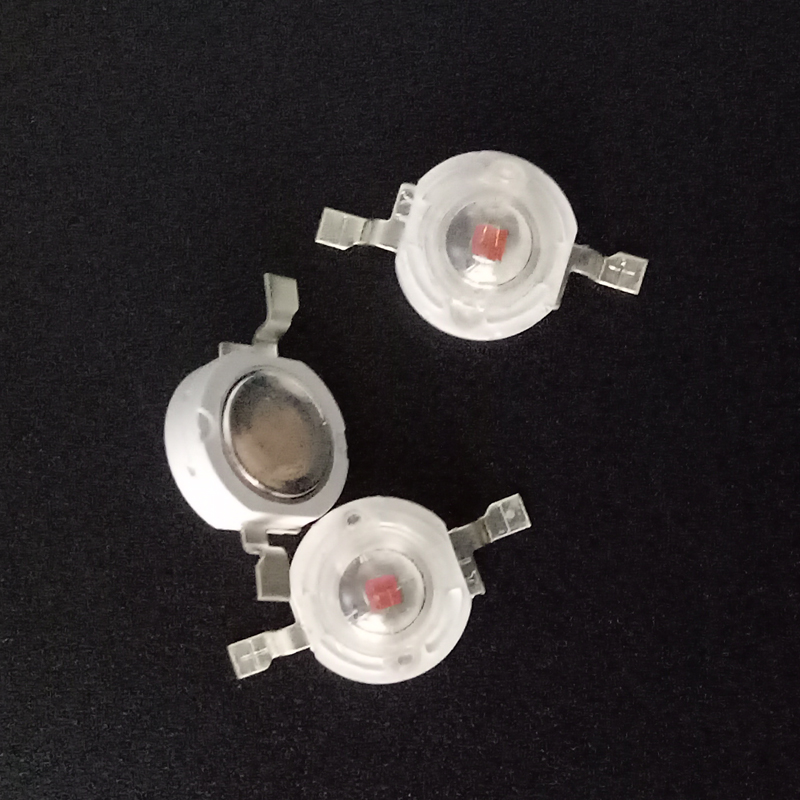

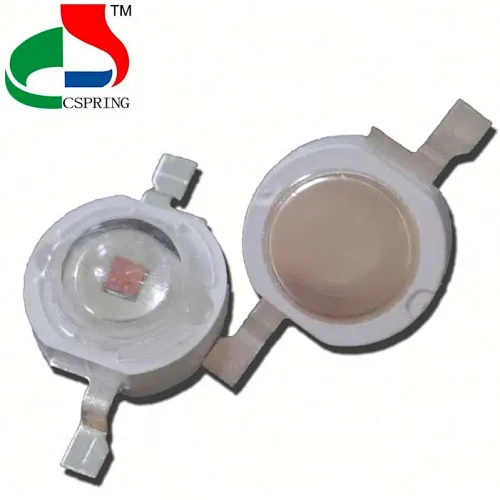

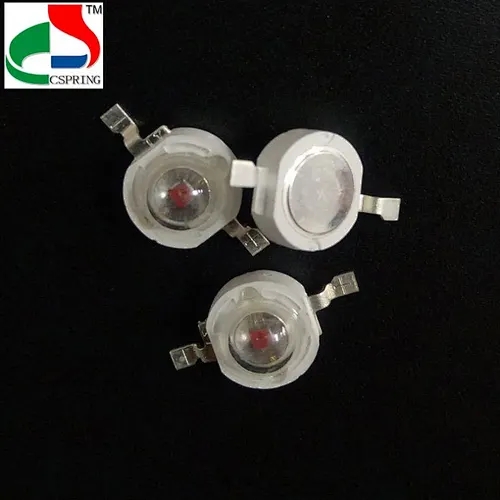

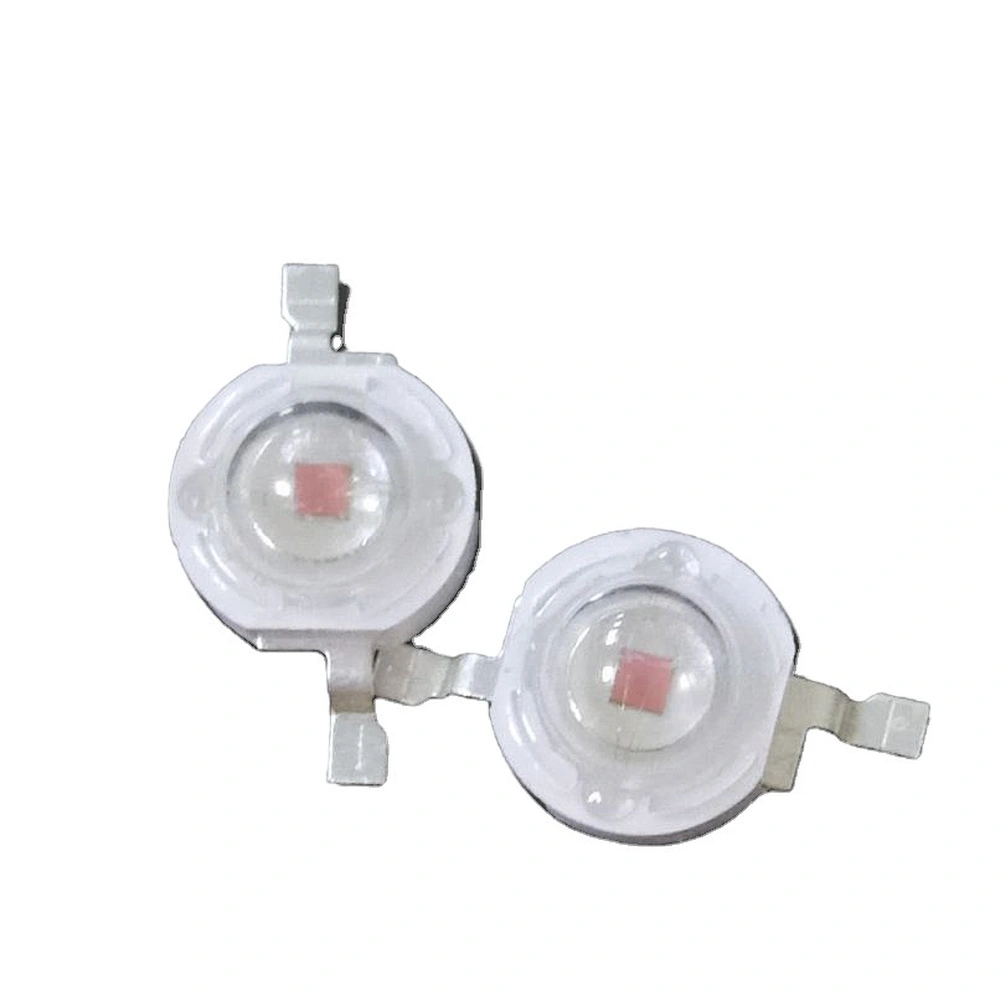

Latest Design 1W Red Super Bright 3 W High Power Led Diode
P04R1410140-034
1 piece
Zhongshan / Shenzhen / Guangzhou
Quantity
  • Color Temperature(CCT):620-630nm
  • Input Voltage(V):1.8-2.6v
  • Warranty(Year):2-Year
  • Type:High Power LED
  • Support Dimmer:yes
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):40
  • Lifespan (hours):30000
  • Working Time (hours):30000
  • Product Weight(kg):0.001
  • Chip Material:AlGaInP
  • Emitting Color:Red
  • Luminous Intensity:30-40lm/w
  • Luminous Flux(lm):60-80lm
  • Optical Attenuation(%):3
  • Power:1-3W
  • Power Dissipation:1
  • Viewing Angle(°):140 Degree
  • Color Rendering Index(Ra):70
  • Color Temperature:620-630nm
  • Operating Temperature(℃):-40 - 80
  • Storage Temperature(℃):-40 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Product name:Latest Design 1W Red Super Bright 3 W High Power Led Diode
  • Chip brand:Taiwan Epileds
  • Warranty:2 Years
  • Voltage:2.0-2.4V
  • Current:350mA 700mA
  • Chip Size:30mil 35mil 40mil 42mil 45mil
  • MOQ:1PC
  • Lifespan:50000H
  • Package:50pcs/tray
  • Certification:RoHS

Latest Design 1W Red Super Bright 3 W High Power Led Diode


Product Description



NameHigh power led 1w 3w red
Chip brandTaiwan Epileds chip
Power1-3W
Current                   400mA / 800mA
Voltage1.8-2.2V
ColorWarm white / Cool white / Natural white / RED / Green etc RGB and single color
ApplicationLED flood light, led street light, led spot light etc



Features:

  1. High quality,high brightness,low-attenuation.
  2. High brightness, low attenuation, low energy consumption, long life. Antistatic ability. Products using silicone
  3. Large light emitting angle.
  4. 2 years warranty.
  5. High consistency in light color,high cost-effective.

Application:

Street lamps, spotlights, architectural lighting landscapes, lighting exterior illumination and so on
Wall lamps, underwater lamps, decorative illumination and so on
Underground lamps, reading lamps, emergency lights and interior illumination
Miners lamps, flashlights and car lamps
