Model | 346HBD-B-85 |

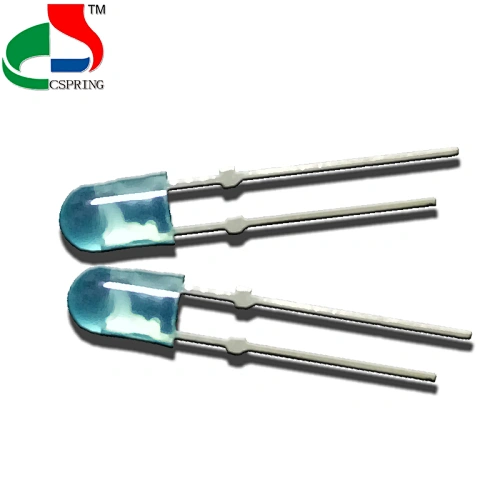

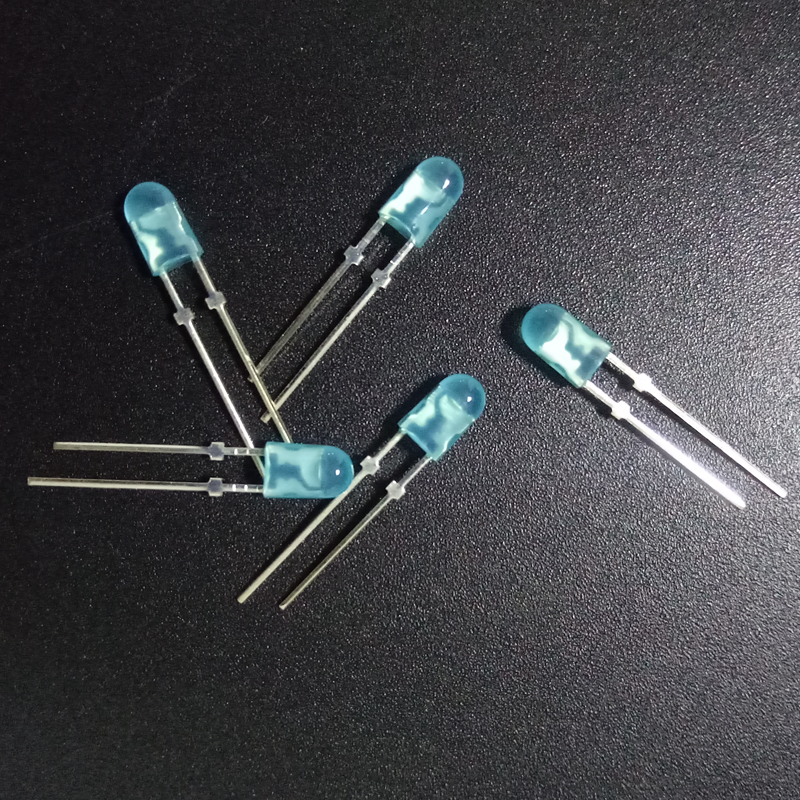

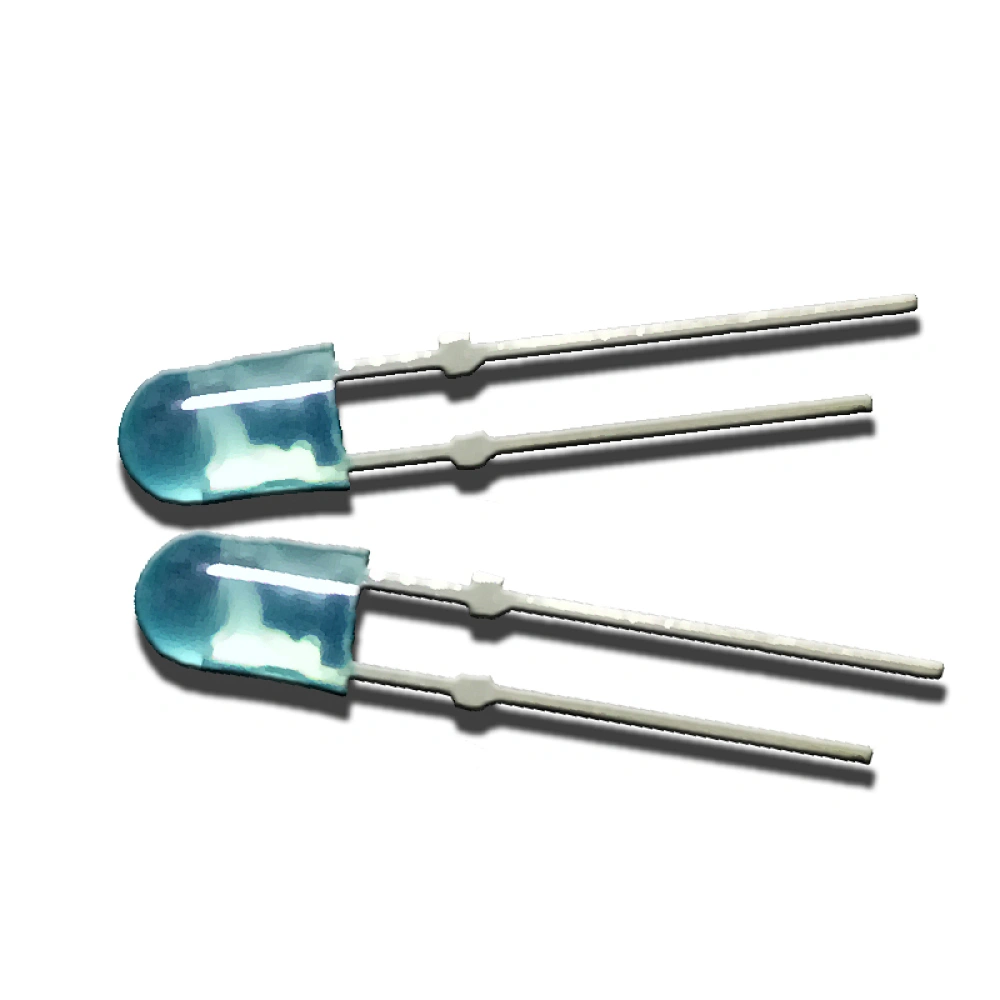

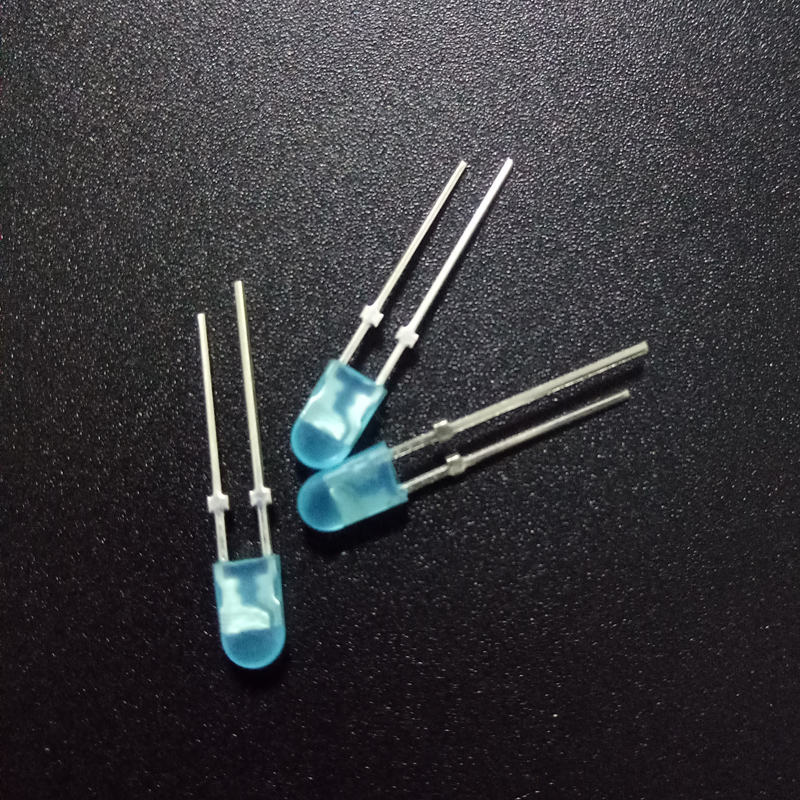

Item | 3mm oval Blue led |
dimensionsavailable | 3mm, 5mm, 8mm, 10mm |
lens color available | water clear/color transparent/Diffused |
Shape availabe | round/bullet/flat top/straw hat/square/oval/concave |
Chips Brand | Epileds, Epistar, Bridgelux, cree, etc. |
Viewing angle | 85+/-6 degree |

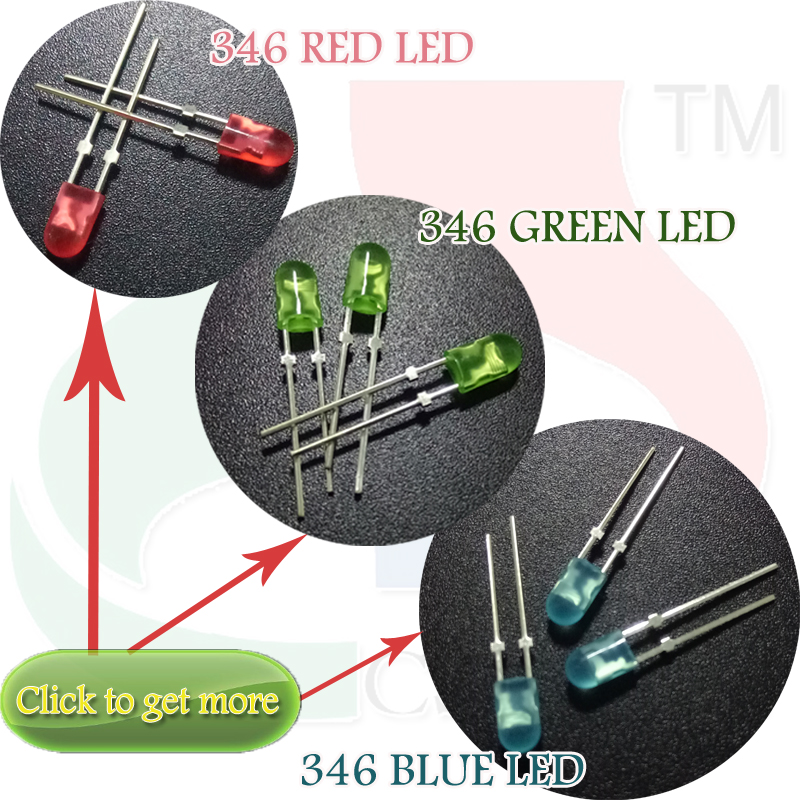

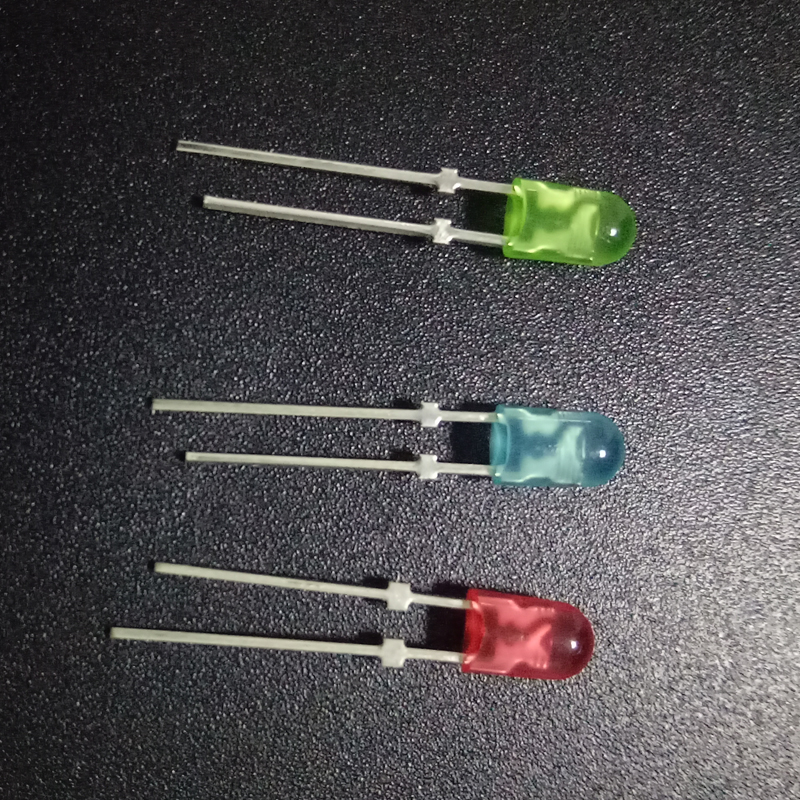

Color available | white, red, green, blue, yellow, purple, rgb, bi-color |
Life Span | 50,000hours |
Delivery days | 7 -15 work days |
payment | T/T, Western union, Paypal Escrow |
Warranty | 2 years |
Main poduct | RGB led ,Bicolor led ,Dip led ,smd ,High power led 0.5w-300w |

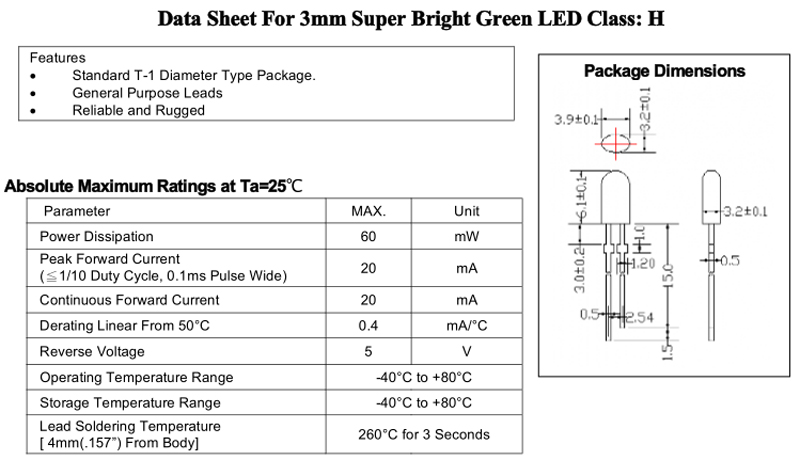

Specification for the 3mm green led
Parameter | Maximum Rating |
Forward voltage | 2.8-3.6v |
Reverse Current | 5uA |
Forward Current | 20mA |
Light intensity | 1000-1200mcd |

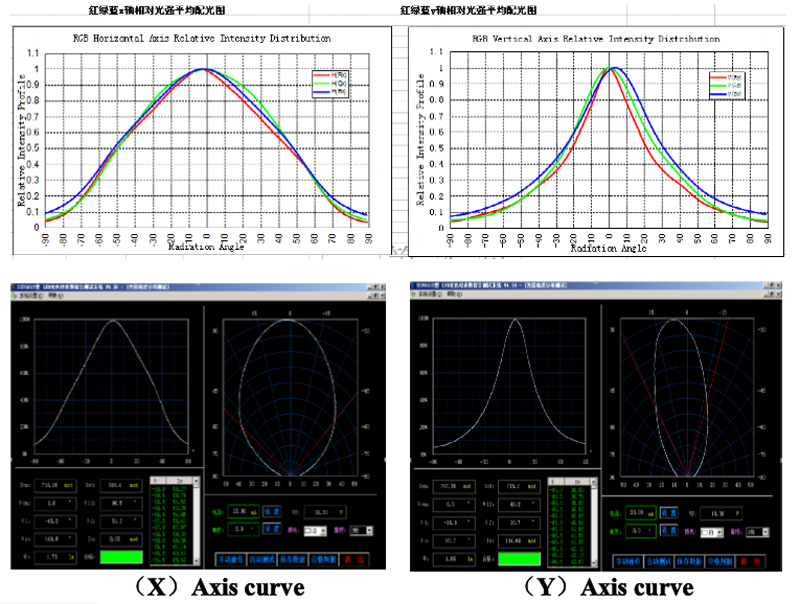

Beam Angle | 85+/-6 degree |
Reverse Voltage | 5V |
Operating Temperature Range | -40°C to + 80°C |
Storage Temperature Range | -40°C to + 80°C |
