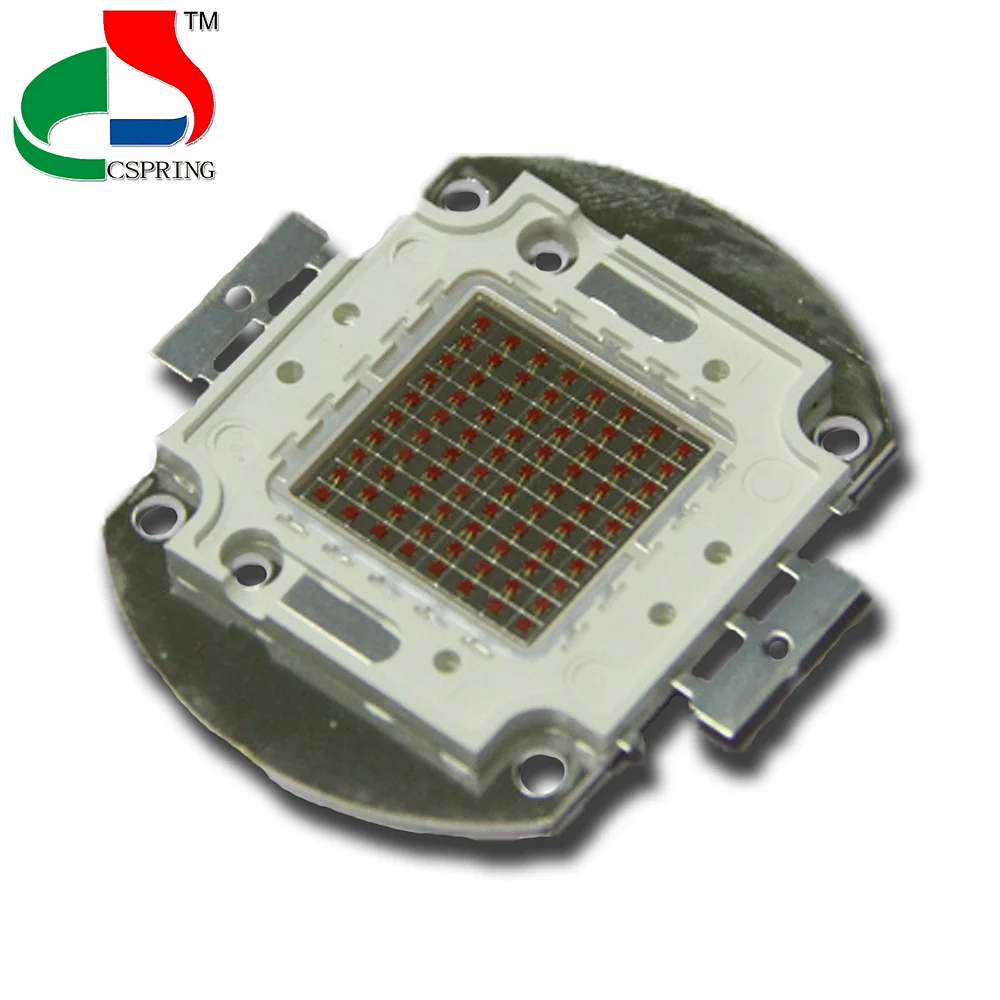

High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights
High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights

High power led chip 1W 3W 10W 30W 50W 80W 100W 620nm,,630nm,640nm,660nm for plant growth lights

Model NO.
GP-014
Price:
$ 25.00-31.00 / piece
Minimum order quantity:
1 piece
Country of Origin:
Zhongshan or Shenzhen or Guangzhou
Quantity:
  • Color Temperature(CCT):620-630
  • Input Voltage(V):20-24
  • Warranty(Year):2
  • Type:COB LED
  • Support Dimmer:No
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):60
  • Lifespan (hours):30000
  • Working Time (hours):30000
  • Chip Material:AlGaInP
  • Emitting Color:Red
  • Luminous Intensity:Customer's Requirements
  • Luminous Flux(lm):5000-6000
  • Optical Attenuation(%):3
  • Power:100W
  • Power Dissipation:100
  • Viewing Angle(°):120 Degrees
  • Color Rendering Index(Ra):0
  • Color Temperature:620-630nm or 640-660nm
  • Operating Temperature(℃):-25 - 80
  • Storage Temperature(℃):-40 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Chip Brand:Epileds Epistar Bridgelux
  • Voltage:20-24V
  • Warranty:3 Years
  • Lifespan:50000 Hours
  • Certification:RoHS

High power led chip Super red 1W 3W 10W 30W 50W 80W 100W 660nm,640nm,630nm,620nm for plant growth lights

Features of Red high power led chip :

1.High lemens and high rendering index;

2.Very long operating life and low light decline;

3.Wave lenght &color temperature:Red 620-630nm 630-640nm 650-660nm,730-740nm,Yellow&Amber 588-594nm 600-610nm,Blue 420-430nm,440-450nm,450-460nm,460-470nm,Green:515-525nm,2600-2800K,2800-3000K 3000-3200K,4000-4500K,4500-5000K,5500-6000K,6000-7000K are available ;

5.Power :1W,3W,5W,10W,20W,30W,50W,60W,70W,80W,100W,150W,200W can be prodution for you .

6.Chip brand:Epiled, Epistar,Bridgelux,Cree (Optional)

7.Low voltage Dc operated,safe to the touch and testing;

8.More energy efficient than incandescent and most halogen lamps;

9.High quality and high brigtness are good for your lighting product.

Electrical Optical Characteristics of Red 630-640nm 30W high power led chip

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Forward Voltage

VF

20

---

24

v

If=1050mA

Reverse Current

IR

---

---

10

uA

VR=50v

50% Power Angle

2θ1/2

---

160

---

deg

IF=1050mA

Luminous Intensity

φV

1500

--

1800

lm

IF=1050mA

Wavelenth

WL

630

---

640

NM

IF=1050mA

Electrical Optical Characteristics of super red 660nm 50W high power led chip

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Forward Voltage

VF

20

---

24

v

If=1750mA

Reverse Current

IR

---

---

10

uA

VR=50v

50% Power Angle

2θ1/2

---

160

---

deg

IF=1750mA

Luminous Intensity

φV

2000

---

2400

lm

IF=1750mA

Wavelenght

WL

655

660

665

NM

IF=1750mA

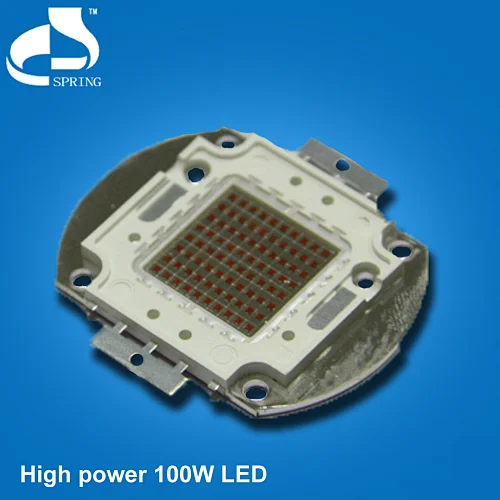

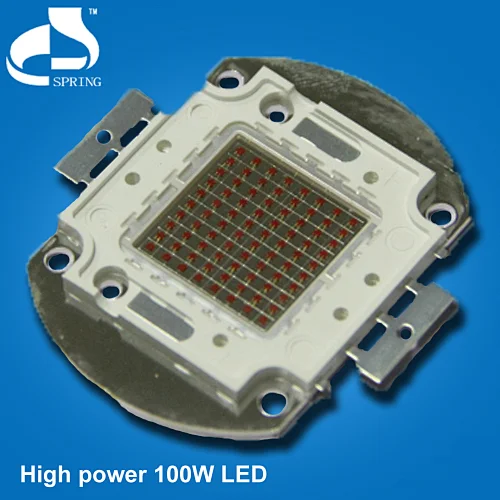

Electrical Optical Characteristics of 100w high power led chip red 620-630nm

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Forward Voltage

VF

20

---

24

v

If=3500mA

Reverse Current

IR

---

---

10

uA

VR=50v

50% Power Angle

2θ1/2

---

160

---

deg

IF=3500mA

Luminous Intensity

φV

5000

--

6000

lm

IF=3500mA

Wavelength

WL

620

---

630

NM

IF=3500mA

Notes:1.Tolerance of measurement of forward voltage±0.1V.

2.Tolerance of measurement of color temperature±100K.

3.Tolerance of measurement of luminous intensity±15%.

Applications of RED high power led chip :

1.Foodlight

2.High bay light,low bay light

3.Street light

4.Plant growth lights

5.Others lighting products

Trade Terms
1.Payment: T/T in advance (Western Union or PAYPAL are welcomed)

2.Production lead time :within 3working days for samples,5-7 working days for bulk order

3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Zhongshan, Guangzhou, Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:10PCS

Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information

Shipping:

1)We can shipping all over the world by DHL,Ups,FedEx and TNT.The packing is very safe and strong,if you have any special needs ,please let me know.

2)It will take around 3-5 working days to reach your hands.

3)We only guarantee delivery in time but we wouldn't control exprss delivery time.Our related sales person will be responsible to send the AWB(Tracking Number) for the delivered goods in the next workday.You can check the AWB on the website which we send to you.For the AWB you also can call to the local branch of the express company in your country .

4)Delivery :3-5 working days for sample order,7-10 working days for bulk order .
