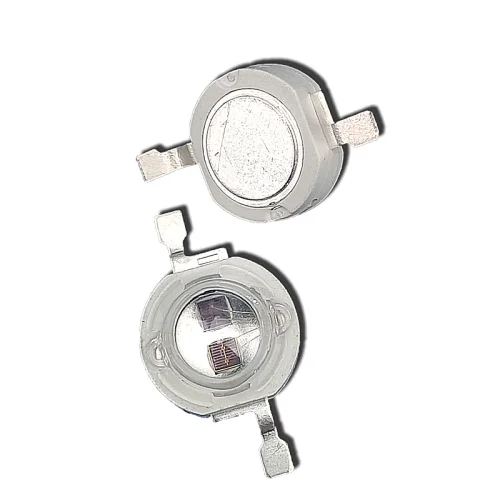

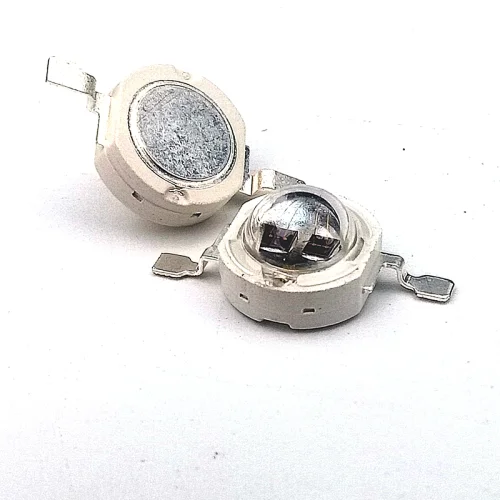

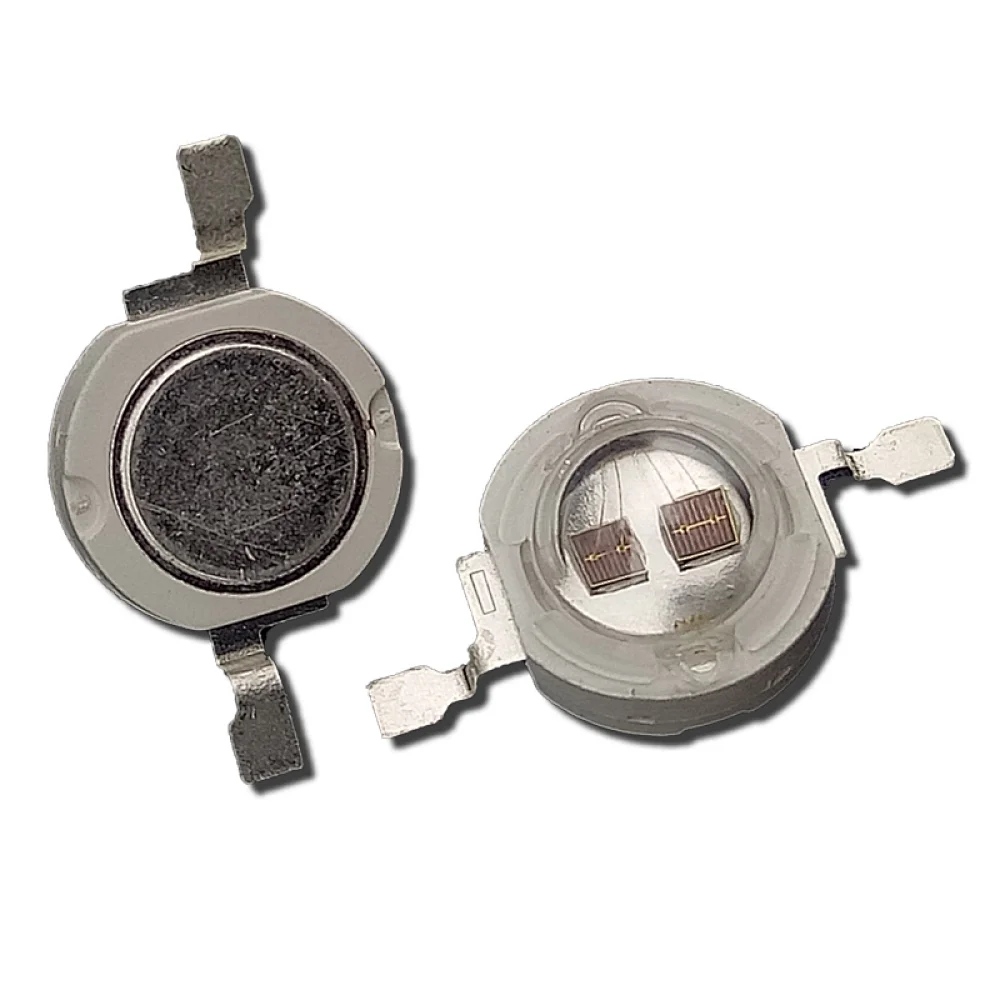

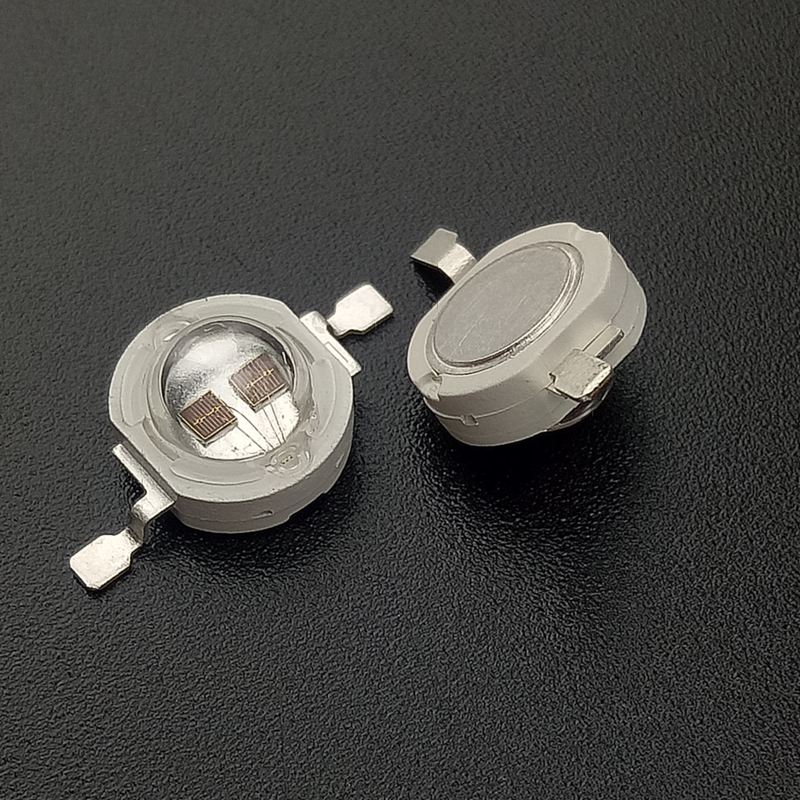

High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA
High power led 5W IR 805NM 810NM 2 chps 1400mA

High power led 5W IR 805NM 810NM 2 chps 1400mA

Model NO.
GP-028
Price:
$ 1.60-1.63 / piece
Minimum order quantity:
1 piece
Country of Origin:
Zhongshan/ Guangzhou / Shenzhen
Quantity:
  • Color Temperature(CCT):805-810nm
  • Input Voltage(V):1.3-1.8V
  • Warranty(Year):2-Year
  • Type:High Power LED
  • Support Dimmer:No
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):5
  • Lifespan (hours):30000
  • Working Time (hours):30000
  • Chip Material:AlGaInP
  • Emitting Color:IR
  • Luminous Intensity:IR 810nm
  • Luminous Flux(lm):IR
  • Optical Attenuation(%):3
  • Power:5W
  • Power Dissipation:2
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):70
  • Color Temperature:805-810nm
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 60
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Name:High power led 5W IR 805NM 810NM 2 chps 1400mA
  • Chip brand:Epileds 2 chips
  • Voltage:1.3-1.8V
  • Current:1400mA
  • Warranty:2 years
  • Lifespan:30000-50000 Hours
  • Emitting Colour:IR 805-810nm
  • Luminous intensity:600-800mW
  • Certification:ce, RoHS

High power led 5W IR 805NM 810NM 2 chps 1400mA

Power series is desingned for high current operation and high flux output applications.

Power LED its thermal management perform exceeds then other power LED solutions.

It integrate of the art SMD design and thermal emission material.

Power LED is ideal light sources for general applications,custom designed solutions,and automotive large LCD backlights

Feature:

High quality,high brightness,low-attenuation.

Long lifespan:50000 hours.

Energy-saving and environmental protection.

Large light emitting angle.

2 years warranty.

Can be applied to a variety of harsh environments.

High consistency in light color,high cost-effective.

Specification:

Type:High Power LED

Emitting Color: IR

Power: 5W

Luminous Intensity: 600-800mW

Viewing Angle(°):140 degree

Operating Temperature(): -20 - 60

Storage Temperature(): -20 - 60

Chip brand: Epileds chip

Voltage: 1.3-1.8V

Current: 1400mA

Wavelength: 805-810nm

Warranty: 2 Years

Lifespan: 30000-50000 Hours

Package: 50pcs/tray

Application:

Wall lamps, underwater lamps, decorative illumination, and more

Underground lamps, reading lamps, emergency lights, and interior illumination

Miner's lamps, flashlights, and car lamps

Traffic signals and indicating lamps

plant growing light
