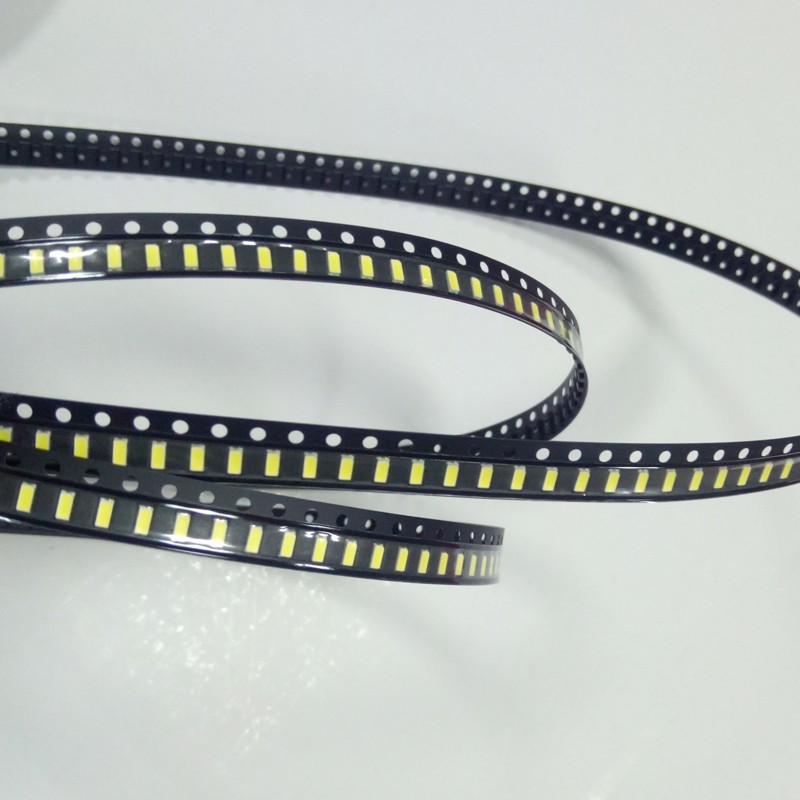

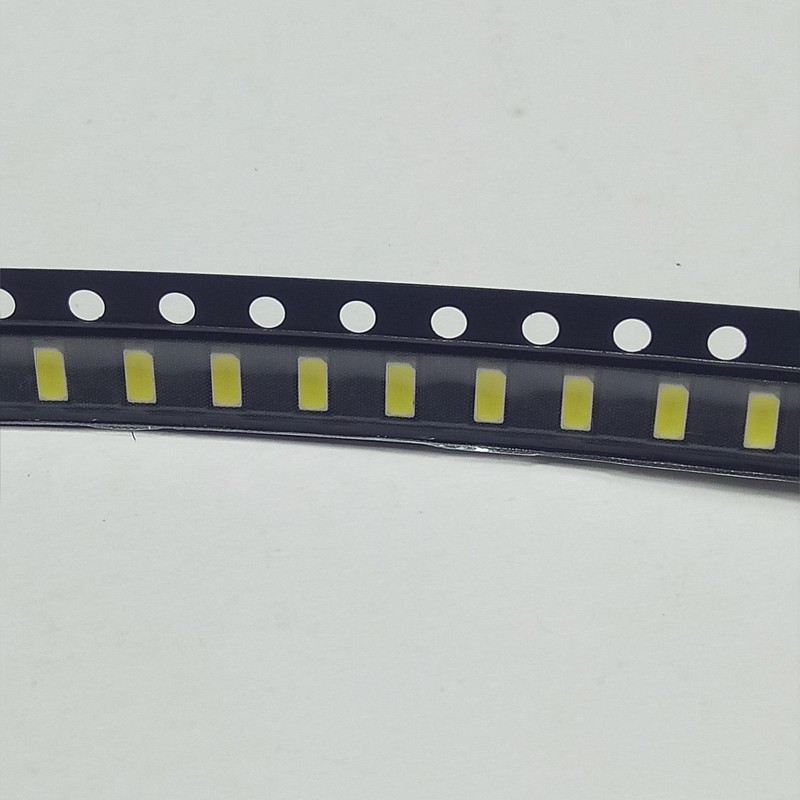

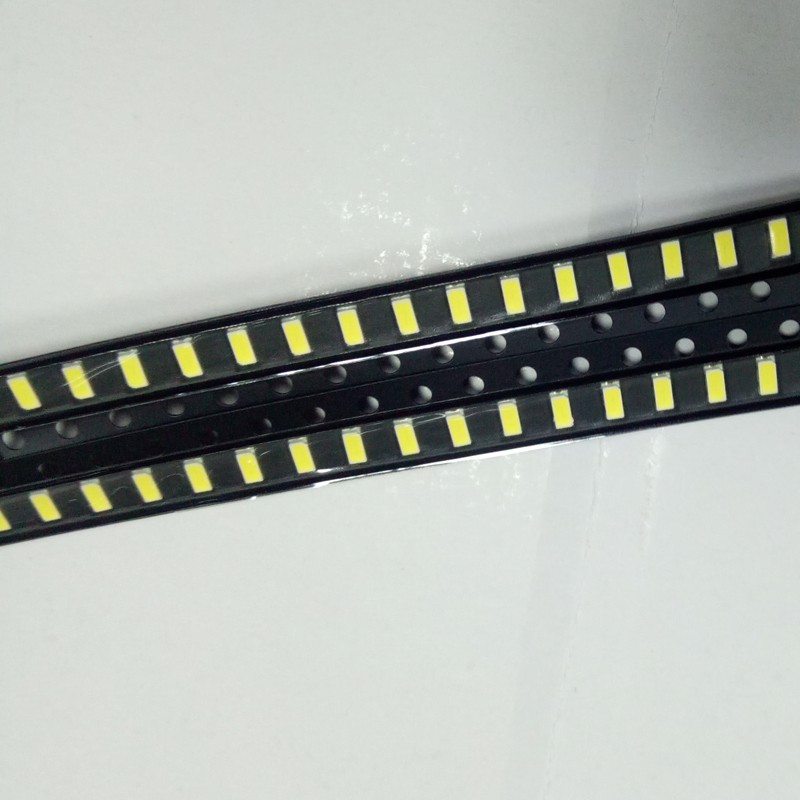

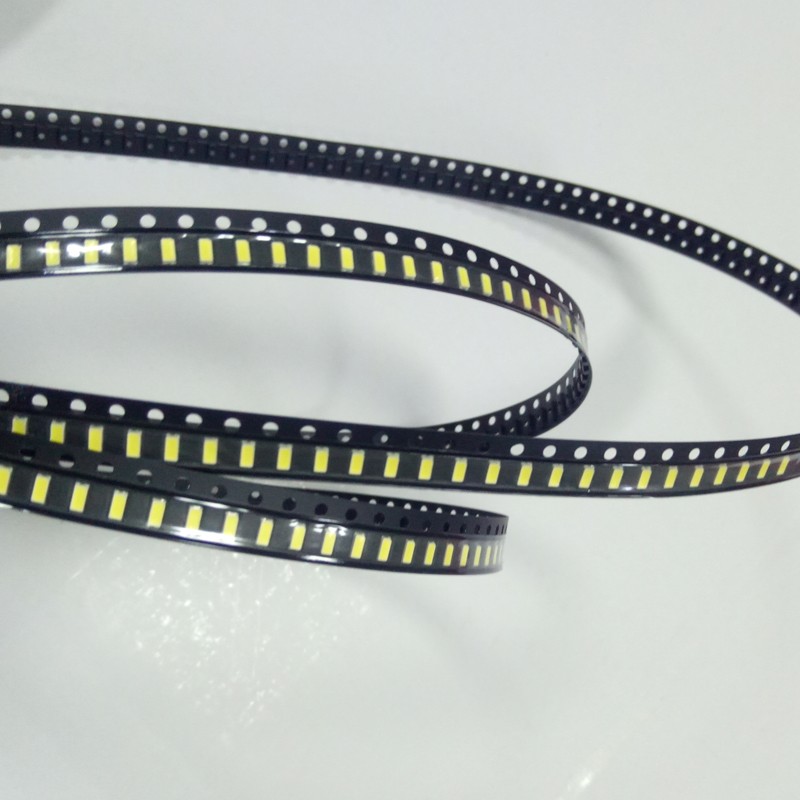

High lumens 0.1W white SMD LED 3014 chip
R3014UWN10
1 piece
Zhongshan / Shenzhen / Guangzhou
Quantity
High lumens 0.1W white SMD LED 3014 chip specifications
- Type:SMD LED
- Size:3.0*1.4*0.8MM
- Color Temperature(CCT):6000-6500K
- Input Voltage(V):3.0-3.6V
- Chip Material:AlGaInP
- Luminous Flux(lm):10-12
- Power:0.1W
- Viewing Angle(°):120
- Color Rendering Index(Ra):70
- Color Temperature:4000-4500K
- Forward Current:30mA
- Emitting Colors:Warm white / Cool white / Natural white / Yellow etc.
- Lifespan:30000H
- Certification:RoHS
- Lifespan (hours):50000
- Working Time (hours):50000
- Warranty:2years
- Operating Temperature(℃):-30 - 80
- Storage Temperature(℃):-45 - 85

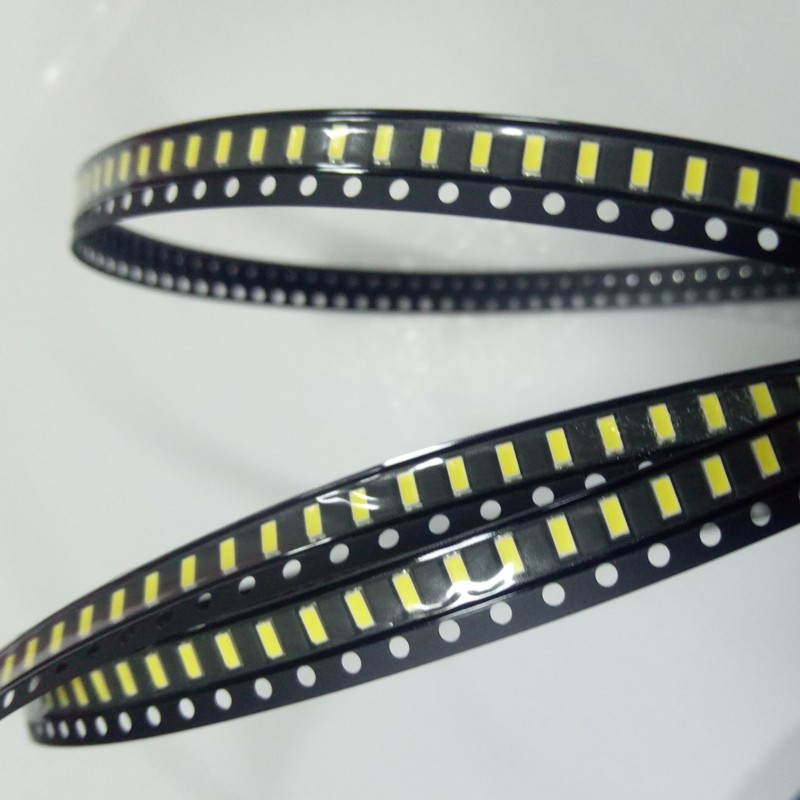

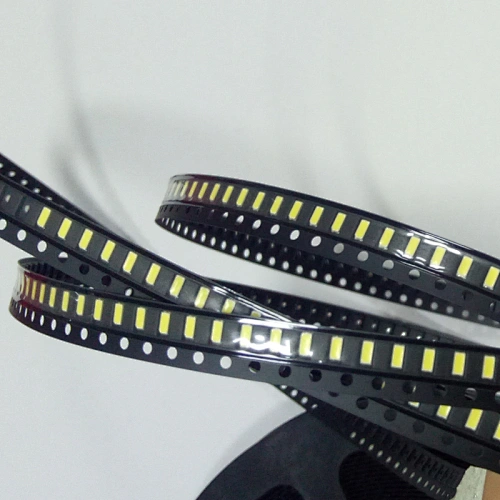

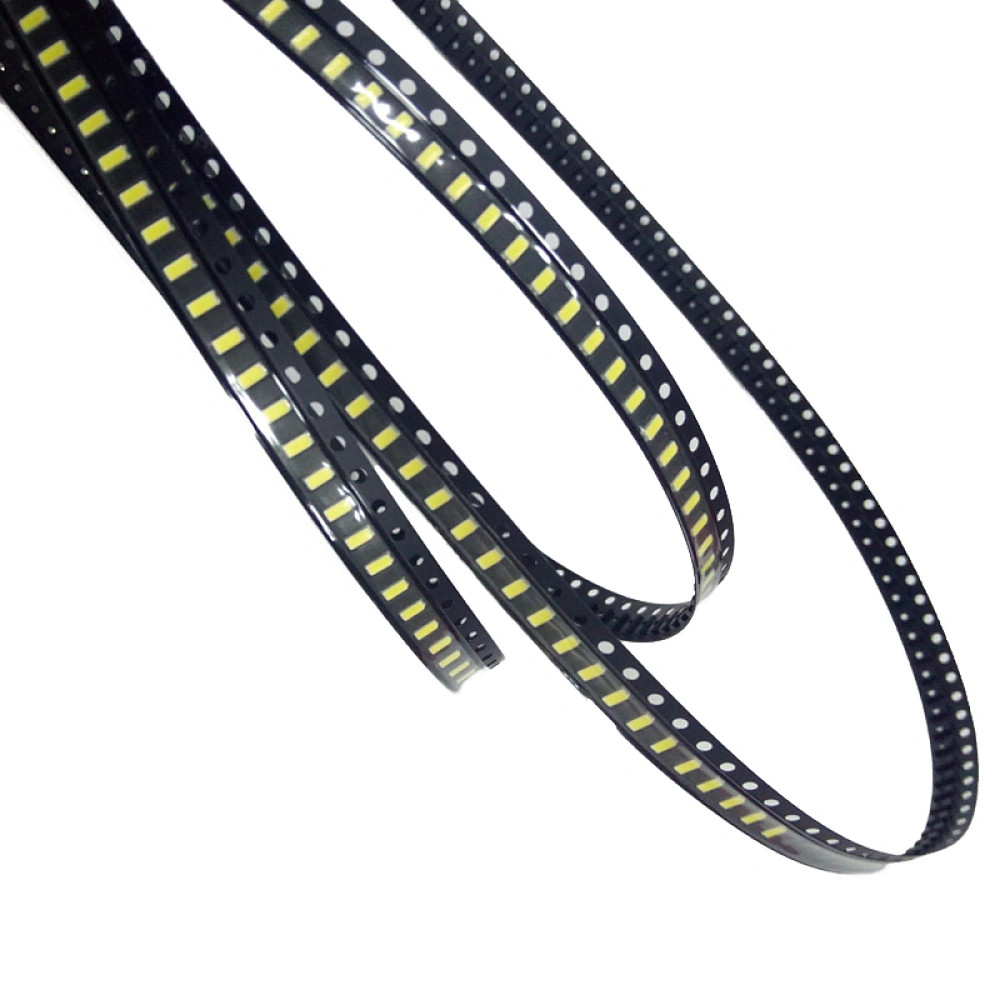

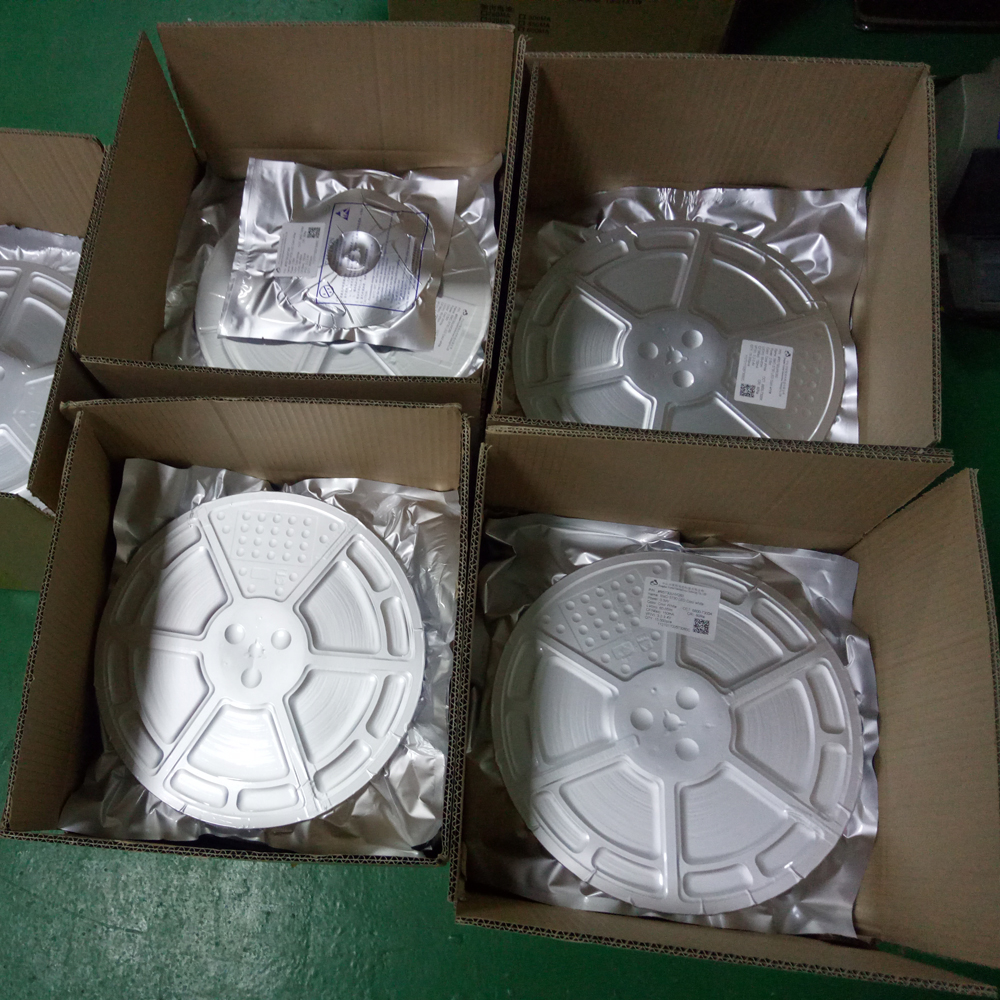

- Package:4012pcs/roll 2 rolls/bag
 | |
Feature:
LED Brand 2835smd/5050smd/ 4014smd/5730smd use good chips brand LED diode, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light.
Feature:
1. Chip Matrrial: InGaN.
2. Lens Color: Yellow Diff.
3. 30*1.4*0.8mm (3014) standard package.
4. Suitable for all SMT assembly methods.
5. Compatible with infrared and vapor phase reflow solder process.
6. Compatible with automatic placement equipment.
Application:
1.Automotive: Dashboards, stop lamps, turn signals.
2.Backlighting: LCDs, Key pads advertising.
3.Status indicators: Consumer & industrial electronics.
4.General use.

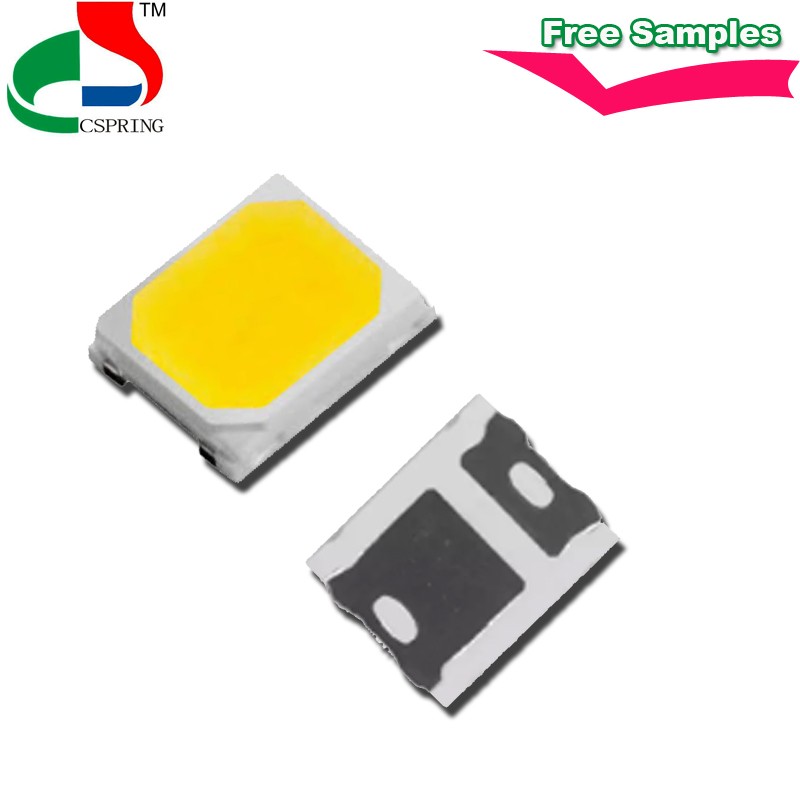

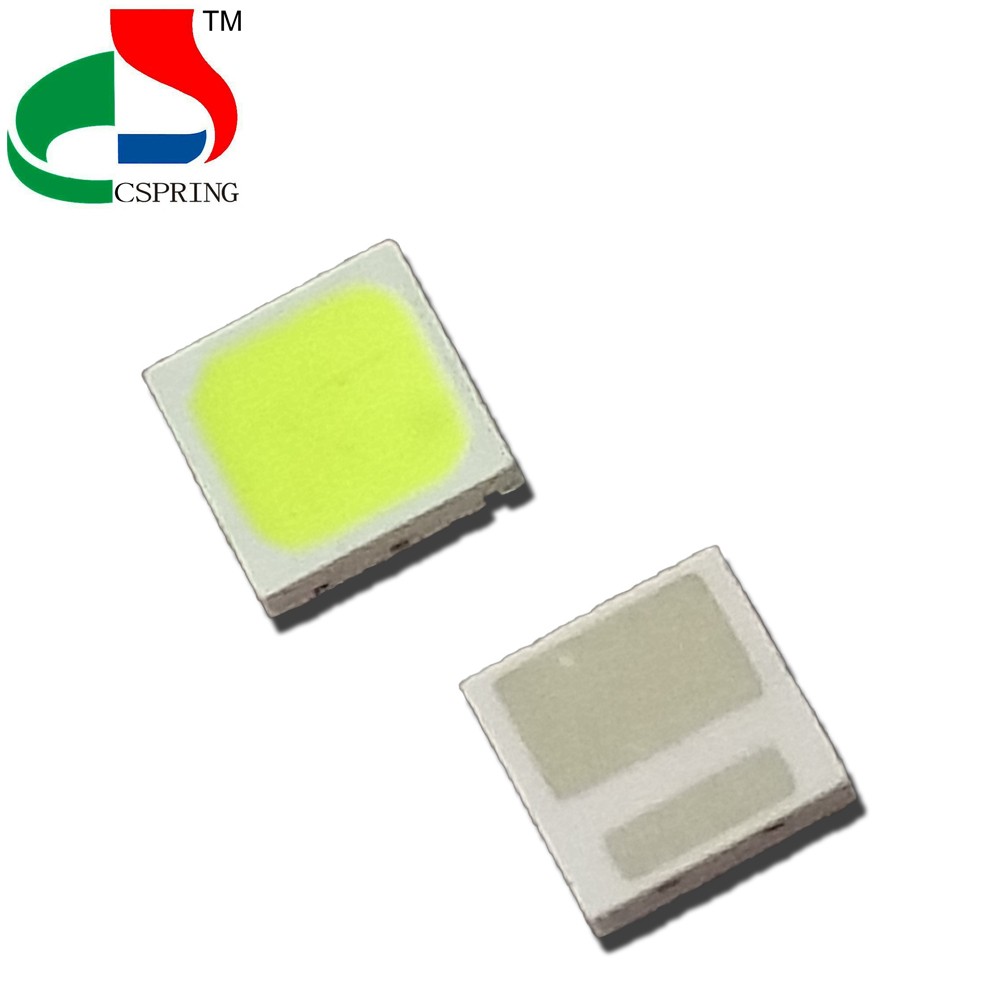

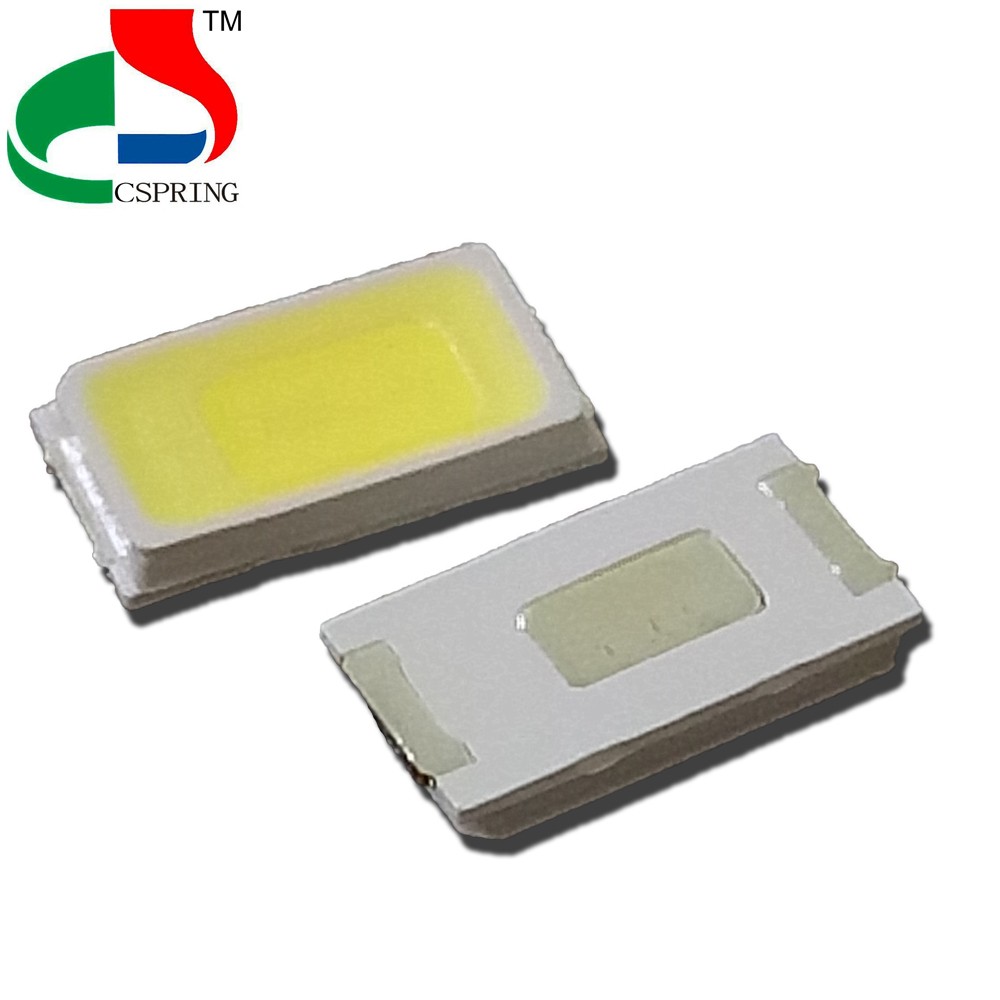

SMD 3030 LED | SMD 2835 LED | SMD 5730 LED | SMD 5050 LED |
1W | 0.1W/0.2W/0.3W/0.5W/1W | 0.5W | 10W |
White/ Green/Yellow etc | All single color | All single color | White/Warm white etc |
3V / 6V | 3V/6V/9V/ 18V | 3.0-3.6V | 3.0-3.6V  |
