- Color Temperature(CCT):660nm
- Input Voltage(V):2.0-2.6V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:YES
- Lighting solutions service:660NM HIGH POWER LED
- Luminous Efficacy(lm/w):15
- Lifespan (hours):30000
- Working Time (hours):30000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:DEEP RED
- Luminous Intensity:60-80lm
- Luminous Flux(lm):12-15lm/w
- Optical Attenuation(%):3
- Power:5W
- Power Dissipation:5
- Viewing Angle(°):140
- Color Rendering Index(Ra):70
- Color Temperature:655-665nm
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 60
- Place of Origin:Guangdong, China
- Brand Name:Cspring

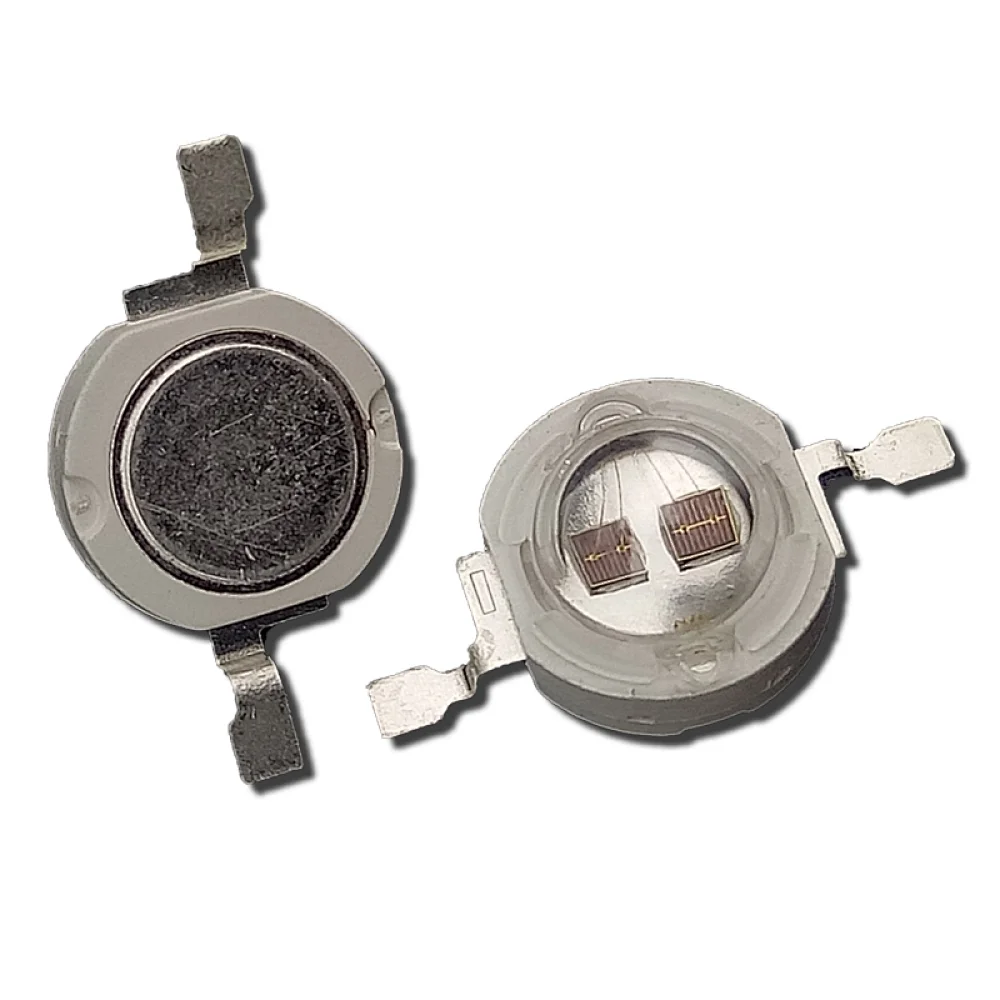

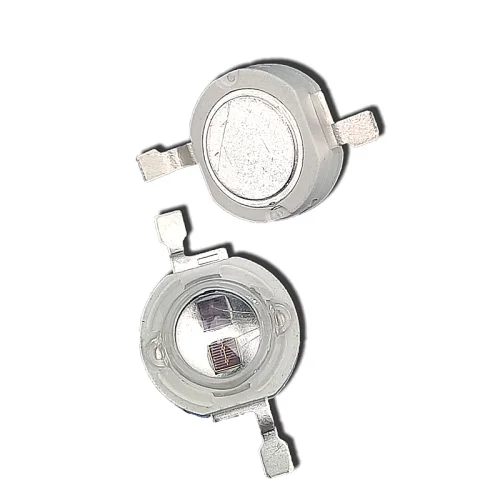

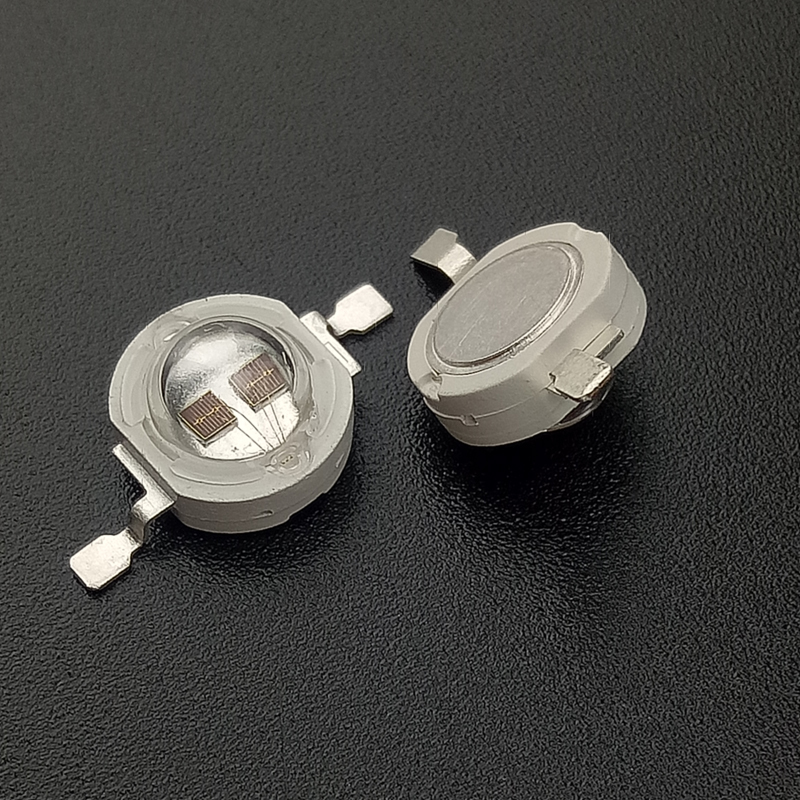

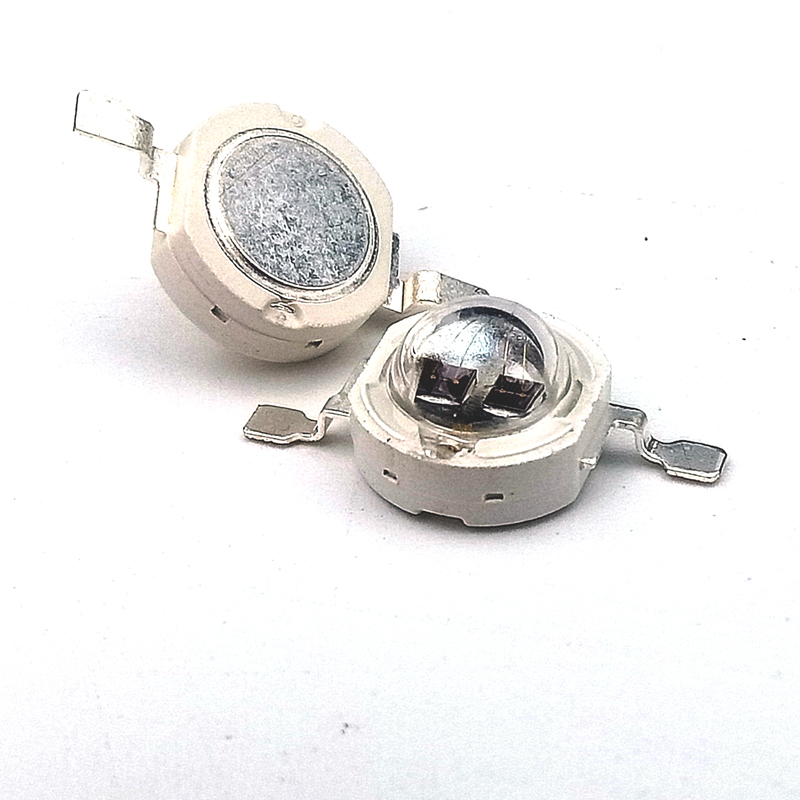

- Name:Good quality High Power Led 5W Deep Red 660nm
- Chip brand:Epileds chip
- Voltage:2.0-2.4V
- Current:1400mA
- Warranty:2 years
- Lifespan:30000-50000 Hours
- Emitting Colour:Deep color
- Certification:ce, RoHS
P04DR660NM-5W
Name: Good quality High Power Led 5W Deep Red 660nm
Power series is desingned for high current operation and high flux output applications.
Power LED its thermal management perform exceeds then other power LED solutions.
It integrate of the art SMD design and thermal emission material.
Power LED is ideal light sources for general applications,custom designed solutions,and automotive large LCD backlights
Feature:
High quality,high brightness,low-attenuation.
Long lifespan:50000 hours.
Energy-saving and environmental protection.
Large light emitting angle.
2 years warranty.
Can be applied to a variety of harsh environments.
High consistency in light color,high cost-effective.
Specification:
Type:High Power LED
Emitting Color: Deep Red
Luminous Intensity: 60-80lm
Luminous Flux(lm):12-15lm/w
Power: 5W
Viewing Angle(°):140 degree
Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -20 - 60
Chip brand: Epileds chip
Voltage: 2.0-2.4V
Current: 1400mA
Wavelength: 655-665nm
Warranty: 2 Years
Lifespan: 30000-50000 Hours
Package: 50pcs/tray
| LED Type | Color | WL | LM | power | Angle | Ra | Packing Size |
| High power led | Deep red | 660NM | 60-80lm | 5w | 120 | - | 50pcs/Box |
Application:
Wall lamps, underwater lamps, decorative illumination, and more
Underground lamps, reading lamps, emergency lights, and interior illumination
Miner's lamps, flashlights, and car lamps
Traffic signals and indicating lamps
plant growing light
