Model NO.
GP-022
Price:
$ 0.50-0.82 / piece
Minimum order quantity:
1 piece
Country of Origin:
Zhongshan/Guangzhou/Shenzhen
Quantity:
  • Color Temperature(CCT):RGBW
  • Input Voltage(V):2.0-2.4V 3.0-3.6V
  • Warranty(Year):2-Year
  • Type:High Power LED
  • Support Dimmer:YES
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):10
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Chip Material:AlGaInP
  • Emitting Color:RGBW
  • Luminous Intensity:R:40-50LM G:80-90LM B:20-30LM W:80-90LM
  • Luminous Flux(lm):R:40-50LM G:80-90LM B:20-30LM W:80-90LM
  • Optical Attenuation(%):3
  • Power:4x3W
  • Power Dissipation:3
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):70
  • Color Temperature:RGBW
  • Operating Temperature(℃):-25 - 65
  • Storage Temperature(℃):-35 - 105
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Product name:Factory direct sale high power led 8 pins 1w rgbw led
  • Chip brand:Taiwan Epileds
  • Voltage:R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V
  • Chip Size:45 Mil
  • Current:350mA / 700mA
  • Warranty:2 Years
  • Lead Soldering Temperature:260 ℃ for 5 Seconds
  • Lifespan:30000-50000hours
  • Certification:RoHS
Specification
Setting Information
Name
Factory direct sale high power led 8 pins 1w rgbw led
Power
4*1W or 4*3W
Current
350mA / 700mA
Chip size
30mil, 38mil, 45mil
Warranty
2 years
Color Temperature
R:620-625NM G:520-525NM B:460-465NM W: 6000-7000K/3000-3500K/4000-4500K
Legs
8 legs
Chip brand
Taiwan Epileds
Product Description

Product Details

High power RGBW 4*1W and 4*3W LED size

Product Details

1. Use high quality big size chip.

2. Bridgelux, Epistar, Epileds brand can choose.

3. 30mil, 38mil, 45mil chip can choose.

Product Details

Gold wire bonding, Copper stent.

Product Details

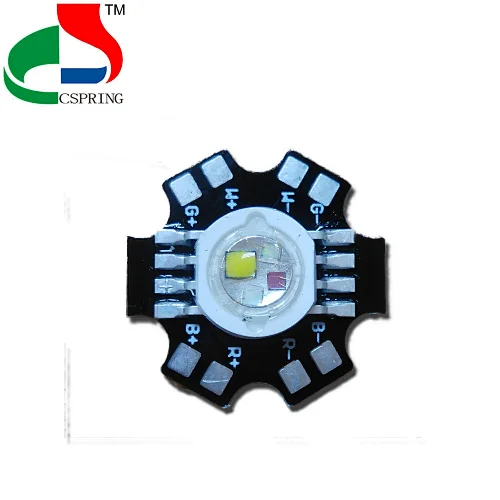

We also provide the High power led with the star pcb board.

Easy to install

Applications
Company Information
FAQ

Q1. Can I have a sample order for high power led?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for high power led order?

A: Low MOQ, 10pcs for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for high power led?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: No. The high power led size is too small, can not print your LOGO

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
B: Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
