Lighting solutions service:Lighting and circuitry design
Luminous Efficacy(lm/w):5
Lifespan (hours):50000
Working Time (hours):50000
Chip Material:AlGaInP
Emitting Color:Tri-Color(Red-Blue-Green)
Luminous Intensity:MCD
Luminous Flux(lm):full color
Optical Attenuation(%):3
Power:0.06W
Power Dissipation:75
Viewing Angle(°):120 Degree
Color Rendering Index(Ra):70
Color Temperature:RGB
Operating Temperature(℃):-40 - 60
Storage Temperature(℃):-40 - 60
Place of Origin:Guangdong, China
Brand Name:Cspring

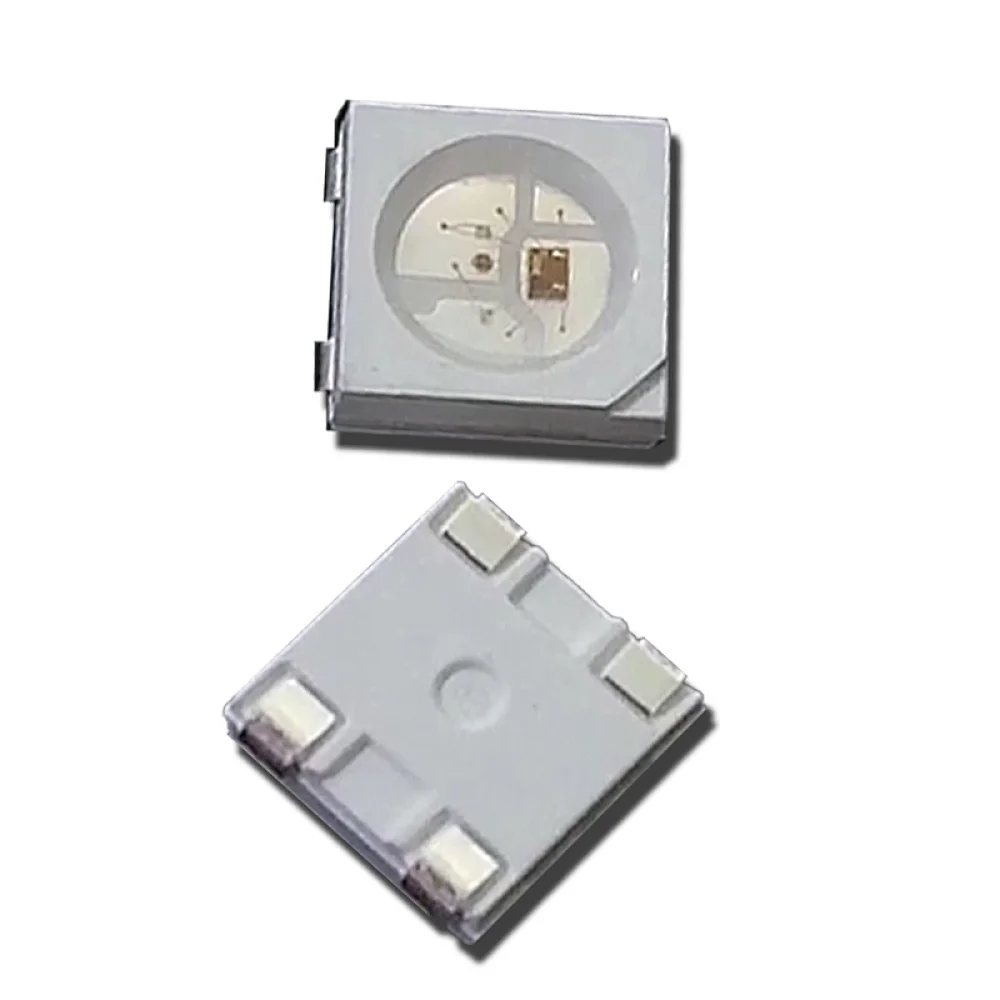

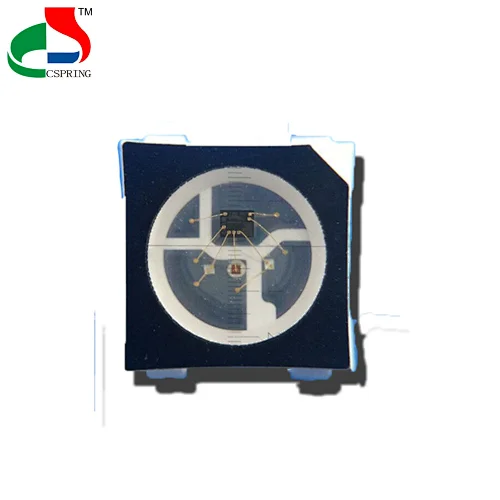

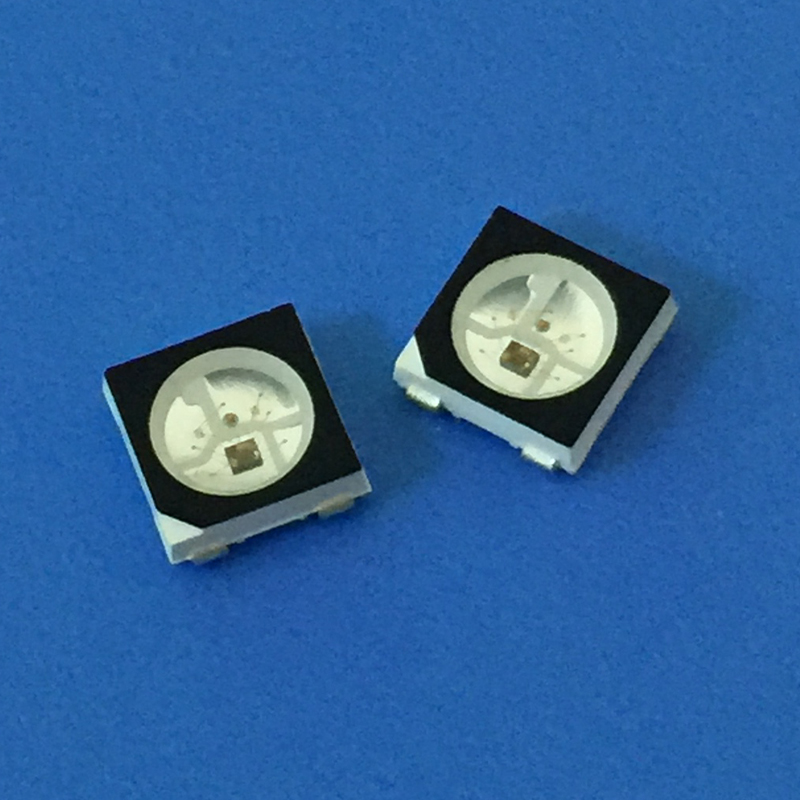

Name:IC Chip 3535 RGB SMD LED SK6812MINI white and black face
Warranty:2years
IC:SK6812 Led

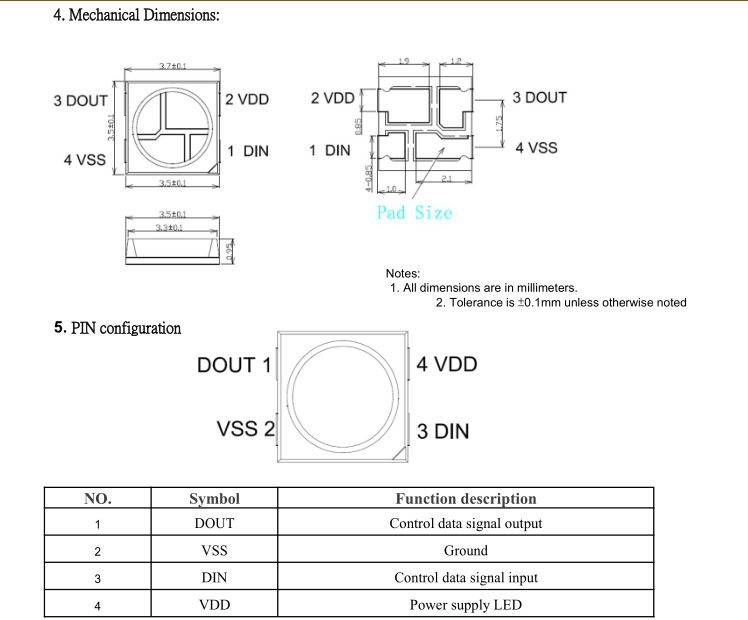

Size:3.5*3.5mm
Lifespan:50000H
Chip Brand:Taiwan chip
Package:1500pcs/roll
Wire:Gold wire
Bracket:Copper
Certification:ce, RoHS

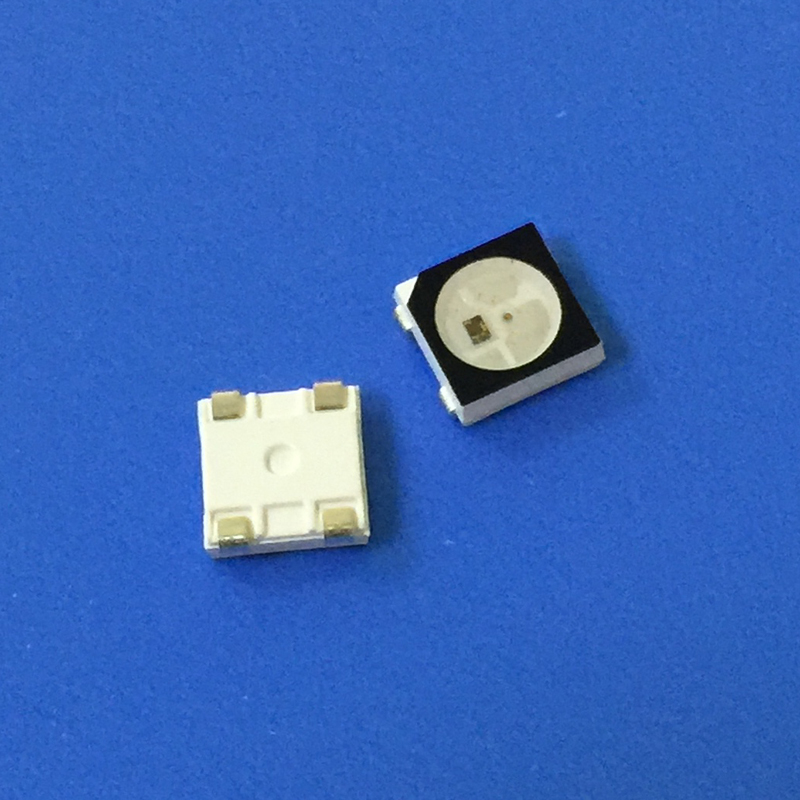

Digital Built-in IC Chip 3535 RGB SMD LED SK6812MINI white and black face
Our Services
Our Services:
1.Our products have 2 years warranty. 2.Quality assurance both for our products and before/after-sales service. 3.Accept samll order and mixed order,samples are welcomed. 4. Discounts are offered base on order quantities. 5. Great variety of products with competitive price, welcome OEM and ODM.
