China Wholesale 0.5watt 60-65LM RA80 2835 SMD LED specifications SMD 2835 LED

Model NO. R2835UWC60

minimum order 1 piece

Country of Origin Zhongshan/Guangzhou/Shenzhen

Quantity

Contact Now add to cart

China Wholesale 0.5watt 60-65LM RA80 2835 SMD LED specifications SMD 2835 LED

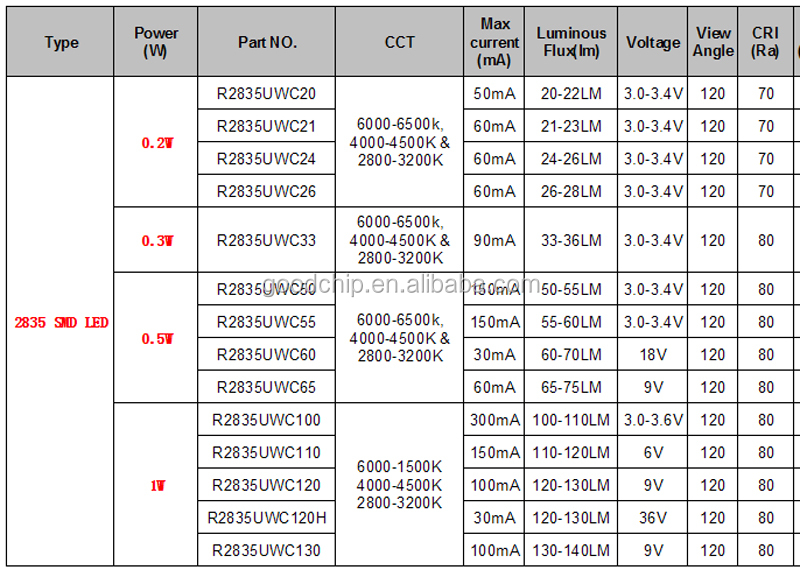

Type	Power(w)	Part NO.	CCT	Max current(mA)	Luminous Flux(lm)	Voltage	View Angle	CRI(Ra)
SMD LED 2835	0.2W	R2835UWC20	6000-6500K 4000-4500K   2800-3200K	50mA	20-22LM	3.0-3.4V	120	70
		R2835UWC21		60mA	21-23LM	3.0-3.4V	120	70
		R2835UWC24		60mA	24-26LM	3.0-3.4V	120	70
		R2835UWC26		60mA	26-28LM	3.0-3.4V	120	70
	0.3W	R2835UWC33	6000-6500K 4000-4500K   2800-3200K	90mA	33-36LM	3.0-3.4V	120	80
	0.5W	R2835UWC50	6000-6500K 4000-4500K   2800-3200K	150mA	50-55LM	3.0-3.4V	120	80
		R2835UWC55		150mA	55-60LM	3.0-3.4V	120	80
		R2835UWC60		30mA	60-70LM	18V	120	80
		R2835UWC65		60mA	65-75LM	9V	120	80
	1W	R2835UWC100	6000-6500K 4000-4500K   2800-3200K	300mA	100-110LM	3.0-3.6V	120	80
		R2835UWC110		150mA	110-120LM	6V	120	80
		R2835UWC120		100mA	120-130LM	9V	120	80
		R2835UWC120H		30mA	102-130LM	36V	120	80
		R2835UWC130		1000mA	130-140LM	9V	120	80

Packaging & Shipping

The packing way of product China Wholesale 0.5watt 60-65LM RA80 2835 SMD LED specifications SMD 2835 LED:

Inner packing: by the roll, 20000pcs/roll with ESD bag.

Outer packing: by cartons.

2835 SMD LED,2835 SMD LED,2835 SMD LED,2835 SMD LED,SMD 2835 LED,SMD 2835 LED,SMD 2835 LED,SMD 2835 LED,SMD 2835 LED

2835 SMD LED Application:

1,LED Lighting industry(Tube,Panel Light,Ceiling Light,Bulb light etc)

2,Landscape lighting (LED Strip,Wall washer lamp,Garden light etc)

3,Plant grow light

4,Sterilization and Disinfection

5,Money detector
