Automotive LED 3528 PLCC-4 SMD LED with Lens

Model NO. GC-R3528URC30P4

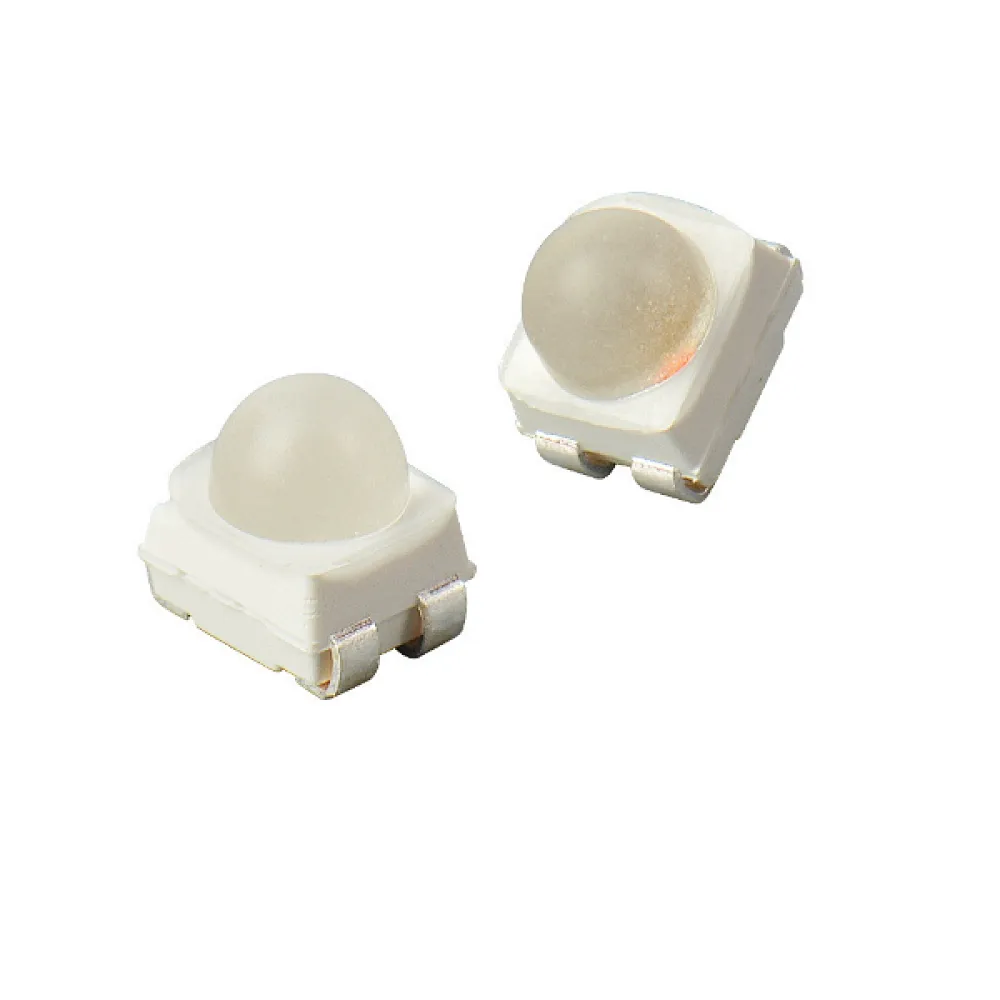

Automotive LED3528 PLCC-4 SMD LED with 30 degree Lens replacement Osram 3528 PLCC-4 SMD LED

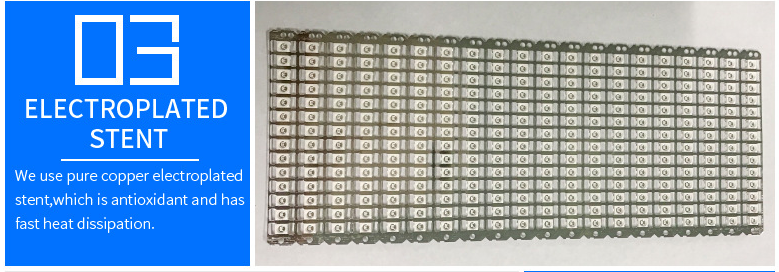

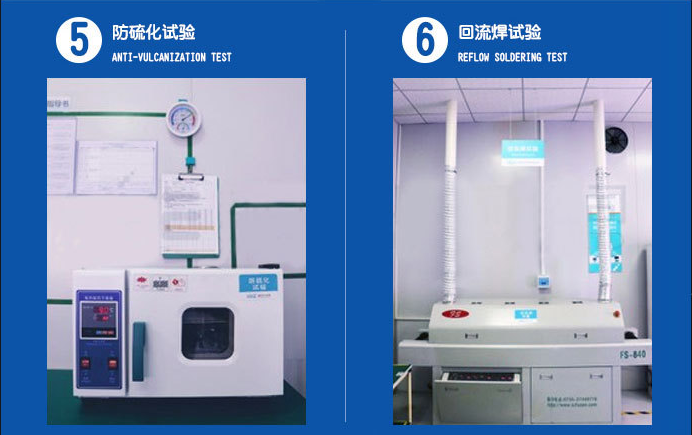

Copper stent, 99.999% gold wire, Epistar 14mil chip, Waterproof, Anti-ultraviolet, Anti-vulcanization, not easy to be affected by moisture, high brightness, good spot, Good heat dissipation, complete angle, easy to distribute light, small size, easy to install, the light source of choice for car light

Quantity

Item	Colloidal Color	Color	WL(nm) CCT(K)	Forward Voltage		Luminous Flux(MCD)			IF/mA	CRI	Viewing Angle【°】
Item	Colloidal Color	Color	WL(nm) CCT(K)	Min	Max	Min	Type	Max	50	70-95	30
GC-R3528UWW30P4	Foggy	Warm White	1900-3200K	2.8	3.4	16000	20000	30000	50	70-95	30
GC-R3528UNW30P4		Naturel White	4000-6000K	2.8	3.4	16000	20000	30000	50	70-95	30
GC-R3528UWC30P4		Cool White	6000-8000K	2.8	3.4	16000	20000	30000	50	-	30
GC-R3528UBC30P4		Blue	460-475nm	2.8	3.4	4000	8000	15000	50	-	30
GC-R3528UGC30P4		Green	520-530nm	2.8	3.4	15000	20000	27000	50	-	30
GC-R3528URC30P4		Red	620-630nm	1.9	2.6	8000	11000	17000	50	-	30
GC-R3528UYC30P4		Yellow	588-595nm	1.9	2.6	8000	11000	17000	50	-	30
GC-R3528UAC30P4		Amber	600-610nm	1.9	2.6	8000	11000	17000	50	-	30
