2835 3000K SMD Samsung LED module

Model NO. K8 Pro/Ultra

DC12V IP68 waterproof micro prism lens 170 degree LED module

Quantity

Features

1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 120-130LM/pcs, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP68, waterproof.

5. DC 12V low voltage input , reliable and safe.

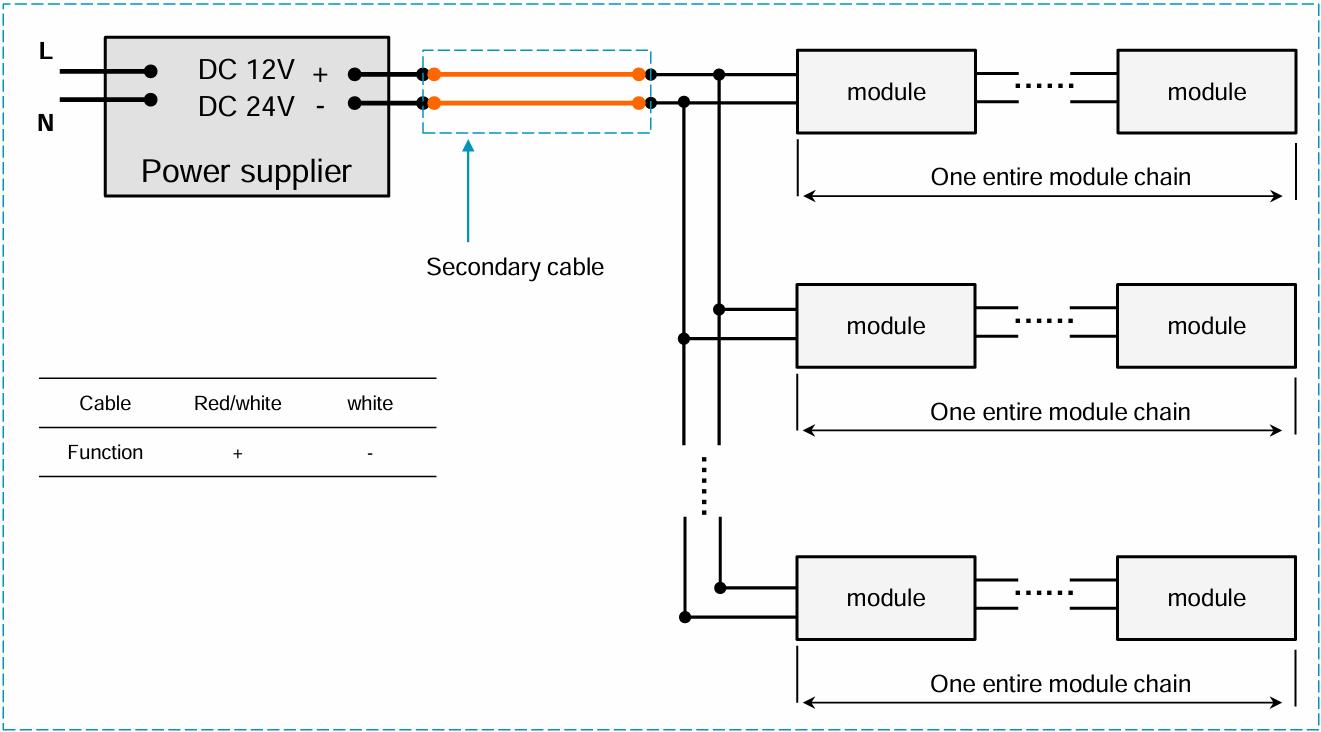

6. Adopt series-parallel connection circuit, 50pcs per string, each module could be singled out.

7.Micro prism lens, 170° own design optics..

8. Strong copper wires.

9.Five years warranty.

Application

This product is applicable for 10-20cm glowing character, advertisement board, light box or local lighting.

**Specification**
P/N	K8Pro	K8ULTRA
Product	2835SMD Samsung LED module	High efficiency 2835 SMD LED module
LED Type	2835SMD LED	2835SMD LED
LED BRAND	chip from Samsung	Philips LED
ViewingAngle	170°	170°
Luminous Flux（lm）	125LM	160LM
LED Qty	3pcs	3pcs
Life Span	50,000 H	50,000 H
Working Voltage	DC12V	DC12V
Consumption	1.1W	1.0W
Driving Method	CV	CV
Stand Length In Serial Connection	50pcs	20pcs
Maximum Length In Serial Connection	≤50pcs	≤20pcs
Shell	white ABS	white ABS

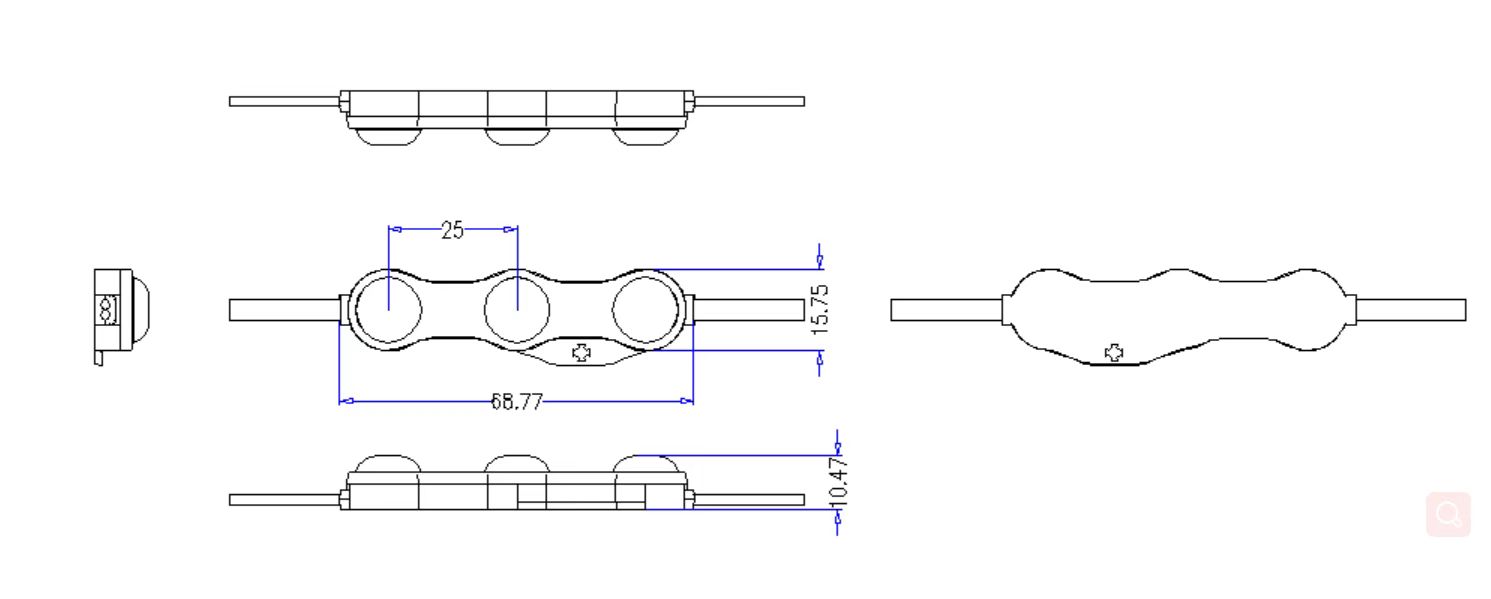

Dimension	66157.5mm	66157.5mm
AvailableColor	W/WW/CW	W/WW/CW
Certification	CE & ROHS & BIS & UL	CE & ROHS & BIS & UL
Working Temperature	-20℃ —— +60℃	-20℃ —— +60℃
Store Temperature	-40℃ —— +60℃	-40℃ —— +60℃
IP Degree	IP68	IP68

Package

Every50 pcs per a string, every 2 string in an anti-static bag, 2000 pcs per a carton box. Carton size: 50*35*35 cm.

Net Weight: 10g/pc; 400 g/string; 21kg/carton.

This is a detailed picture of the LED module package specifications

LED Module Installation Guide

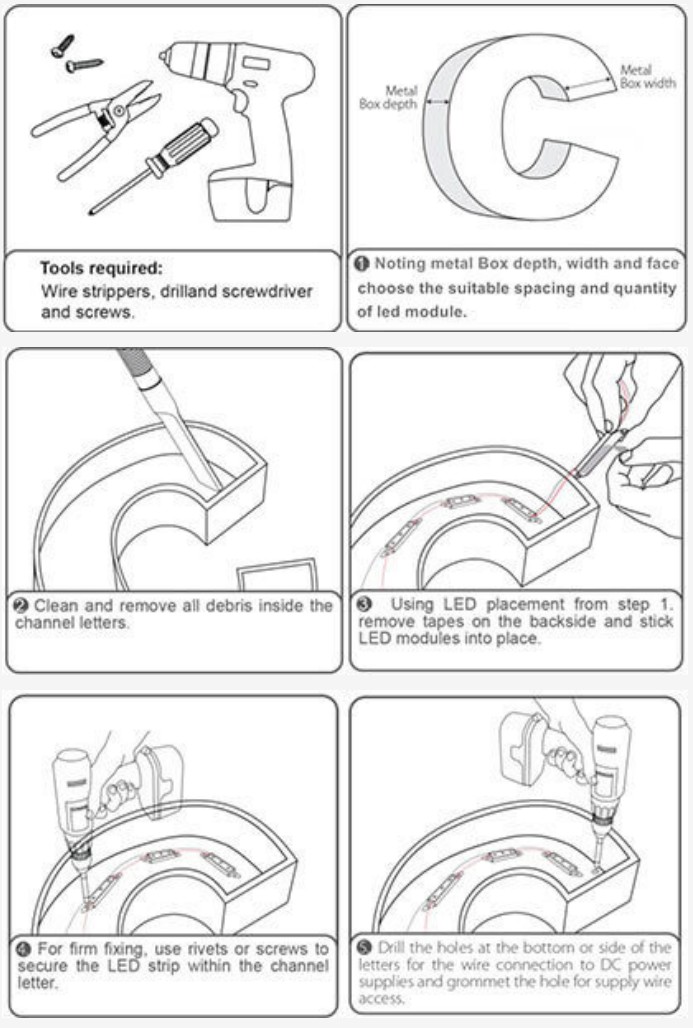

Tool required: wire strippers, drilland screw driver and screws

1. Noting metal Box depth, width and face material, choose the suitable spacing and quantity of led module, Carefully choose the acrylic panel, the light-diffusion and permeating of which has great effect on brightness and uniform of the light from boxes.

2. Clean and remove all debris inside the channel letters.

3. Using LED placement from Step 1, remove tapes on the backside and stick LED Module into place.

4. For firm fixing, use screws to secure the led module within the channel letter.

5. Drill the holes at the bottom or side of the letters for the wire connection to the DC power supply wire access.

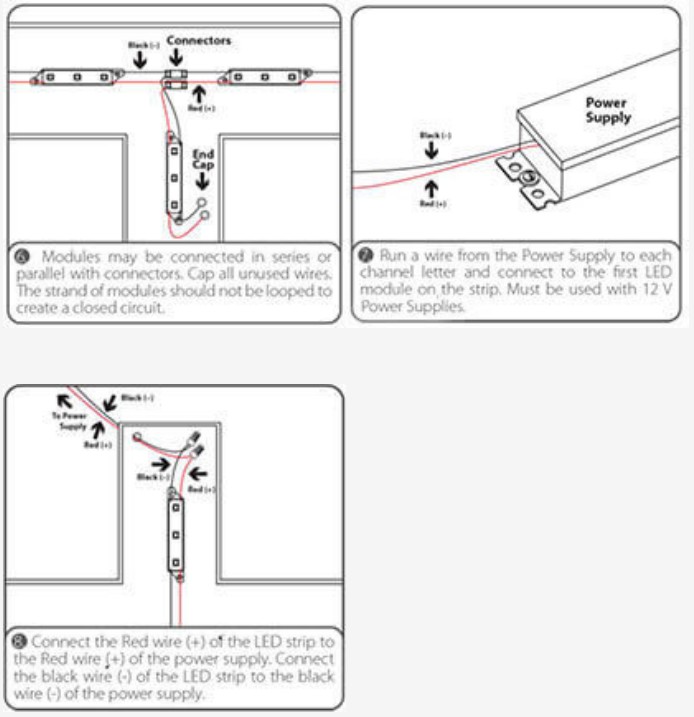

6. LED Modules may be connected in series or parallel with connectors. Cap all usused wires. The strand of module should not be loop to creat a closed circuit.

7. Run a wire from the Power supply to each channel letter and connect to the first LED module on the strip. Must be used with 12V Power supplies.

8. Connect the Red wire(+) of the LED Module to the Red wire (+) of the LED Power supply. Connect the black wire(-) of the led module to the black wire (-) of the power supply.
