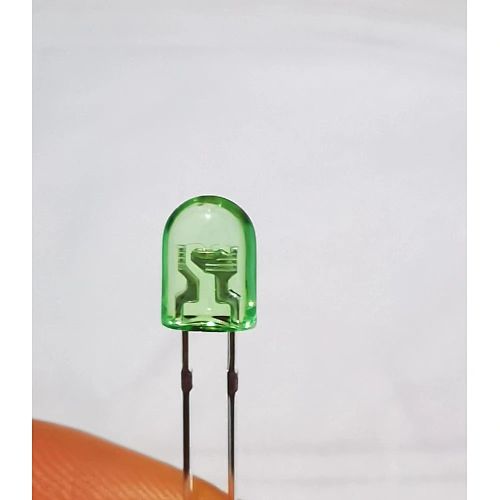

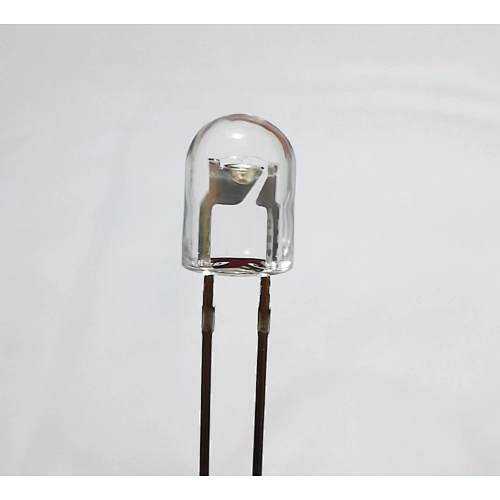

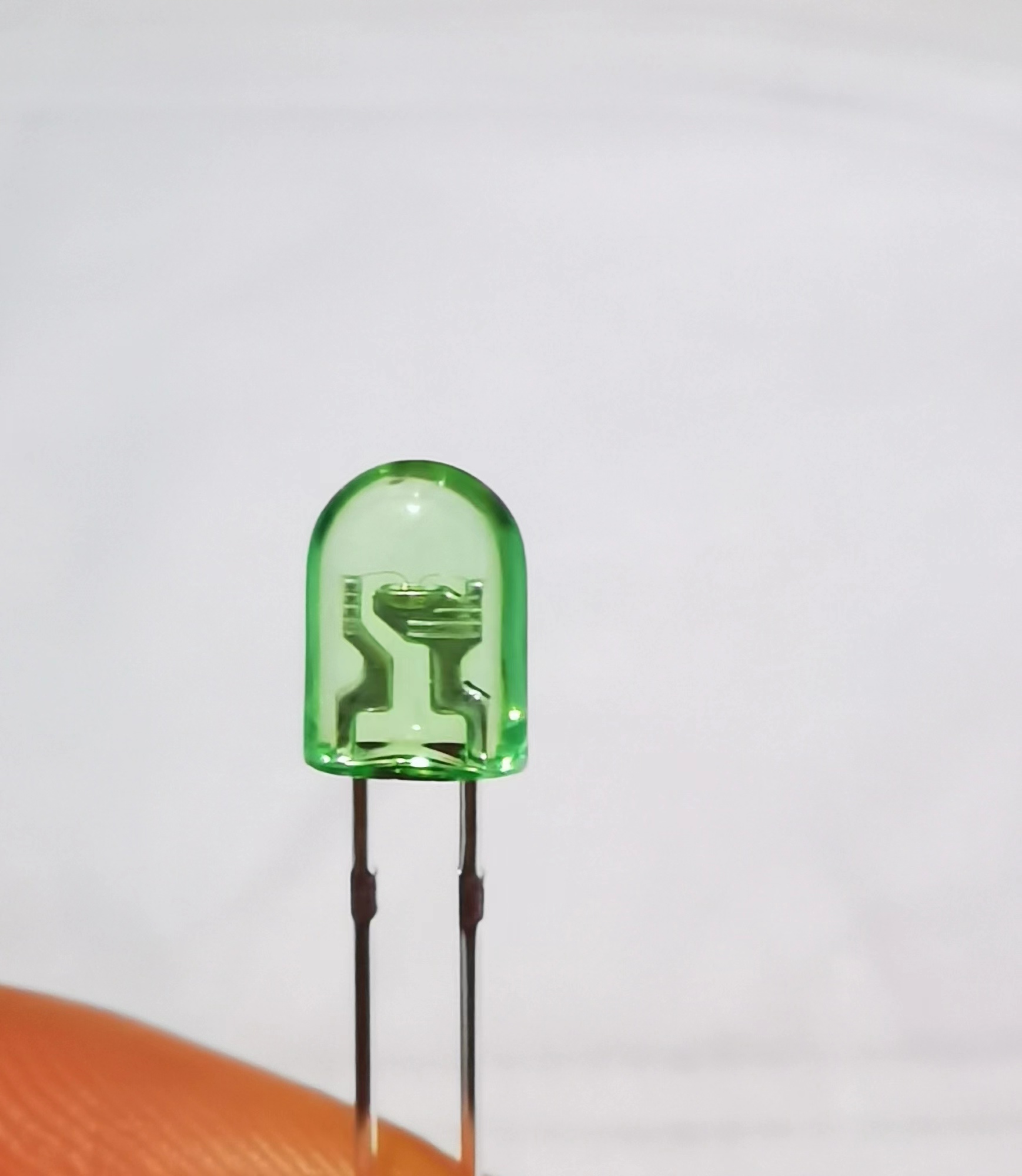

5mm 546 oval LED short leg without stoppers in white red orange green
546URT-W 546UWC-W 546UGT-W 546UOT-W
Quantity
5mm 546 oval LED short leg without stoppers in white red orange green
Feature:
High intensity, good consistency, low decay .
Available in various colors and view angle
Low light decay: 10% of first 1000 hours
Solid-state, high shock and vibration resistant
No RF interfence
Maintenance free,easy installation
Long life 30000-50000hours

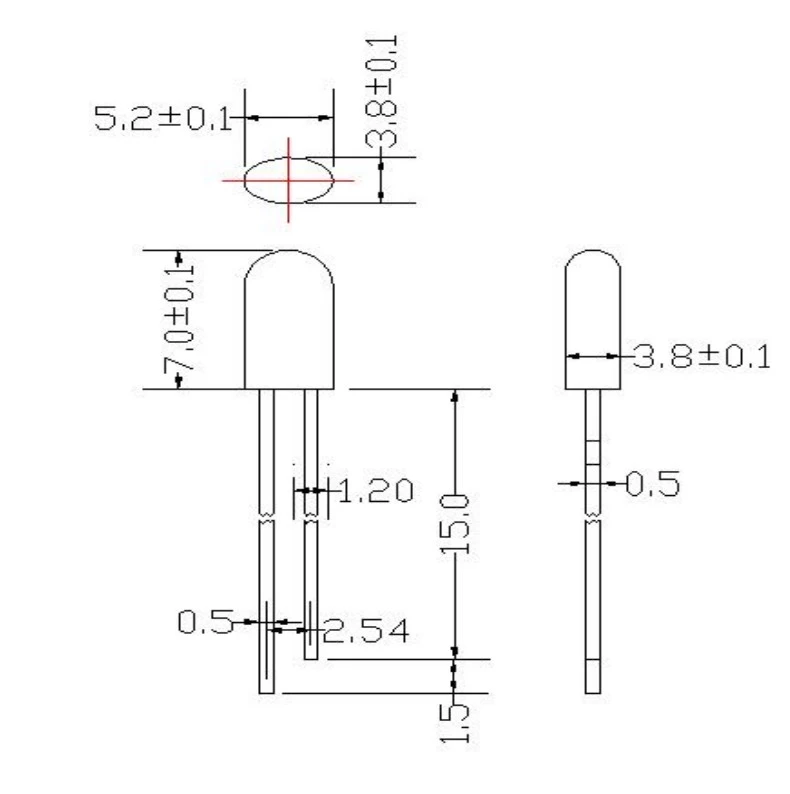

Standard T-1 3/4 diameter package
General purpose leads
5mm 546 oval LED short leg without stoppers','5mm short leg oval led','5mm 546 oval LED','white red orange green','5mm red oval led','5mm oval red led','5mm oval white led','led white 5mm oval','led lamp 5mm oval'
| Model: | Color available | Wavelength | Light intensity | Reverse Current | Forward Current | Forward voltage | Beam Angle |

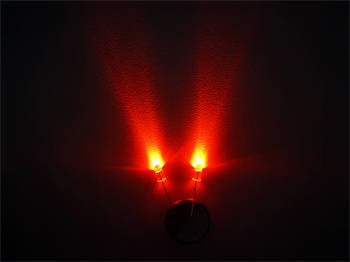

| 546URT-W | red | 615-635nm | 5000-8000mcd | 10uA | 20mA | 1.8-2.4V | 140 |

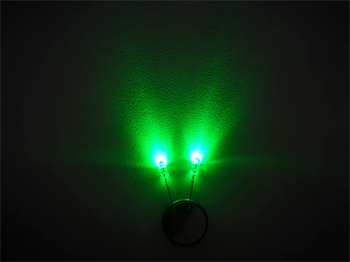

| 546UGT-W | green | 515-535nm | 6500-10000mcd | 10uA | 20mA | 2.8-3.4V | 140 |

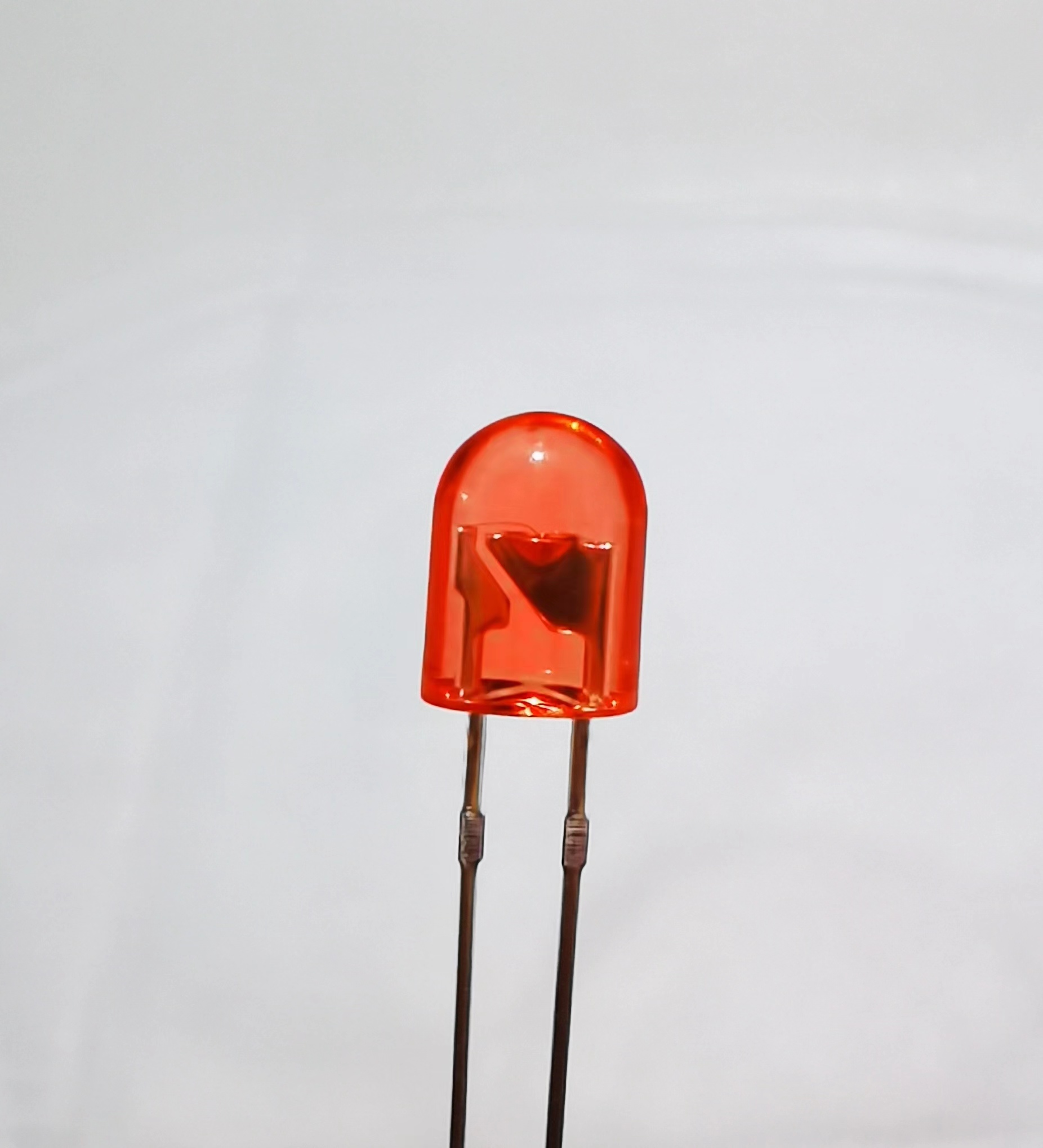

| 546UOT-W | orange | 600-610nm | 4000-6000mcd | 10uA | 20mA | 1.8-2.4V | 140 |

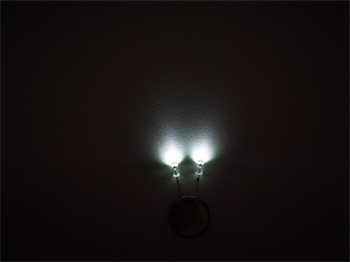

| 546UWC-W | white | 6000-7000k | 5000-7000mcd | 10uA | 20mA | 2.8-3.4V | 140 |
