3mm 346 oval red LED diodes

Model NO. 346URD-R

Quantity

Contact Now add to cart

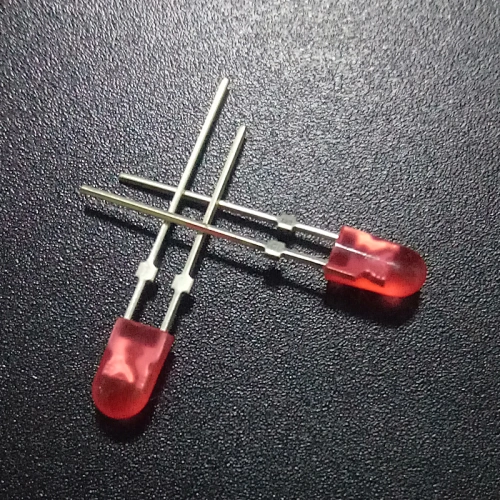

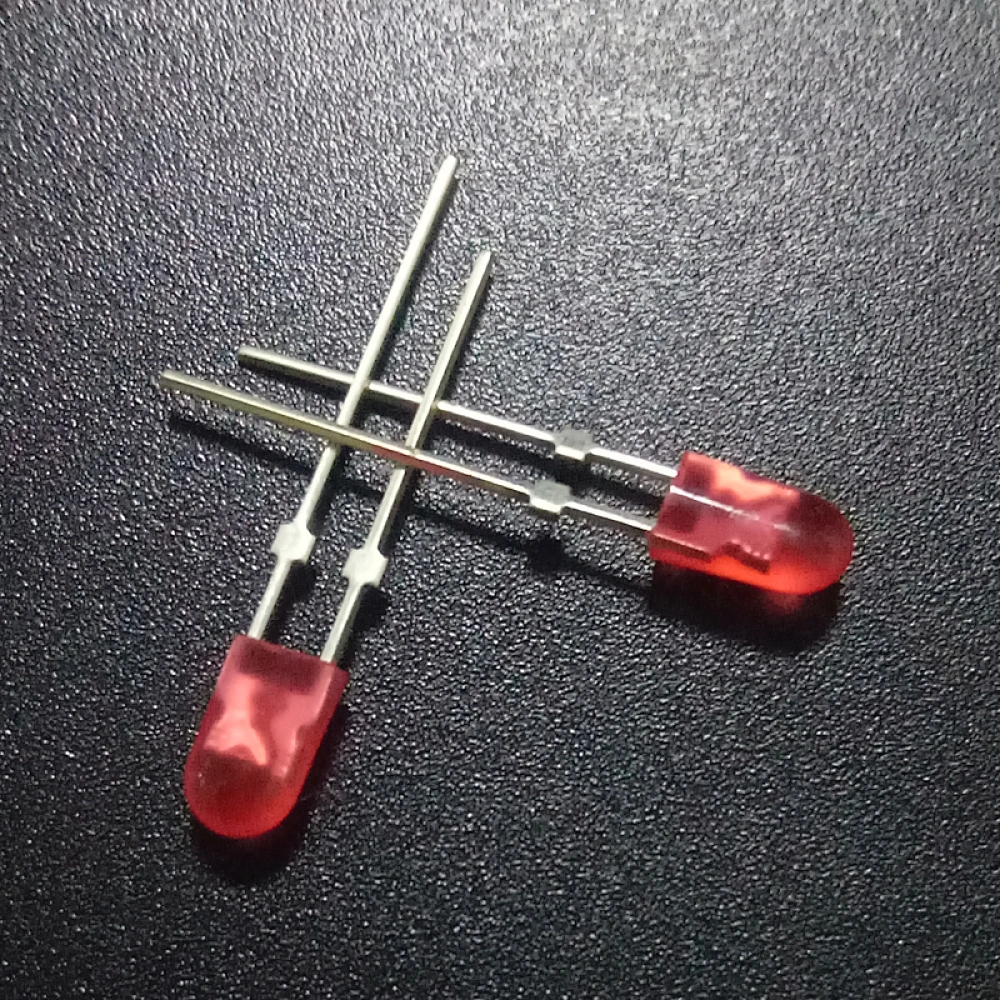

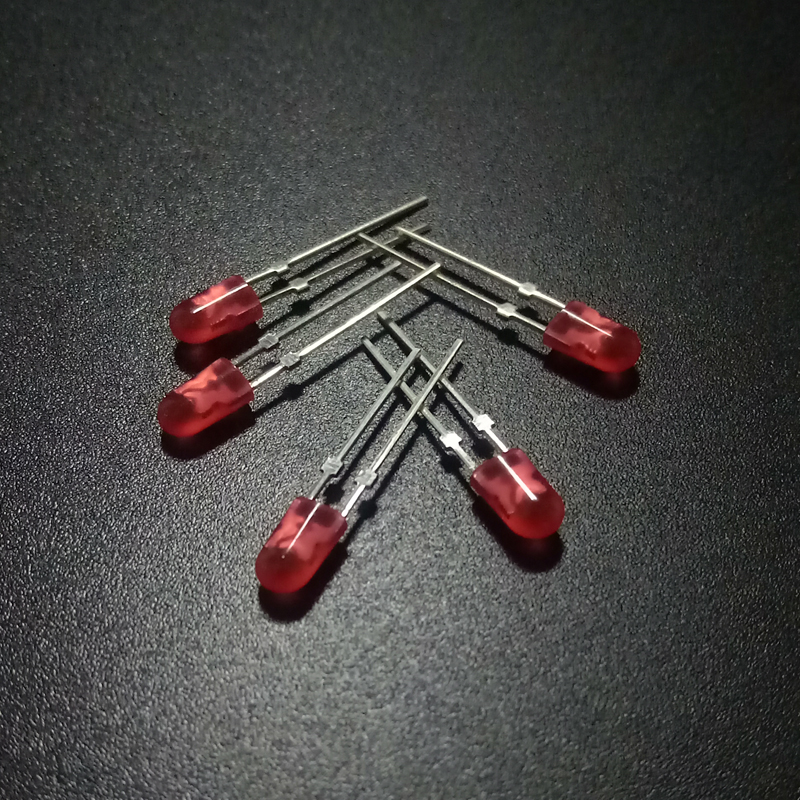

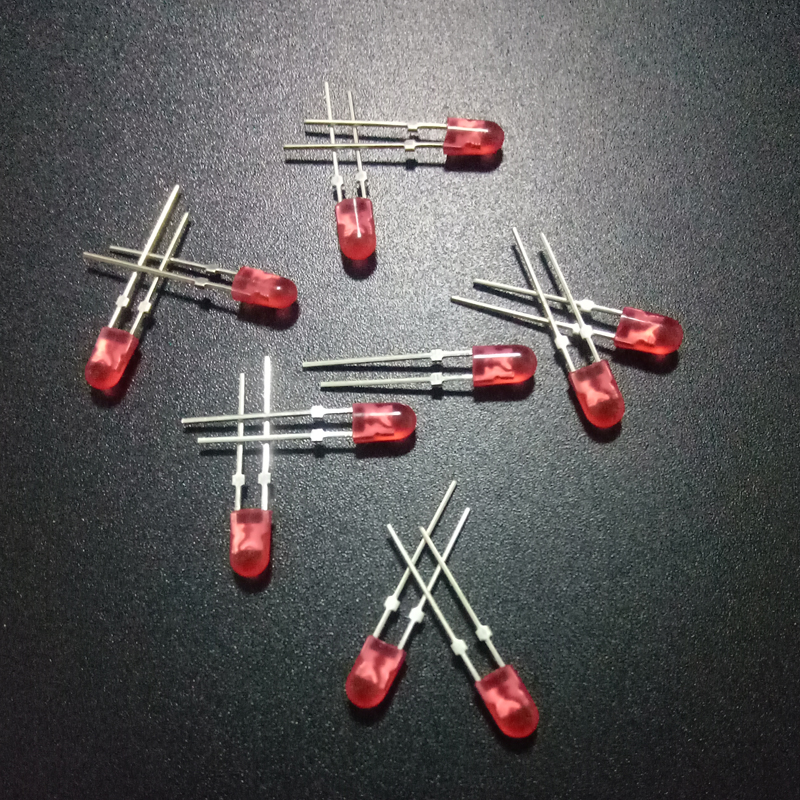

3mm 346 oval red LED

Product Description

3mm 346 oval red LED 3mm 346 oval red LED 3mm 346 oval red LED

Model	346URD-R
Item	3mm oval red led
dimensionsavailable	3mm, 5mm, 8mm, 10mm
lens color available	water clear/color transparent/Diffused
Shape availabe	round/bullet/flat top/straw hat/square/oval/concave
Chips Brand	Epileds, Epistar, Bridgelux, etc.
Viewing angle	90 degree
Color available	white, red, green, blue, yellow, purple, rgb, bi-color
Life Span	50,000hours
Delivery days	7 work days
payment	T/T, Western union, Paypal Escrow
Warranty	2 years
Main poduct	RGB led ,Bicolor led ,Dip led ,smd ,High power led 0.5w-300w

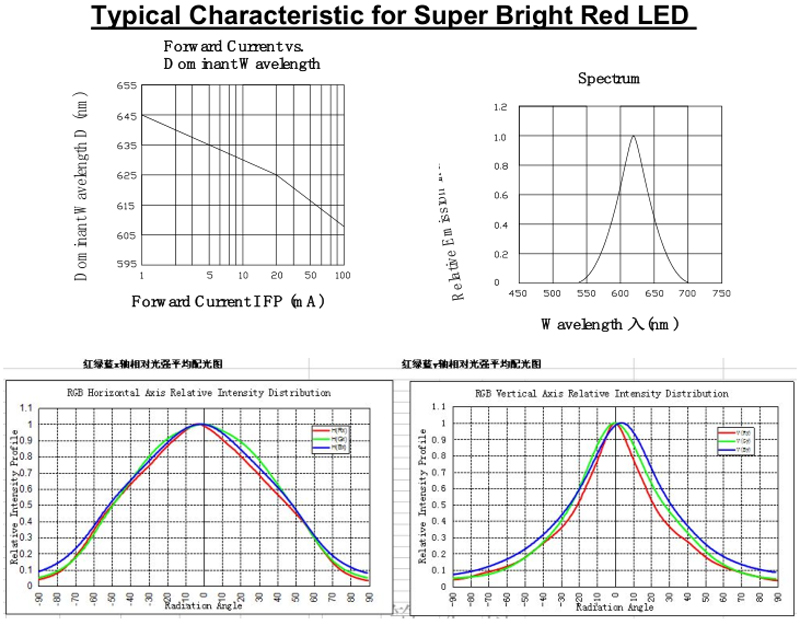

Specification for the 3mm red led

Parameter	Maximum Rating
Forward voltage	1.8-2.6V
Reverse Current	5uA
Forward Current	20mA
Light intensity	1000-1800mcd
Beam Angle	90
Reverse Voltage	5V
Operating Temperature Range	-40°C to + 80°C
Storage Temperature Range	-40°C to + 80°C

Product Description:

Packaging & Shipping

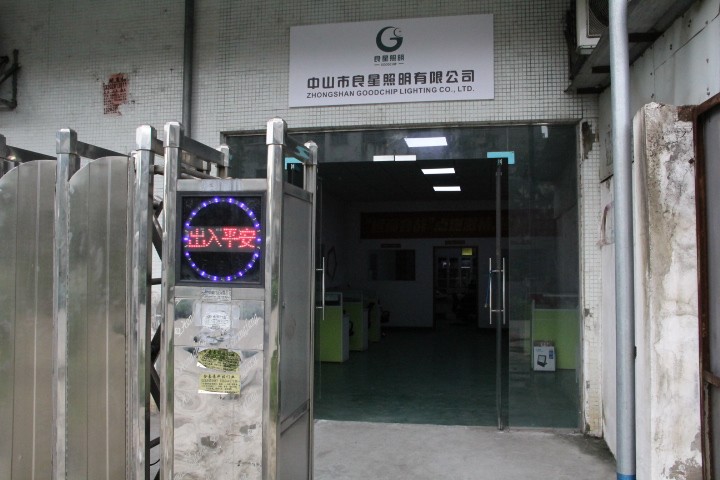

Our Company
