2835 High Light Efficacy 0.2 White Color SMD Chip LED
price
$0.01 - $0.05 / piece
R2835UWC24
1 piece
Guangzhou / Zhongshan / Shenzhen
Quantity
Super Bright high lumen 0.1W 0.2W 0.3W 0.5W 1W SMD 2835 LED chip
SMD 2835 LED 0.2W white LED Features
1. Chip Matrrial: InGaN
2. Lens Color: Yellow Diffused

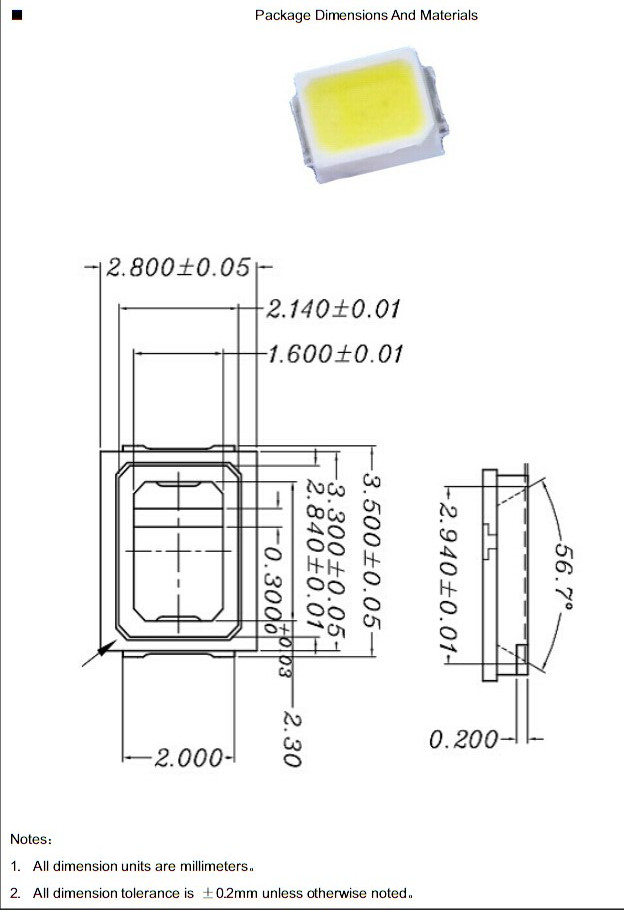

3. 3.5*2.8*0.8mm (2835) standard package
4. Suitable for all SMT assembly methods
5. Compatible with infrared and vapor phase reflow solder process
6. Compatible with automatic placement equipment
2835 SMD LED Chip,White Color SMD Chip,SMD LED 2835,LED diodes,White Color SMD Chip,2835 SMD LED Chip SMD LED 2835 LED diodes SMD LED 2835 LED diodes LED diodes
| Type | Power(w) | Part NO. | CCT | Max current(mA) | Luminous Flux(lm) | Voltage | View Angle | CRI(Ra) |
| SMD LED 2835 | 0.2W | R2835UWC20 | 6000-6500K 4000-4500K 2800-3200K | 50mA | 20-22LM | 3.0-3.4V | 120 | 70 |
R2835UWC21 | 60mA | 21-23LM | 3.0-3.4V | 120 | 70 | |||
| R2835UWC24 | 60mA | 24-26LM | 3.0-3.4V | 120 | 70 | |||
| R2835UWC26 | 60mA | 26-28LM | 3.0-3.4V | 120 | 70 | |||
| 0.3W | R2835UWC33 | 6000-6500K 4000-4500K 2800-3200K | 90mA | 33-36LM | 3.0-3.4V | 120 | 80 | |
| 0.5W | R2835UWC50 | 6000-6500K 4000-4500K 2800-3200K | 150mA | 50-55LM | 3.0-3.4V | 120 | 80 | |
| R2835UWC55 | 150mA | 55-60LM | 3.0-3.4V | 120 | 80 | |||
| R2835UWC60 | 30mA | 60-70LM | 18V | 120 | 80 | |||
| R2835UWC65 | 60mA | 65-75LM | 9V | 120 | 80 | |||
| 1W | R2835UWC100 | 6000-6500K 4000-4500K 2800-3200K | 300mA | 100-110LM | 3.0-3.6V | 120 | 80 | |
| R2835UWC110 | 150mA | 110-120LM | 6V | 120 | 80 | |||
| R2835UWC120 | 100mA | 120-130LM | 9V | 120 | 80 | |||
| R2835UWC120H | 30mA | 102-130LM | 36V | 120 | 80 | |||
| R2835UWC130 | 1000mA | 130-140LM | 9V | 120 | 80 |
