Model NO.
R3535UWC-2.8A
Price:
$ 0.01-0.05 / piece
Minimum order quantity:
1 piece
Quantity:
  • Color Temperature(CCT):6000-6500K
  • Input Voltage(V):2.8-3.4v
  • Warranty(Year):2-Year
  • Type:SMD LED
  • Support Dimmer:No
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):10
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Product Weight(kg):0.001
  • Chip Material:AlGaInP
  • Emitting Color:Cool White
  • Luminous Intensity:10-20lm
  • Luminous Flux(lm):10-20lm
  • Optical Attenuation(%):2
  • Power:0.2w
  • Power Dissipation:0.1
  • Viewing Angle(°):120
  • Color Rendering Index(Ra):70
  • Color Temperature:6000-6500K
  • Operating Temperature(℃):-40 - 85
  • Storage Temperature(℃):-40 - 100
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Product name:2 Yeas Warranty IP68 2.8-3.4V SMD 3535 LED Diode
  • Current:60mA
  • Voltage:2.8-3.4V
  • Size:3.5*3.5*2.8mm
  • IP Rate:IP68
  • Application:Outdoor Lighting
  • Warranty:2 Yeas
  • Lifespan:30000Hrs
  • Certification:RoHS

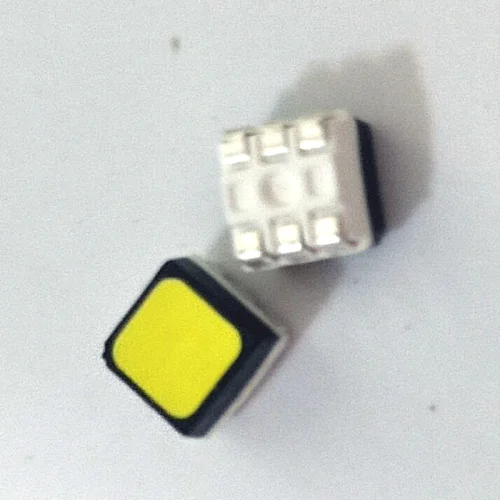

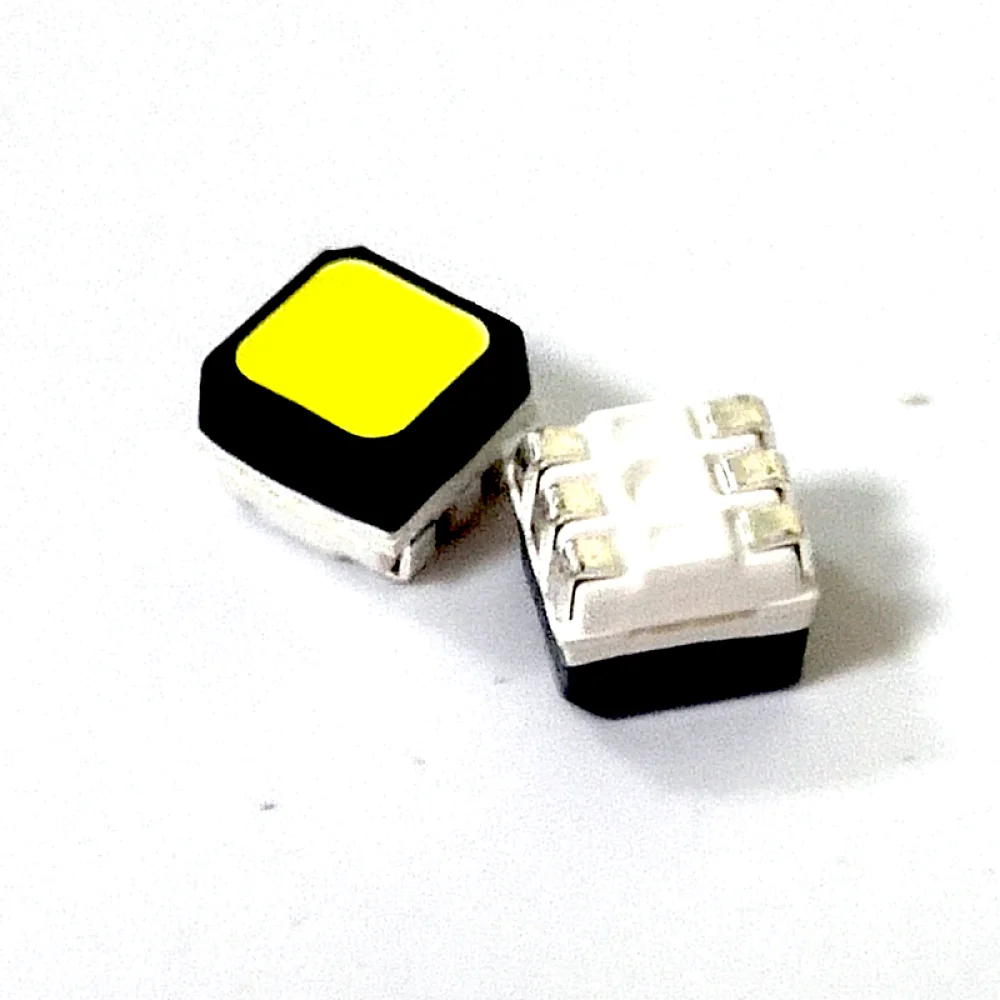

2 Yeas Warranty IP68 2.8-3.4V SMD 3535 LED Diode

Fearture:

High brightness,long life;

Energy saving and environmental protection;

Wide light emitting angle;

Vulcanization resistance;

Anti-UV capability;

Resistance high temperature;

Moisture resistance.

Waterproof IP65 (Can use for outdoor)

Application:

1).Indoor / Outdoor LED Lighting

2).LED Backlight

3).LED Indicator Light etc.

Specification:

Type:SMD LED

Emitting Color: White 2800-7000K

Operating Temperature():-40- 85

Storage Temperature():-40 - 100

Size:3.5*3.5*2.8mm

Luminous Intensity: 10-20LM

Voltage: 2.8-3.4V

Current: 60mA

Peak Forward Current: 150mA

Lifespan:50000 Hours

Packing: 3000pcs/roll

Warranty:2 years

Service and conmmitment:

1. 2 years quality guarantee

2. Free samples available

3. Dust-free working environment

4. Make the products as your requirement

5. Samples freight return for bulk order

6. Strong foreign trade service team and reply inquiry within 12 hours

7. Protection of your sales area, ideas of design and all your private information.

Our advantage:

Multiple waterproof,White frame with black surface,High brightness,High contrast ratio.

1).Anti-UV Capability (UV protection,Simulate 2 years outdoor use, lumen attenuation<5% )

2).Wide Working Temperature ( Pass temperature cycling test )

3).Resist to Corrosion ( Pass salt spray test )

4).Anti-Moisture (Indoor LED reaches MSL 3,outdoor LED MSL 2a )

5).Waterproof (IPX8,no failure in under water test )

6).Anti-Reverse Bias (Pass high humidity,high temperature and reverse bias test,supporting high refresh rate )

7).Long Lifespan ( 2 years under high temperature and damp environment, lumen attenuation<20% )

Why Choose us?

1. Excellent thermal conductivity, 99% copper stent.

2. No deformation. The PIN pin all -round protection.

3. No longer dead lights, outdoor use easily, safety.

4. Zero risk commitment, let you worry free.

Our company

Our factory

Packaging & Shipping

Packaging
•Normally packed with carton. The carton size are according to the item size.
•And the details of package are according the demand of client.

Shipping
• Samples and small order shipped by Express (DHL/FEDEX/TNT/UPS/EMS/BY ),Big order generally by sea shipping.
• Lead time:Generally within 30 days after confirming the order.
