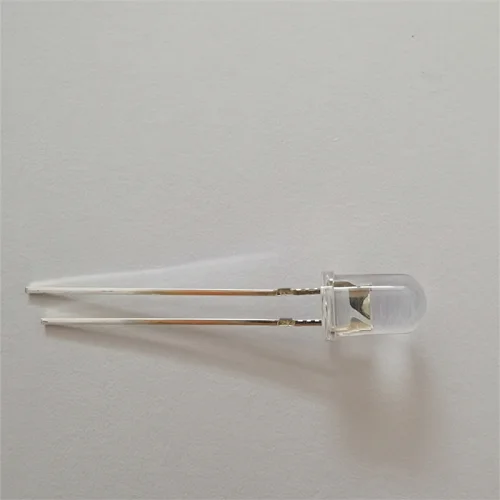

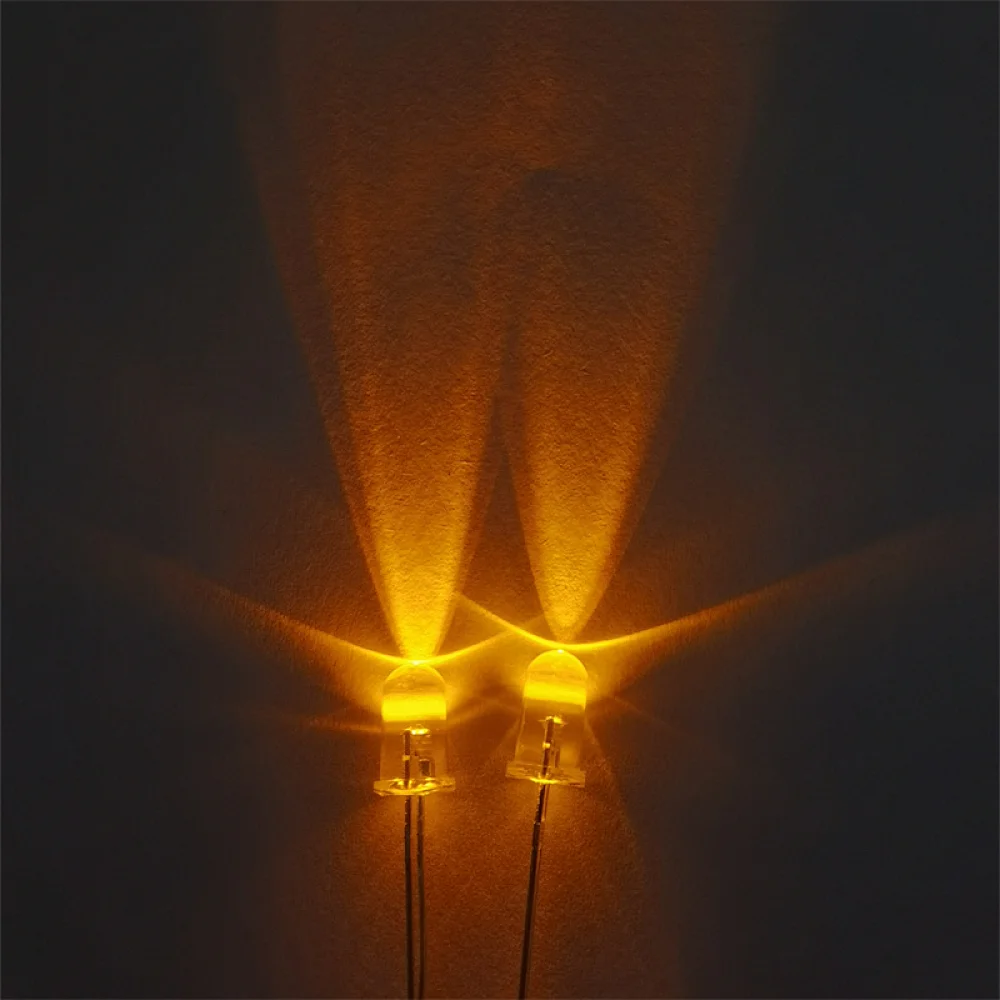

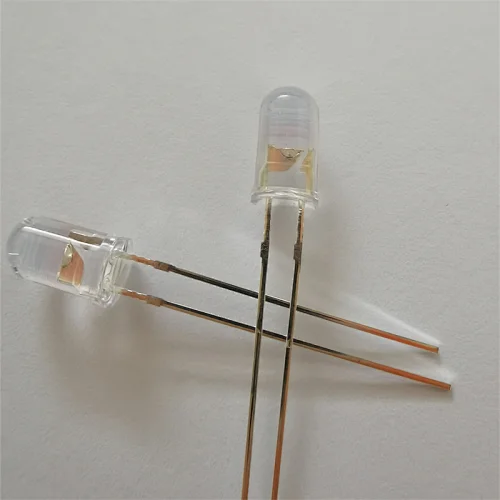

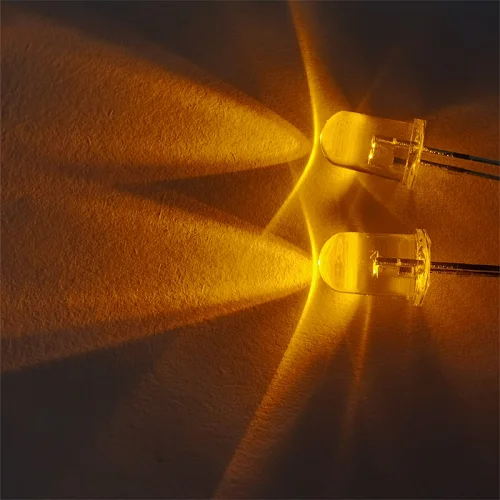

5mm 546 round LED dip diodes in yellow for display screen
500UYC
1
Quantity
5mm 546 round LED dip diodes in yellow for display screen
Feature:
High intensity, good consistency, low decay.
Available in various colors and view angle
Low light decay: 10% of first 1000 hours
Solid-state, high shock and vibration resistant
No RF interference
Maintenance-free, easy installation
Long life 30000-50000hours
Standard T-1 3/4 diameter package
General purpose leads
| Model: | Color available | Wavelength | Light intensity | Reverse Current | Forward Current | Forward voltage | Beam Angle |
| 500URC | red | 615-635nm | 15000-25000mcd | 10uA | 20mA | 1.8-2.4V | 100 |
| 500UGC | green | 515-535nm | 25000-35000mcd | 10uA | 20mA | 2.8-3.4V | 100 |
| 500UYC | yellow | 585-595nm | 15000-25000mcd | 10uA | 20mA | 1.8-2.4V | 100 |
