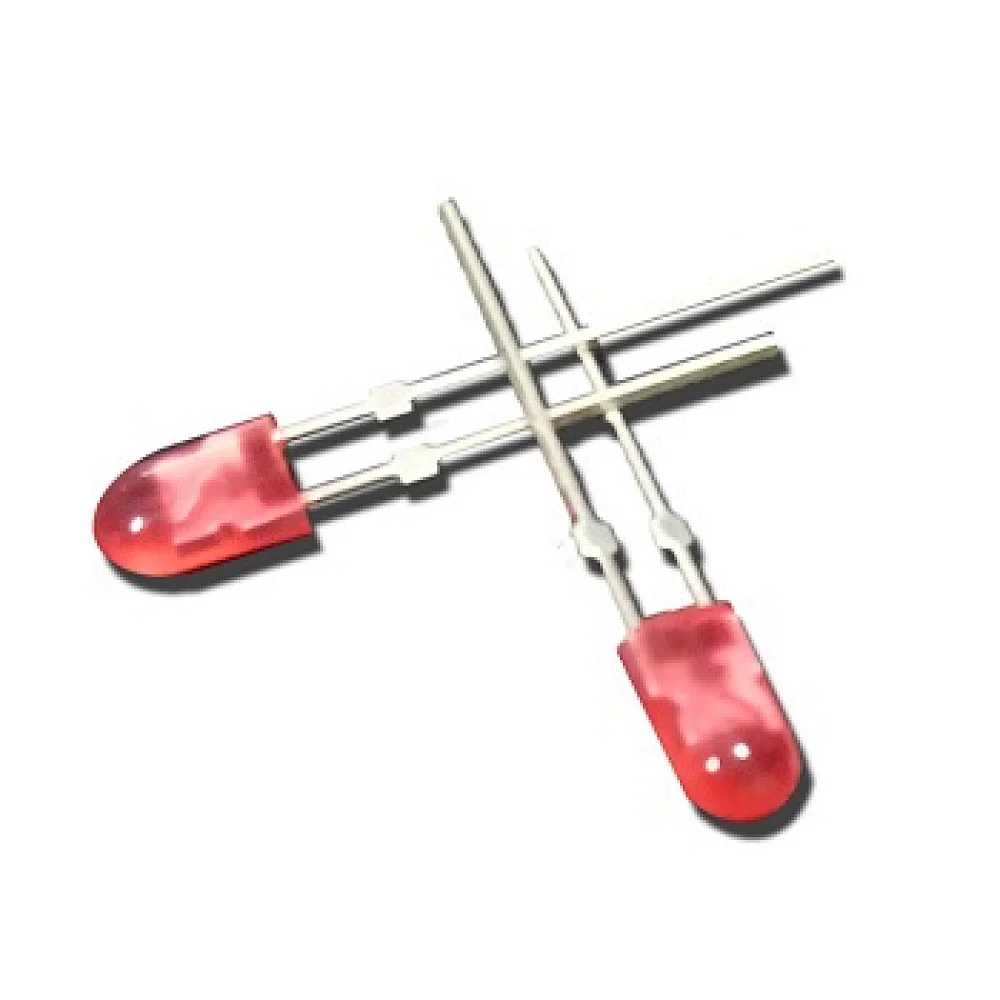

5mm 546 oval dip LED diodes
546URD(2R)
1
Quantity

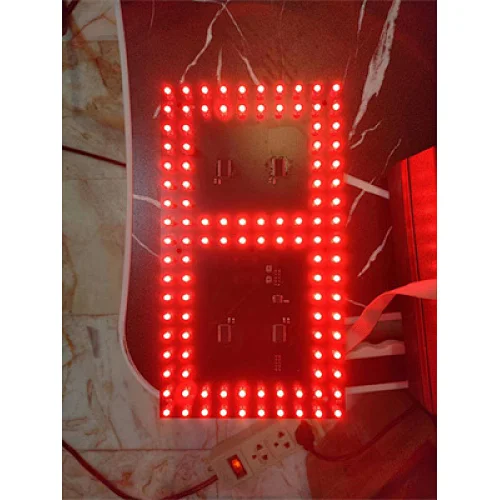

Epileds Epistar Bridgelux chip 5mm 546 oval led diode red diodes for led display screen
product description
Absolute Maximum Ratings at Ta=25
| Parameter | MAX. | Unit |
| Power Dissipation | 100 | mW |
| Peak Forward Current (≦1/10 Duty Cycle, 0.1ms Pulse Wide) | 100 | mA |
| Continuous Forward Current | 20 | mA |
| Derating Linear From 50°C | 0.4 | mA/°C |
| Reverse Voltage | 5 | V |
| Operating Temperature Range | -40°C to +80°C | |
| Storage Temperature Range | -40°C to +80°C | |
| Lead Soldering Temperature [ 4mm(.157”) From Body] | 260°C for 3 Seconds | |
Electrical Optical Characteristics at Ta=25 ° C
| Part Number | Lens color | Source Color | Dominant Wavelength λd/ nm IF = 20mA (Note8) | Luminous Intensity Iv / mcd IF = 20mA (Note 5) | Forward Voltage /V IF = 20mA | Viewing Angle / Deg (Note 6) | ||||||
| Min. | Typ. | Max. | Min. | Typ. | Max. | Min. | Typ. | Max. | ||||
| 546URD | Color Duffused | Red | 618 | 625 | 630 | 400 | 600 | 900 | 1.8 | 2.0 | 2.6 | 100°±6° |
| Reverse Voltage = 5V | Reverse Current = 10µA | |||||||||||
