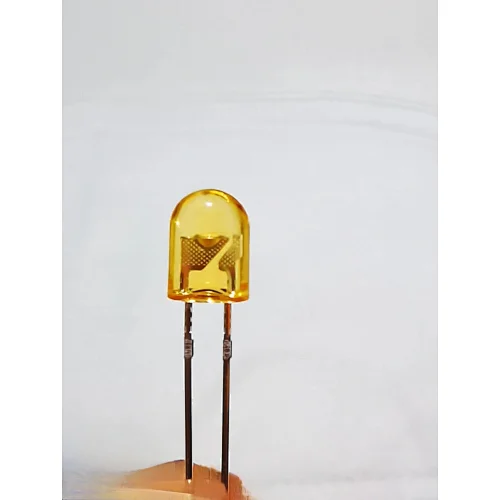

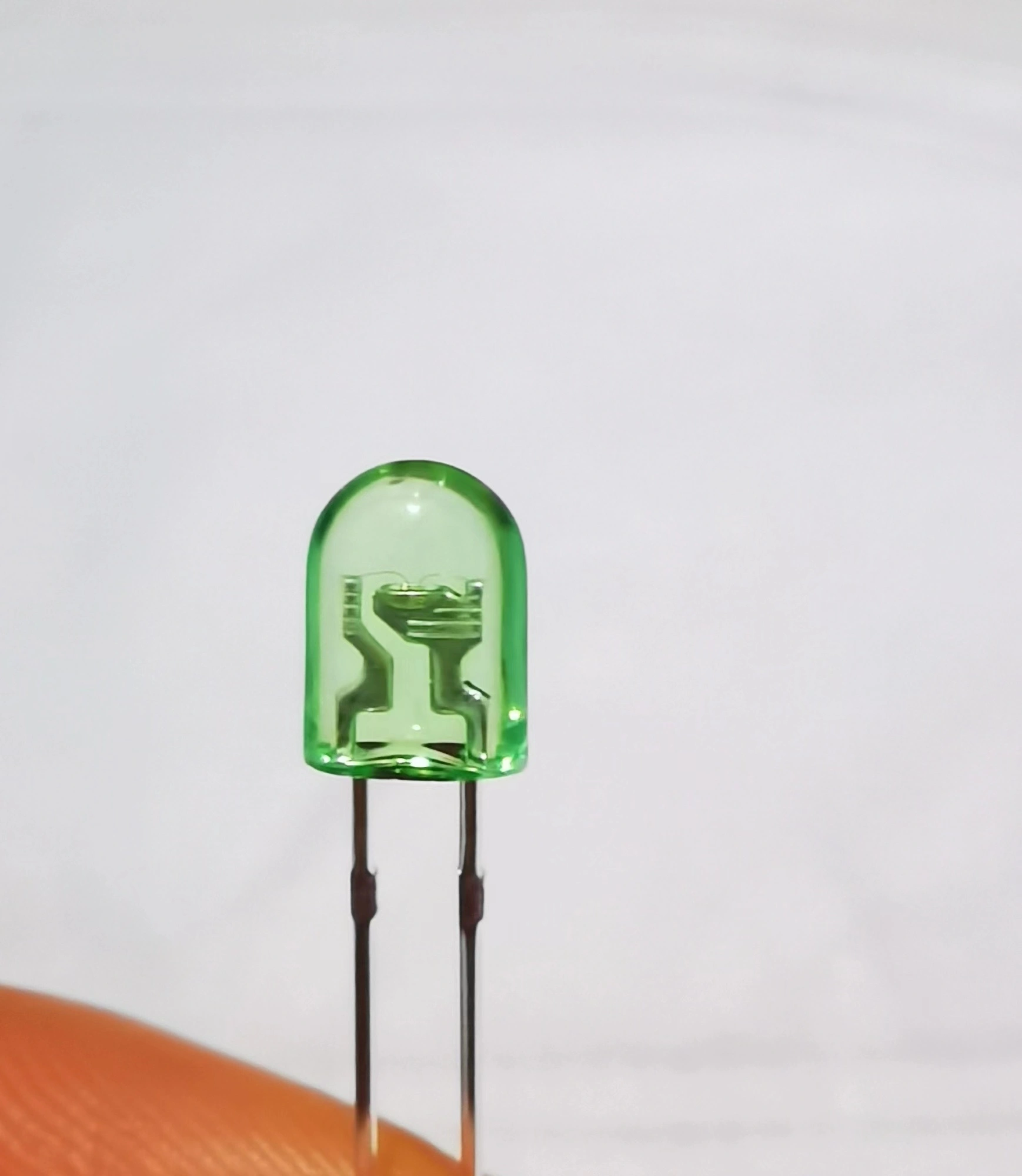

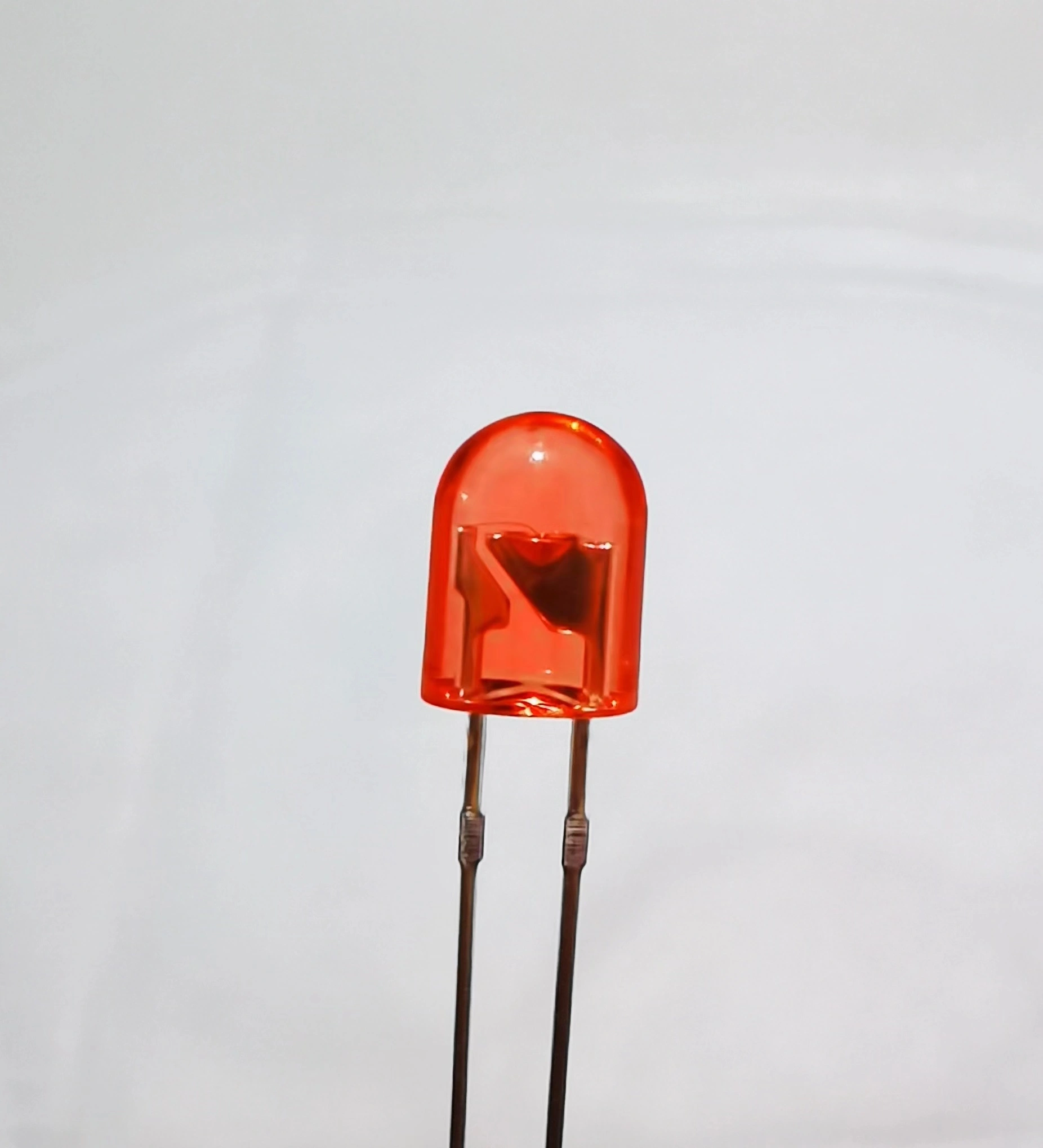

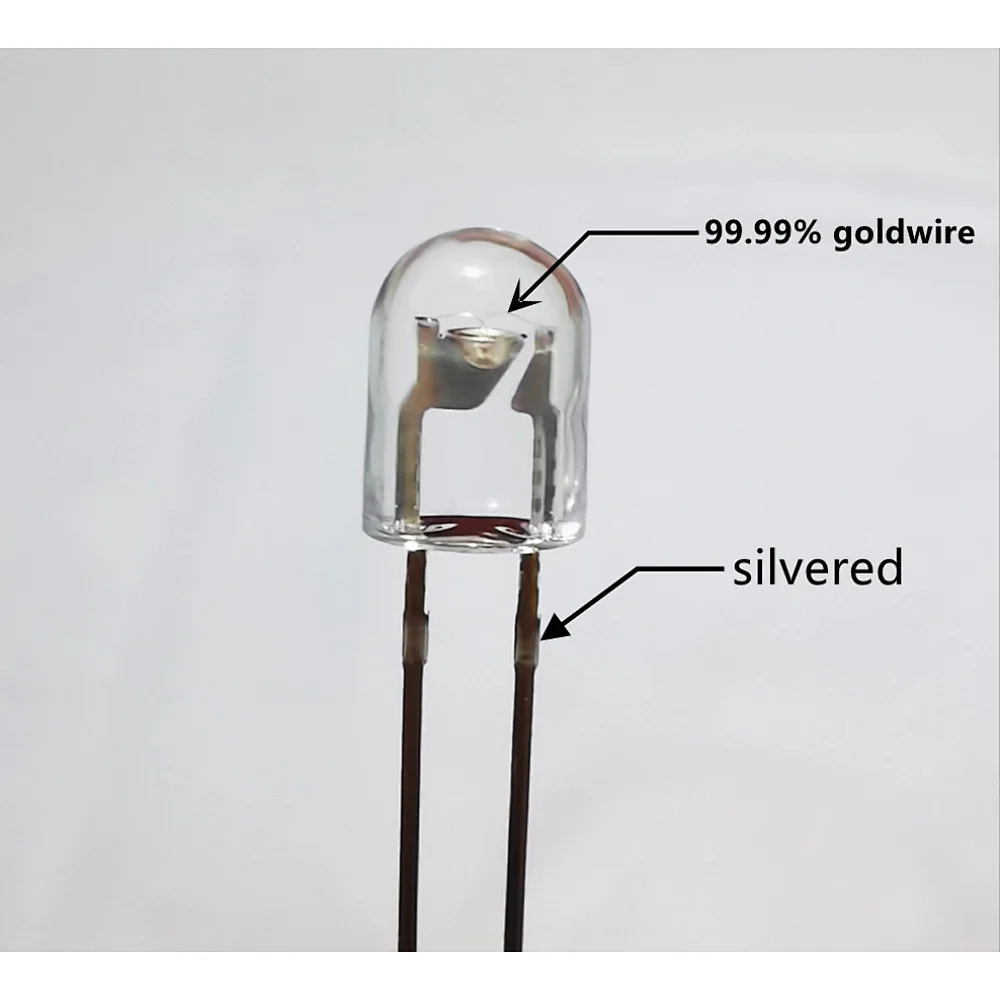

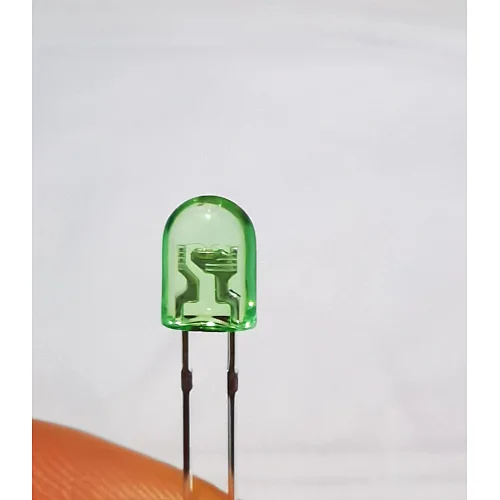

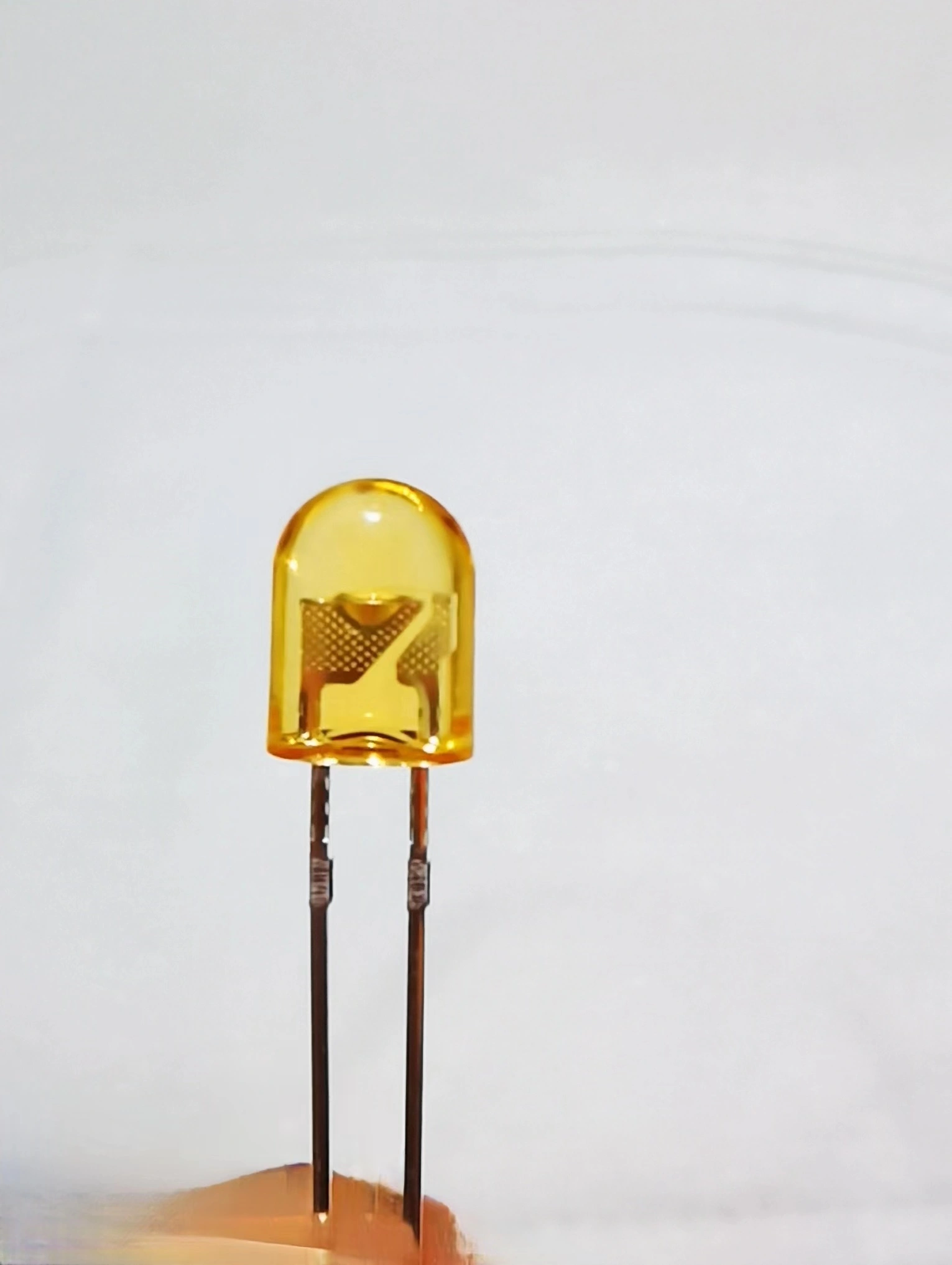

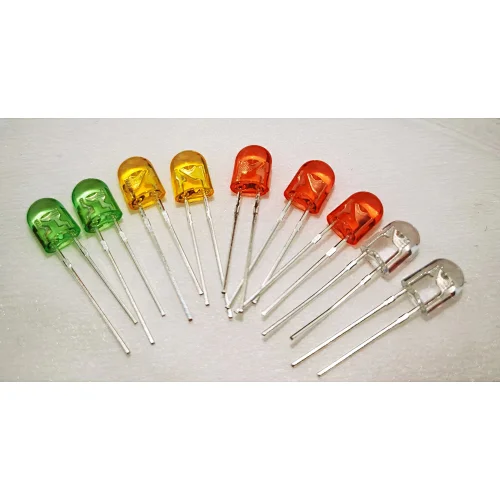

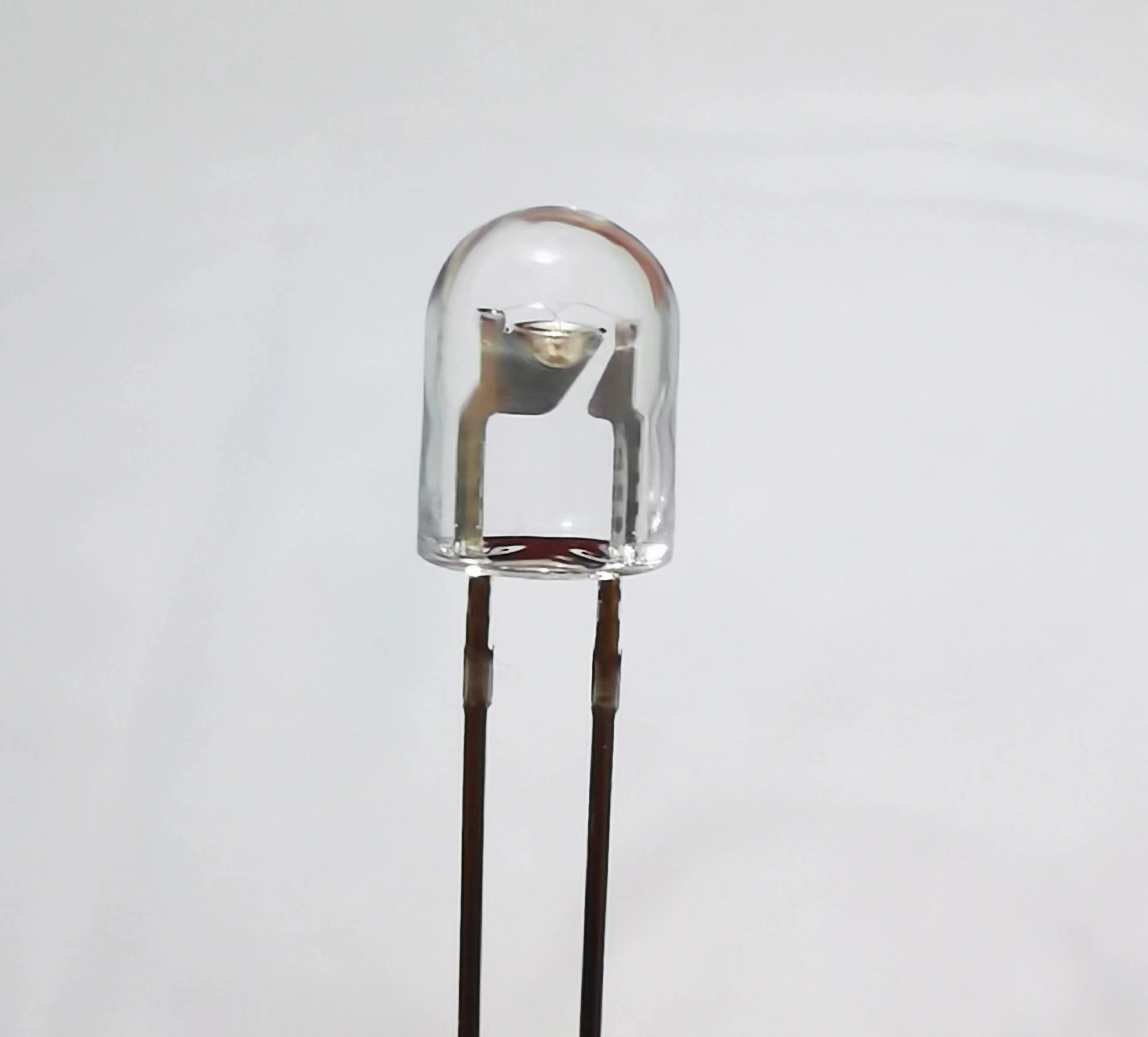

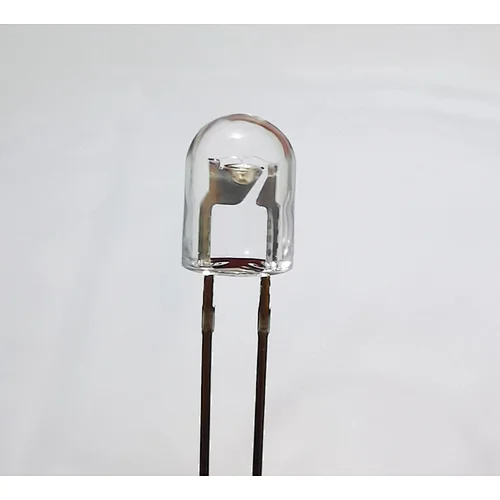

5mm 546 oval LED short leg without stoppers in white red orange green
546URT-W 546UWC-W 546UGT-W 546UOT-W
1
Quantity
5mm 546 oval LED short leg without stoppers in white red orange green
Feature:
High intensity, good consistency, low decay .
Available in various colors and view angle
Low light decay: 10% of first 1000 hours
Solid-state, high shock and vibration resistant
No RF interfence
Maintenance free,easy installation
Long life 30000-50000hours
Standard T-1 3/4 diameter package
General purpose leads
| Model: | Color available | Wavelength | Light intensity | Reverse Current | Forward Current | Forward voltage | Beam Angle |

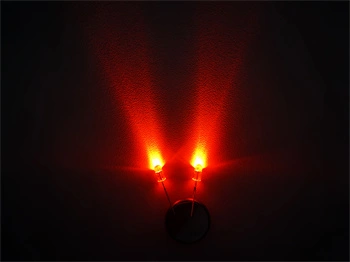

| 546URT-W | red | 615-635nm | 5000-8000mcd | 10uA | 20mA | 1.8-2.4V | 140 |

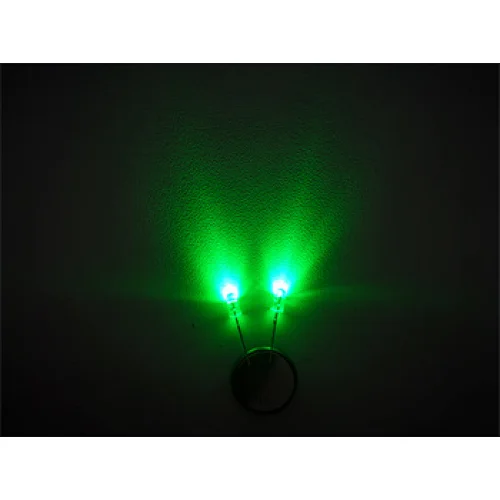

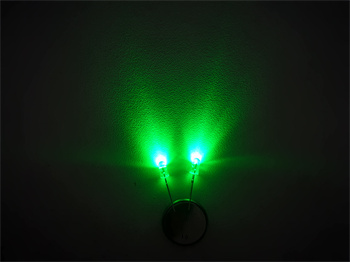

| 546UGT-W | green | 515-535nm | 6500-10000mcd | 10uA | 20mA | 2.8-3.4V | 140 |

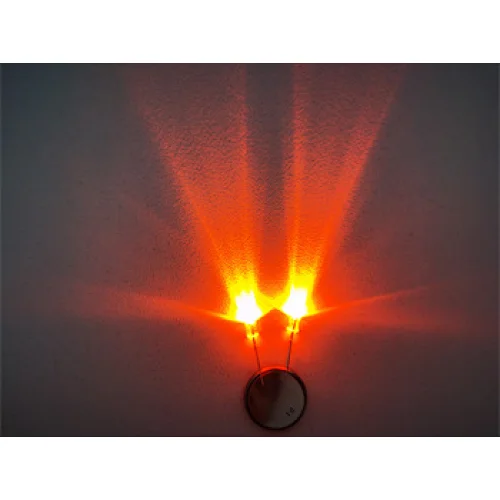

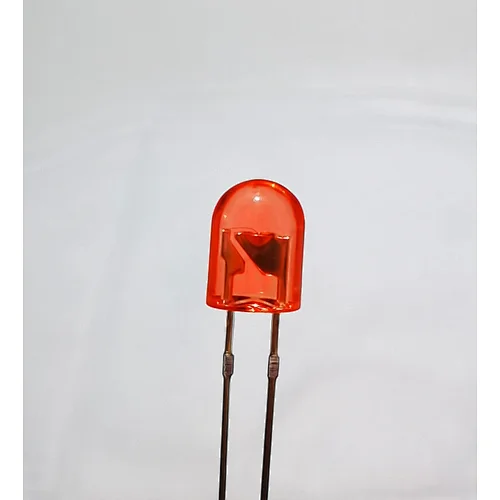

| 546UOT-W | orange | 600-610nm | 4000-6000mcd | 10uA | 20mA | 1.8-2.4V | 140 |

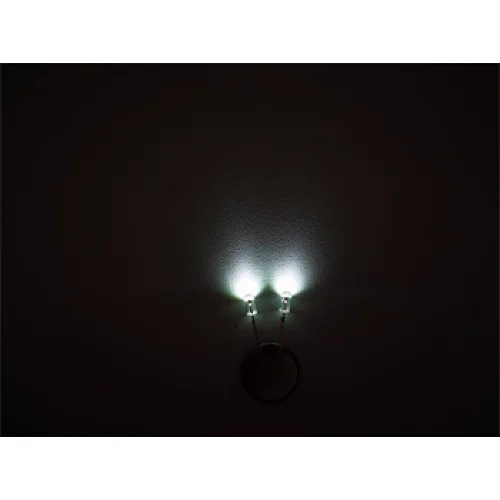

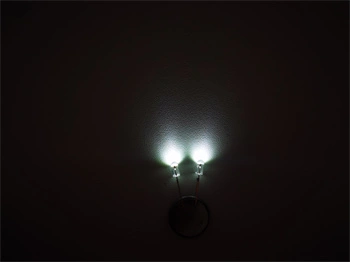

| 546UWC-W | white | 6000-7000k | 5000-7000mcd | 10uA | 20mA | 2.8-3.4V | 140 |
Application:
1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Automotive lights
5. Mood Lighting, LED module

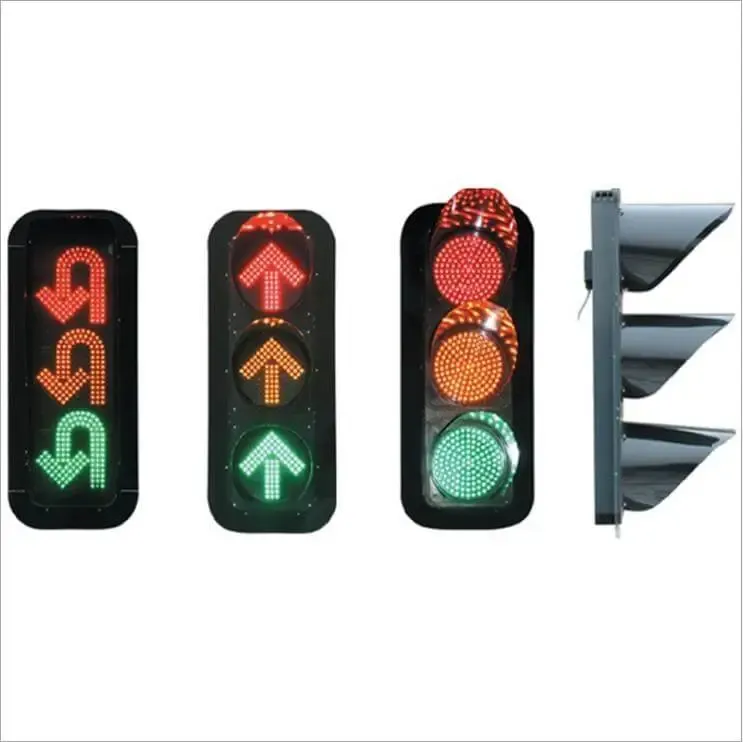

6. Traffic Light
7. LCD TV / monitor backlights

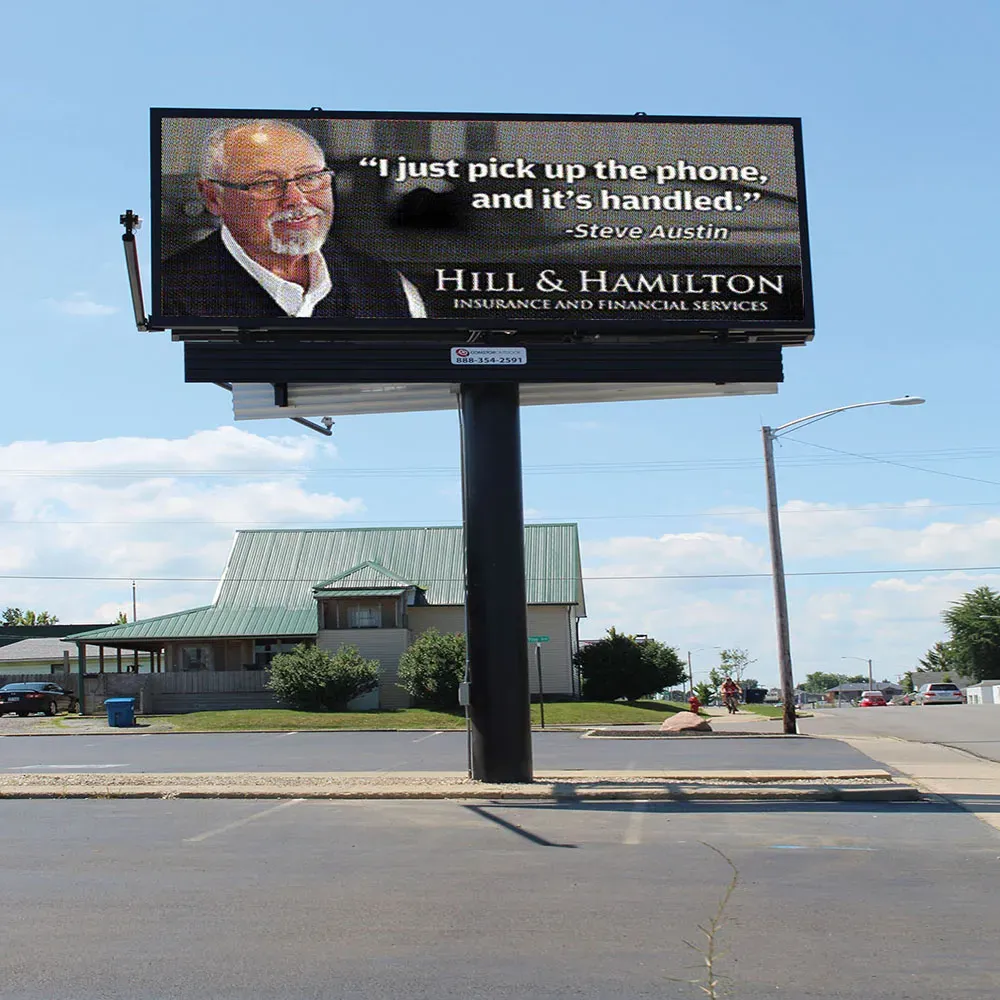

8. LED display
9. Reading light, LED torch
10. Craft flashlights, headlights
