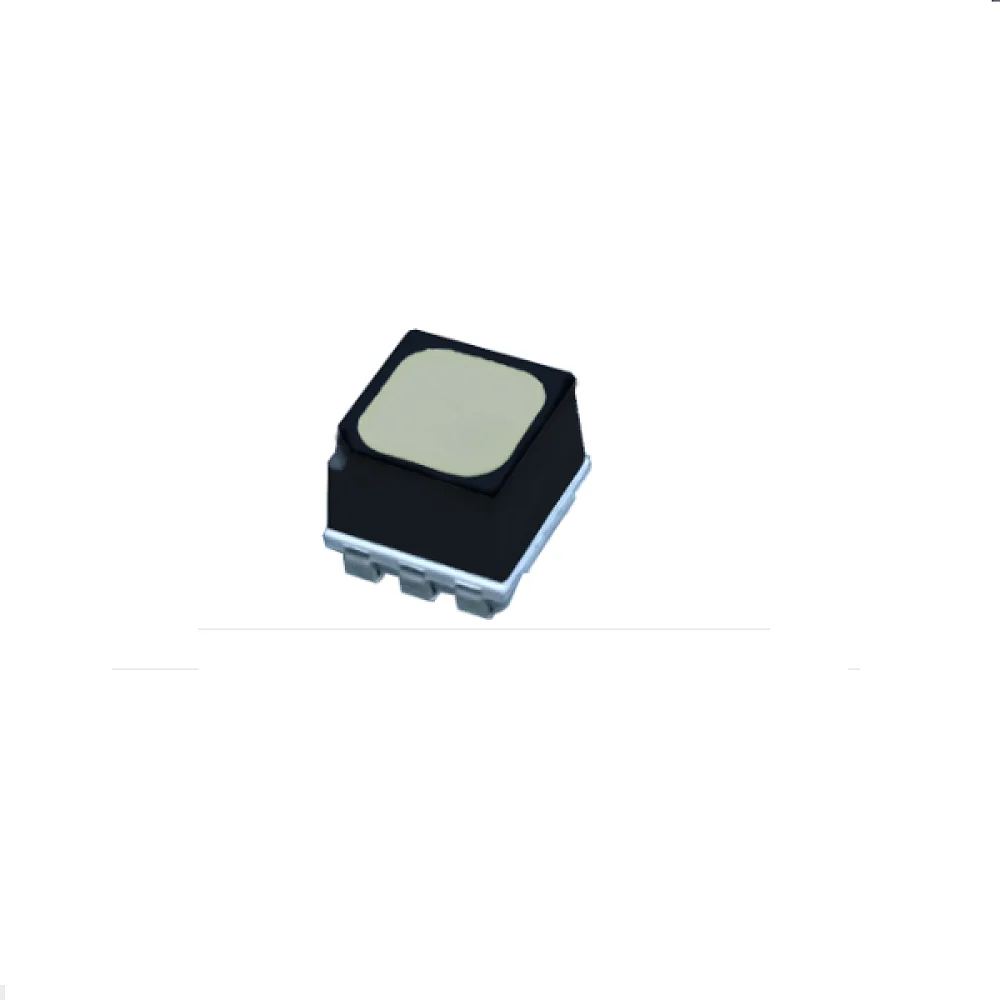

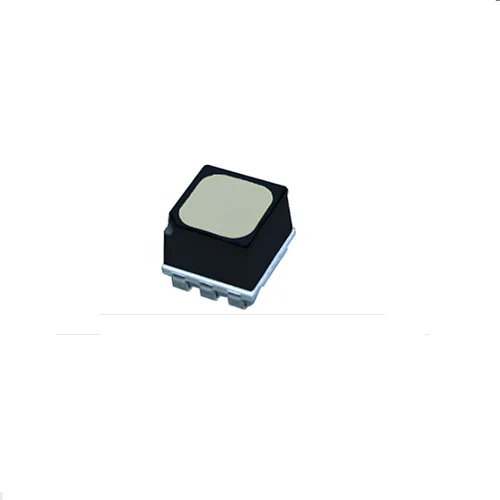

PLCC6 Package 2727 RGB SMD LED for outdoor waterproof LED Display P3.91, P4, P5, P6, P8, P10
R2727URGBW-2.5AM
1
2727 RGB SMD LED for outdoor waterproof LED Display P3.91, P4, P5, P6, P8, P10
Quantity
Products design demesion (mm)
All dimension tolerance is ±0.2mm unless otherwise noted.
Feature:
Electro-OpticalCharacteristics(Temperature=25℃)
*Note: The parameters above only for your reference. In case of any discrepancy, please adhere to the label of our actual products. All parameters tested by the standard testing system of NationStar RGB.
Tolerance of measurements of the Forward Voltage is ±0.1V; Tolerance of measurements of the Luminous Intensity is ±10%; Tolerance of measurements of the Wavelength is ±0.5nm.
Electro-OpticalCharacteristics
Absolute Maximum Ratings(Temperature=25℃)
* Pulse Width≤10msec. and duty≤1/10
All dimension tolerance is ±0.2mm unless otherwise noted.
Feature:
- White frame around the black , High Contrast
- Multiple Waterproof
- Low Power Dissipation
- High Luminous Intensity & High Reliability
- RoHS Compliant
- Pb-free Reflow Soldering Application
Electro-OpticalCharacteristics(Temperature=25℃)
| Color | Luminous Intensity (MCD) | Dominant Wavelength (λd/ nm) | Test Condition | Viewing Angle (Typ.) | Forward Voltage(V) (Typ.) | ||||
| Min. | Typ. | Max. | Min. | Typ. | Max. | ||||
| Red | 1000 | --- | 1200 | 618 | --- | 630 | IF =20mA | 110 | 2.0-2.4 |
| Green | 2400 | --- | 2800 | 515 | --- | 530 | IF =20mA | 3.0-3.4 | |
| Blue | 400 | --- | 650 | 460 | --- | 475 | IF =20mA | 3.0-3.4 | |
Tolerance of measurements of the Forward Voltage is ±0.1V; Tolerance of measurements of the Luminous Intensity is ±10%; Tolerance of measurements of the Wavelength is ±0.5nm.
Electro-OpticalCharacteristics
Absolute Maximum Ratings(Temperature=25℃)
Item | Symbol | Absolute Maximum Rating | Unit | |
| Blue/Green | Red | |||
Forward Current | IF | 20 | 20 | mA |
Peak Forward Current* | IFP | 100 | 100 | mA |
Reverse Voltage | VR | 5 | 5 | V |
Power Dissipation | PD | 200 | 120 | mW |
Electrostatic discharge（HBM） | ESD | 4000 | 2000 | V |
Operation Temperature | Topr | -25∽+80 | -25∽+80 | ℃ |
Storage Temperature | Tstg | -40∽+100 | -40∽+100 | ℃ |
Lead Soldering Temperature* | Tsol | Max. 260℃for 5sec. Max. | ||
* Pulse Width≤10msec. and duty≤1/10
