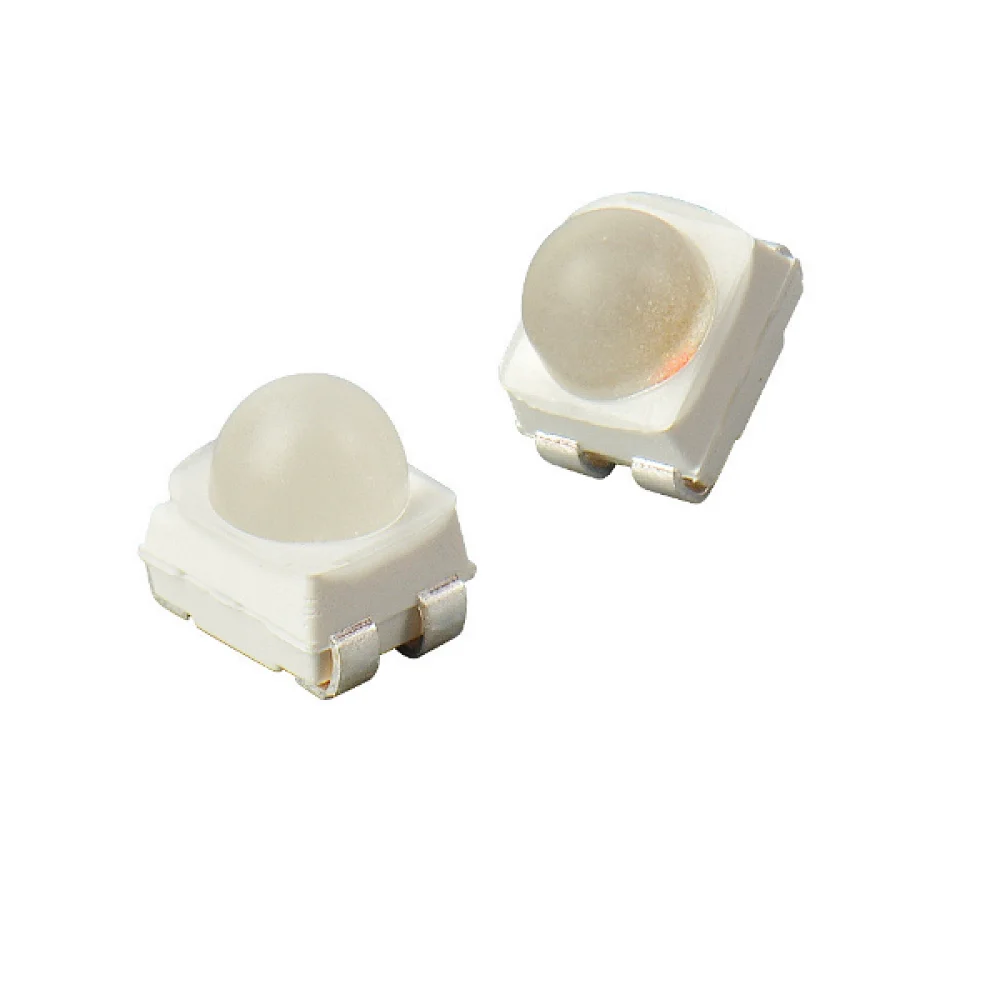

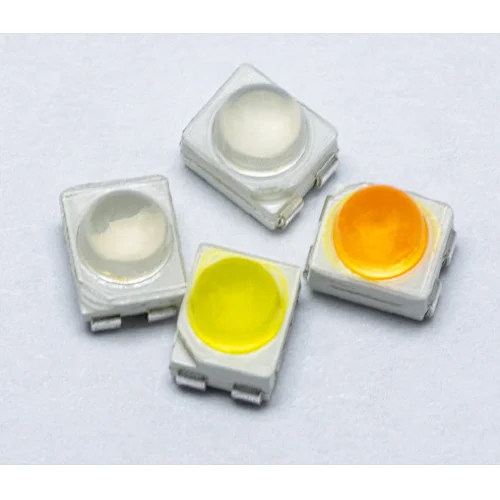

Automotive LED 3528 PLCC-4 SMD LED with Lens
GC-R3528URC30P4
1

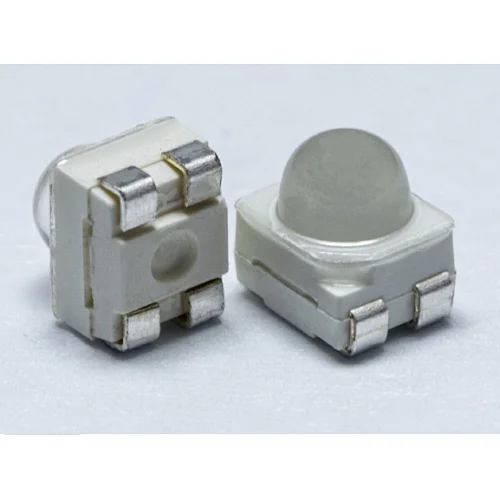

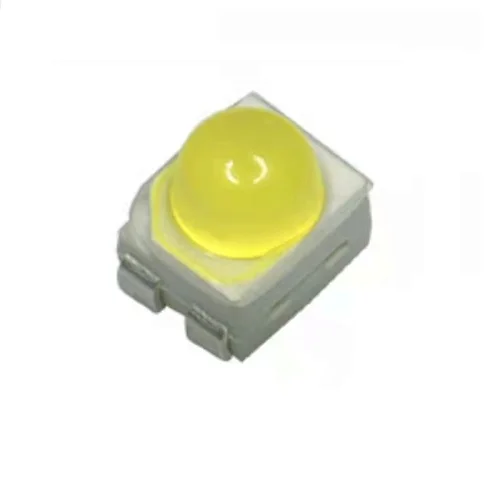

Automotive LED3528 PLCC-4 SMD LED with 30 degree Lens replacement Osram 3528 PLCC-4 SMD LED

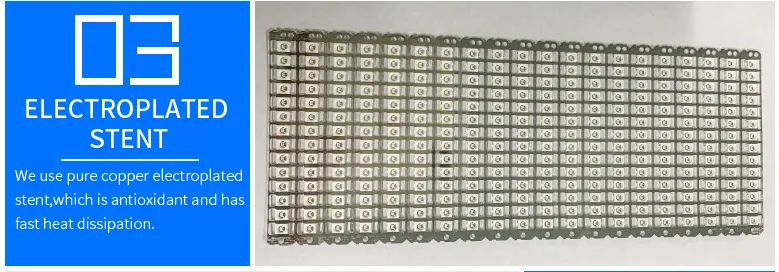

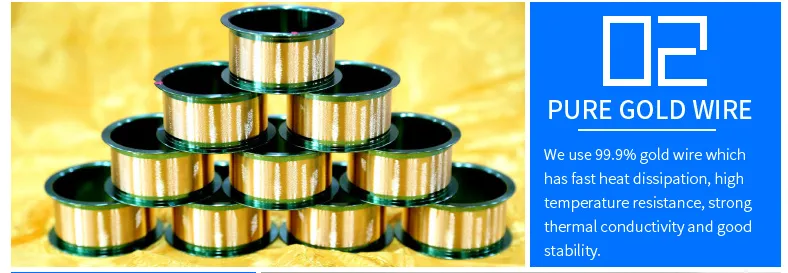

Copper stent, 99.999% gold wire, Epistar 14mil chip, Waterproof, Anti-ultraviolet, Anti-vulcanization, not easy to be affected by moisture, high brightness, good spot, Good heat dissipation, complete angle, easy to distribute light, small size, easy to install, the light source of choice for car light
Copper stent, 99.999% gold wire, Epistar 14mil chip, Waterproof, Anti-ultraviolet, Anti-vulcanization, not easy to be affected by moisture, high brightness, good spot, Good heat dissipation, complete angle, easy to distribute light, small size, easy to install, the light source of choice for car light
Quantity
| Item | Colloidal Color | Color | WL(nm) CCT(K) | Forward Voltage | Luminous Flux(MCD) | IF/mA | CRI | Viewing Angle【°】 | |||
| Min | Max | Min | Type | Max | 50 | 70-95 | 30 | ||||
| GC-R3528UWW30P4 | Foggy | Warm White | 1900-3200K | 2.8 | 3.4 | 16000 | 20000 | 30000 | 50 | 70-95 | 30 |
| GC-R3528UNW30P4 | Naturel White | 4000-6000K | 2.8 | 3.4 | 16000 | 20000 | 30000 | 50 | 70-95 | 30 | |
| GC-R3528UWC30P4 | Cool White | 6000-8000K | 2.8 | 3.4 | 16000 | 20000 | 30000 | 50 | - | 30 | |
| GC-R3528UBC30P4 | Blue | 460-475nm | 2.8 | 3.4 | 4000 | 8000 | 15000 | 50 | - | 30 | |
| GC-R3528UGC30P4 | Green | 520-530nm | 2.8 | 3.4 | 15000 | 20000 | 27000 | 50 | - | 30 | |
| GC-R3528URC30P4 | Red | 620-630nm | 1.9 | 2.6 | 8000 | 11000 | 17000 | 50 | - | 30 | |
| GC-R3528UYC30P4 | Yellow | 588-595nm | 1.9 | 2.6 | 8000 | 11000 | 17000 | 50 | - | 30 | |
| GC-R3528UAC30P4 | Amber | 600-610nm | 1.9 | 2.6 | 8000 | 11000 | 17000 | 50 | - | 30 | |
