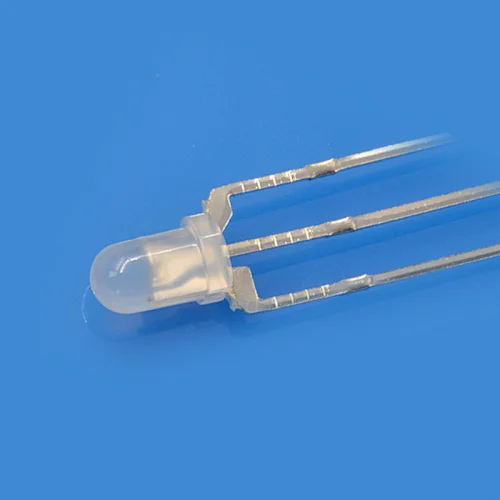

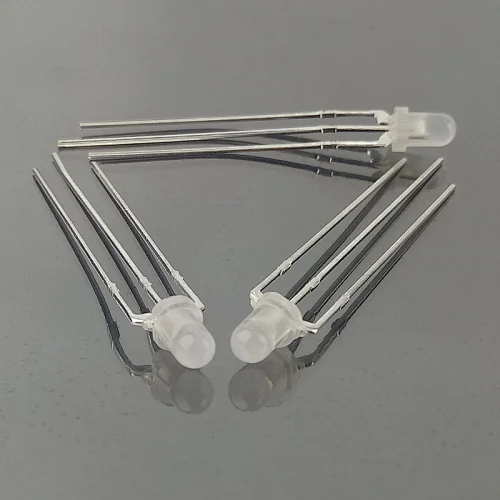

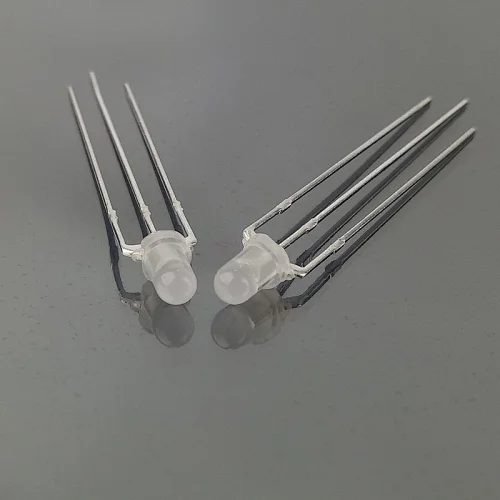

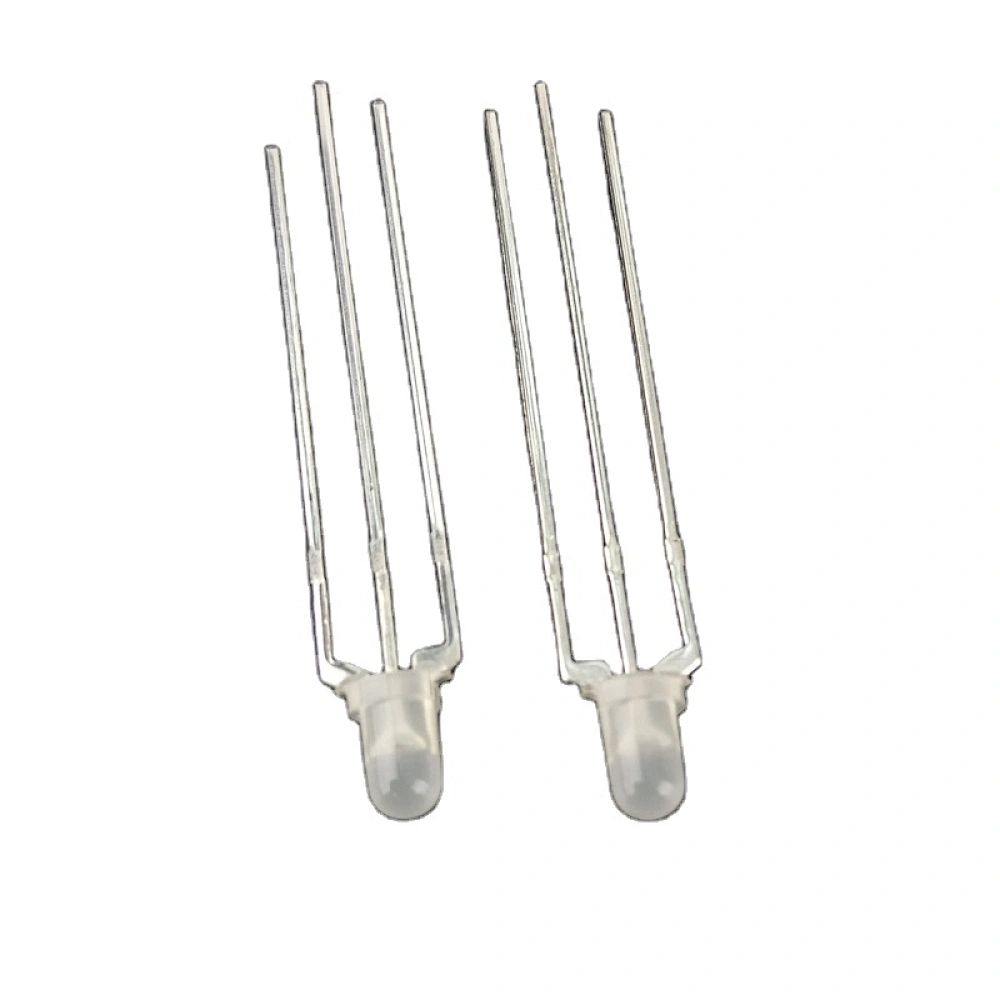

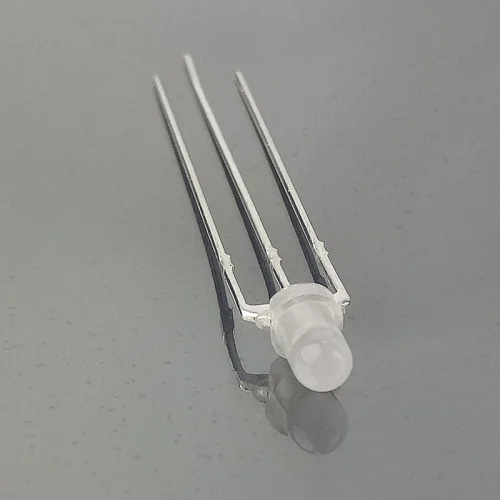

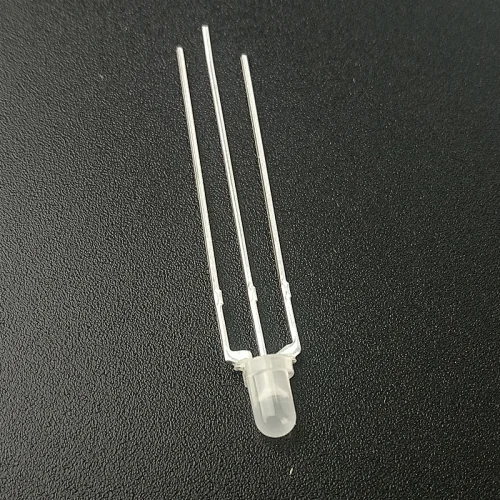

3mm LED diode dual colour LEDs red - green white difused - round shape 3mm diameter 3 pin with common anode
Print This Page
3mm LED diode dual colour LEDs red - green white difused - round shape 3mm diameter 3 pin with common anode
Model NO.
GP-032
Price:
$ 0.02-0.02 / piece
Minimum order quantity:
1 piece
Quantity:
Contact Now
Add To Inquiry Basket
Product Description
Color Temperature(CCT):R: 620-630nm G: 520-525nm
Input Voltage(V):R: 2.0-2.2V G: 2.9-3.2V
Warranty(Year):2-Year
Type:LAMP LED
Support Dimmer:Yes
Lighting solutions service:Dip led diode
Luminous Efficacy(lm/w):3
Lifespan (hours):50000
Working Time (hours):50000
Product Weight(kg):0.01
Chip Material:AlGaInP
Emitting Color:Red + green
Luminous Intensity:R:800-1200mcd G: 2000-3000mcd
Luminous Flux(lm):R:800-1200mcd G: 2000-3000mcd
Optical Attenuation(%):3
Power:0.2
Power Dissipation:0.2
Viewing Angle(°):120
Color Rendering Index(Ra):70
Color Temperature:R: 620-630nm G: 520-525nm
Operating Temperature(℃):-20 - 60
Storage Temperature(℃):-20 - 60
Place of Origin:China
Brand Name:cspring
Name:3mm LED diode dual colour LEDs red green
Color:red green (Bi-color)
Wavelength:R: 620-630nm G: 520-525nm
Luminous intensity:R:800-1200mcd G: 2000-3000mcd
Voltage:R: 2.0-2.2V G: 2.9-3.2V
Lens color:White Diffused
Package:1000pcs/bag
Warranty:2 Years
Shape:Round Led Diode
Size:3mm 5mm

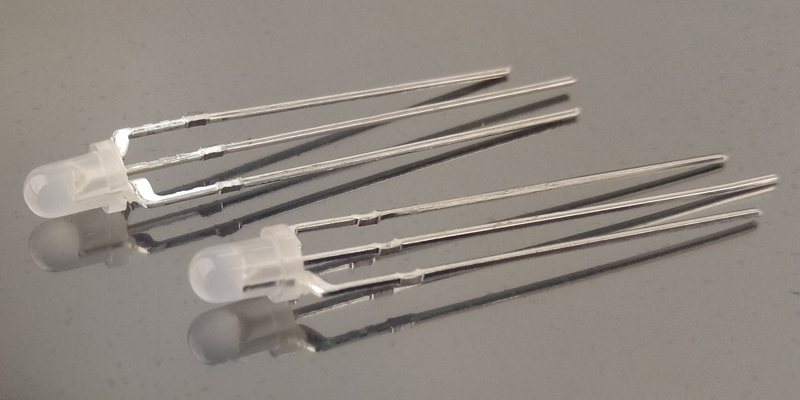

3mm LED diode dual colour LEDs red - green white difused - round shape 3mm diameter 3 pin with common anode
Application:
Indoor and outdoor commerical lighting
General lighting
Automotive lights
LCD TU/monitor backlights
LED display
Traffic Light

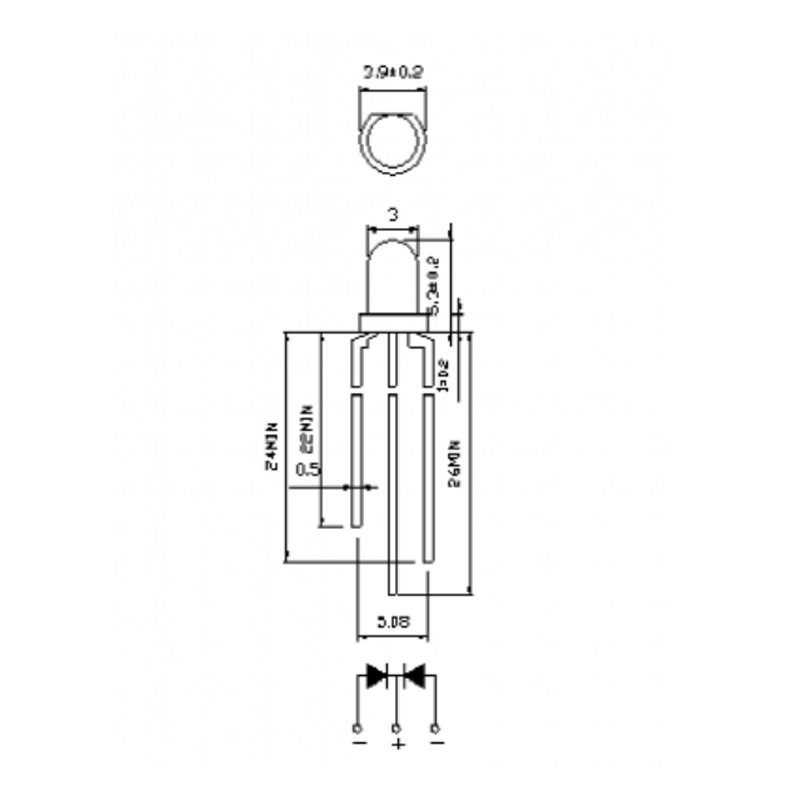

Specification:
Name
3mm bi-color red-green led diode
Color
Red-green
Wavelength
R: 620-630nm G: 520-525nm
Size
3mm
Luminous intensity
R:800-1200mcd G: 2000-3000mcd

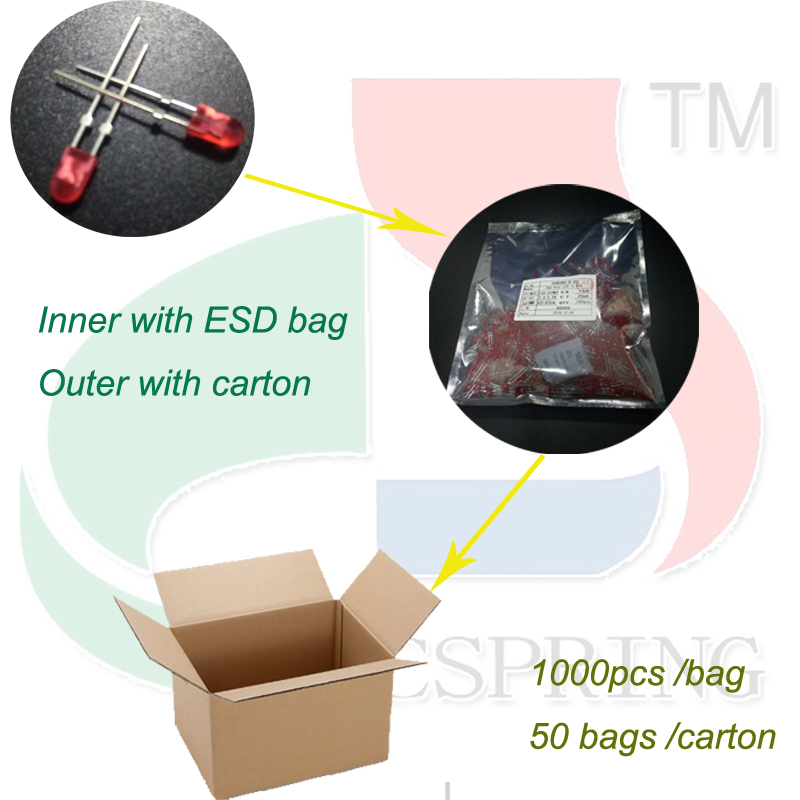

Packaging & Shipping
