CE ROHS Authentication 515-535nm Emitting Green diffused diode 3mm 346 oval LED
346HGD
1 piece

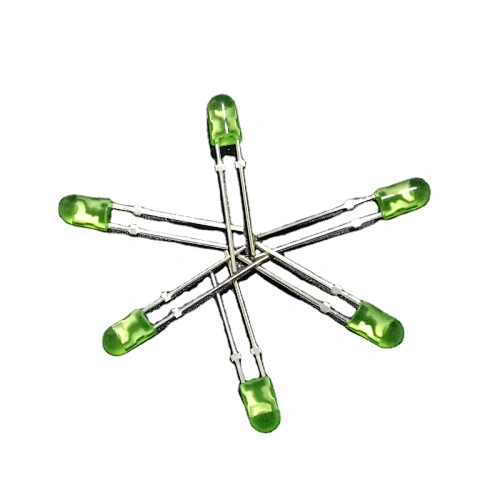

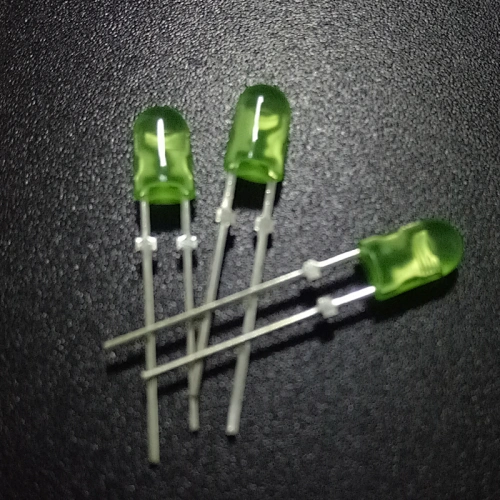

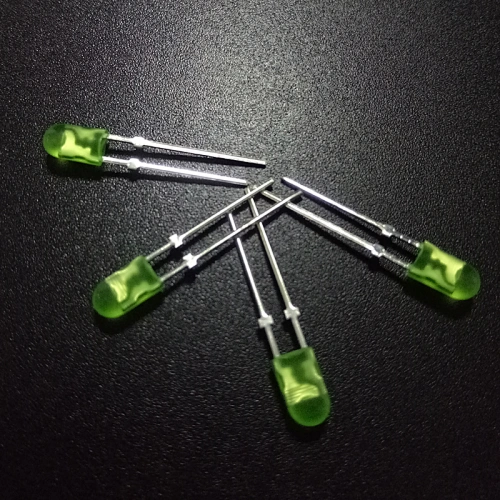

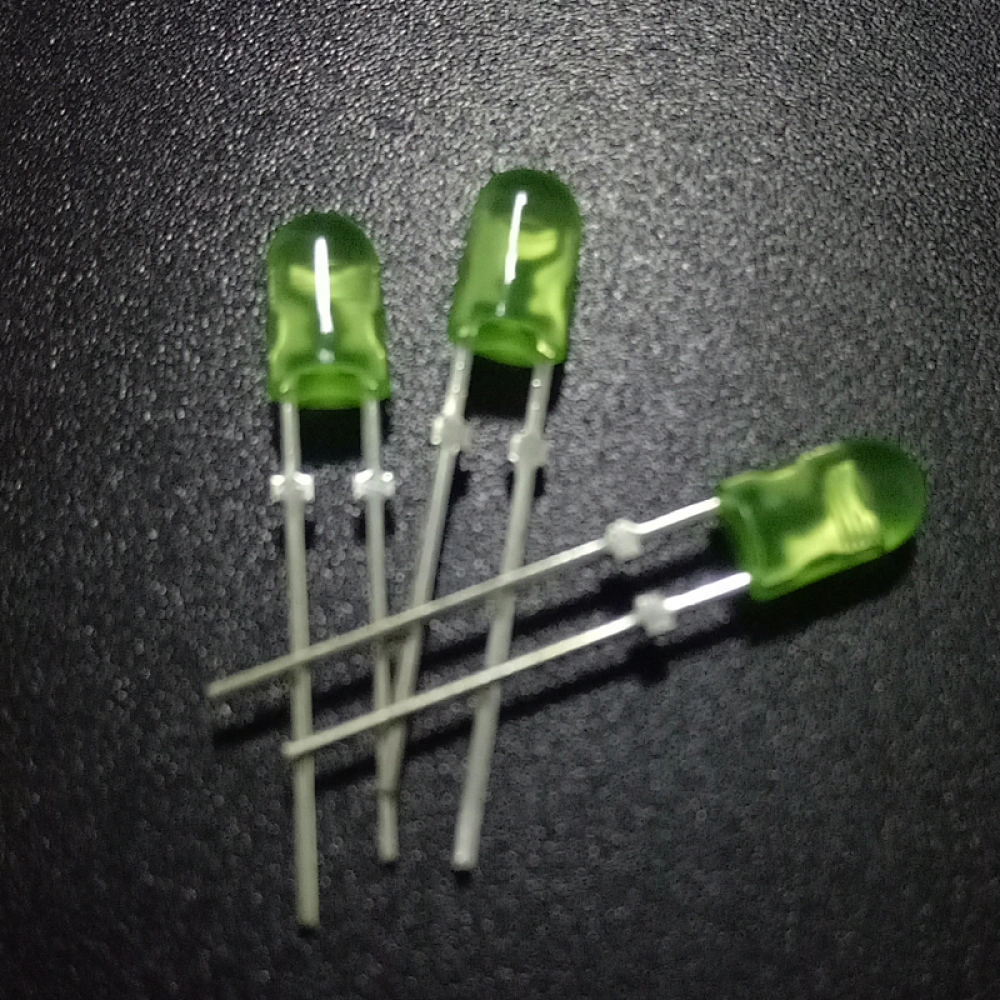

Green color 3mm oval led through hole diode led, 346 green led for outdoor display screen P8, P10, P16 and so on.
Quantity

CE ROHS Green diffused 515-535nm LED emitting diode 3mm 346 oval LED

Product Description

Model

346HGD-A-85

Item

3mm oval green led

dimensionsavailable

3mm, 5mm, 8mm, 10mm

lens color available

water clear/color transparent/Diffused

Shape availabe

round/bullet/flat top/straw hat/square/oval/concave

Chips Brand

Epileds, Epistar, Bridgelux, cree, etc.

Viewing angle

85+/-6 degree

Color available

white, red, green, blue, yellow, purple, rgb, bi-color

Life Span

50,000hours

Delivery days

7 work days

payment

T/T, Western union, Paypal Escrow

Warranty

2 years

Main poduct

RGB led ,Bicolor led ,Dip led ,smd ,High power led 0.5w-300w

'3mm 346 oval LED','green light emitting diode','emitting diode led','led emitting diode','led light emitting diode','3mm green diffused led'

Specification for the 3mm green led

Parameter

Maximum Rating

Forward voltage

2.8-3.6v

Reverse Current

5uA

Forward Current

20mA

Light intensity

4500-5400mcd

Beam Angle

85+/-6 degree

Reverse Voltage

5V

Operating Temperature Range

-40°C to + 80°C

Storage Temperature Range

-40°C to + 80°C
