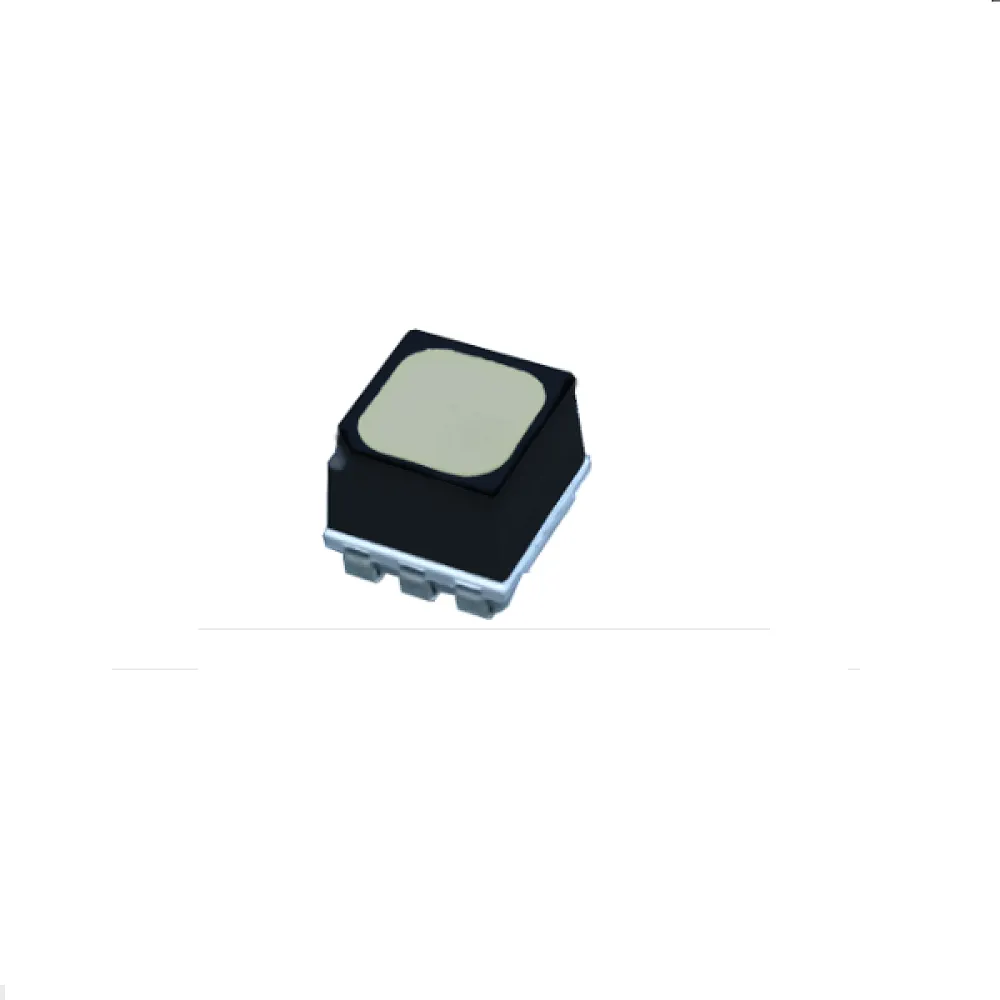

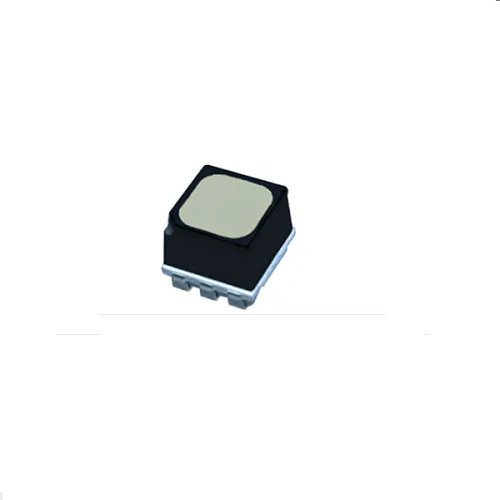

PLCC6 Package 2727 RGB SMD LED for outdoor waterproof LED Display P3.91, P4, P5, P6, P8, P10

Model NO. R2727URGBW-2.5AM

2727 RGB SMD LED for outdoor waterproof LED Display P3.91, P4, P5, P6, P8, P10

Quantity

Contact Now add to cart

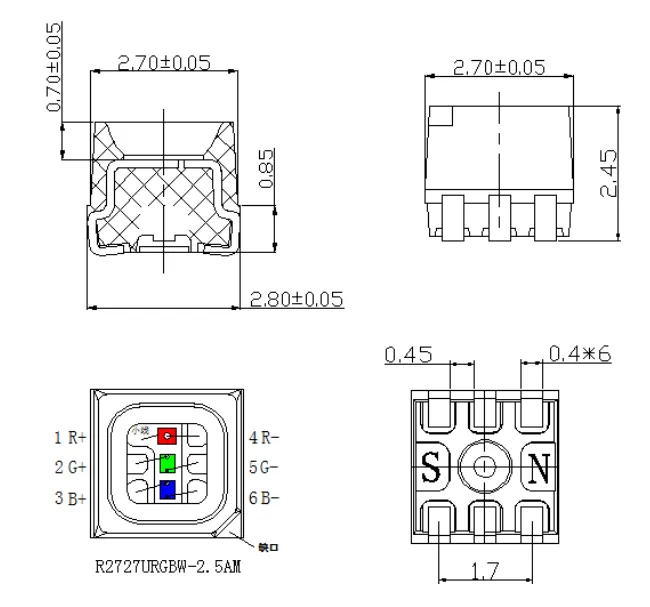

Products design demesion (mm) 2727 RGB SMD LED ,smd rgb led display, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10​​​​​​​

All dimension tolerance is ±0.2mm unless otherwise noted.
Feature: 2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10​​​​​​​

• White frame around the black ,  High Contrast
• Multiple Waterproof
• Low Power Dissipation
• High Luminous Intensity & High Reliability
• RoHS Compliant
• Pb-free Reflow Soldering Application

2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10
Electro-OpticalCharacteristics(Temperature=25℃) 2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10


Color	Luminous Intensity (MCD)			Dominant Wavelength (λd/ nm)			Test Condition	Viewing Angle (Typ.)	Forward Voltage(V) (Typ.)
	Min.	Typ.	Max.	Min.	Typ.	Max.
Red	1000	---	1200	618	---	630	IF =20mA	110	2.0-2.4
Green	2400	---	2800	515	---	530	IF =20mA		3.0-3.4
Blue	400	---	650	460	---	475	IF =20mA		3.0-3.4

*Note: The parameters above only for your reference. In case of any discrepancy, please adhere to the label of our actual products. All parameters tested by the standard testing system of NationStar RGB.
Tolerance of measurements of the Forward Voltage is ±0.1V; Tolerance of measurements of the Luminous Intensity is ±10%; Tolerance of measurements of the Wavelength is ±0.5nm.
2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10​​​​​​​
Electro-OpticalCharacteristics 2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10
Absolute Maximum Ratings(Temperature=25℃) 2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10

Item	Symbol	Absolute Maximum Rating		Unit
		Blue/Green	Red
Forward Current	IF	20	20	mA
Peak Forward Current*	IFP	100	100	mA
Reverse Voltage	VR	5	5	V
Power Dissipation	PD	200	120	mW
Electrostatic discharge（HBM）	ESD	4000	2000	V
Operation Temperature	Topr	-25∽+80	-25∽+80	℃
Storage Temperature	Tstg	-40∽+100	-40∽+100	℃
Lead Soldering Temperature*	Tsol	Max. 260℃for 5sec. Max.

* Pulse Width≤10msec. and  duty≤1/10
2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10
2727 RGB SMD LED ,smd rgb led display​​​​​​​, smd led display outdoor​​​​​​​,smd p10 outdoor led display​​​​​​​,rgb led display p10


Outdoor Full-color Video Screen
Decorative Lighting
Amusement
Outdoor lighting
Outdoor Pixel light modul
