All Color Types 0.06w 0603 Chip SMD LED Diode

Model NO. 0603 Chip SMD LED

minimum order 1 piece

Quantity

Contact Now add to cart

Specification

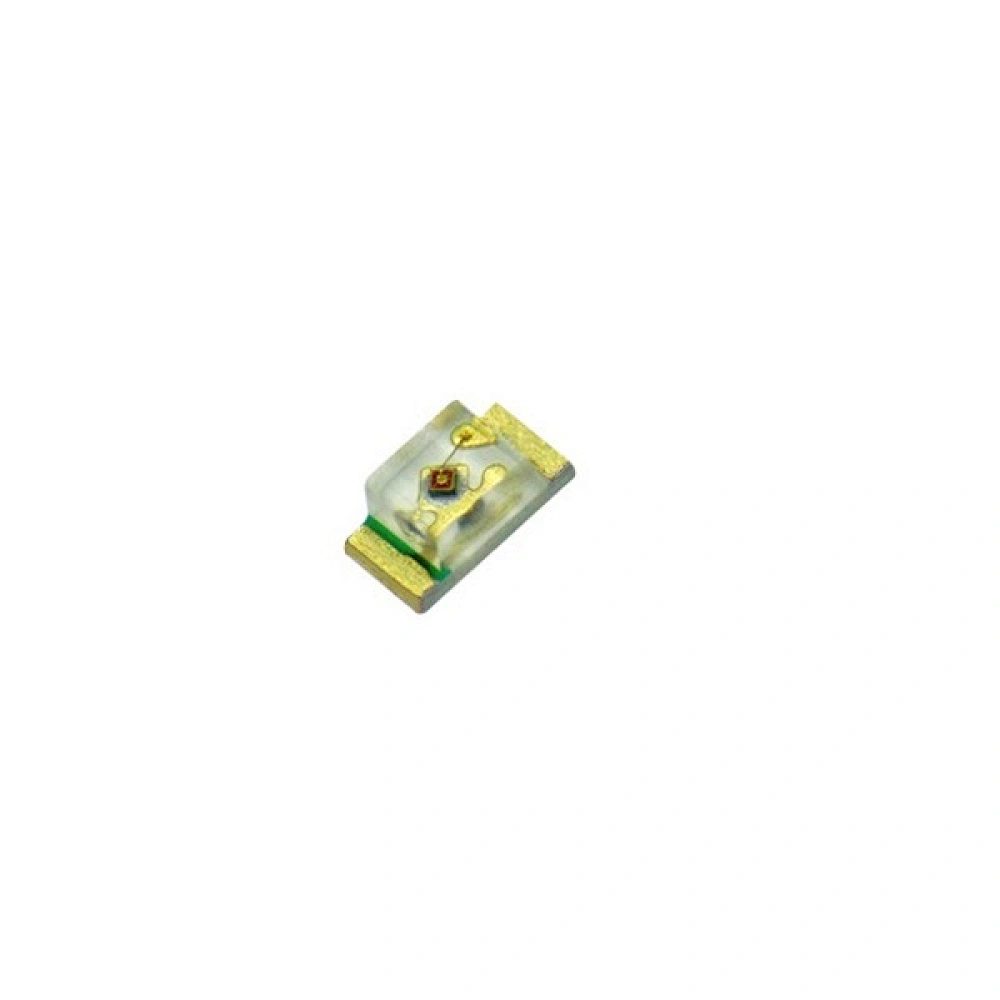

All Color Types 0.06w 0603 Chip SMD LED Diode

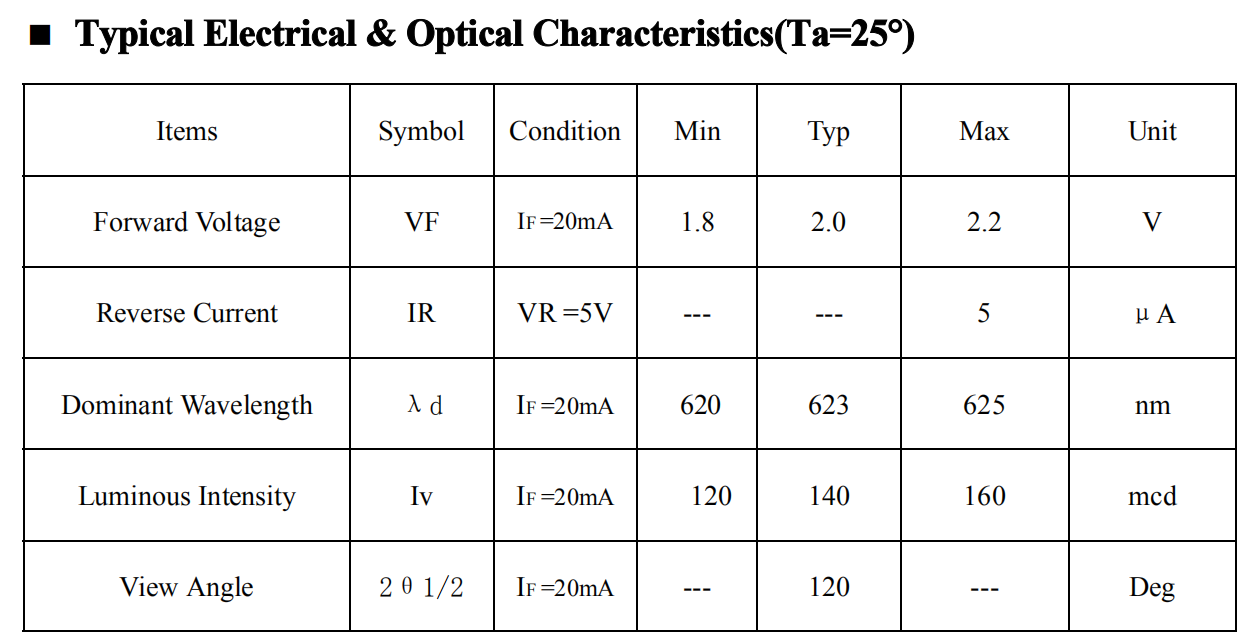

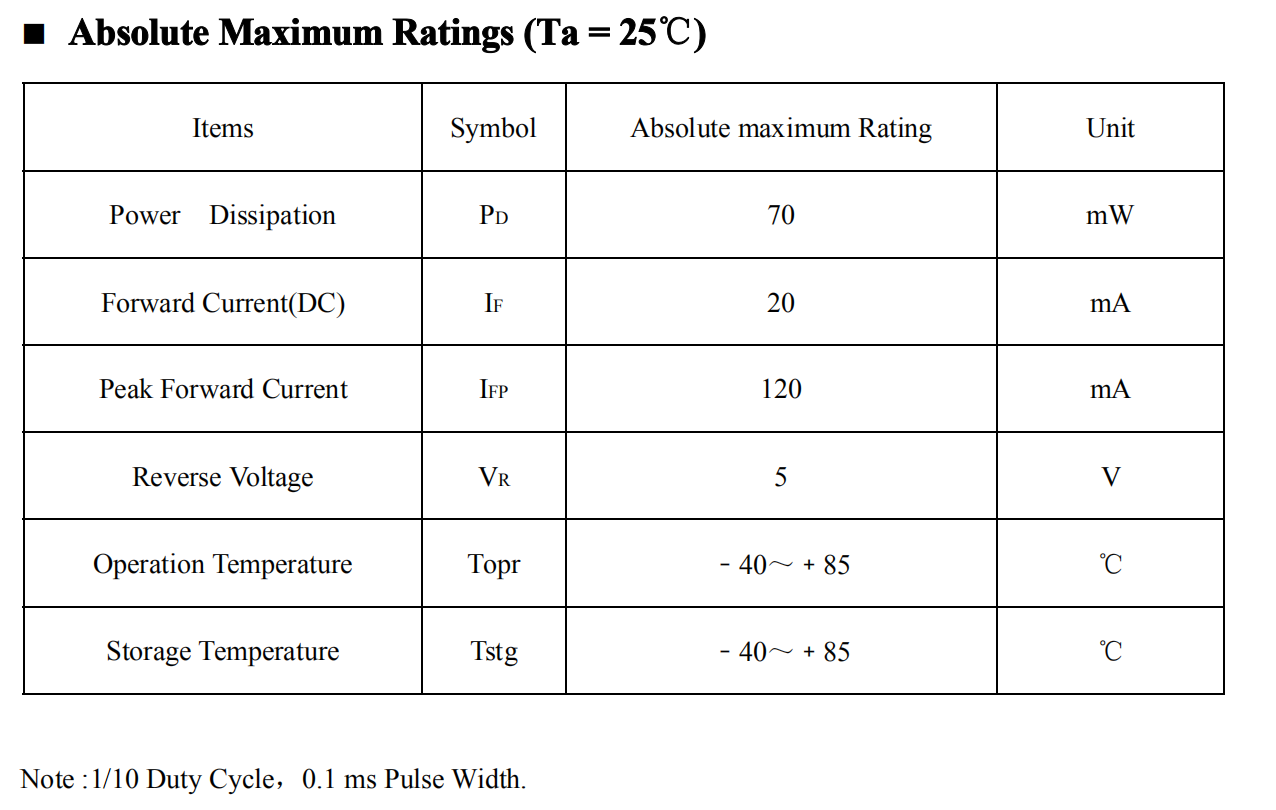

Datasheet
Name	0.06w 0603 Chip SMD LED Diode
Size	1.6*0.8*0.6mm
Voltage	R:1.8-2.2V
Current	20mA
light color	red
Size	1.6*0.8*0.6mm
Lumens	R:120-160mcd
Wavelength	R:620-630nm
Viewing Angle(°)	120
Shelf life	2 years
Certification	RoHS

Product Description
