1204 3210 Chip RGB SMD LED
1204 3210 Chip RGB SMD LED
R3210URGBC-1.5A
1 piece
Quantity

1204 3210 Chip RGB SMD LED

Specification

Datasheet
Name
1204 3210 Chip SMD Diode 1206 Side-View RGB LED
Voltage
R:1.8-2.2V G:2.8-3.4V G:2.8-3.4V
Current
20mA*3
light color
rgb
Size
3.2*1.0*1.5mm
Lumens
R:100-150mcd G:350-550mcd B:100-150mA
Wave length
R:620-630nm G:518-525nm B:465-470nm
Shelf life
2 years

Product Description

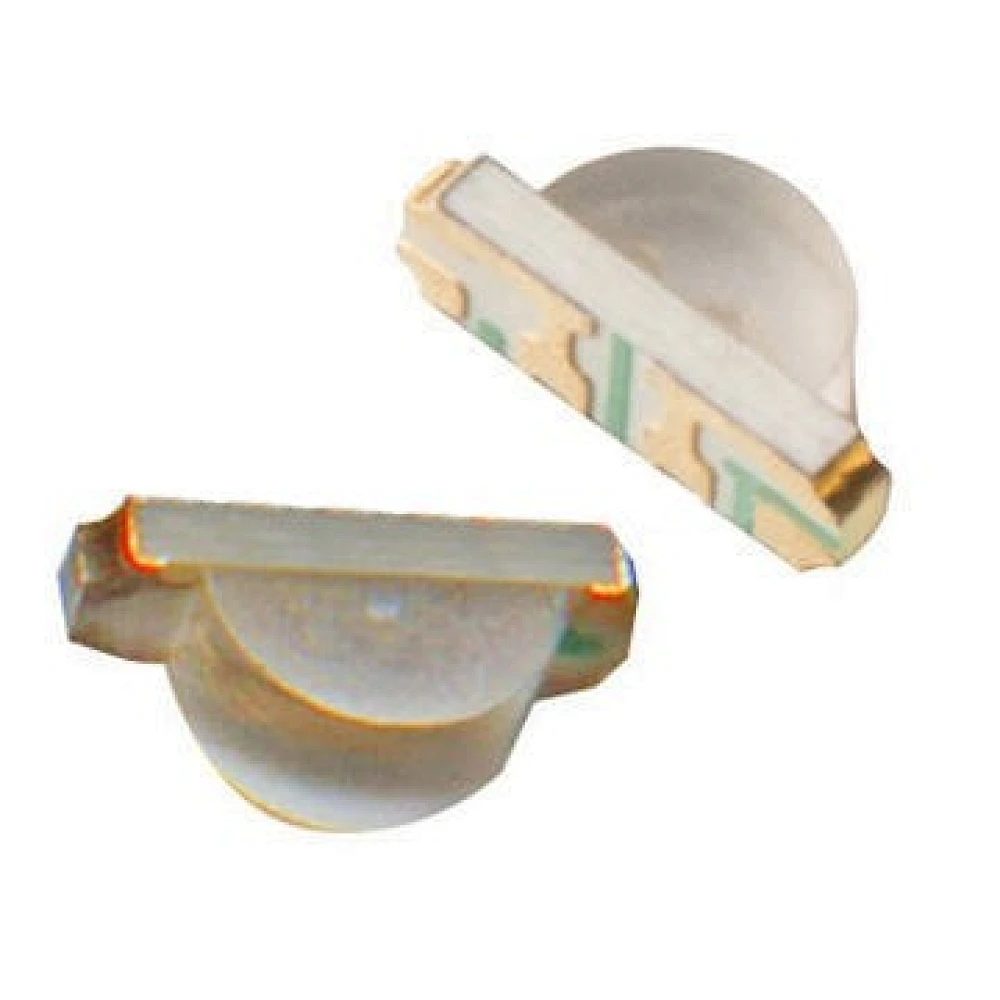

Product Details1204 RGB SMD LED

1206 1204 3210 SMD Side Emitting RGB LED Diode, Side-View Multi Color RGB LED Chip, Right Angle Full Color RGB LED Light Source

Feature

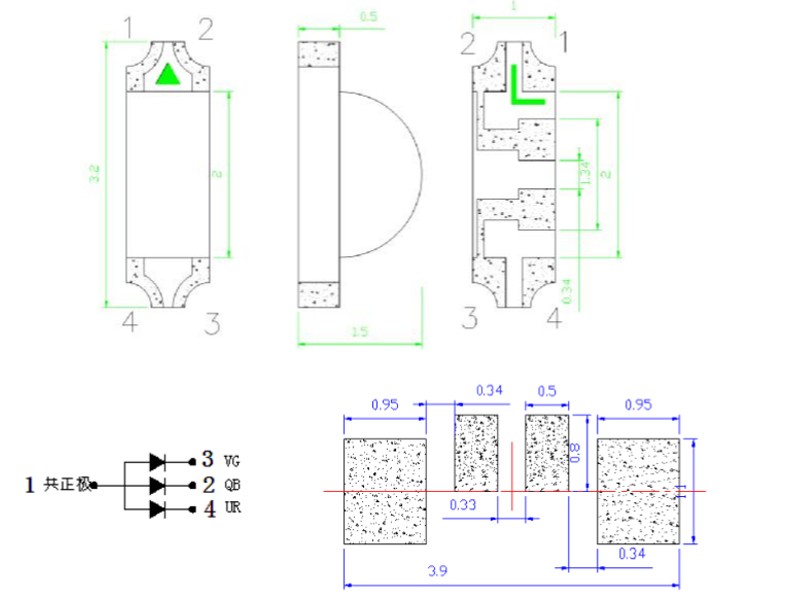

Package ( L/W/H ) : 3.2×1.0×1.5 mm
Color : Ultra High Bright Side-View RGB
Lens: Water Clear Flat Mold
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

SMD 3535 RGB LED
SMD 2525 RGB LED
SMD 5050 RGB LED +IC
SMD 3210 RGB LED
3.*3.5*2.8MM
2.5*2.5*2.5MM
5.0*5.0*1.6MM
3.2*1.0*1.5MM
Full color
Full color
Full color
Full color
Use for outdoor display screen
Use for outdoor display screen
5050 RGB LED With SK6812 IC
SMD 3210 RGB LED is side emitting
1204 RGB SMD LED,SMD 3210 RGB LED,1204 RGB SMD LED,SMD 3210 RGB LED,1204 RGB SMD LED,SMD 3210 RGB LED,1204 RGB SMD LED,SMD 3210 RGB LED,1204 RGB SMD LED,SMD 3210 RGB LED,1204 RGB SMD LED,SMD 3210 RGB LED,

FAQ

Q1. Can I have some free sample before the order?

A: Yes, we can provide 10-20pcs free samples to you for test.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led SMD RGB 3210order?

A: Low MOQ, 1 ROLL for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: No, the product size is very small.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
