Model NO.
346HGD-A-85
Price:
$ 0.01-0.02 / piece
Minimum order quantity:
1 piece
Quantity:
  • Model Number:346HGD-A-85
  • Type:LED
  • Place of Origin:China
  • Brand Name:Cspring
  • Package Type:Through Hole
  • Max. Forward Voltage:3.6
  • Max. Reverse Voltage:5V
  • Max. Forward Current:20mA
  • Max. Reverse Current:10uA
  • Name:Oval LED diode DIP 546 346 Light Emitting Green diffused diode ce rohs
  • Color:Green
  • Viewing Angle / Deg (Note 6):90+/-5 degree
  • Shape:Oval
  • Dominant Wavelength:515-535nm
  • Luminous Intensity:4500-5400mcd
  • Voltage:2.8-3.6V
  • Warranty:2years
  • Lifespan:50000H
  • Lens color:Color Duffused

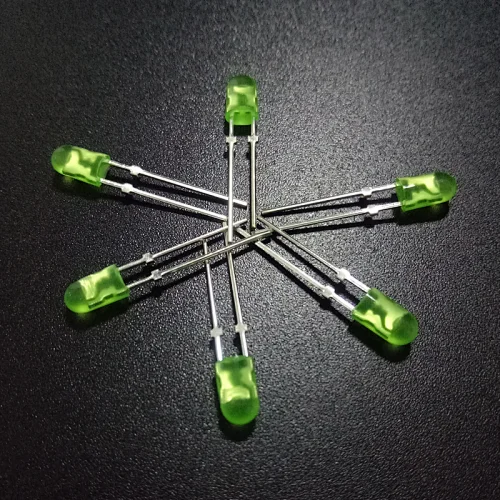

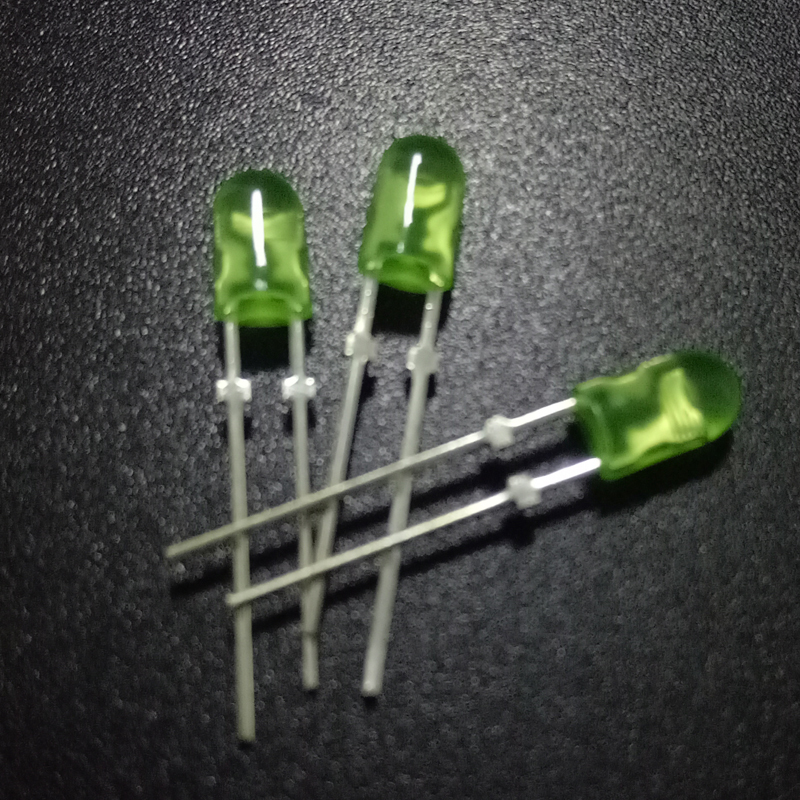

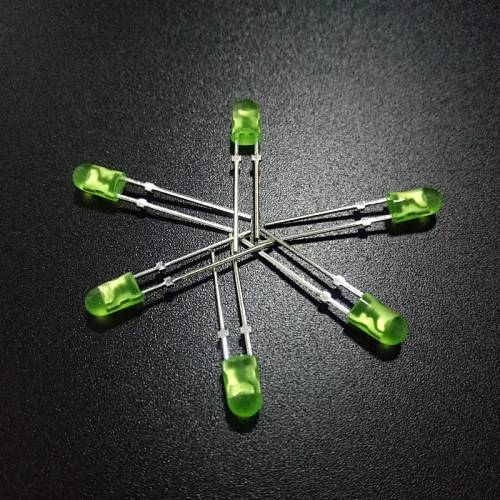

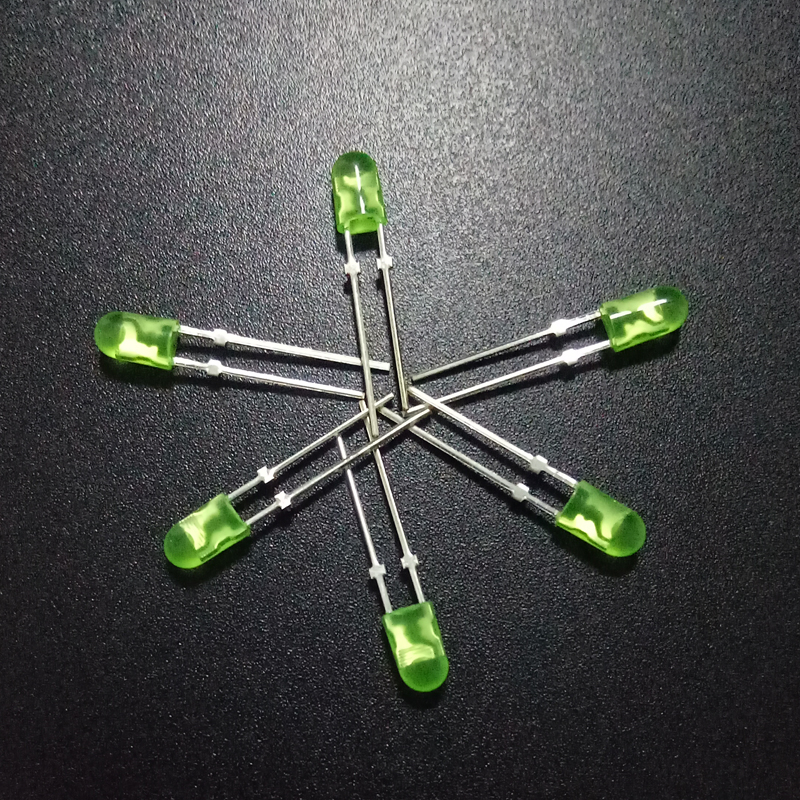

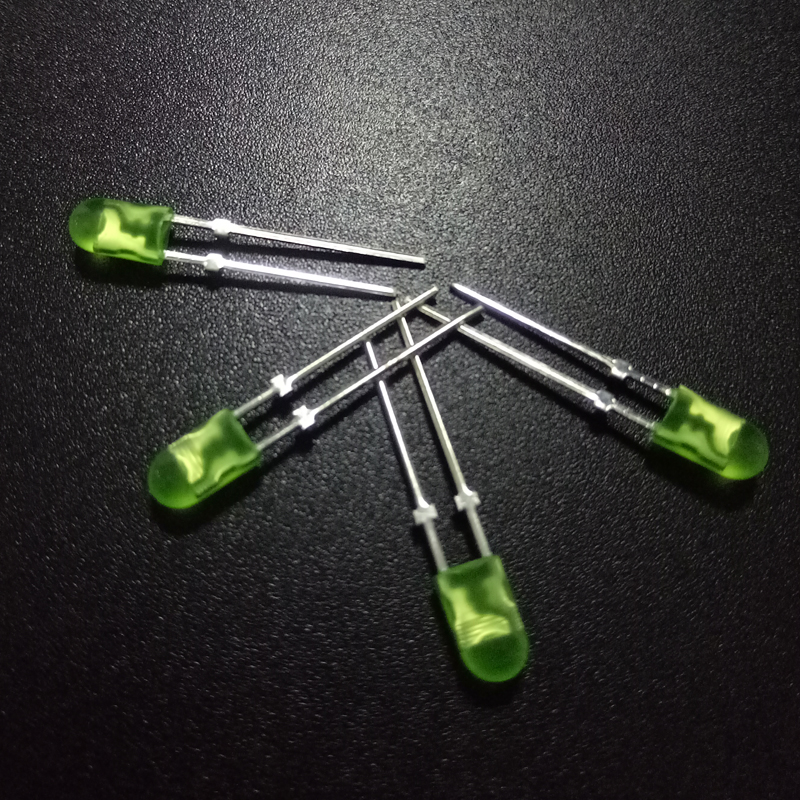

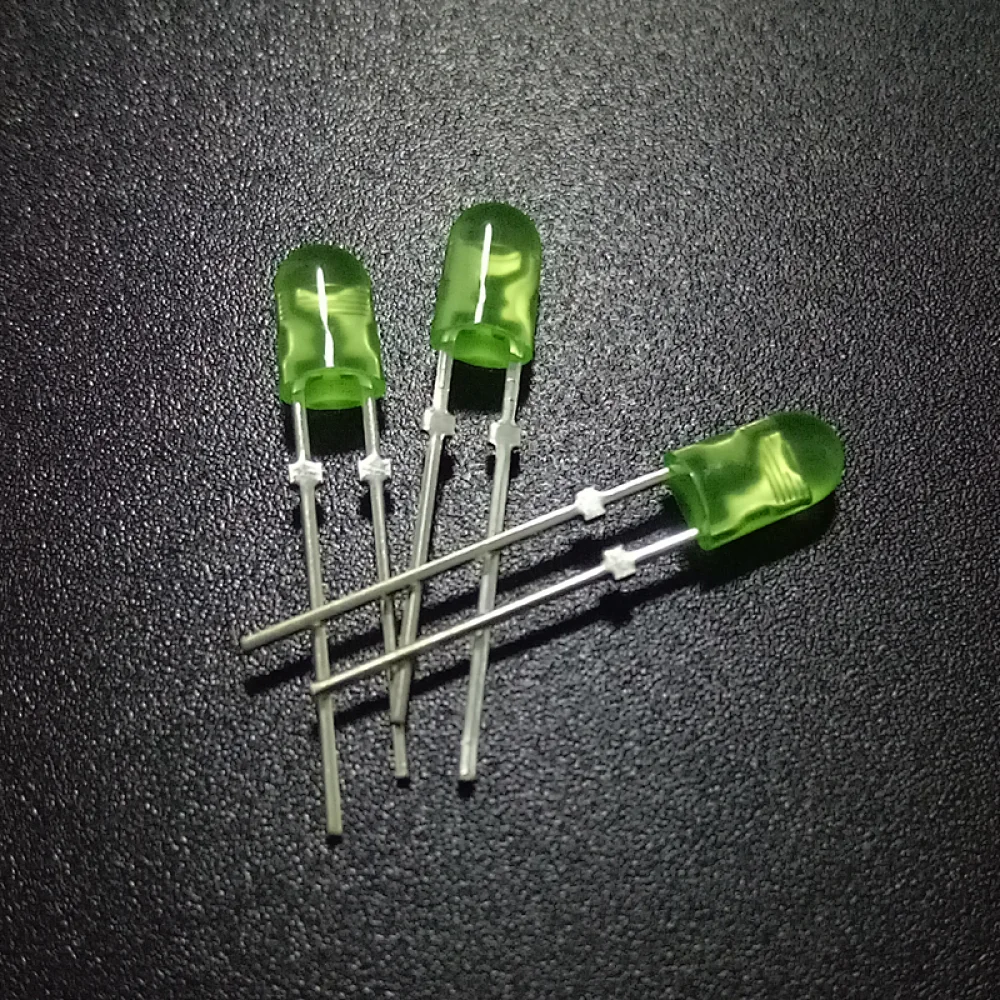

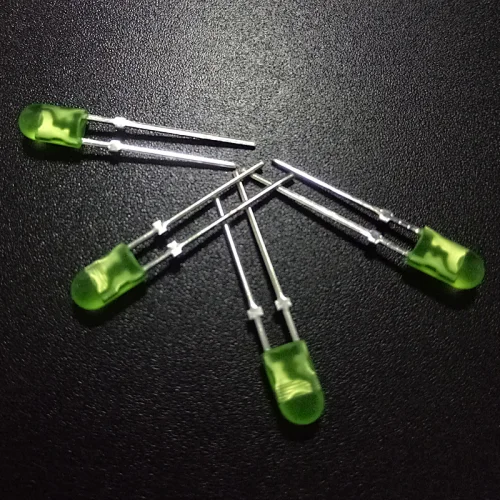

Oval LED diode DIP 546 346 Light Emitting Green diffused diode ce rohs

Product Description



Model

346HGD-A-85

Item

3mm oval green led

dimensions available

3mm, 5mm, 8mm, 10mm

lens color available

water clear/color transparent/Diffused

Shape availabe

round/bullet/flat top/straw hat/square/oval/concave

Chips Brand

Epileds, Epistar, Bridgelux, cree, etc.

Viewing angle

85+/-6 degree

Color available

white, red, green, blue, yellow, purple, rgb, bi-color

Life Span

50,000hours

Delivery days

7 work days

payment

T/T, Western union, Paypal Escrow

Warranty

2 years

Main poduct

RGB led ,Bicolor led ,Dip led ,smd ,High power led 0.5w-300w

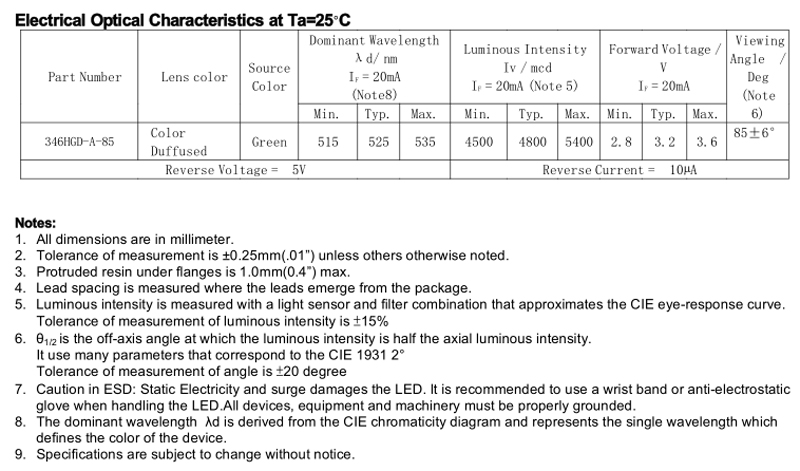

Specification for the 3mm green led

Parameter

                             Maximum Rating

Forward voltage

2.8-3.6v

Reverse Current

5uA

Forward Current

20mA

Light intensity

4500-5400mcd

Beam Angle

85+/-6 degree

Reverse Voltage

5V

Operating Temperature Range

-40°C to + 80°C

Storage Temperature Range

-40°C to + 80°C



Packaging & Shipping
