The XLamp ® XM-L2 LeD builds on the unprecedented performance of the original XM-L, increasing lumen output up to 20% while providing a single die Led point source for precise optical control. The XM-L2 LeD shares the same mechanical and optical footprint as the original XM-L, providing a seamless upgrade path and shortened design cycle.
- Color Temperature(CCT):2800-3500K
- Input Voltage(V):3.0-3.4V
- Warranty(Year):2-Year
- Type:SMD LED
- Support Dimmer:YES
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):100
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:AlGaInP
- Emitting Color:Warm White
- Luminous Intensity:90
- Luminous Flux(lm):900
- Optical Attenuation(%):3
- Power:10w
- Power Dissipation:0.1
- Viewing Angle(°):125
- Color Rendering Index(Ra):70
- Color Temperature:2600-3700K
- Operating Temperature(℃):-25 - 85
- Storage Temperature(℃):-30 - 60
- Place of Origin:Guangdong, China
- Brand Name:cspring
- Product name:Hot selling 10W 5050 White smd led with pcb board
- Voltage:3.0-3.4V
- Forward Current:3000mA
- Size:5.0*5.0*3.02mm
- Warranty:3 Years
- Lifespan:50000hours
- Chip Brand:Taiwan chip
- Color:White/warm white / natural white
- ESD withstand voltage:8000V
- Reverse:-5V
- Certification:ce, RoHS
Specification
Specification | ||
Name | Hot selling 10W 5050 White smd led with pcb board | |
Voltage | 3.0-3.6v | |
Power | 10W | |
Color | White / Warm white/ Cool White | |
Lumens | 90-100lm/w | |
ESD withstand voltage | 8000V | |
Reverse voltage | -5V | |
Shelf life | 3 years | |
Product Description
Product Details
Product Details
XLamp XM-L2 LeDs are the ideal choice for lighting applications where high light output and maximum efficacy are required, such as LeD light bulbs, outdoor lighting, portable lighting, indoor lighting and solar-powered lighting.
Features:
• Unlimited floor life at ≤ 30 ºC/85% RH
• Reflow solderable - JEDECJ-STD-020C
• electrically neutral thermal path
• RoHS and REACh compliant
• UL ® recognized component (E349212)
Features:
• Available in white, 70-CRI white, 80-CRI white, 85-CRI white and 90-CRI white
• ANSI-compatible chromaticity bins
• Binned at 85 °C
• Maximum drive current: 3000 mA
• Low thermal resistance: 2.5 °C/W
• Wide viewing angle: 125°
SMD 5730 0.5W LED | SMD 2835 0.3W LED | SMD 3030 1-3W LED | SMD 3535 1-3W LED |
White | White | Green | UV or Blue |
0.5W | 0.1W/0.2W/0.3W/0.5W/1W | 1W/3W | 1W/3W |
15000PCS/ROLL | 16000PCS/ROLL | 3000PCS/ROLL | 1000PCS/ROLL |

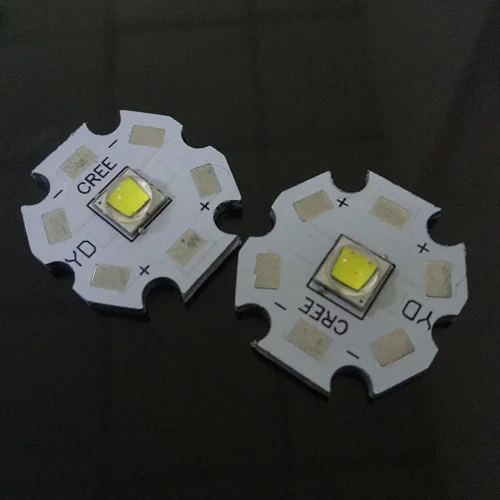

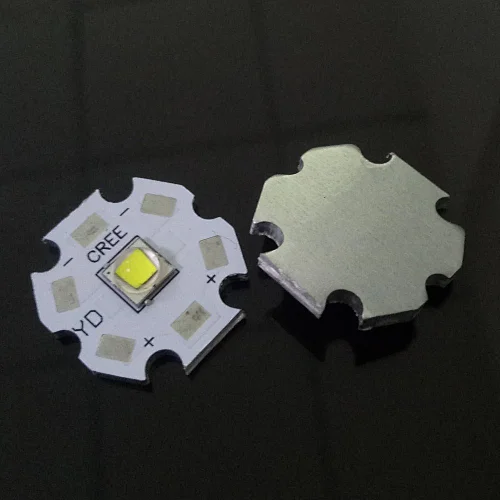

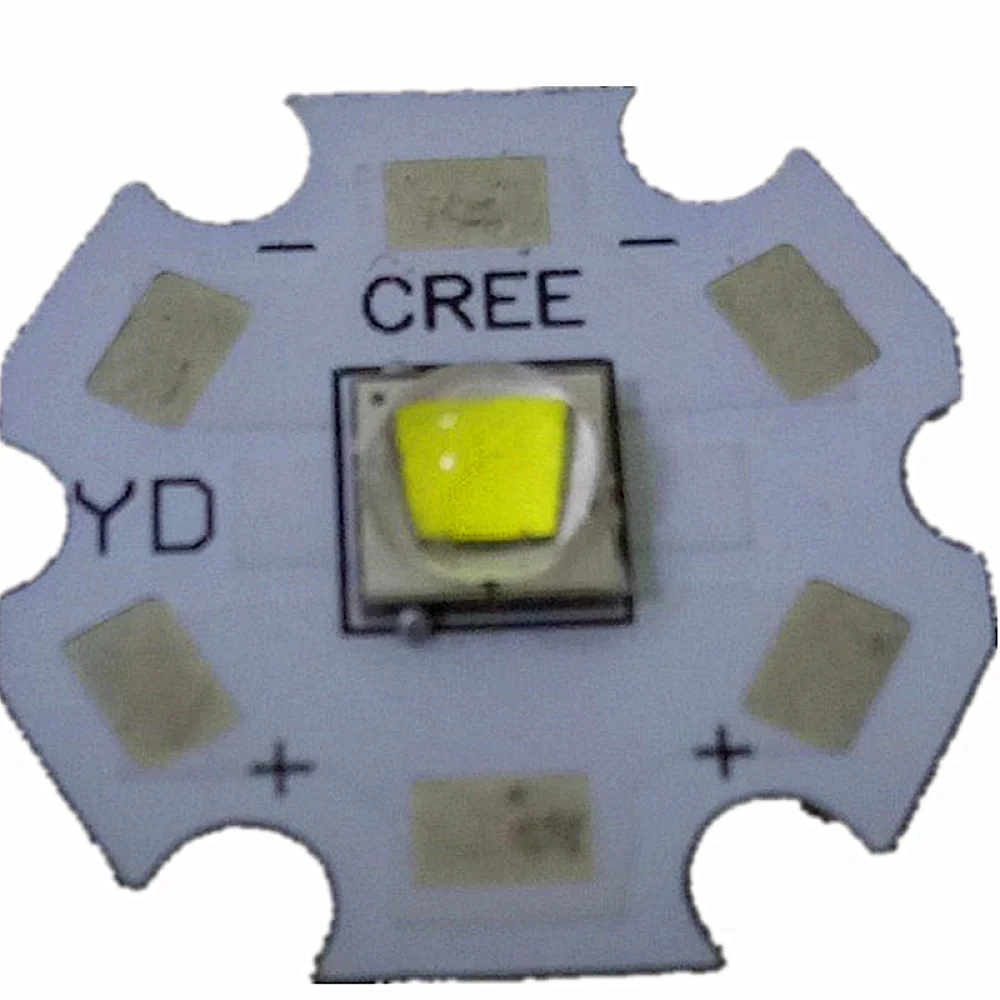

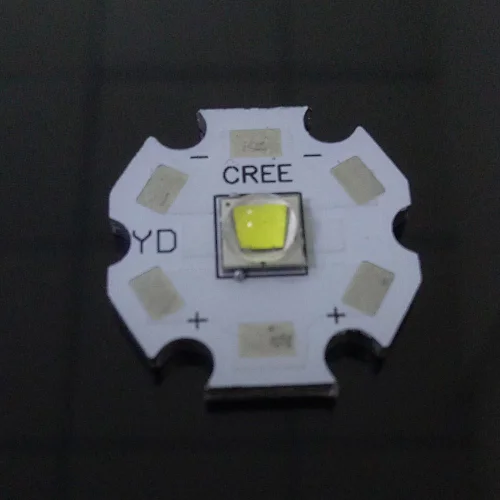

LED with PCB Boad
Applications
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: No.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
