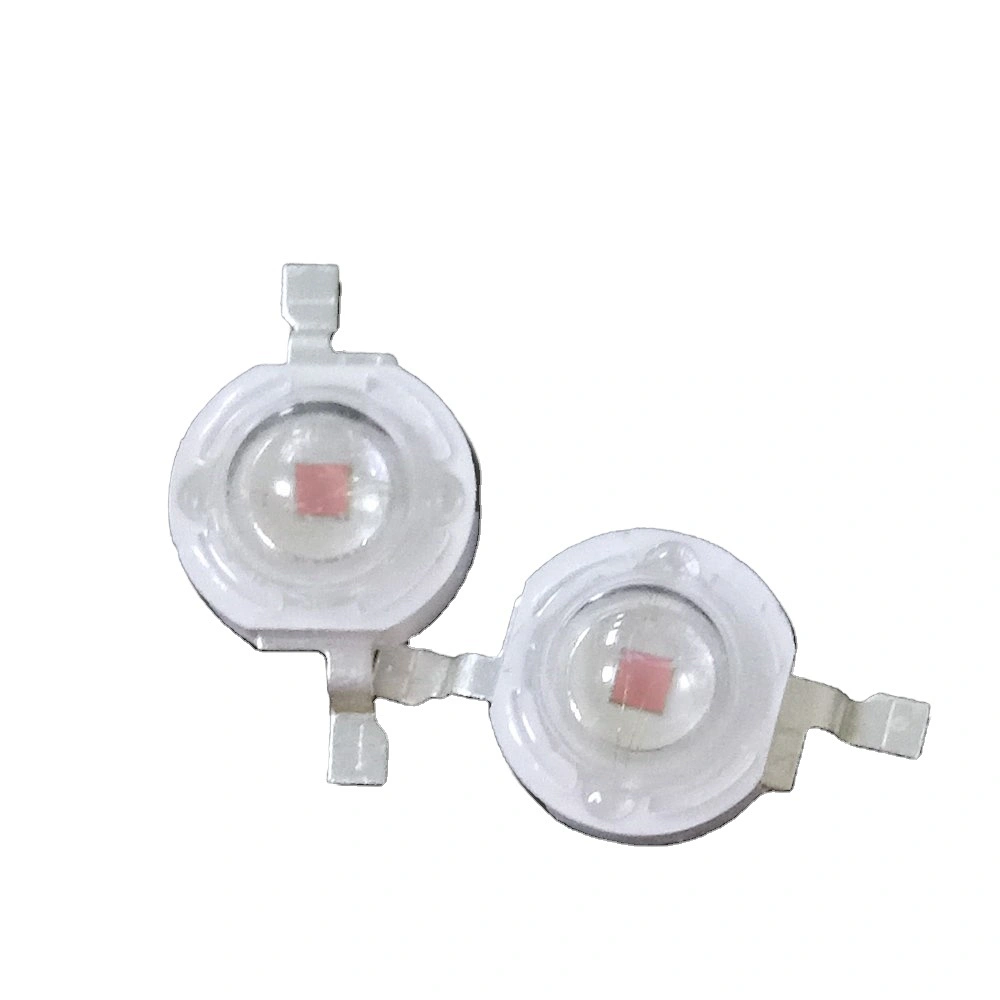

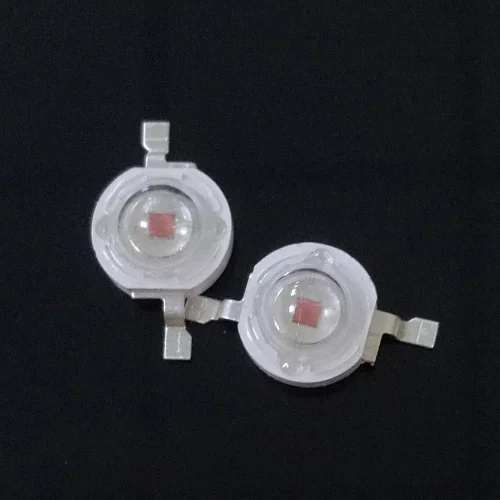

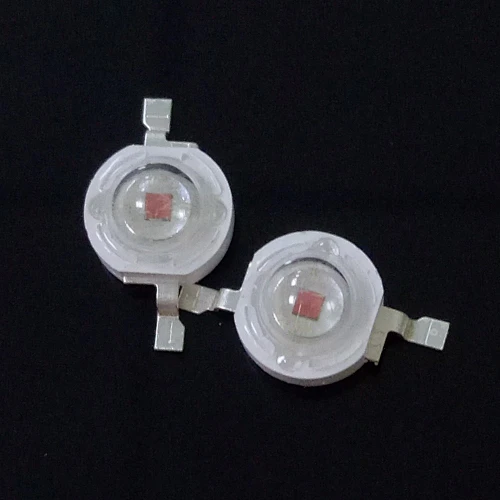

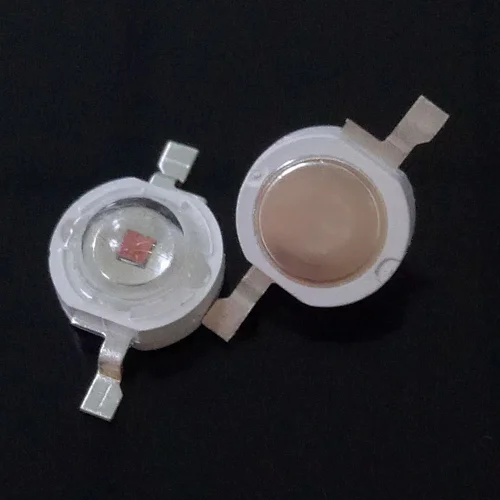

Zhongshan led 3 watt ir led 1050nm 1080nm high power ir led light 700mA
P04IR-1050NM-3W
1 piece
Quantity
- Color Temperature(CCT):1050-1080NM
- Input Voltage(V):1.3-1.6v
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:No
- Lighting solutions service:High power led
- Luminous Efficacy(lm/w):40
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:AlGaInP
- Emitting Color:Orange
- Luminous Intensity:40, 50-100mW
- Luminous Flux(lm):40
- Optical Attenuation(%):3
- Power:1-3W
- Power Dissipation:1
- Viewing Angle(°):140 Degree
- Color Rendering Index(Ra):70
- Color Temperature:1050-1080nm
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 60
- Place of Origin:Guangdong, China
- Brand Name:Cspring
- Product name:led 3 watt ir led 1050nm 1080nm high power ir led light 700mA
- Chip brand:Taiwan Epileds
- Warranty:2 Years
- Voltage:1.3-1.5V
- Current:350mA 700mA
- MOQ:50PCS
- Lifespan:50000hours
- Certification:RoHS
Zhongshan led 3 watt ir led 1050nm 1080nm high power ir led light 700mA
Product Description
Notice:

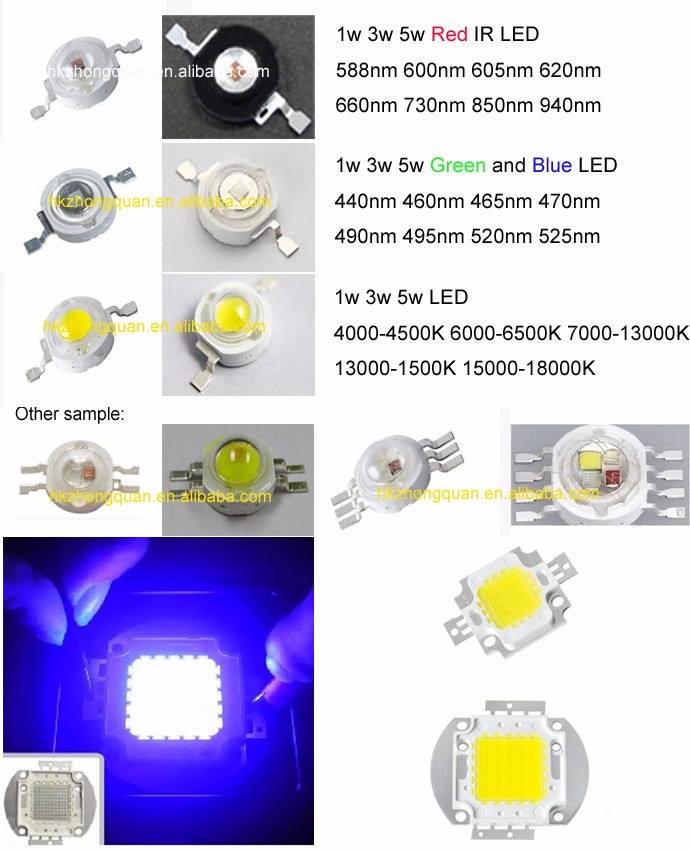

- All 3W R/G/B/Y/W Led is with the Epileds Chip From Taiwan. This is the Good Chip for Single Color series. (RED / GREEN / BLUE / YELLOW / AMBER / ORANGE / PINK / PURPLE / UV)
- Remarks: All Led is fit for 185 degree Reflow Soldering. If you need the led for 260 degree reflow soldering ,pls point out to us. We will select the silicon lens for your LED.
- Warranty: All Led with 2 years warranty. If any led is out of work in 2 years, we will replace them by new led through our International DHL Account
Model No. | Power | Color | Angle(°) | Wave Length (nm) | |
min | max | ||||
high power led 1-3w | 1-3W | Green | 120 | 490 | 500 |
high power led 5w | 5W | 120 | 490 | 500 | |
high power led 1-3w | 1-3W | 120 | 500 | 505 | |
high power led 5w | 5W | 120 | 500 | 505 | |
high power led 1-3w | 1-3W | 120 | 520 | 525 | |
high power led 5w | 5W | 120 | 520 | 525 | |
high power led 1-3w | 1-3W | Yellow | 120 | 560 | 565 |
high power led 5w | 5W | 120 | 560 | 565 | |
high power led 1-3w | 1-3W | 120 | 585 | 590 | |
high power led 5w | 5W | 120 | 585 | 590 | |
high power led 1-3w | 1-3W | 120 | 590 | 595 | |
high power led 5w | 5W | 120 | 590 | 595 | |
high power led 1-3w | 1-3W | Red | 120 | 600 | 605 |
high power led 5w | 5W | 120 | 600 | 605 | |
high power led 1-3w | 1-3W | 120 | 620 | 625 | |
high power led 5w | 5W | 120 | 620 | 625 |
Applications:
All general Indoor lighting and outdoor lighting:
Led Spotlight , Led bulb , under water lamp , under ground light , led fluorescent tube , Led ceiling light , Led down light , Led garden light , Led decorative light , Led street light , high power led bay light , Led flood light , Led projector, Led dancing light , Led surgery light , Led desk light , Led tunnel light , Led aquarium light , plant growing light , led sign board , Led traffic light and etc.
