Model NO.
R5050RGBW3W
Price:
$ 0.72-0.75 / piece
Minimum order quantity:
1 piece
Quantity:
  • Type:SMD LED
  • Chip Material:AlGaInP
  • Luminous Intensity:RGBW
  • Luminous Flux(lm):R:70-90Lm G:140-160Lm B:30-50Lm W: 160-220Lm
  • Optical Attenuation(%):3
  • Power:4*3W, 4*1-3W
  • Power Dissipation:4
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):70
  • Color Temperature:R620-625nm G: 520-525nm B: 460-465nm
  • Operating Temperature(℃):-25 - 65
  • Storage Temperature(℃):-35 - 105
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Certification:ce, RoHS

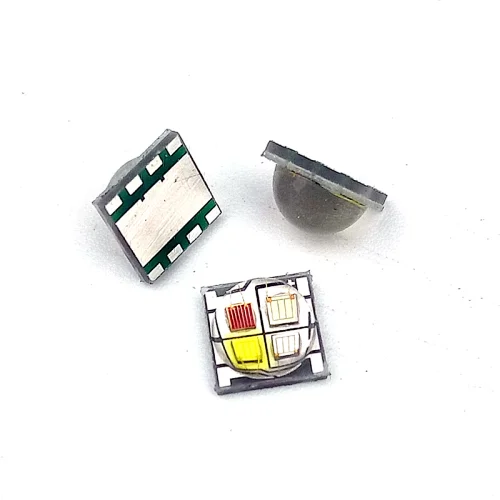

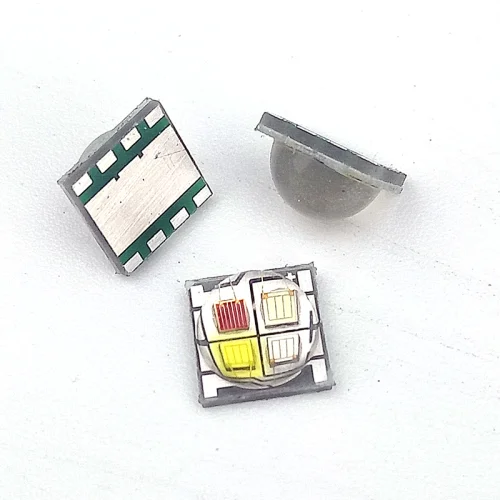

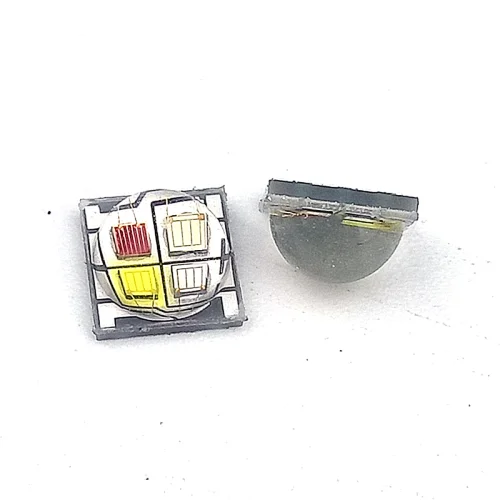

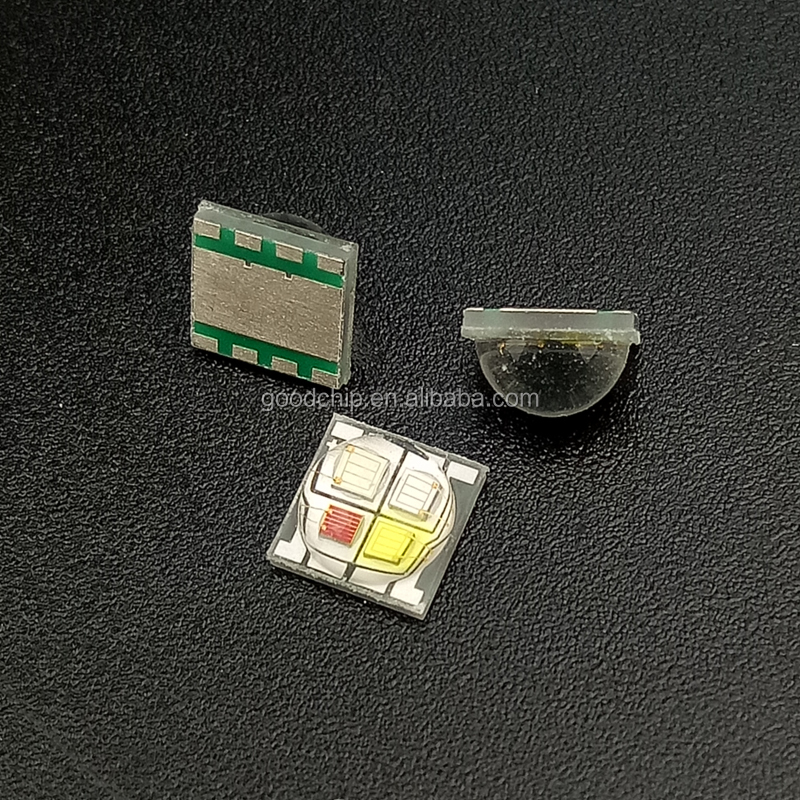

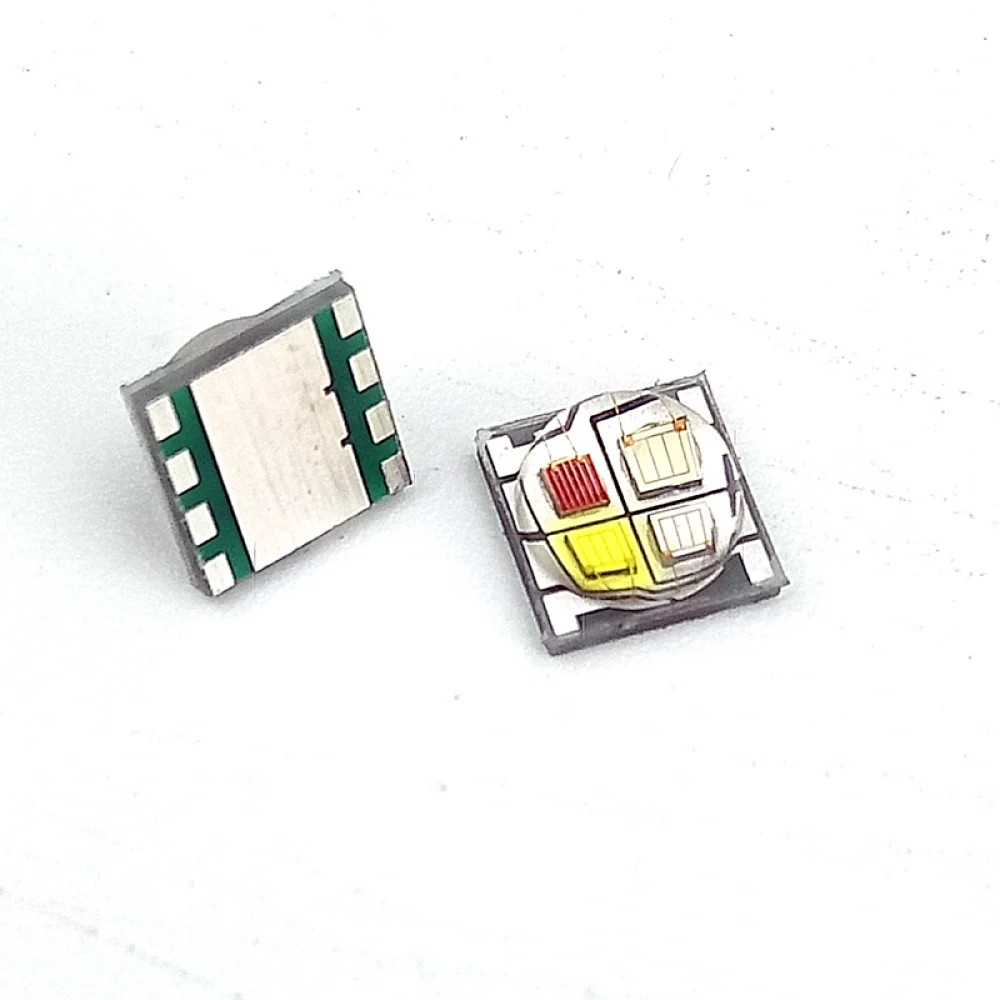

  • Name:High power 4*3W 5050 rgbw led diode
  • Forward Voltage:R:1.8-2.6V G: 2.8-3.6V B: 2.8-3.6V W: 2.8-3.6V
  • Peak Forward Curren:700mA

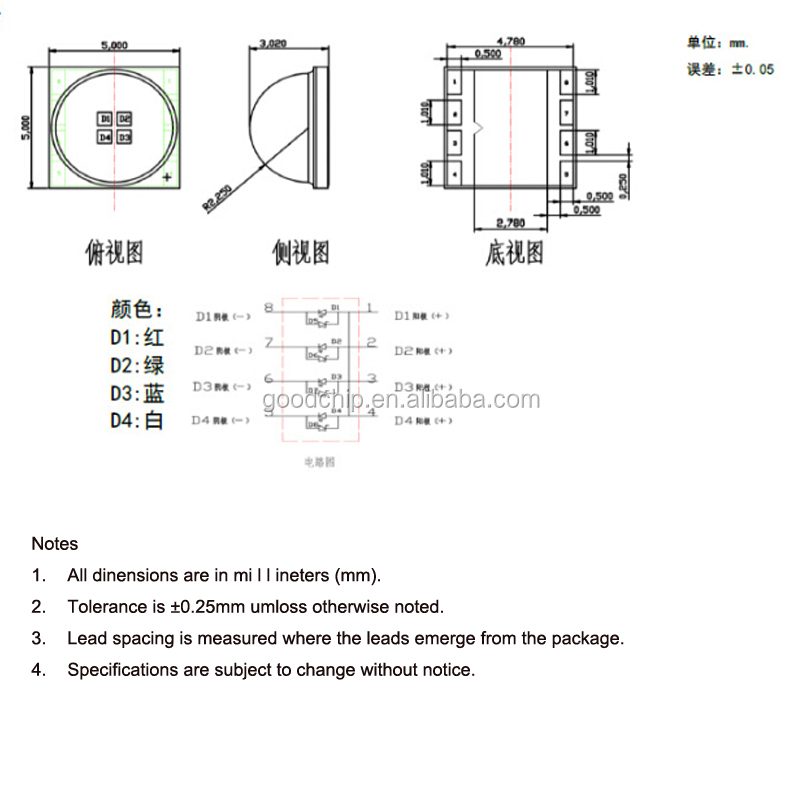

  • Size:5.0*5.0*3.0mm
  • Warranty:2 years
  • Lifespan:30000-50000 Hours

4X3W-5050RGBW

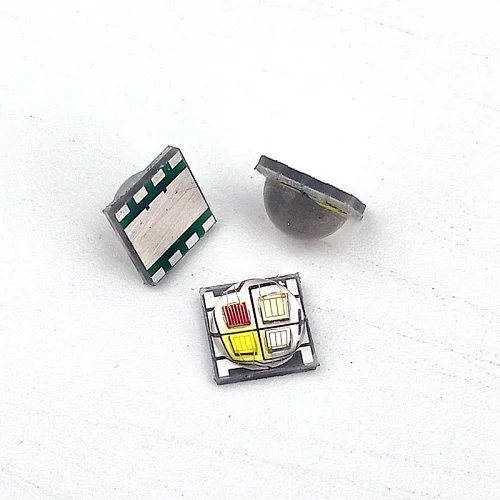

High power 4*3W 5050 rgbw led diode

Features:

Well-known chip material, Epileds

99.99% gold wire bonding

Full color spot, well color consistency

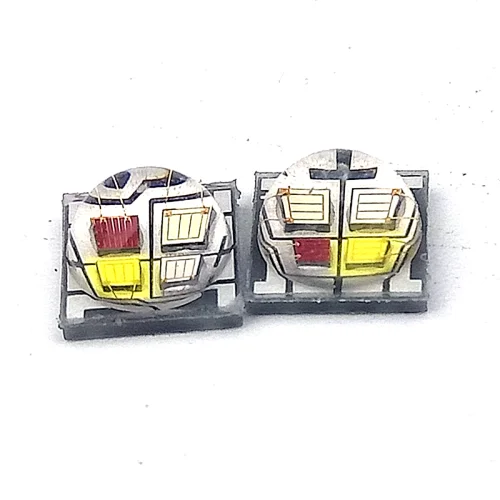

R, G, B, W four color in one Package

High flux per LED

Low-temp & lead free reflow soldering

More energy efficient than incandescent and most halogen lamps

Low Voltage DC operated

Instant light(less than 100ns)

No UV

Specification:

Luminous Intensity: R:70-90Lm G:140-160Lm B:30-50Lm W: 160-220Lm

Viewing Angle: 140deg

Dominant Wavelength Tc: W6000-7000K

Spectral Line Half-Width: R620-625nm G: 520-525nm B: 460-465nm

Forward Voltage VF R:1.8-2.6V G: 2.8-3.6V B: 2.8-3.6V W: 2.8-3.6V

Absolute Maximum Ratings at TA=25

Power Dissipation: 3W

Peak Forward Current: 700mA

Continuous Forward Current: 700mA

Reverse Voltage: 5V

Operating Temperature Range: -25to +65

Sorage Temperature Range: -35to +105

Lead Soldering Temperature: [1.6mm(.63)From Body] 260for 5 Seconds

Applications:

Portable (flashlight, bicycle)

Uplighters/Downlighters

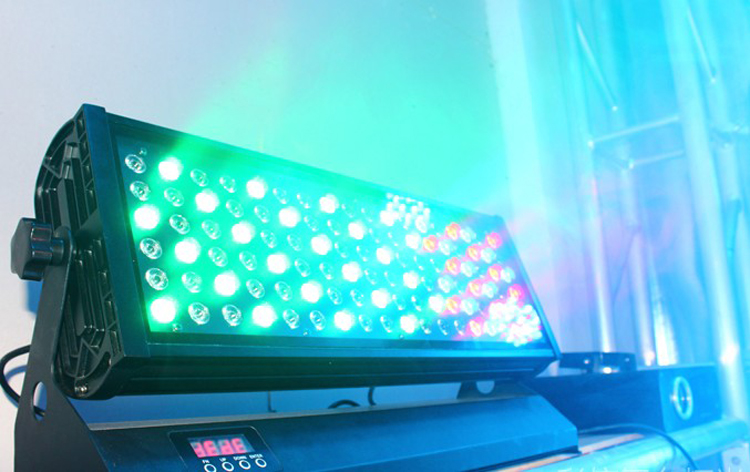

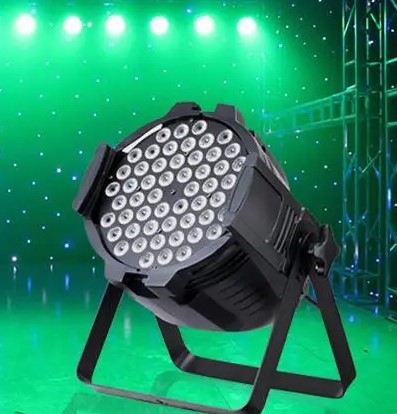

Decorative/Entertainment (stage light)

Bollards/Security/Garden

Indoor/Outdoor Commercial and Residential Architectural

Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
