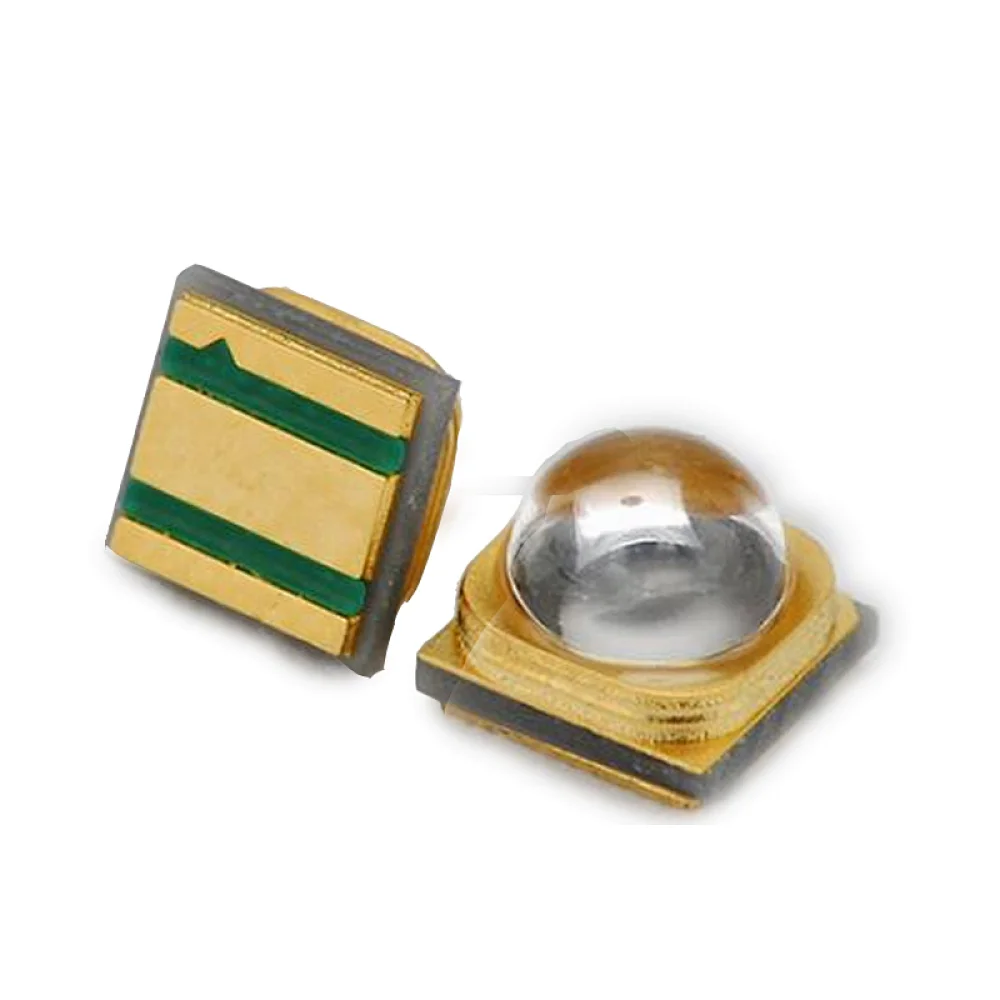

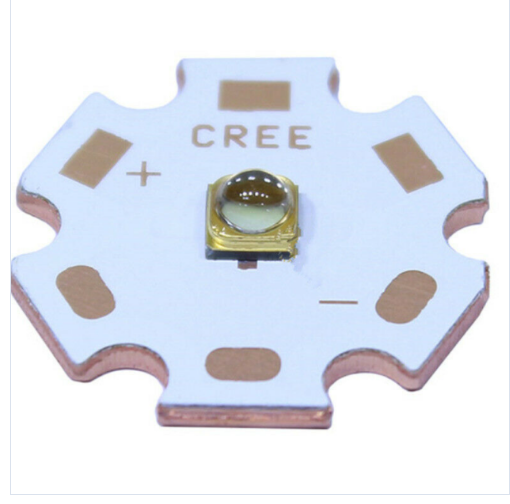

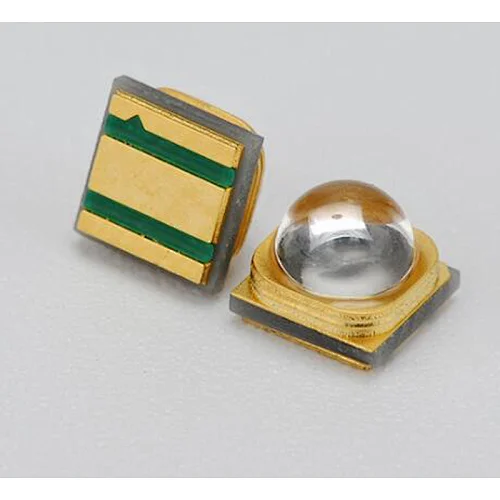

High power 265 nm UVC LED SMD 3535 1W diode
GC-RUVC-265nm-1W
1 piece
Quantity
High power 265 nm UVC LED SMD 3535 1W diode
| Type | High power SMD UVC LED |

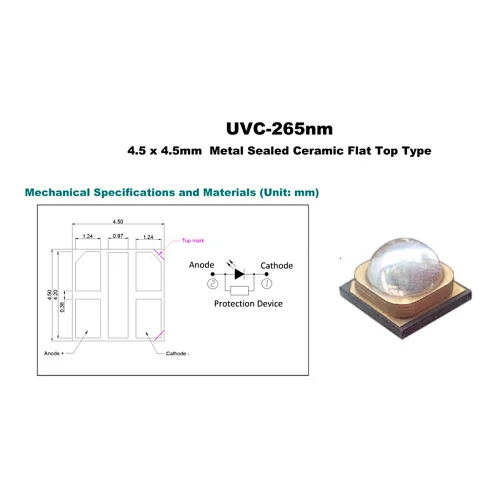

| Size | 4.5*4.5mm |
| Forward Current | 150mA |
| Full Width at Half Maximum | 12nm |
| Radiant Flux | 8-10mW |
| Peak Wavelength | 265-275nm |
| Color Rendering Index(Ra) | 70 |
| Power | 1W |
| Input Voltage(V) | 5-9V |
| Emitting Color | UVC |
| Chip Material | AlGaInP |
| Viewing Angle(°) | 120 |
| Warranty | 2years |
| Certification | RoHS |
CAUTION:
LEDs emit very strong UV radiation.
Don't look directly into the LED light.
UV radiation can harm your eyes.
To prevent even inadequate exposure, wear protective eyewear.
If LEDs are embedded in devices, please indicate warning labels against the UV light LED used.
Keep out of reach of children.
Specification and dimension are subject to change for improvement without notice.
