Can be used for customization high power led 4*1W or 4*3W RGBW LED Chip
P08RGBW-1W
1 piece
4*1W 8 pin RGBW High Power LED for color changing decorative lighting,Landscape Lighting, stage lighting, Architectural Lighting, Indoor directional lighting, entertainment lighting and so on.
Quantity
  • Color Temperature(CCT):RGBW
  • Input Voltage(V):R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V
  • Warranty(Year):2-Year
  • Type:High Power LED
  • Support Dimmer:Yes
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):40
  • Lifespan (hours):30000
  • Working Time (hours):30000
  • Product Weight(kg):0.015
  • Chip Material:AlGaInP
  • Emitting Color:RGBW
  • Luminous Intensity:RGB+W
  • Luminous Flux(lm):rgbW
  • Optical Attenuation(%):3
  • Power:4*3w
  • Power Dissipation:3
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):70
  • Color Temperature:RGBW
  • Operating Temperature(℃):-25 - 65
  • Storage Temperature(℃):-35 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Product name::high power led 4*1W or 4*3W RGBW LED Chip
  • Chip brand::Taiwan Epileds
  • Voltage::R:1.8-2.6V G:2.8-3.6V B:2.8-3.6V W:2.8-3.6V
  • Chip Size::45 Mil / 42mil / 38mil/ 30mil
  • Current::350mA / 700mA
  • Warranty::2 Years
  • Lead Soldering Tem:260 ℃ for 5 Seconds
  • Lifespan::30000-50000hours
  • Certification:RoHS

Specification

Setting Information
Name
Can be used for customization 4*1W or 4*3W RGBW LED Chip
Power
4*1W or 4*3W
Current
350mA / 700mA
Chip size
45 Mil / 42mil / 38mil/ 30mil
Warranty
2 years
Color Temperature
R:620-625NM G:520-525NM B:460-465NM W: 6000-7000K/3000-3500K/4000-4500K
Legs
8 legs
Chip brand
Taiwan Epileds

Product Description

                                          Product Details

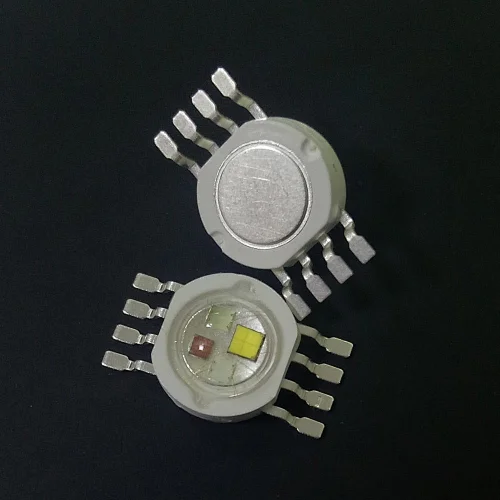

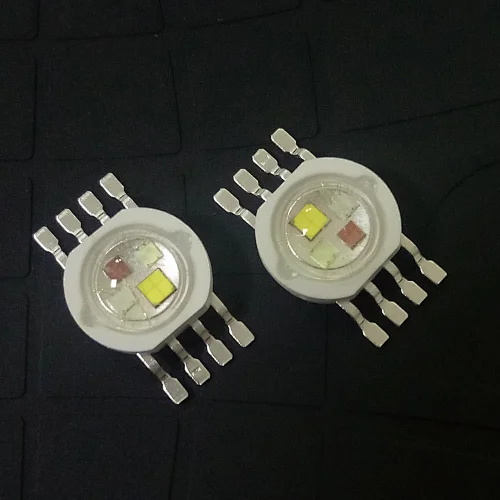

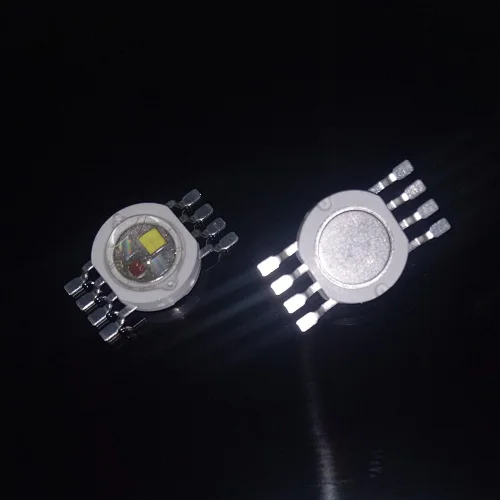

                                     High power RGBW 4*1W and 4*3W LED size



                                                 Product Details

1. Use high quality big size chip.

2. Bridgelux, Epistar, Epileds brand can choose.

3. 30mil, 38mil, 45mil chip can choose.



Product Details

Gold wire bonding, Copper stent.



Product Details

Gold wire bonding, Copper stent.

Product Details

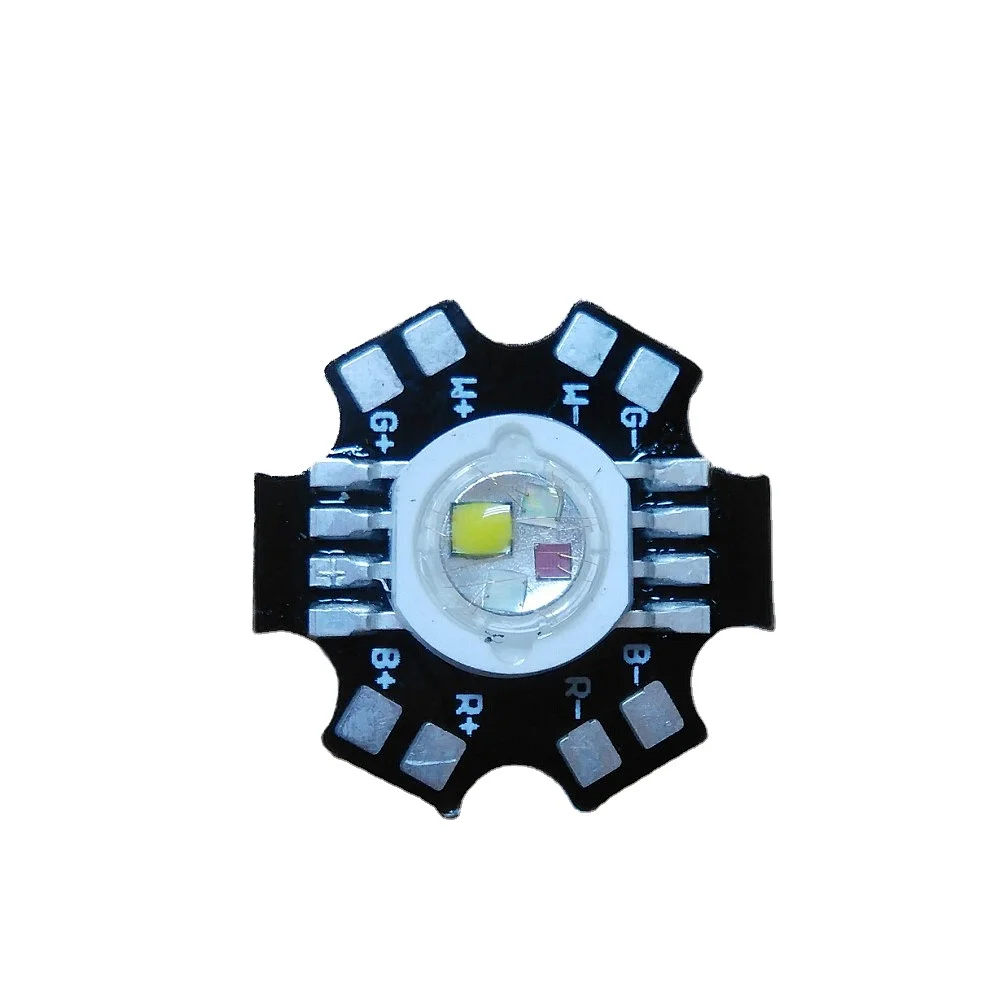

We also provide the High power led with the star pcb board.

Easy to install
