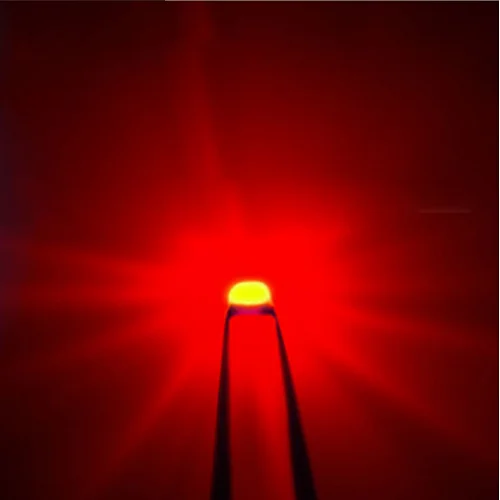

PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light
PLCC-2 3528 RED SMD LED for Automotive Brake Light

PLCC-2 3528 RED SMD LED for Automotive Brake Light

Model NO.
GC-R3528URC30P2
Quantity:

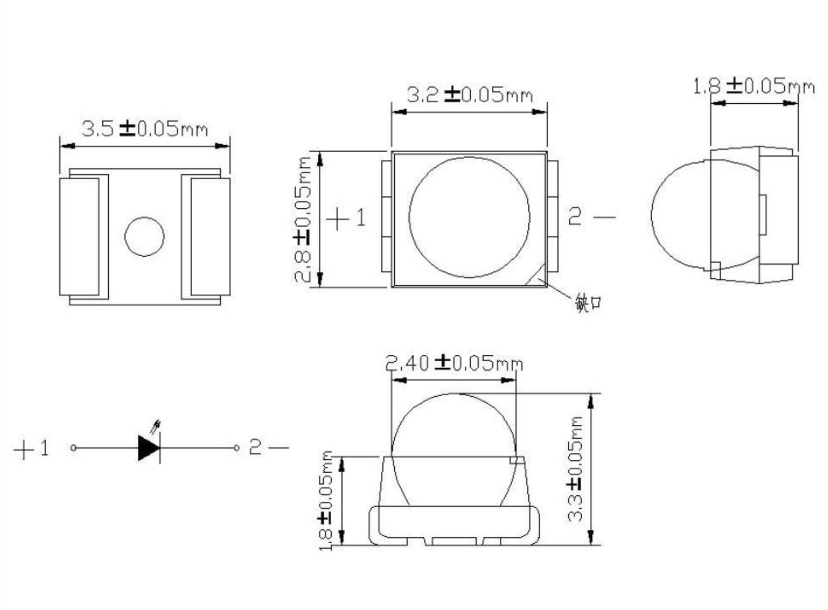

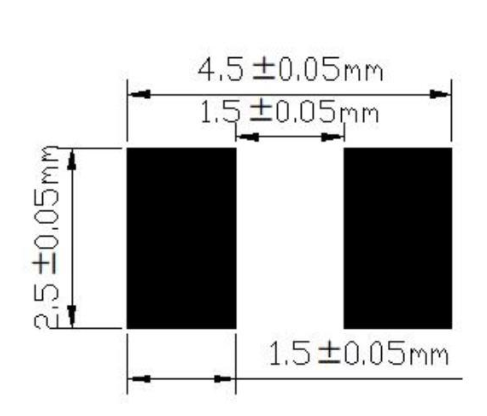

Product Dimensions and Recommended Pad Size:


Product parameters:

Product TypePart NumberColorWLD(nm)Luminous Flux(MCD)VF(v)IF(mA)Viewing Angle【°】

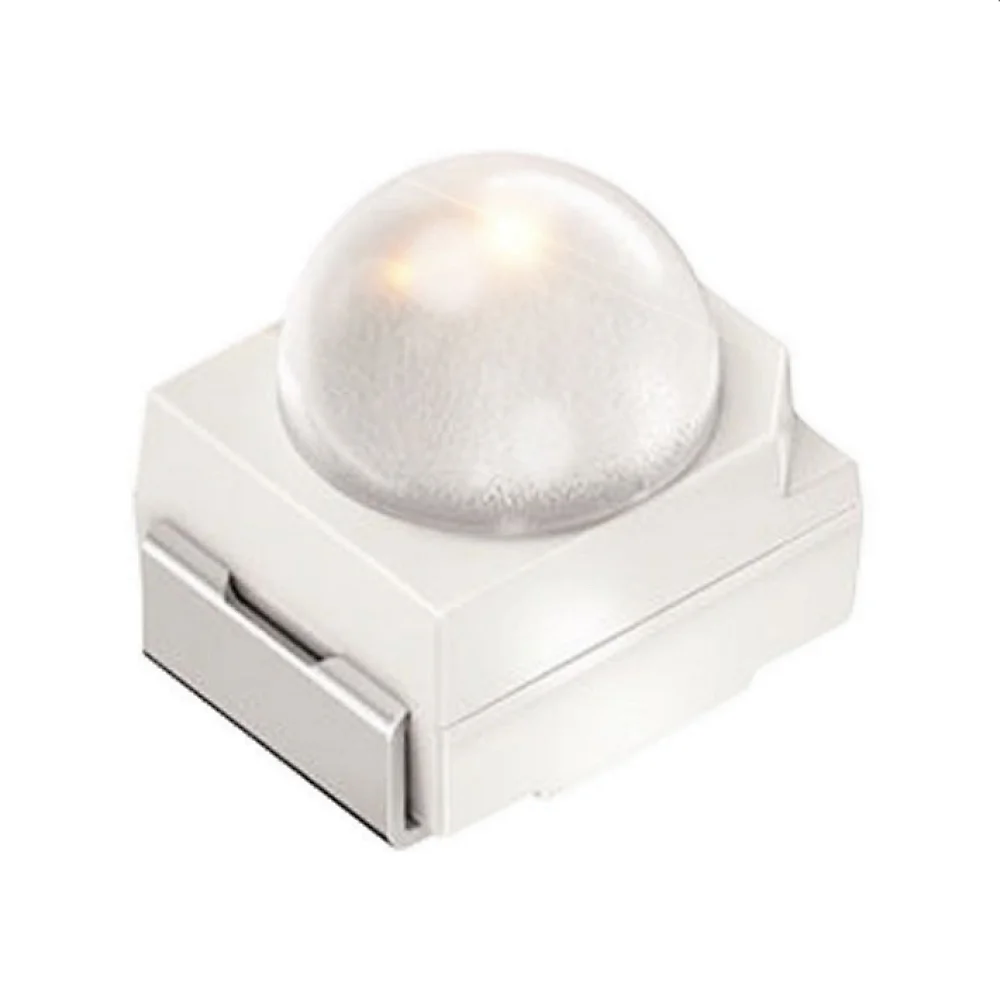

PLCC-2 3528 SMD LED With Lens
  Series
GC-R3528URC30P2Red620-6308000-170002.0-2.65030
GC-R3528UYC30P2Yellow585-5958000-170002.0-2.65030
GC-R3528UBC30P2Blue460-4704000-140002.8-3.45030
GC-R3528UGC30P2Green520-53015000-270002.8-3.45030
GC-R3528URC60P2Red620-6305000-100002.0-2.65060
GC-R3528UYC60P2Yellow585-5955000-100002.0-2.65060
GC-R3528UBC60P2Blue460-4702000-60002.8-3.45060
GC-R3528UGC60P2Green520-5308000-150002.8-3.45060











Applications:  Reliable quality SMD PLCC-2 3528 RED LED components mainly used for automotive LED (tail light,brake light,turn signal light, traffic light).
