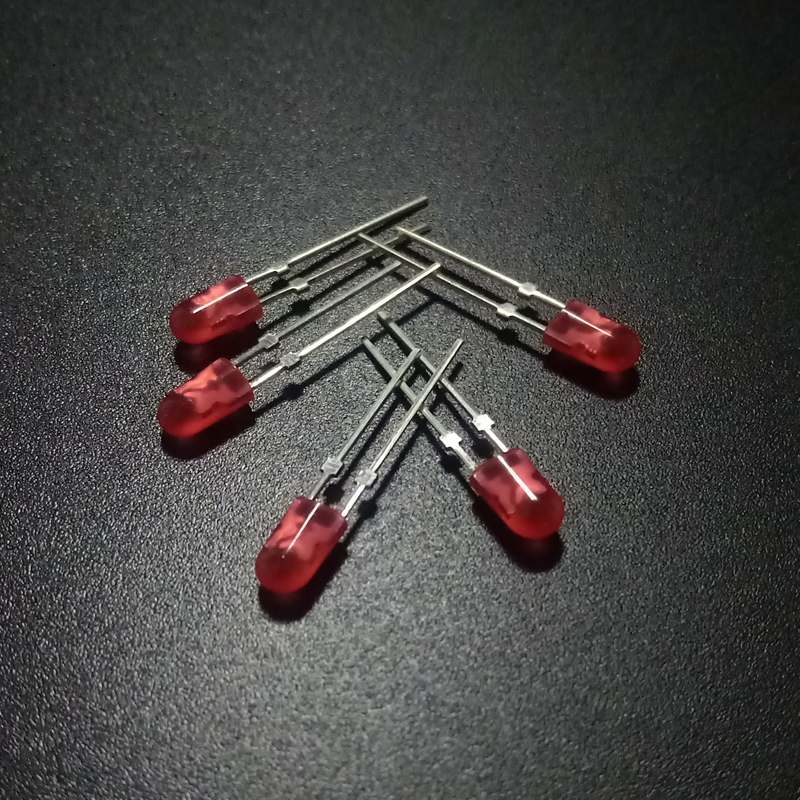

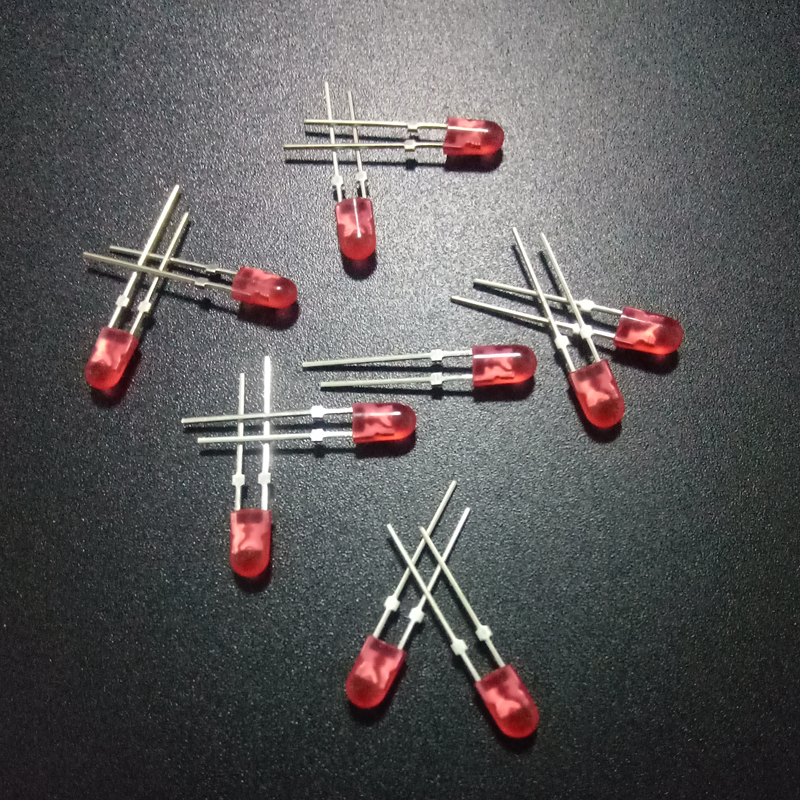

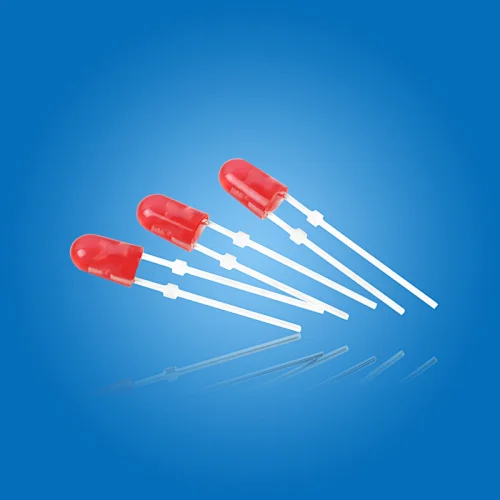

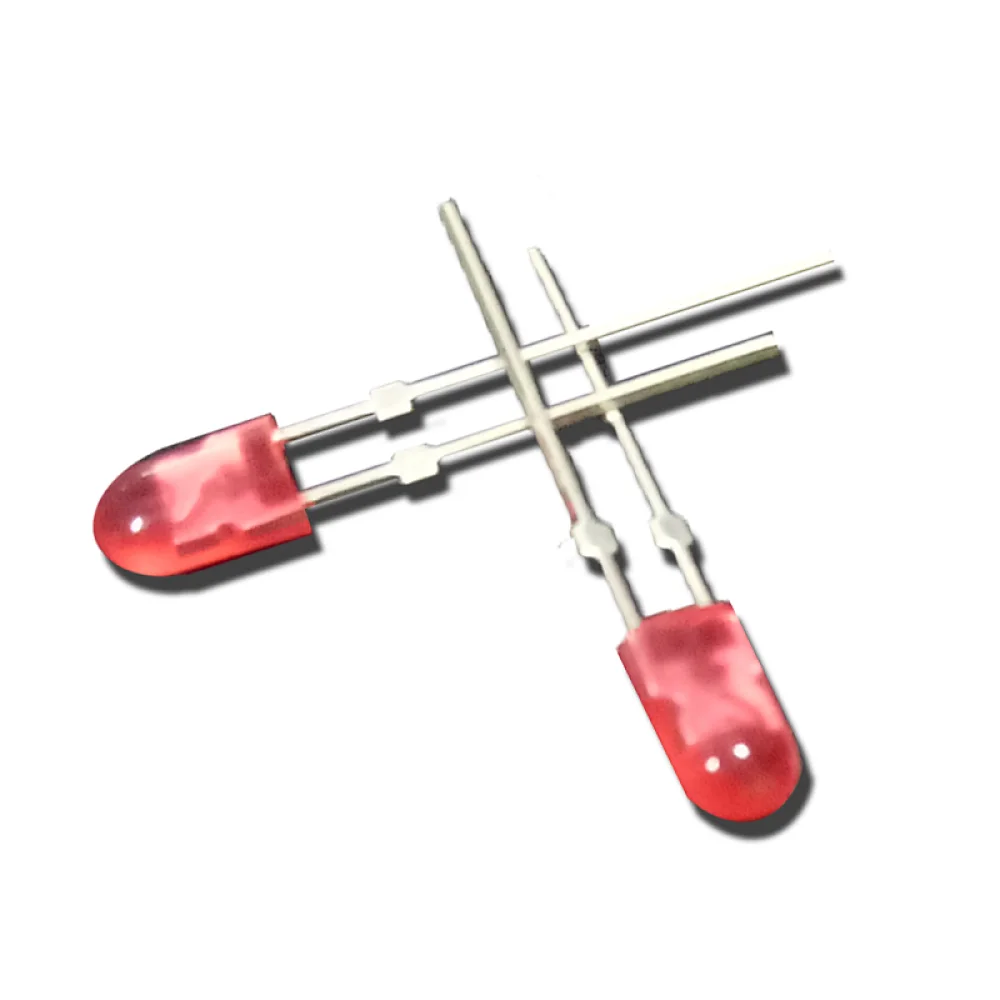

3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED
3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED

3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED

Model NO.
346URD
Minimum order quantity:
1 piece
Country of Origin:
Zhongshan / Guangzhou /Shenzhen
Quantity:
  • Color Temperature(CCT):620-630NM
  • Input Voltage(V):2.0-2.4v
  • Warranty(Year):2-Year
  • Type:LAMP LED
  • Support Dimmer:yes
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):5
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Product Weight(kg):0.001
  • Chip Material:AlGaInP
  • Emitting Color:red
  • Luminous Intensity:1000-1800mcd, 1000-1800mcd
  • Luminous Flux(lm):1000-1800mcd
  • Optical Attenuation(%):3
  • Power:0.2
  • Power Dissipation:0.2
  • Viewing Angle(°):110
  • Color Rendering Index(Ra):70
  • Color Temperature:620-630nm
  • Operating Temperature(℃):-40 - 80
  • Storage Temperature(℃):-40 - 80
  • Place of Origin:China
  • Brand Name:cspring
  • Name:90-105 degree with stoper LED diode through-hole LED dip LED
  • Color:Red
  • Viewing Angle / Deg (Note 6):90+/-5 degree
  • Shape:Oval
  • Dominant Wavelength:620-630nm
  • Voltage:2.0-2.6V
  • Warranty:2years
  • Lifespan:50000H
  • Lens color:Color Duffused

3mm oval diffused 90-105 degree with stop LED diode through-hole LED dip LED

Product Description



Model

346URD-R

Item

3mm oval red led

dimensions available

3mm, 5mm, 8mm, 10mm

lens color available

water clear/color transparent/Diffused

Shape availabe

round/bullet/flat top/straw hat/square/oval/concave

Chips Brand

Epileds, Epistar, Bridgelux, etc.

Viewing angle

90 degree

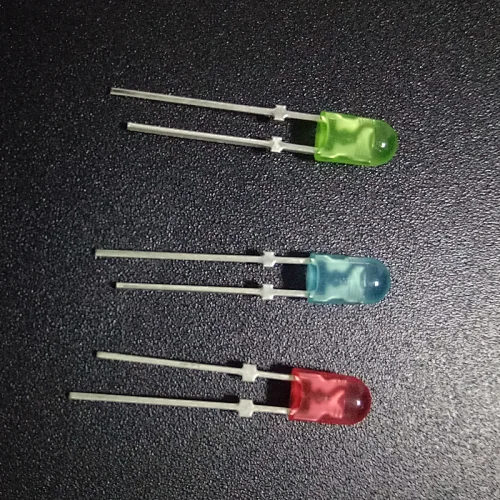

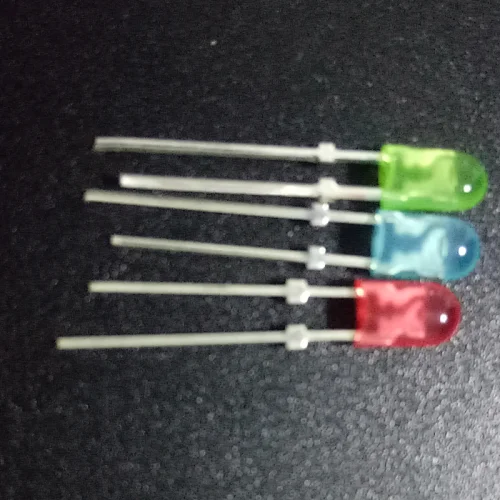

Color available

white, red, green, blue, yellow, purple, rgb, bi-color

Life Span

50,000hours

Delivery days

7 work days

payment

T/T, Western union, Paypal Escrow

Warranty

2 years

Main poduct

RGB led ,Bicolor led ,Dip led ,smd ,High power led 0.5w-300w

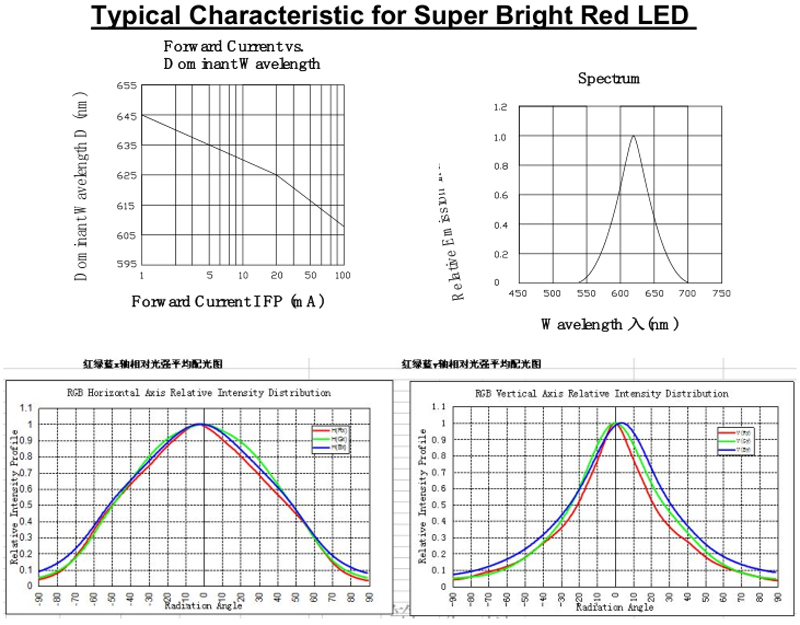

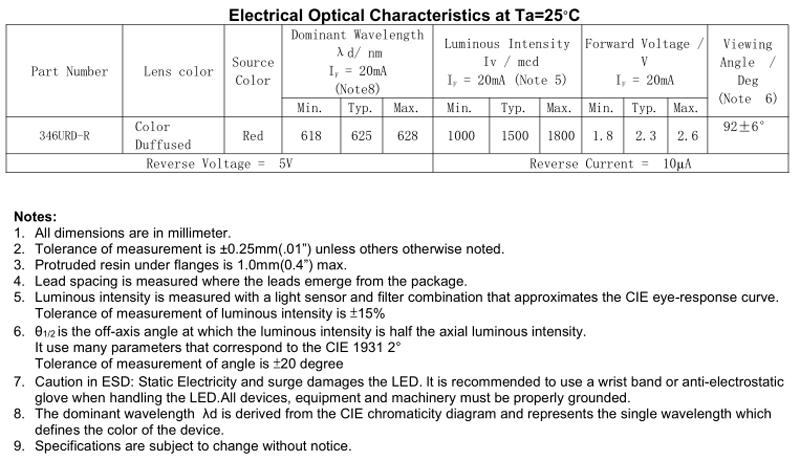

Specification for the 3mm red led

Parameter

                             Maximum Rating

Forward voltage

1.8-2.6V

Reverse Current

5uA

Forward Current

20mA

Light intensity

1000-1800mcd

Beam Angle

90

Reverse Voltage

5V

Operating Temperature Range

-40°C to + 80°C

Storage Temperature Range

-40°C to + 80°C
