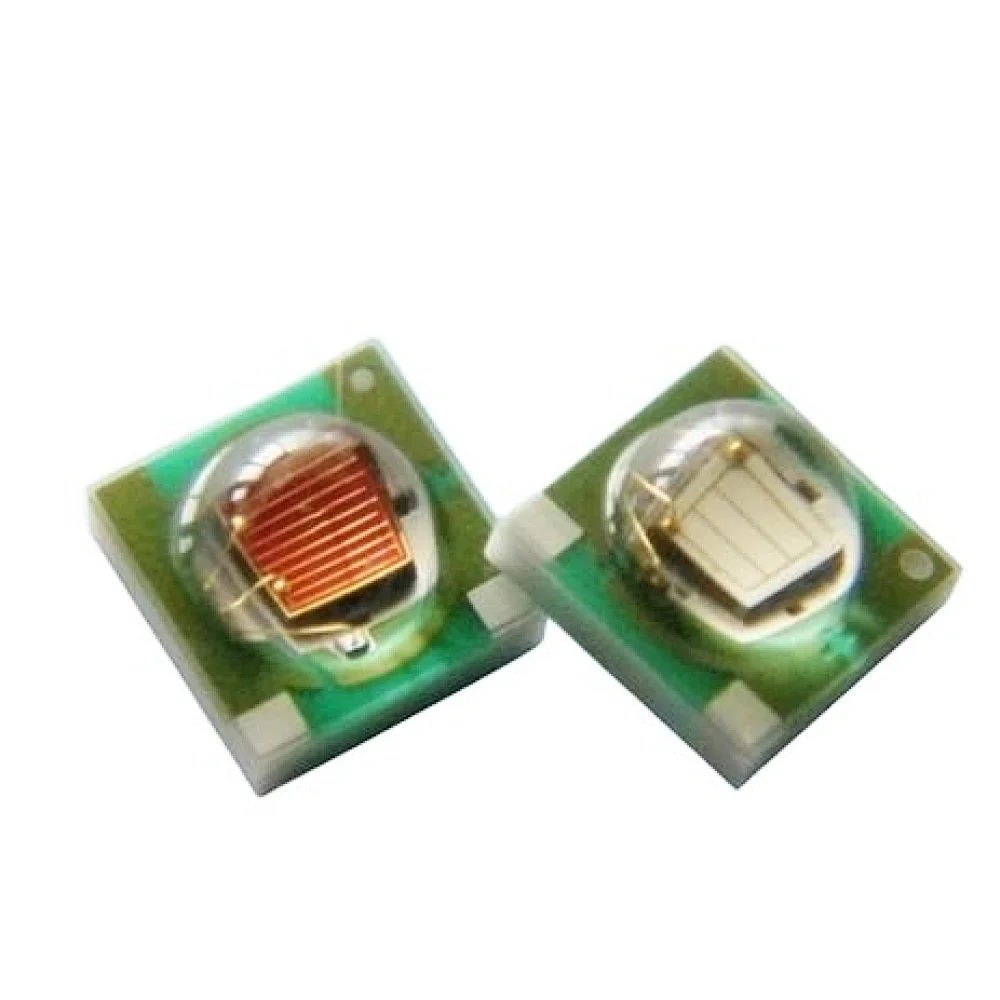

Ceramic substrate Infrared 850nm 3w chip Epiled 120degree angle 3535 SMD LED Chip
Ceramic substrate Infrared 850nm 3w chip Epiled 120degree angle 3535 SMD LED Chip

Ceramic substrate Infrared 850nm 3w chip Epiled 120degree angle 3535 SMD LED Chip

Model NO.
R3535IR850GH42L
Price:
$ 0.24-0.27 / piece
Minimum order quantity:
1 piece
Quantity:
  • Color Temperature(CCT):850nm
  • Input Voltage(V):1.6-2V
  • Warranty(Year):2-Year
  • Type:SMD LED
  • Support Dimmer:No
  • Lighting solutions service:3535 IR 850nm led
  • Luminous Efficacy(lm/w):1
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Product Weight(kg):0.001
  • Chip Material:AlGaInP
  • Emitting Color:IR
  • Luminous Intensity:1, 300-500mW
  • Luminous Flux(lm):1
  • Optical Attenuation(%):3
  • Power:1W, 3W
  • Power Dissipation:1
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):70
  • Color Temperature:850nm
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Product name:3535 LED diode EMC frame infrared 850nm 3W chip 45mil 120 degree angle
  • Wavelength:850NM
  • Chip Brand:Epileds chip 45mil

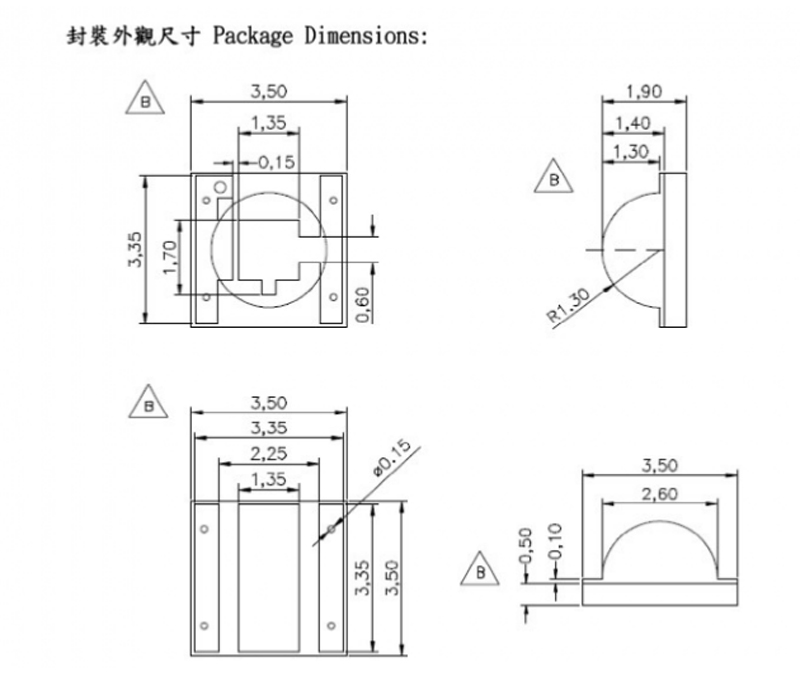

  • Size:3.5*3.5*1.9mm
  • Warranty:2 Years
  • Viewing Angle:120 degree
  • Lifespan:30000 Hours
  • Package:1000pcs/Roll or 3000pcs/Roll
  • LED type:IR 850nm SMD 3535 LED diode

3535 LED diode EMC frame infrared 850nm 3W chip 45mil 120 degree angle

Product data:

Name3535 LED diode EMC frame infrared 850nm 3W chip 45mil 120 degree angle
LED typesmd 3535 ir led
Wavelength850NM
Voltage1.6-2.0V
Current350mA / 700mA

Packaging & Shipping

The packing way of product 3535 LED diode EMC frame infrared 850nm 3W chip 45mil 120 degree angle

Inner packing: by roll, 1000pcs or 3000pcs per roll

Outer packing: by cartons

Shipping (Important)

1.We ship worldwide.

2.Item will be shipped out 2-5 business days from Guangdong by DHL/FedEX/TNT/UPS/EMS after full payment received.

DHL Lead Time is 3-7 days.
FedEX Lead Time is3-10 days.
UPS Lead Time is 3-10 days.
TNT Lead Time is 5-15 days.
EMS Lead Time is 10-20 days.
Other countries or romote areas may take longer.We would be with you to reslove the case,please trust us.we will provide best service with honest attitude.
Application for face recognition, iris recognition, fingerprint recognition, voiceprint recognition and so on.
