- Color Temperature(CCT):6000-7000K
- Input Voltage(V):3.0-3.6v
- Warranty(Year):2-Year
- Type:SMD LED
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):100
- Lifespan (hours):30000
- Working Time (hours):30000
- Chip Material:AlGaInP
- Emitting Color:Cool white
- Luminous Intensity:23-25lm
- Luminous Flux(lm):23-25lm
- Optical Attenuation(%):1
- Power:0.2w, 0.2W
- Power Dissipation:0.1
- Viewing Angle(°):120
- Color Rendering Index(Ra):80
- Color Temperature:6500-7500K
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 60
- Place of Origin:China
- Brand Name:cspring
- Name:white smd led 5050 0.2w chip 20-24lm 3 chips
- Size:5.0*5.0MM
- Chip qty:3 chips
- Voltage:3.0-3.6v
- current:60mA

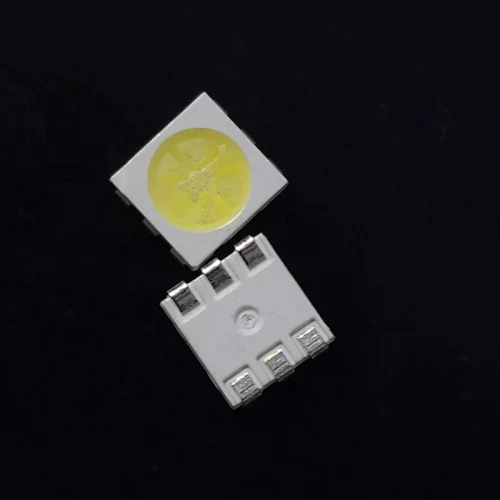

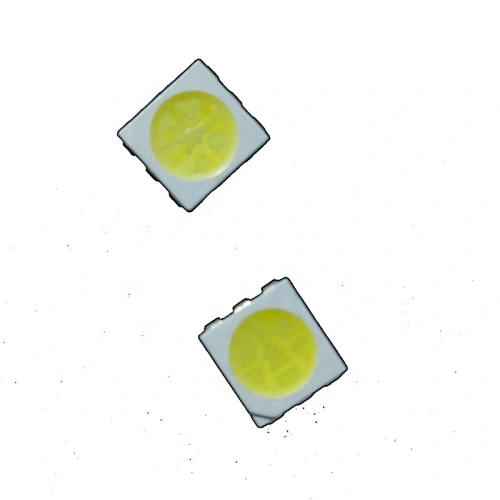

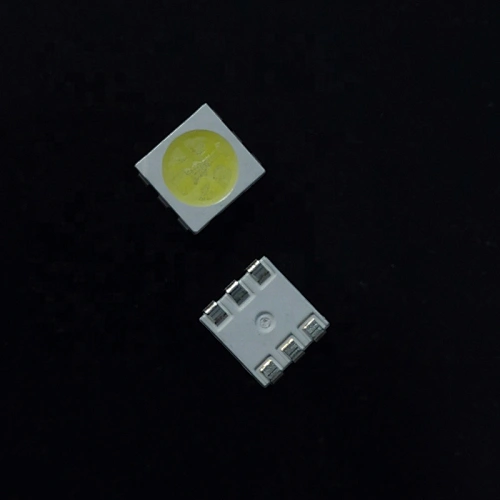

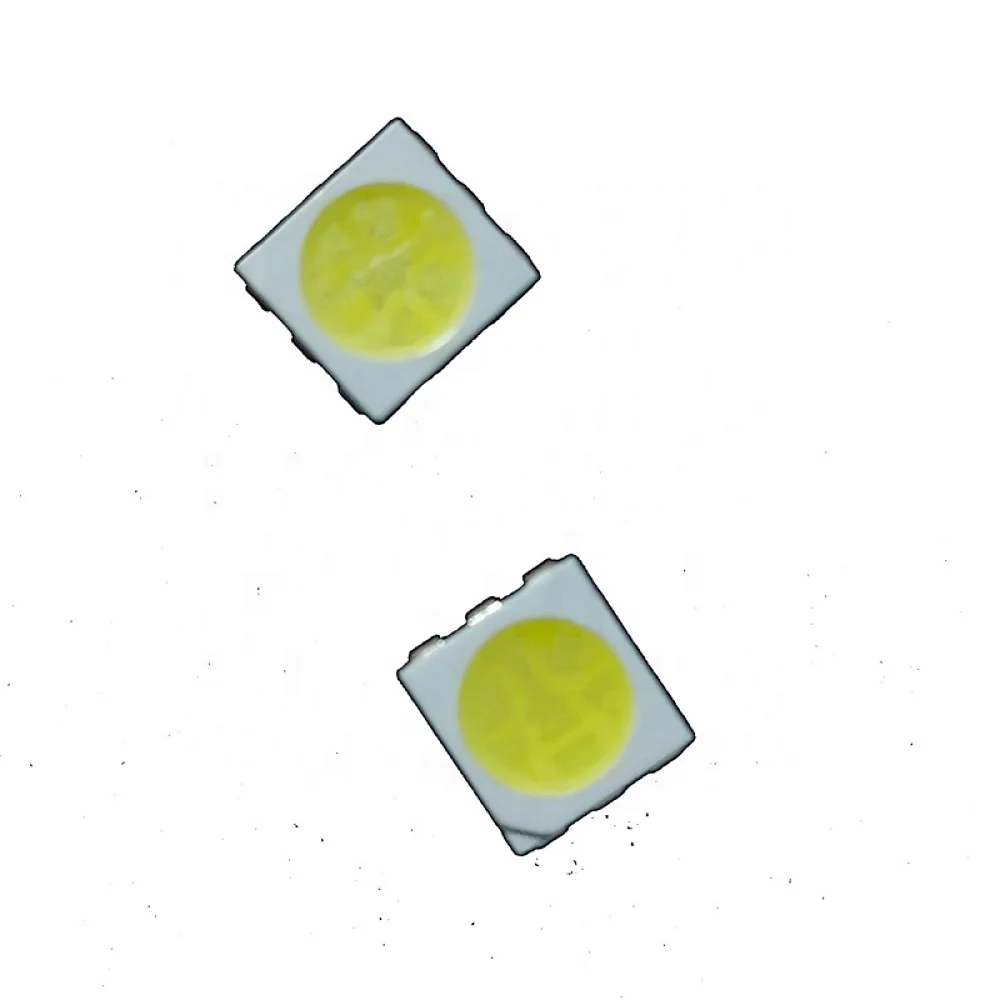

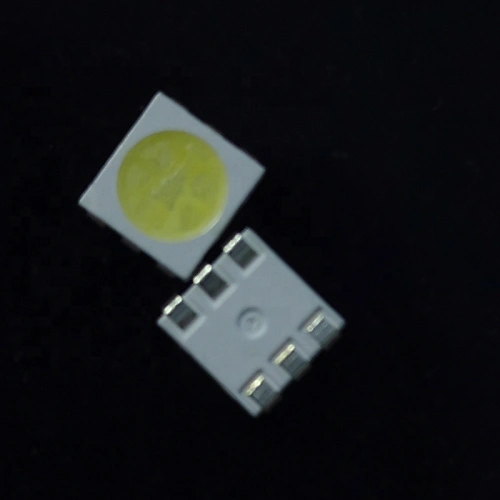

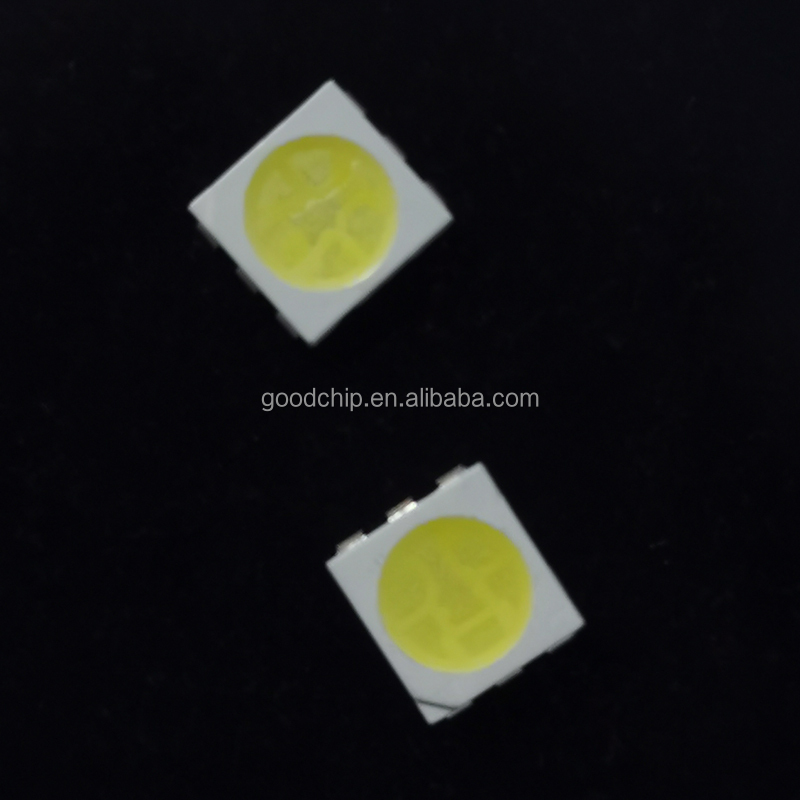

white smd led 5050 0.2w chip 20-24lm 3 chips
Descriptions:
The PLCC6 5050 Series 3chips White Surface High Brightness White type SMD LED is available in Cool White, Pure White, Warm White, etc.
Utilizing advanced InGaN chip technology. The PLCC6 5050 Series 3chips White Surface High Brightness White type SMD LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission
The low current requirement makes the device ideal for portable equipment or other application where power is at a premium.
Features:
Longer Life Span
PLCC6 package
Faster Turn-on time
High flux output
High current capability
Lower Maintenance Cost
White package
Optical indicator
Colorless clear window
Ideal for backlight and light pipe application
Inter reflector
Wide Viewing Angle
Suitable for automatic placement requipment
Suitable for reflow and wave solder processes
Available on tape and reel (12mm tape)
Applications:
Indicator and backlight for audio and vedio equipment
Indicator and backlight for office and family equipment
Flat backlight for LCD's, switches and symbols
Light pipe application
General use
