- Color Temperature(CCT):R: 620-630nm G:520-530nm B:460-475nm
- Input Voltage(V):R:1.8-2.4v G:3.0-3.4v B:3.0-3.4v
- Warranty(Year):2-Year
- Type:SMD LED
- Support Dimmer:YES
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):5
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:Tri-Color(Red-Blue-Green)
- Luminous Intensity:R:1000-1200mcd G:2300-2800mcd B:500-600mcd
- Optical Attenuation(%):3
- Power:0.06W
- Power Dissipation:0.06
- Viewing Angle(°):120 Degree
- Color Rendering Index(Ra):75
- Color Temperature:R: 620-630nm G:520-530nm B:460-475nm
- Operating Temperature(℃):-25 - 80
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:Cspring
- Product name:High brightness Outdoor IP68 Screen Display SMD RGB LED 3535
- Lifespan:50000 Hours
- Chip Brand:Taiwan or USA Chip
- Warranty:2 years
- Voltage:R:1.8-2.4v G:3.0-3.4v B:3.0-3.4v
- Size:3.5*3.5*2.8mm
- Forward Current:20mA
- Packing:3000pcs/roll
- Application:Out led display, LED backlight, etc.
- Key Word:3535rgb smd led

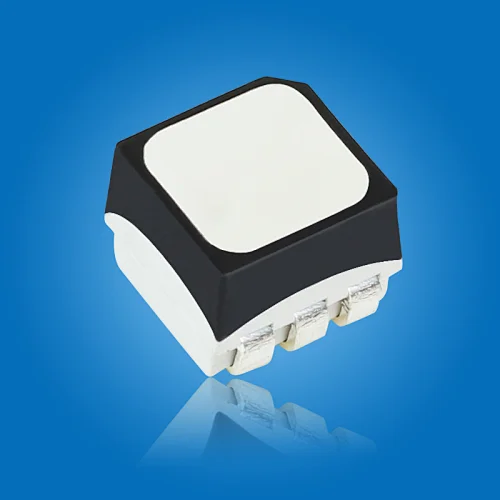

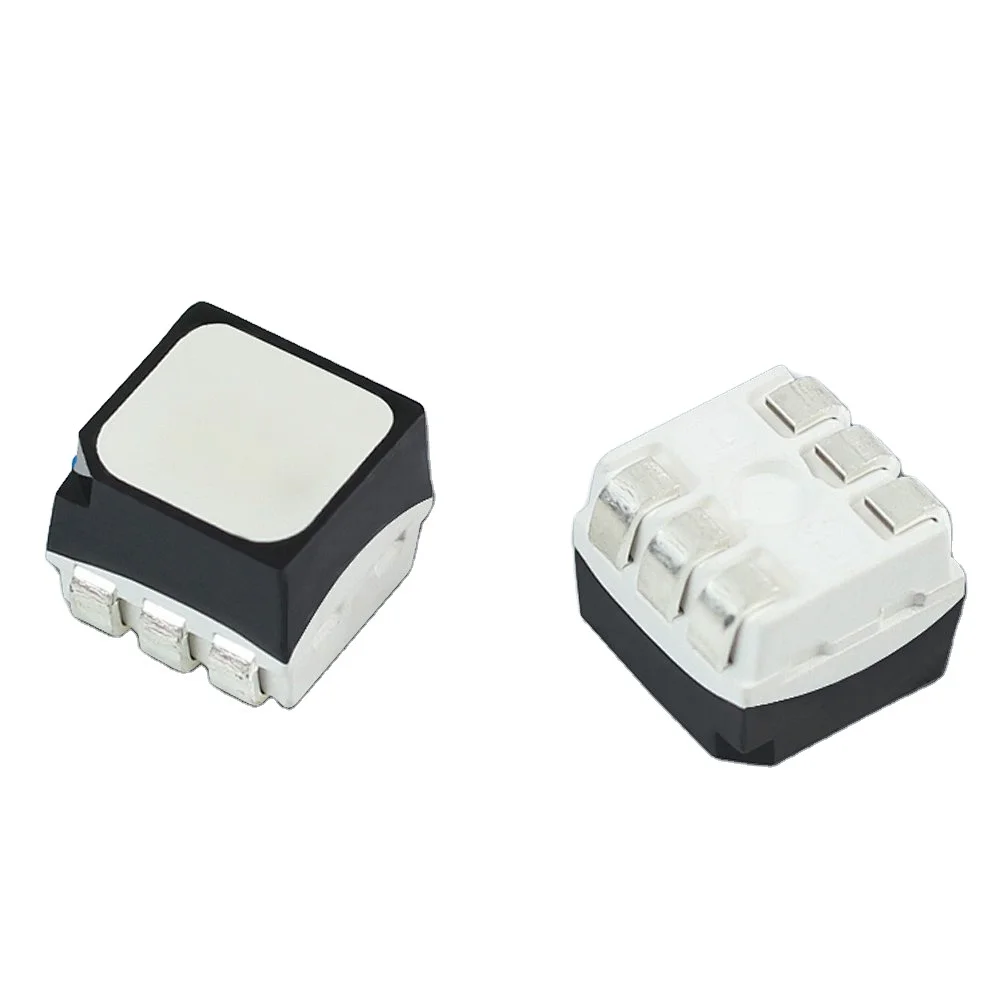

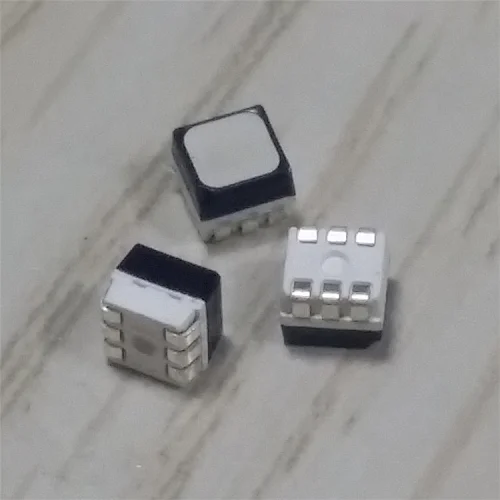

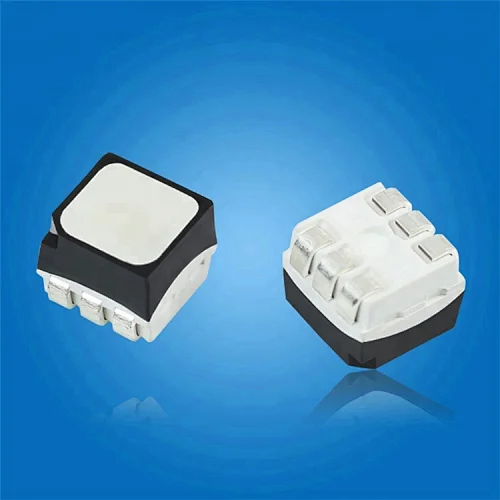

High brightness 3.5*3.5*2.8mm Outdoor IP68 Screen Display SMD RGB LED 3535
Product Data | |
Name | High brightness Outdoor IP68 Screen Display SMD RGB LED 3535 |
Emitting Color | RGB |
Viewing angle | 120 degree |
Forward Current | 20mA |
Size | 3.5*3.5*2.8mm |
Power | 0.06W |
Voltage | R:1.8-2.6v G:2.8-3.6v B:2.8-3.6v |
Wavelength | R: 620-630nm G:520-530nm B:460-475nm |
Lumens | R:1000-1500mcd G:1700-2100mcd B:400-600mcd |
Warranty | 2 years |
Keywords | 3535 led diode smd 3535 led module 3535 smd led datasheet |
(In our offer positive/negative labels placed on the positive direction, from top to bottom, the color scheme for the red-green –blue)
Notes:

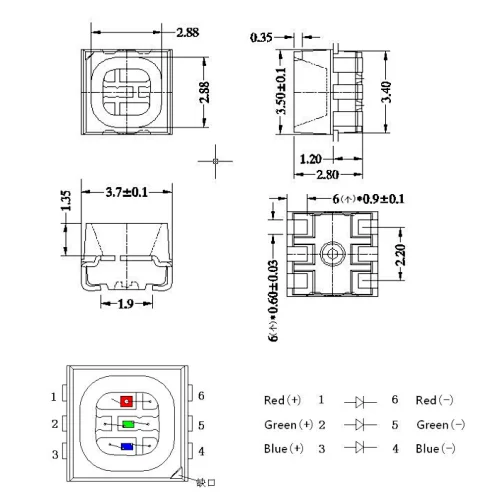

1.All dimension units are millimeters.
2.All dimension tolerance is ±0.2mm unless otherwise noted.
Absolute Maximum Rating
Item | Symbol | Absolute Maximum Rating | Unit | |
Blue/Green/White | Red/Yellow | |||
Forward Current | IF | 20 | 20 | mA |
Peak Forward Current* | IFP | 100 | 100 | mA |
Reverse Voltage | VR | 5 | 5 | V |
Power Dissipation | PD | 75 | 50 | mW |
Electrostatic discharge | ESD | 100 | 2000 | V |
Operation Temperature | Topr | -25-+80 | -25-+80 | ℃ |
Storage Temperature | Tstg | -40-+80 | -40-+80 | ℃ |
Lead Soldering Temperature* | Tsol | Max. 260℃ for 5sec. Max. | ||
*IFP Conditions: Pulse Width≤10msec. and duty≤1/10
* Typical Optical/ Electrical Characteristics
Part No | Luminous Intensity(MCD) | Dominant Wavelength (λd/ nm) | Test Condition | Viewing Angle (Typ.) | Forward Voltage(V) (Typ.) | ||||
Min. | Typ. | Max. | Min. | Typ. | Max. | ||||
Red | 1000 | 1200 | 1500 | 620 | 625 | 630 | IF=20mA | 120 | 1.8-2.6 |
Green | 2300 | 1500 | 2800 | 520 | 525 | 530 | IF=20mA | 2.8-3.6 | |
Blue | 500 | 550 | 600 | 460 | 465 | 475 | IF=20mA | 2.8-3.6 | |
