- Type:High Power LED
- Chip Material:AlGaInP
- Emitting Color:Red
- Luminous Intensity:IR 940nm
- Luminous Flux(lm):IR
- Optical Attenuation(%):3
- Power:5W
- Power Dissipation:5
- Viewing Angle(°):140
- Color Rendering Index(Ra):70
- Color Temperature:940nm
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 60
- Place of Origin:Guangdong, China
- Brand Name:Cspring
- Certification:ce, RoHS
- Name:45mil Chip High Power Led 5W IR 940nm
- Chip brand:Epileds chip 4chips
- Voltage:1.3-1.5V
- Current:1400mA
- Warranty:2 years
- Lifespan:30000-50000 Hours
- Emitting Colour:IR 940nm

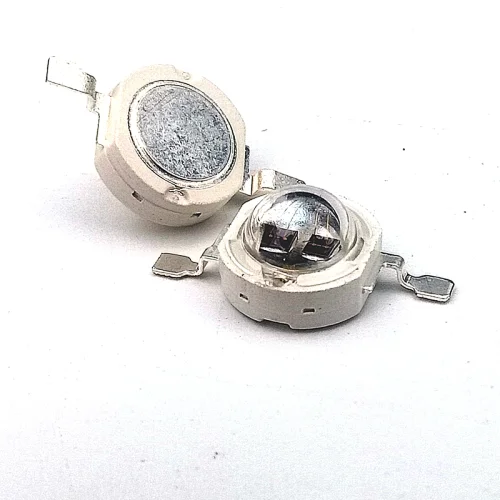

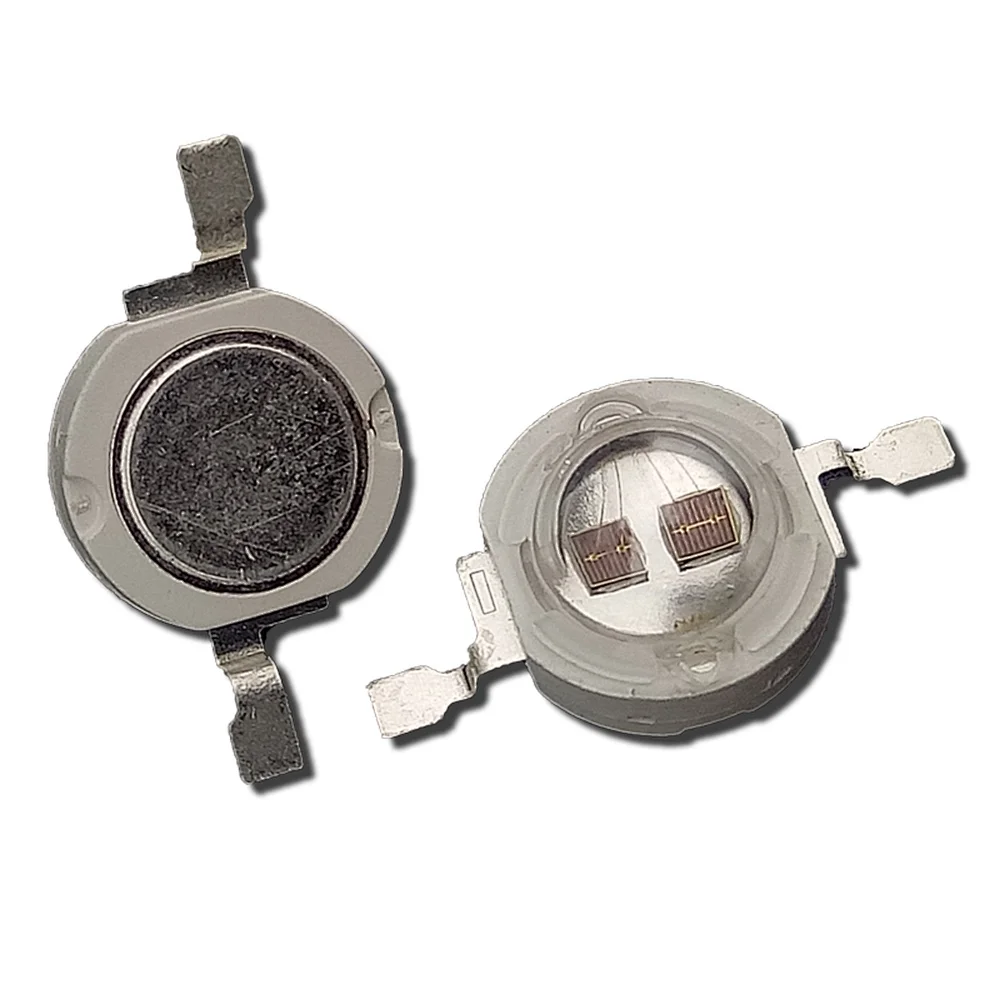

4 Chips High Power Led 5W IR 940nm
Power series is desingned for high current operation and high flux output applications.
Power LED its thermal management perform exceeds then other power LED solutions.
It integrate of the art SMD design and thermal emission material.
Power LED is ideal light sources for general applications,custom designed solutions,and automotive large LCD backlights
Feature:
High quality,high brightness,low-attenuation.
Long lifespan:50000 hours.
Energy-saving and environmental protection.
Large light emitting angle.
2 years warranty.
Can be applied to a variety of harsh environments.
High consistency in light color,high cost-effective.
Specification:
Type:High Power LED
Emitting Color: IR
Power: 5W
Luminous Intensity: 200-300mW
Viewing Angle(°):140 degree
Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -20 - 60
Chip brand: Epileds chip
Voltage: 1.3-1.5V
Current: 1400mA
Wavelength: 940nm
Warranty: 2 Years
Lifespan: 30000-50000 Hours
Package: 50pcs/tray
Application:
Wall lamps, underwater lamps, decorative illumination, and more
Underground lamps, reading lamps, emergency lights, and interior illumination
Miner's lamps, flashlights, and car lamps
Traffic signals and indicating lamps
plant growing light
