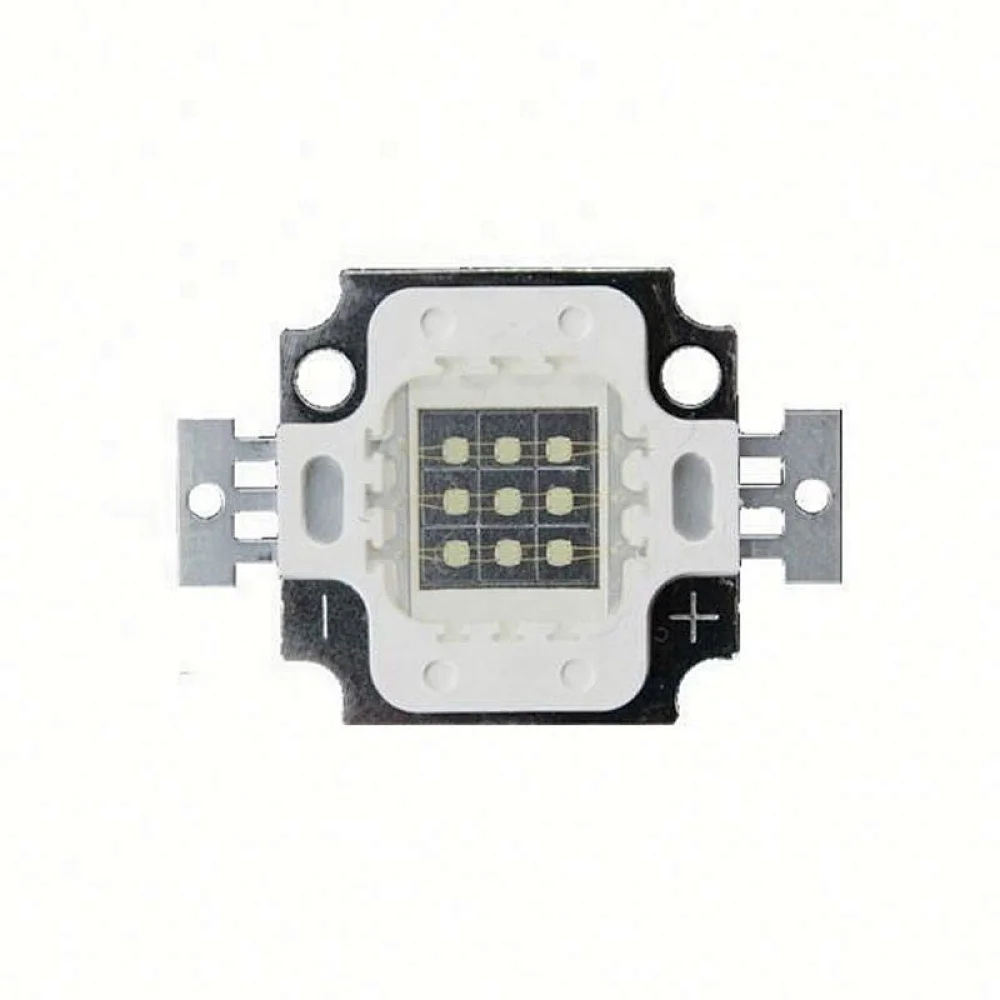

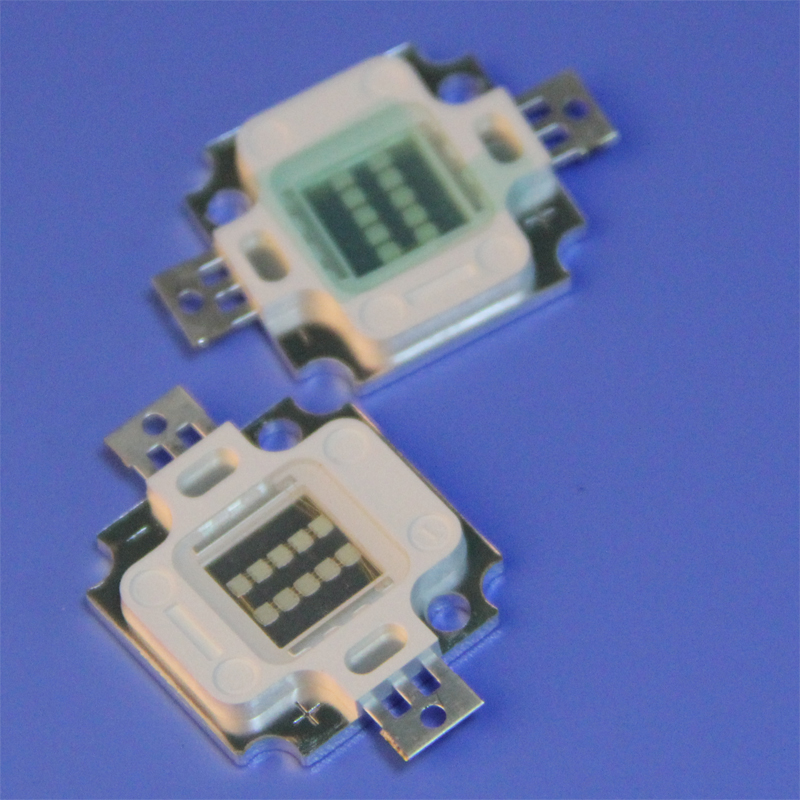

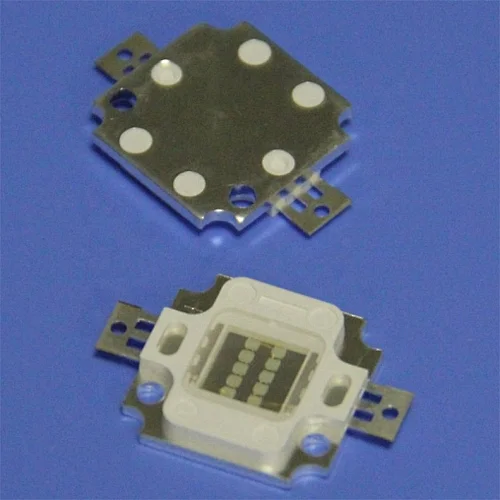

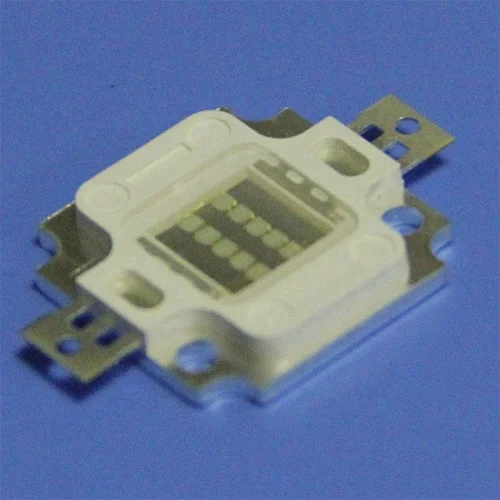

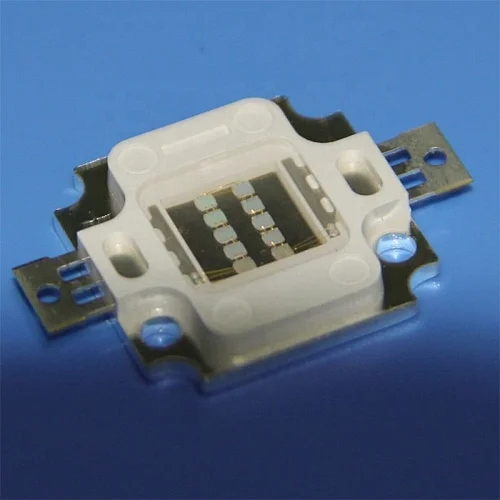

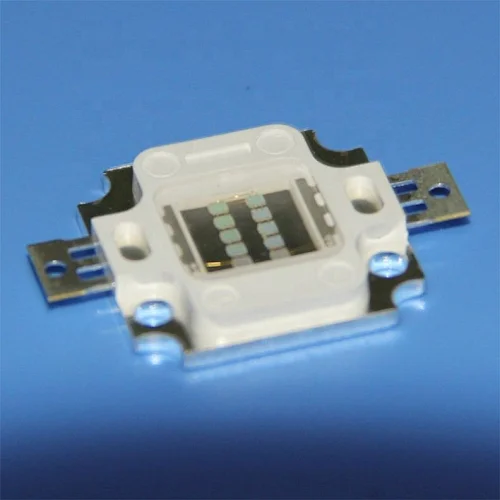

led factory make and sell cob blue 465nm high power 10w led chip
P25WB3410010100
1 piece
Quantity
  • Color Temperature(CCT):460-470NM
  • Input Voltage(V):30~36V
  • Warranty(Year):2-Year
  • Type:High Power LED
  • Support Dimmer:YES
  • Lighting solutions service:Lighting and circuitry design
  • Luminous Efficacy(lm/w):15
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Product Weight（kg）:0.1
  • Chip Material:AlGaInP
  • Emitting Color:Blue
  • Luminous Intensity:10-20lm/w
  • Luminous Flux(lm):100-200lm
  • Optical Attenuation(%):3
  • Power:10w
  • Power Dissipation:10
  • Viewing Angle(°):120
  • Color Rendering Index(Ra):710
  • Color Temperature:450-470nm
  • Operating Temperature(℃):-30 - 60
  • Storage Temperature(℃):-40 - 80
  • Place of Origin:Guangdong, China
  • Brand Name:Cspring
  • Name:led factory make and sell cob blue 465nm high power 10w led chip
  • Current:350mA
  • Voltage:30~36V
  • Warranty:2 Years
  • Lifespan:30000-50000hours
  • Certification:RoHS

Name: led factory make and sell cob blue 465nm high power 10w led chip



Power series is desingned for high current operation and high flux output applications.

Power LED its thermal management perform exceeds then other power LED solutions.

It integrate of the art SMD design and thermal emission material.

Power LED is ideal light sources for general applications,custom designed solutions,and automotive large LCD backlights



Feature:

1.Using standard CRI index to design color points of light.

2.Using thermoelectric separation of substrate,the heat dissipating performance is good.Thermal resistance<2.5℃

3.Small size  to achieve high power efficiency.Easy to use for customers.

4.Super high Flux output and high

5.Adapt to large current circuit

6.Low thermal resistance:12℃/W

7.Wide viewing angle , Integrated package



Specification:

Power: 10W

Luminous flux: 100-200lm

Wavelength: 460-470nm

Current: 350mA

Voltage: 30-36V

Vi ew Angle: 120 degree

Chip: Epistar / Epileds / Sanan / Bridgelux chip



Application:

Traffic control

Night vision etc

Take a photograph

Commercial lighting

Street lamp, tunnel lamp

Flood lights, cast light lamps

Decorative lighting

Architectural lighting

General Lighting
